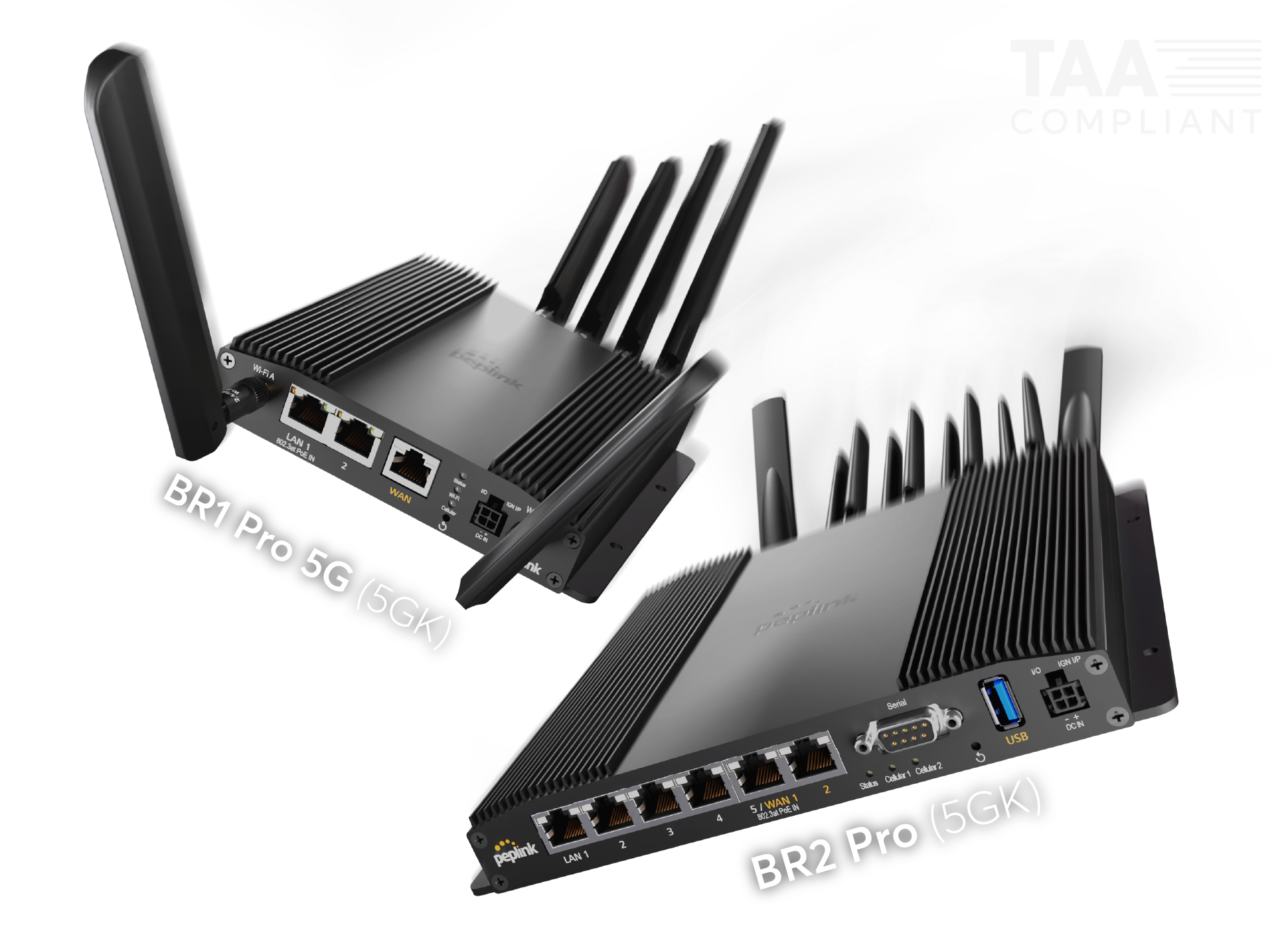

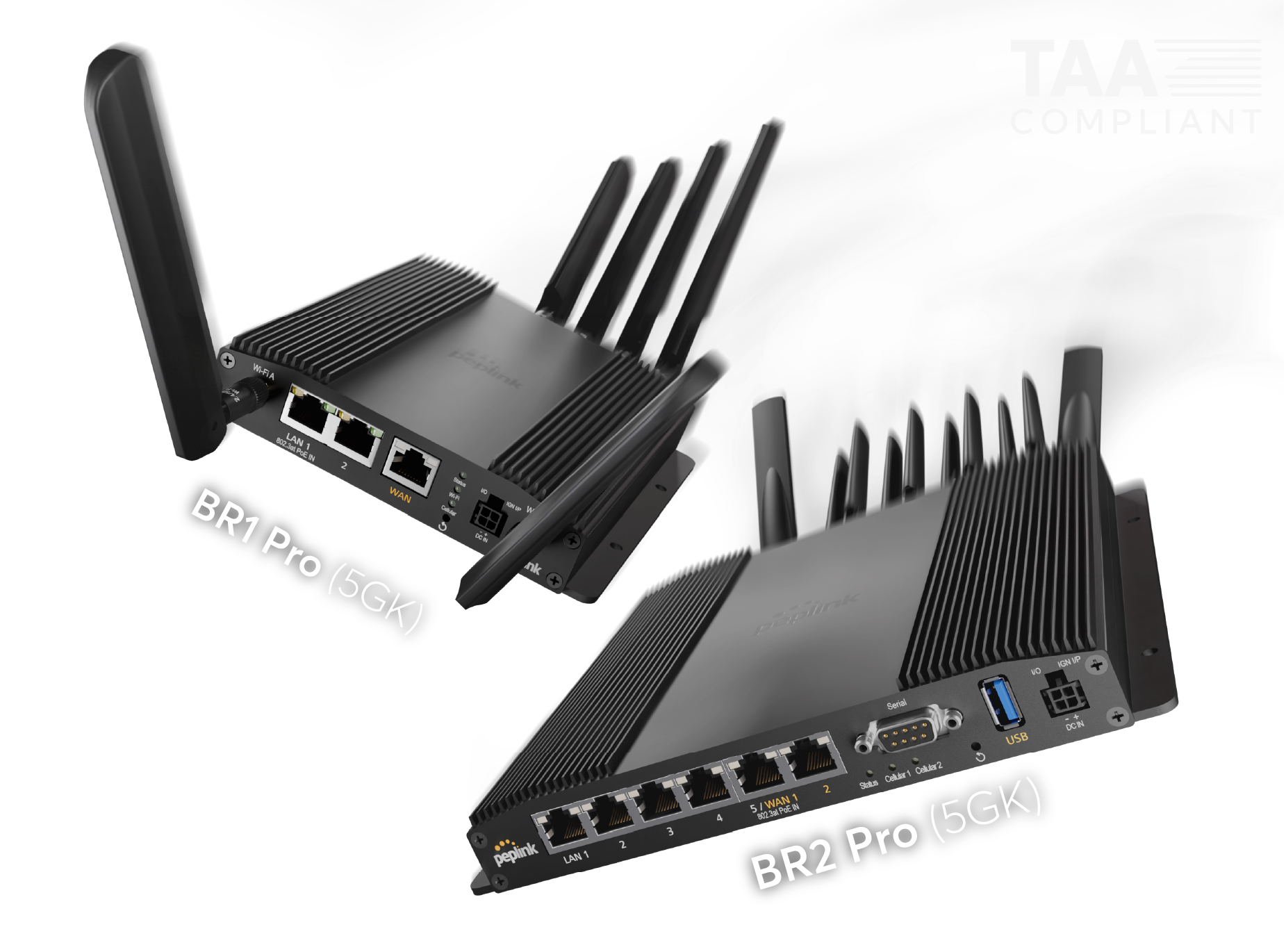

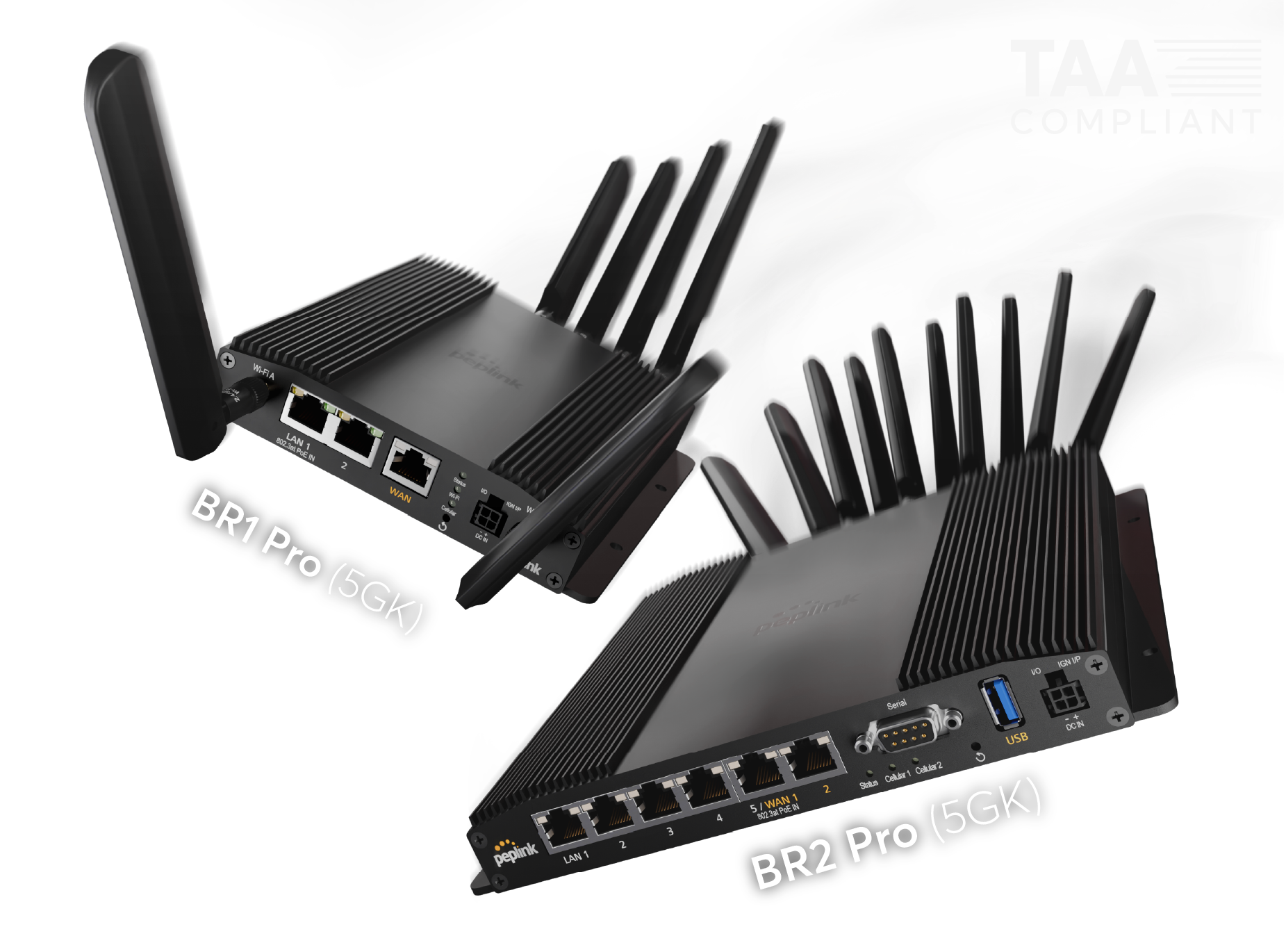

BR Pro Family

The New Benchmark for Professional Connectivity

   
Icon X65 5G Modem
X65 5G Modem
Icon 5G SA Network Slicing
5G SA &
Network Slicing
Icon PoE+ Input
PoE+ Input
Icon Docker Support
Docker Support
Icon Flexible SIM Options
Flexible SIM
Options
Icon SpeedFusion
SpeedFusion

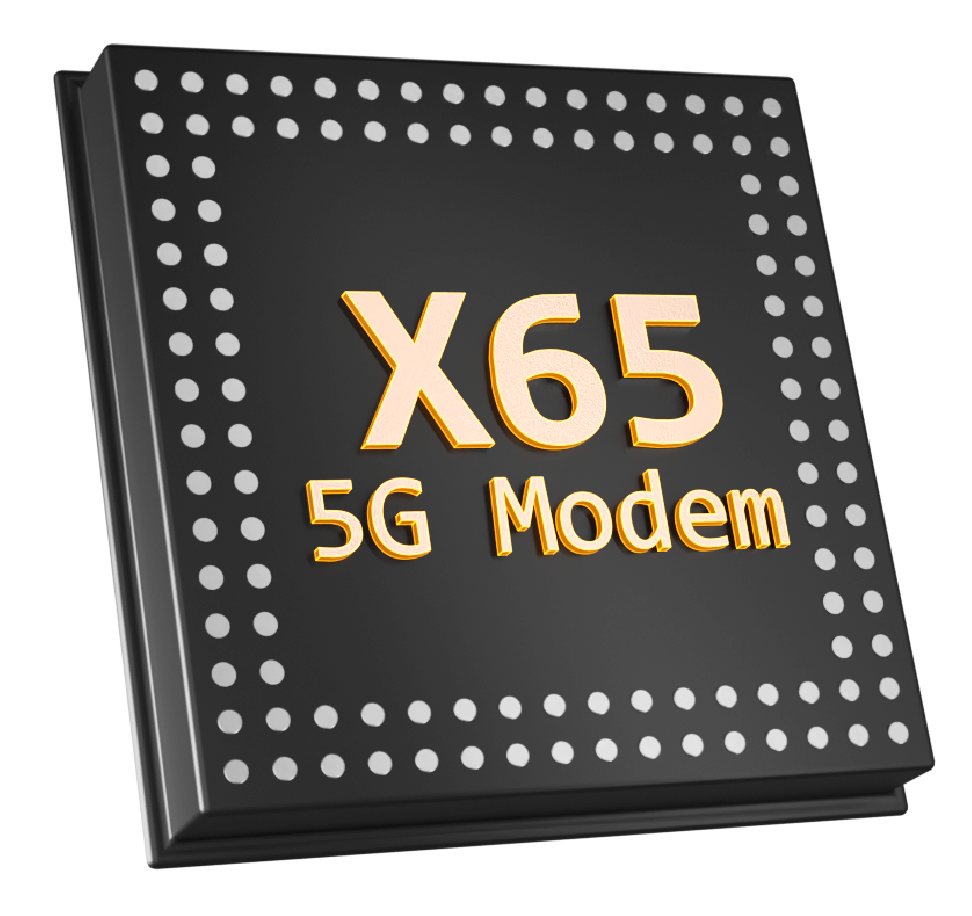

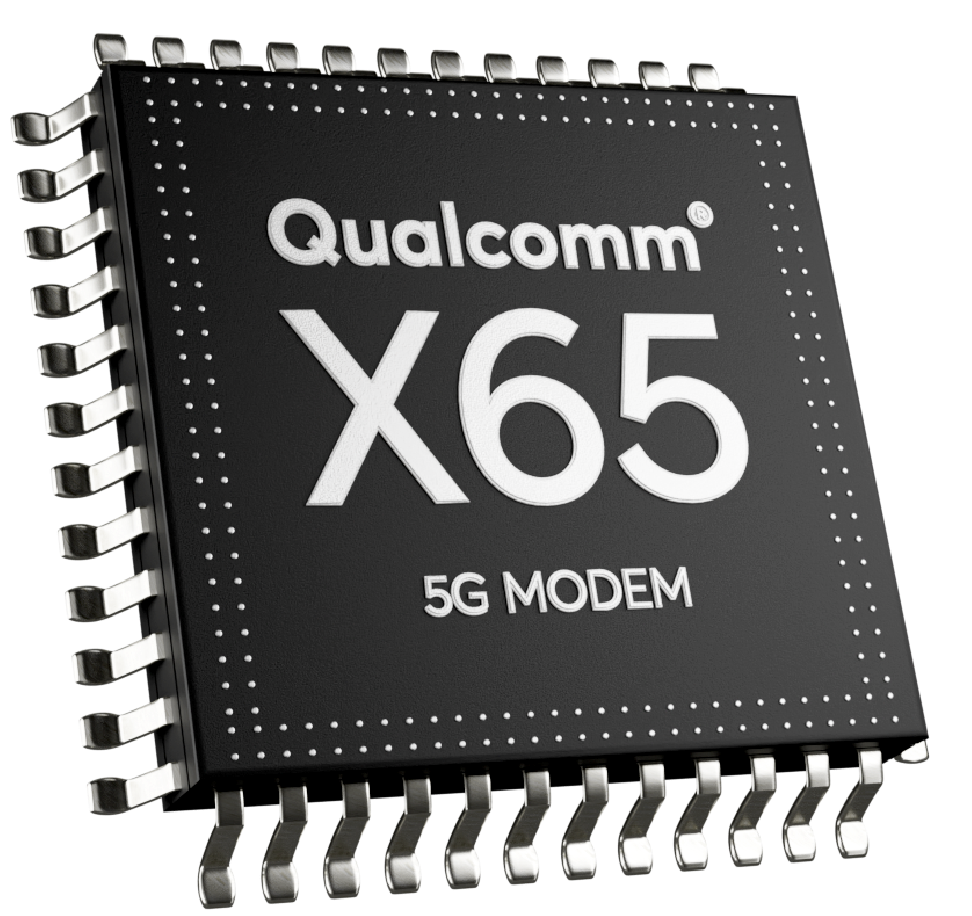

Advanced 5G Performance

Powered by the X65 5G modem, both routers support standalone (SA) and non-standalone (NSA) 5G modes with enhanced carrier aggregation capabilities, delivering increased throughput and faster speeds across public and private 5G networks.

SA Mode Icon 5G Performance-SA Mode
NSA Mode Icon 5G Performance-NSA Mode
LTE Fallback Icon 5G Performance-LTE Fallback
Private 5G Networks Icon 5G Performance-Private 5G Networks
Network Slicing Icon 5G Performance-Network Slicing
P01 - X65 5G Modem
Higher Peak Theoretical Performance
(On sub-6 GHz 5G)
X65 5G Modem
4.1 Gbps
X62 Modem
3.4 Gbps

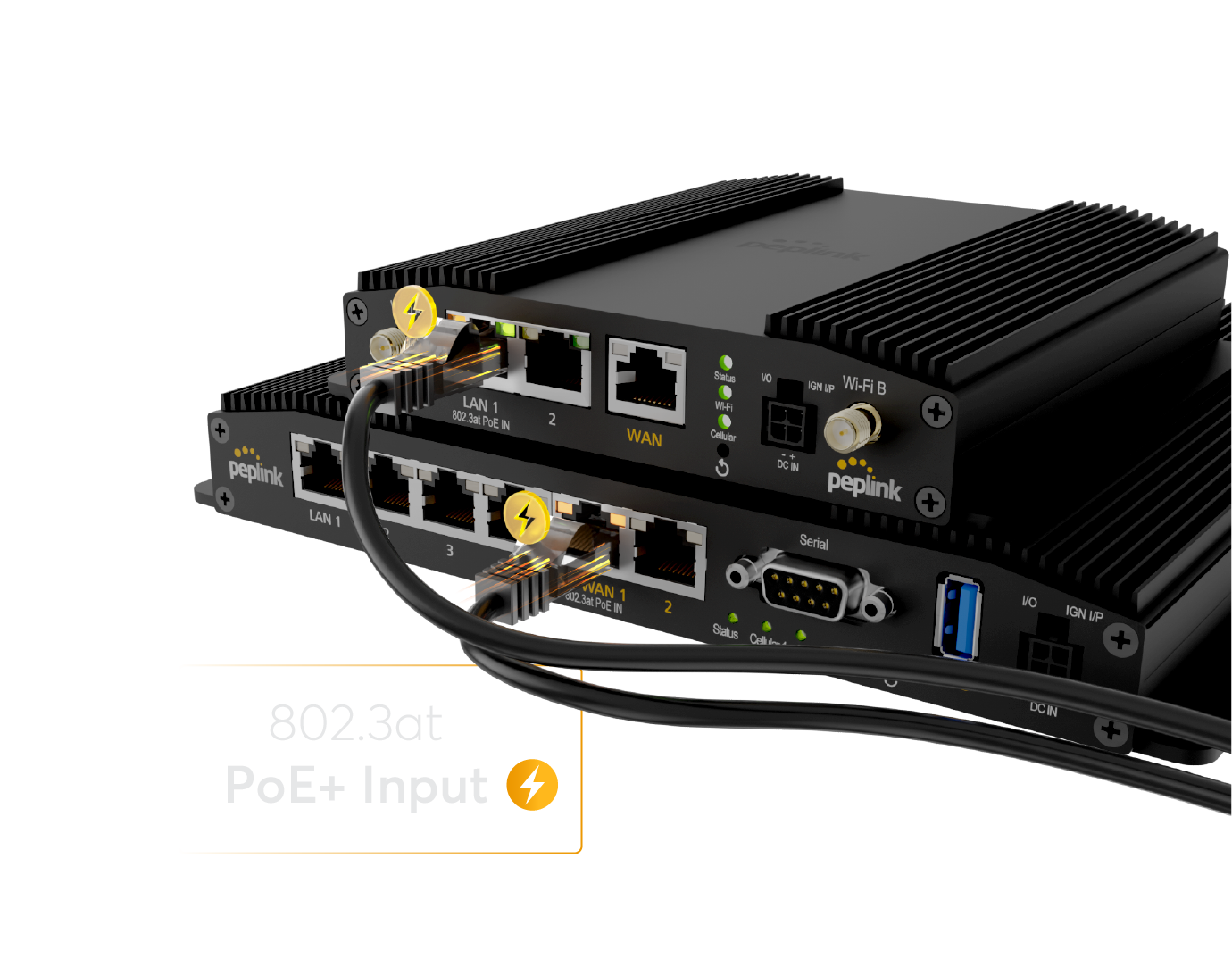

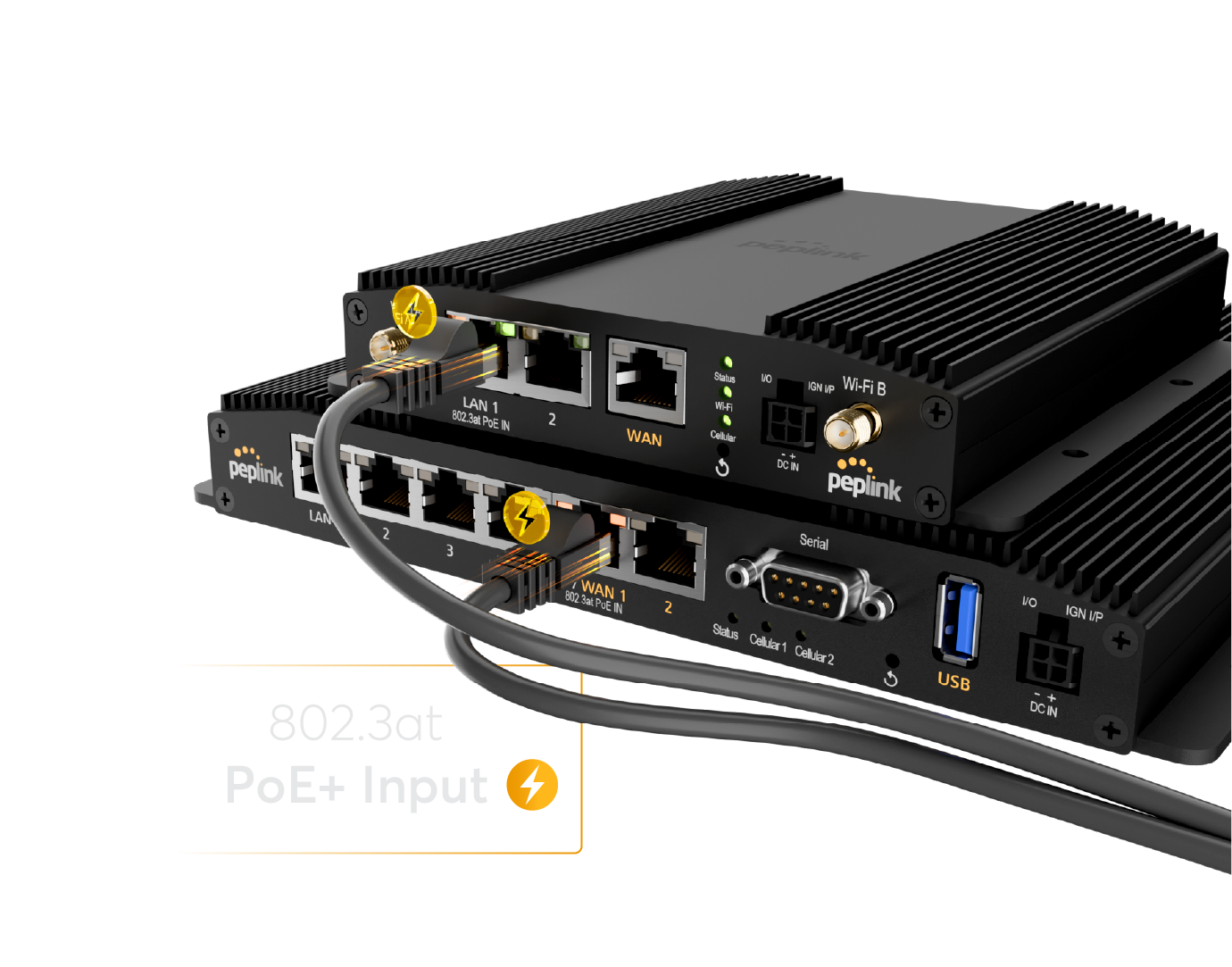

Streamlined, Flexible Deployment with PoE Power Input

Power over Ethernet (PoE) input simplifies installation and cabling, allowing the BR1 to be placed in locations with better signal reception, without needing a nearby power outlet.

P02 - PoE input

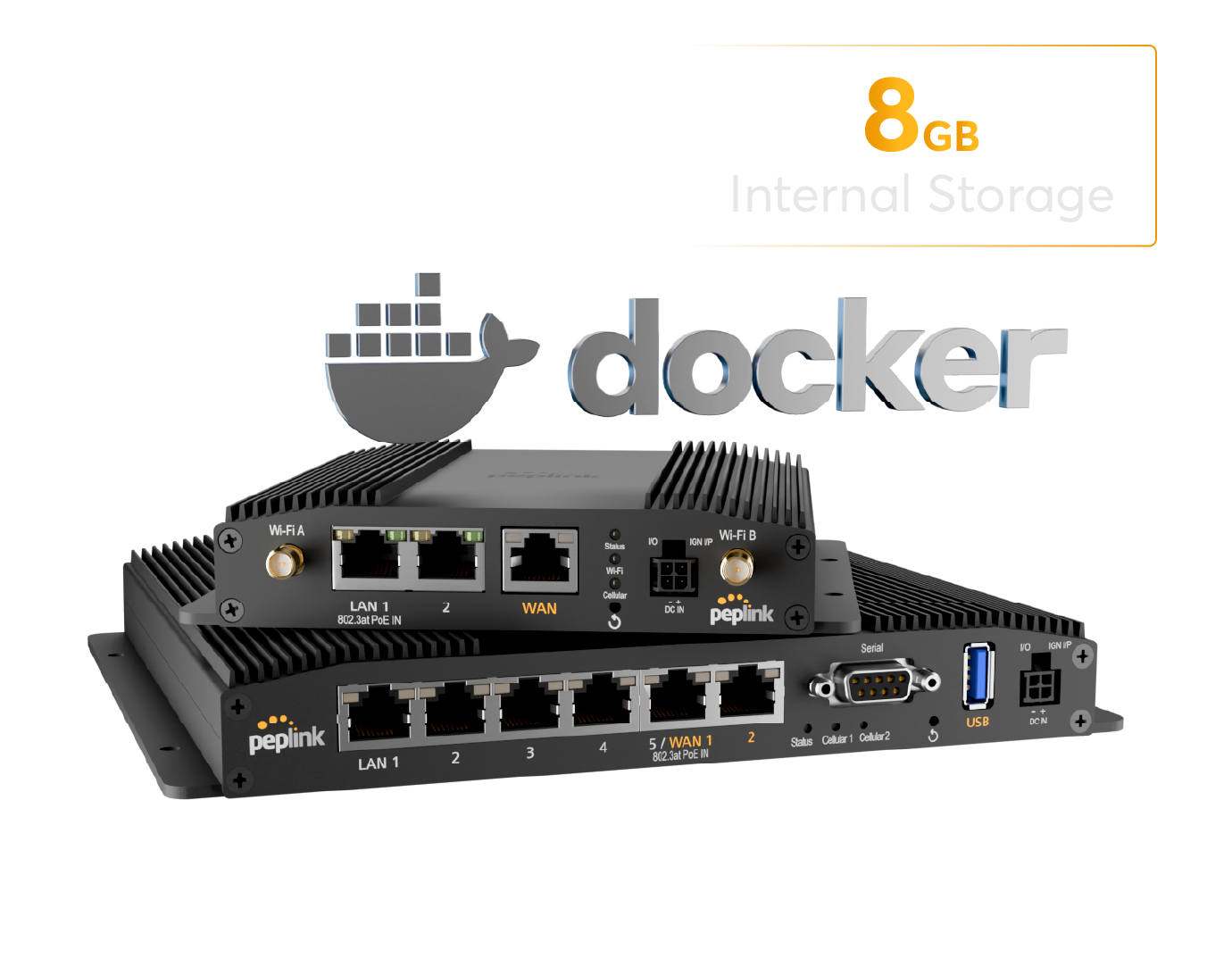

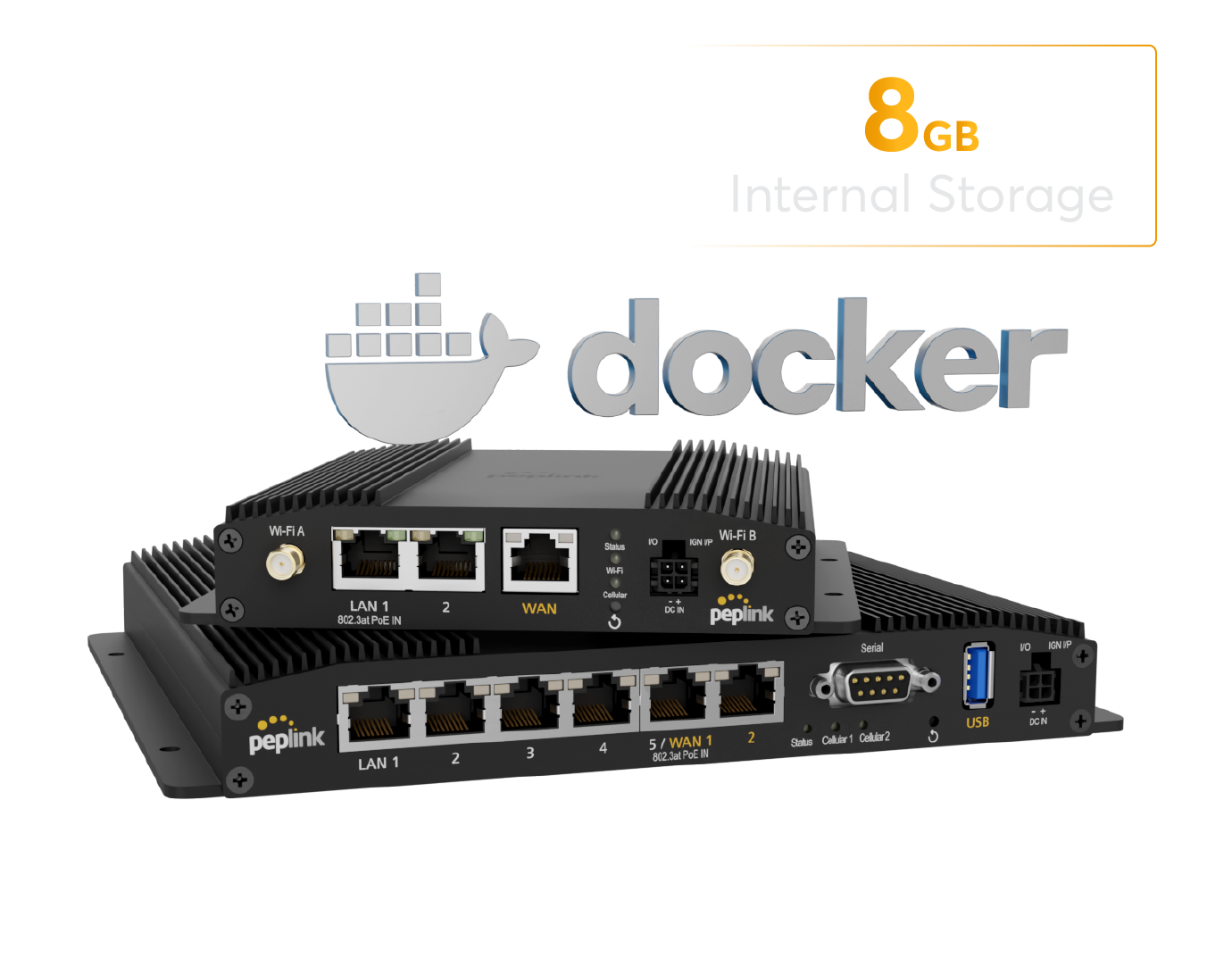

Smarter Operations with Edge Computing

Run custom applications directly on the device with built-in Docker support and onboard storage, enabling agile performance, seamless integration, and streamlined deployment and management.

P03 - Docker Support

Government-Ready: TAA Compliant

Meet federal and government requirements with full TAA compliance for secure and regulated deployments.

P04 - Taa Compliant

Priority for Public Safety

Ideal for public safety environments, both routers carry AT&T FirstNet and T-Mobile T-Priority certifications and are Verizon Frontline verified, ensuring prioritized and reliable connectivity during mission-critical operations.

P05 - Priority Safety

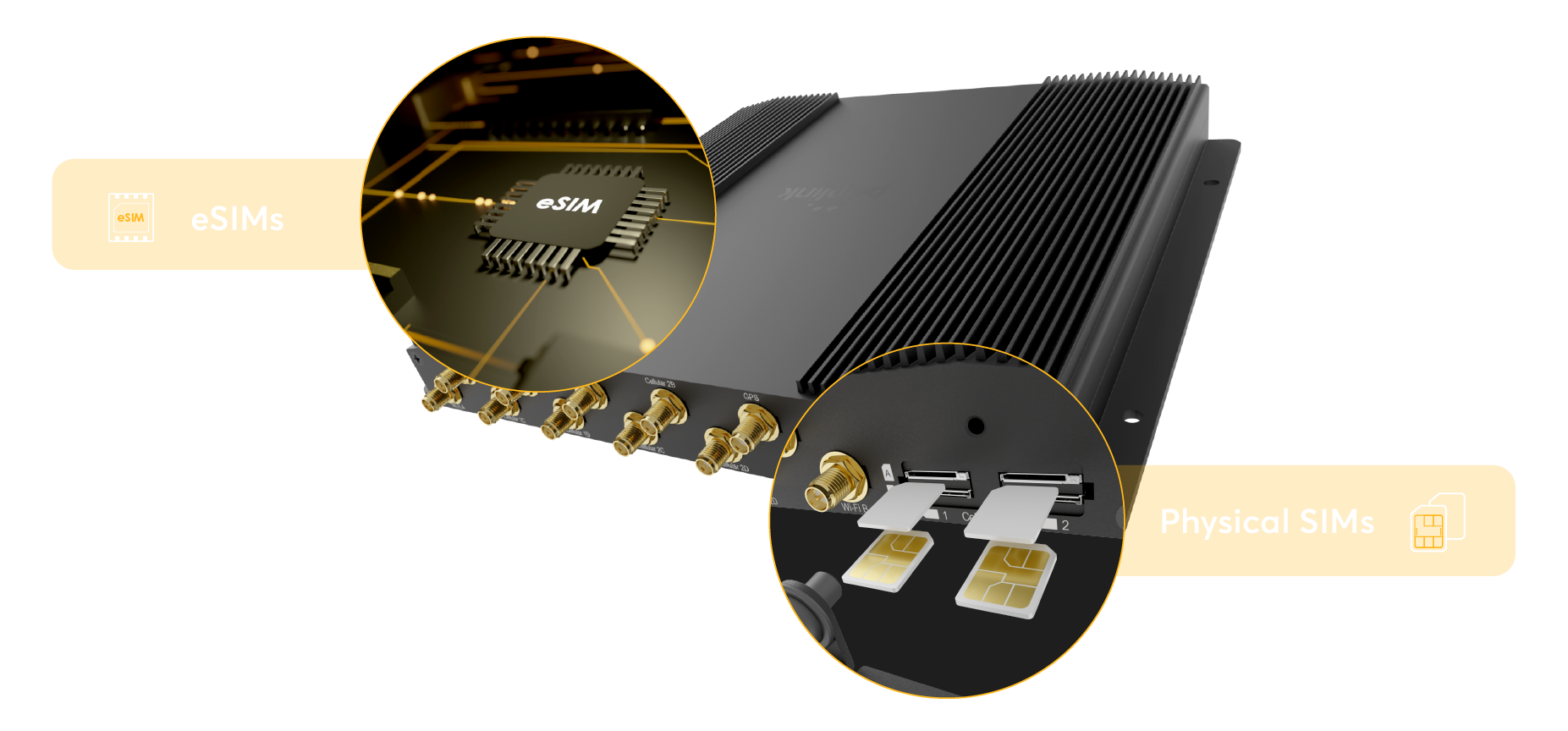

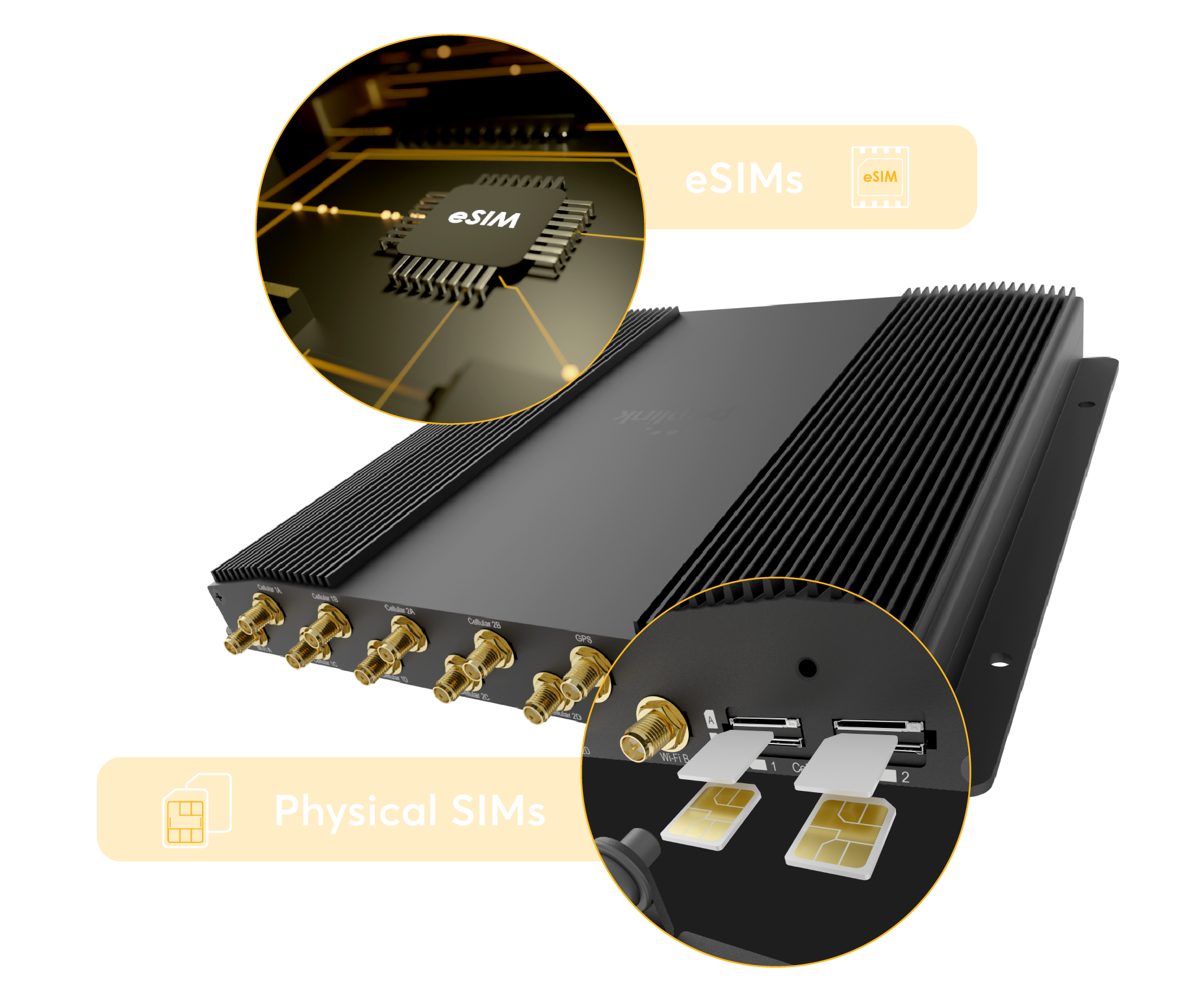

Flexible SIM Choices for Any Situation

Use eSIM for greater efficiency and instant connectivity, with the option to use physical SIMs when needed.

P06 - Flexible Sim P06 - Flexible Sim

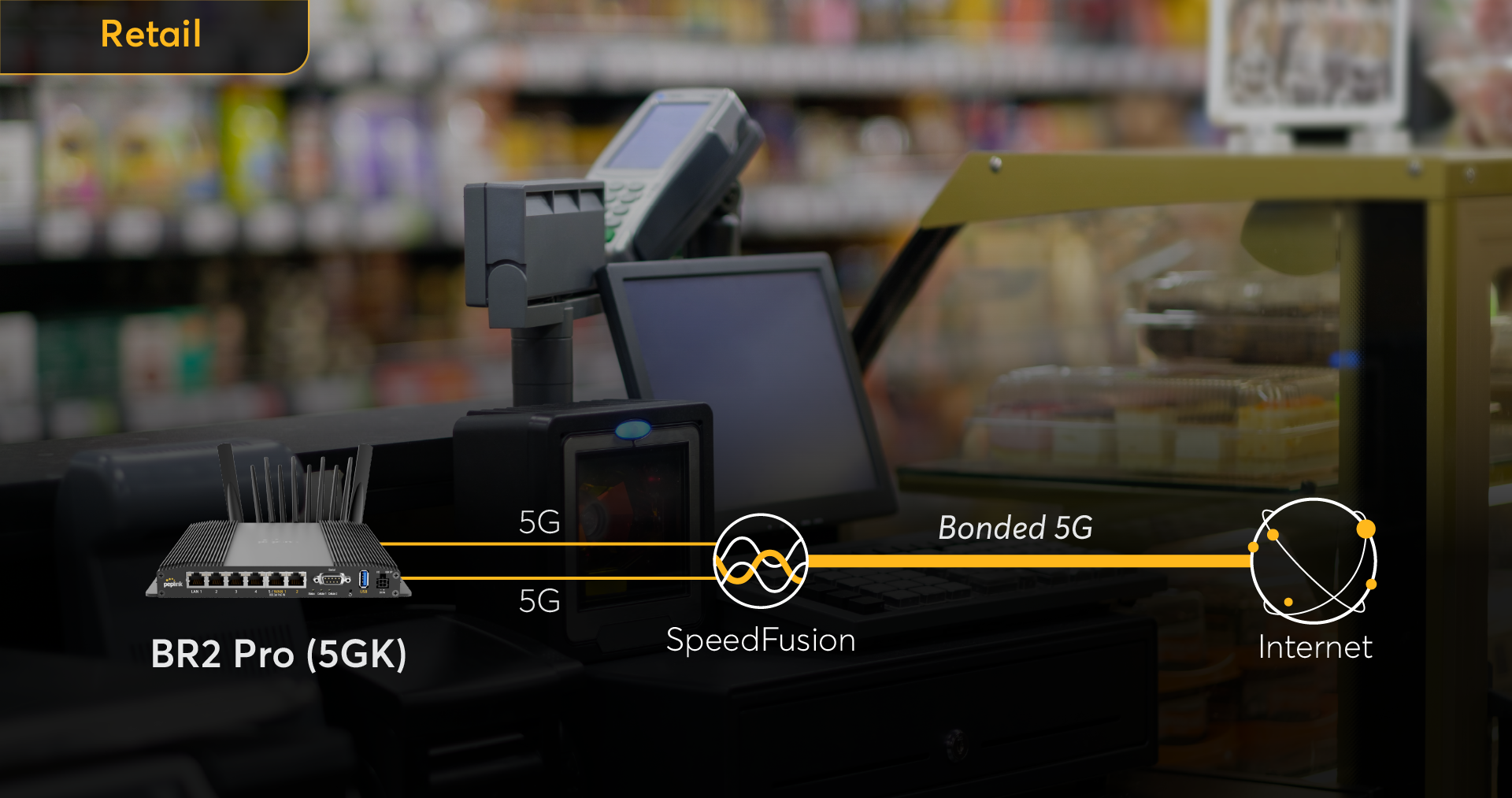

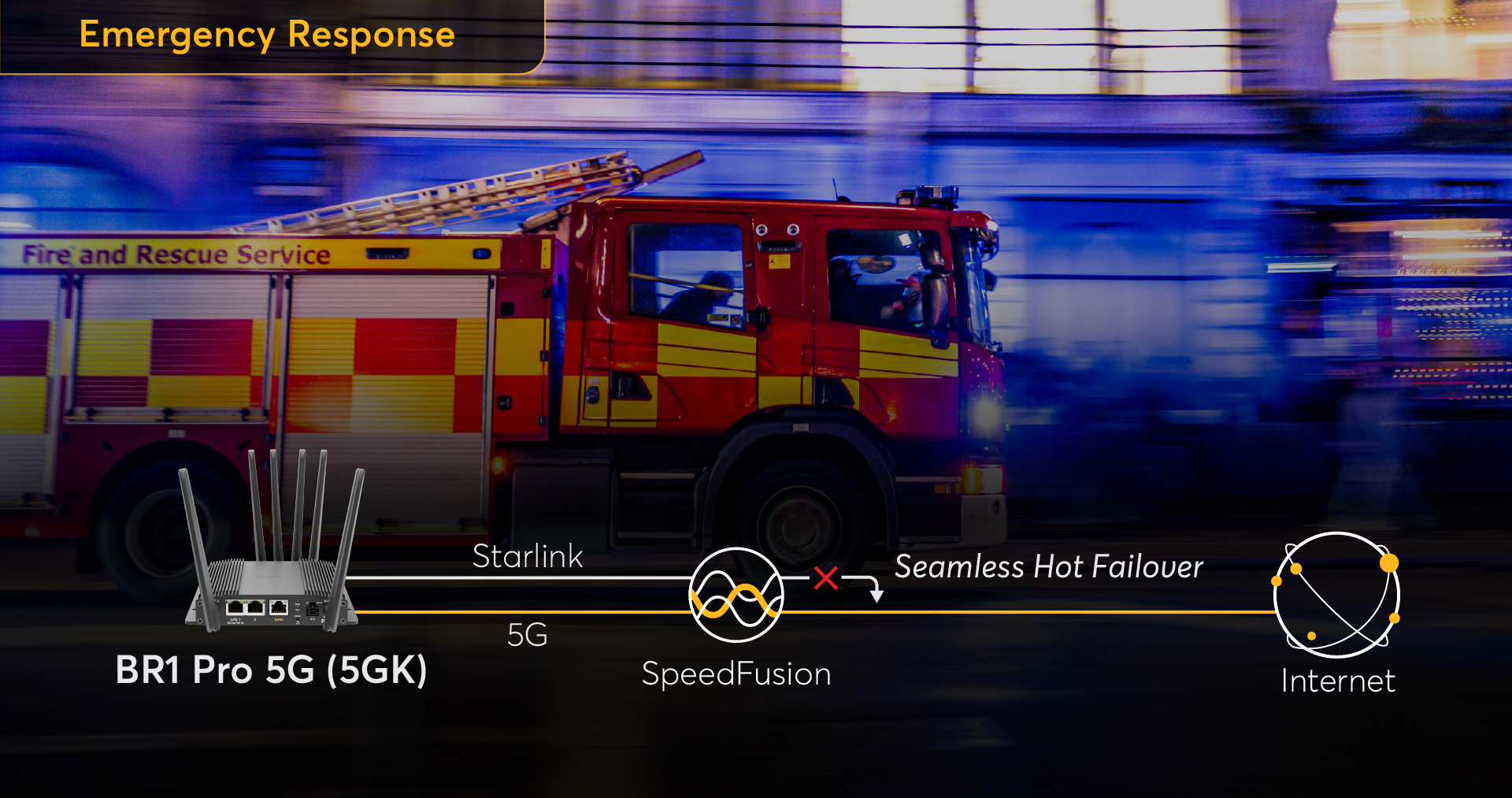

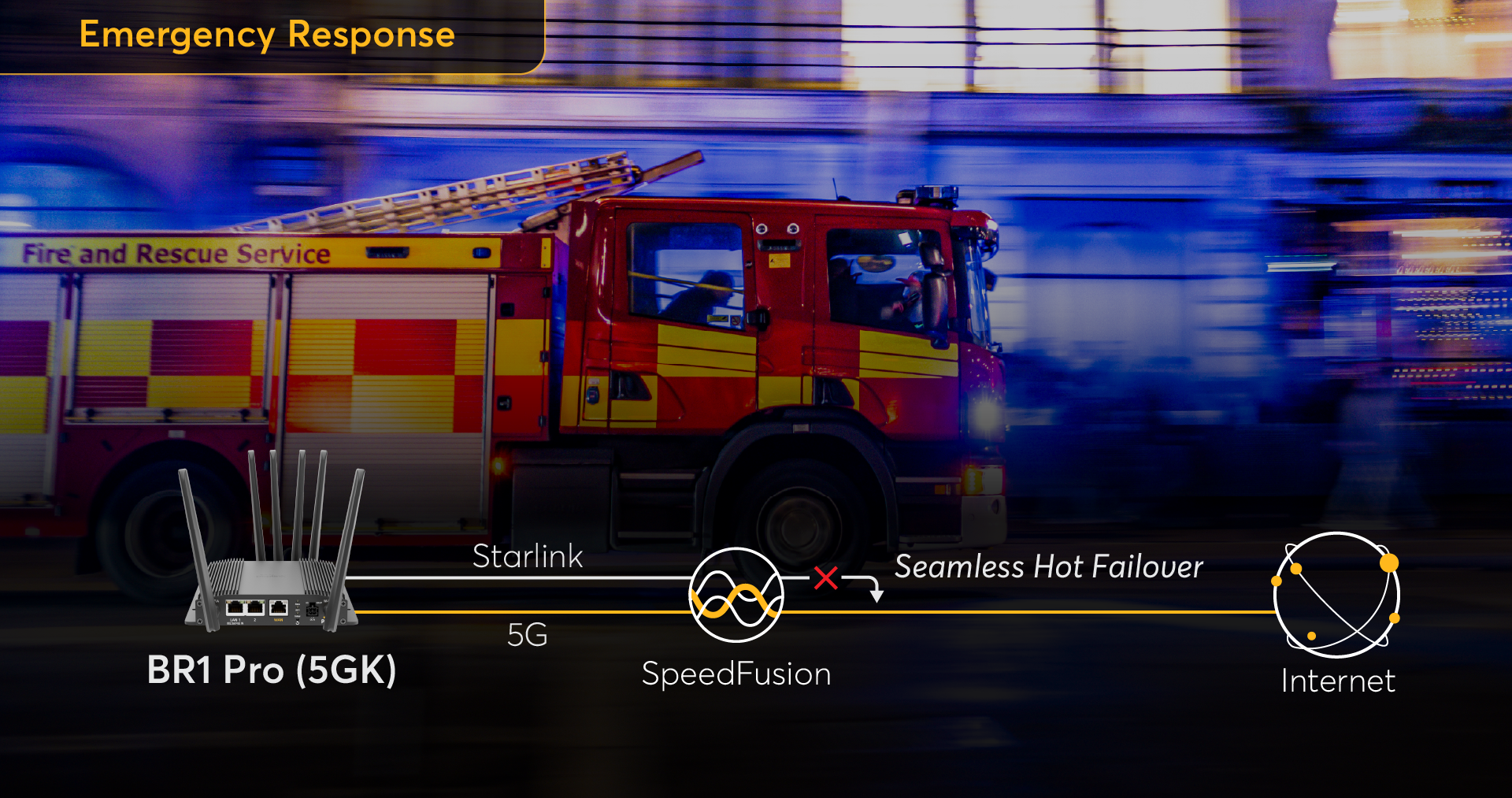

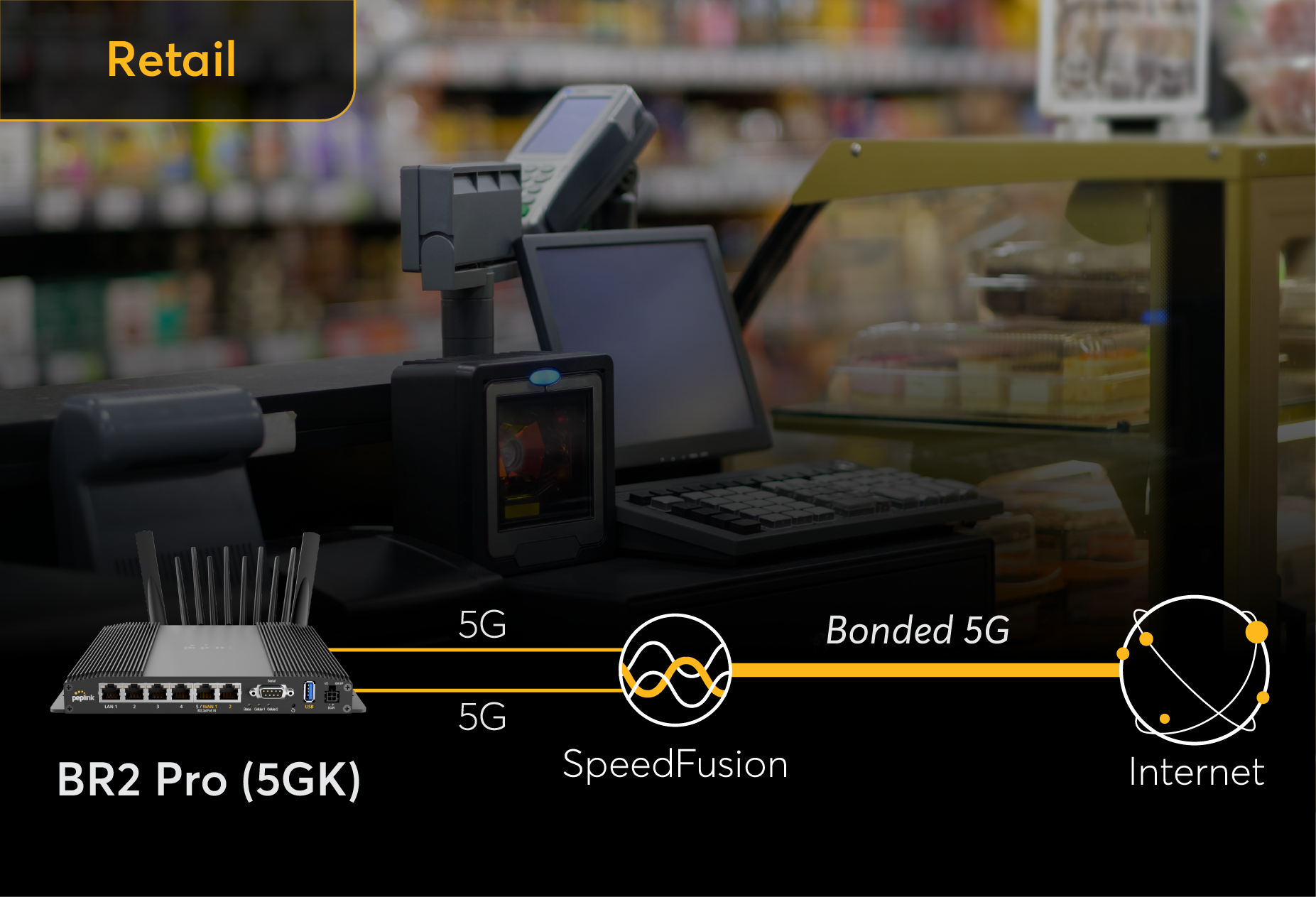

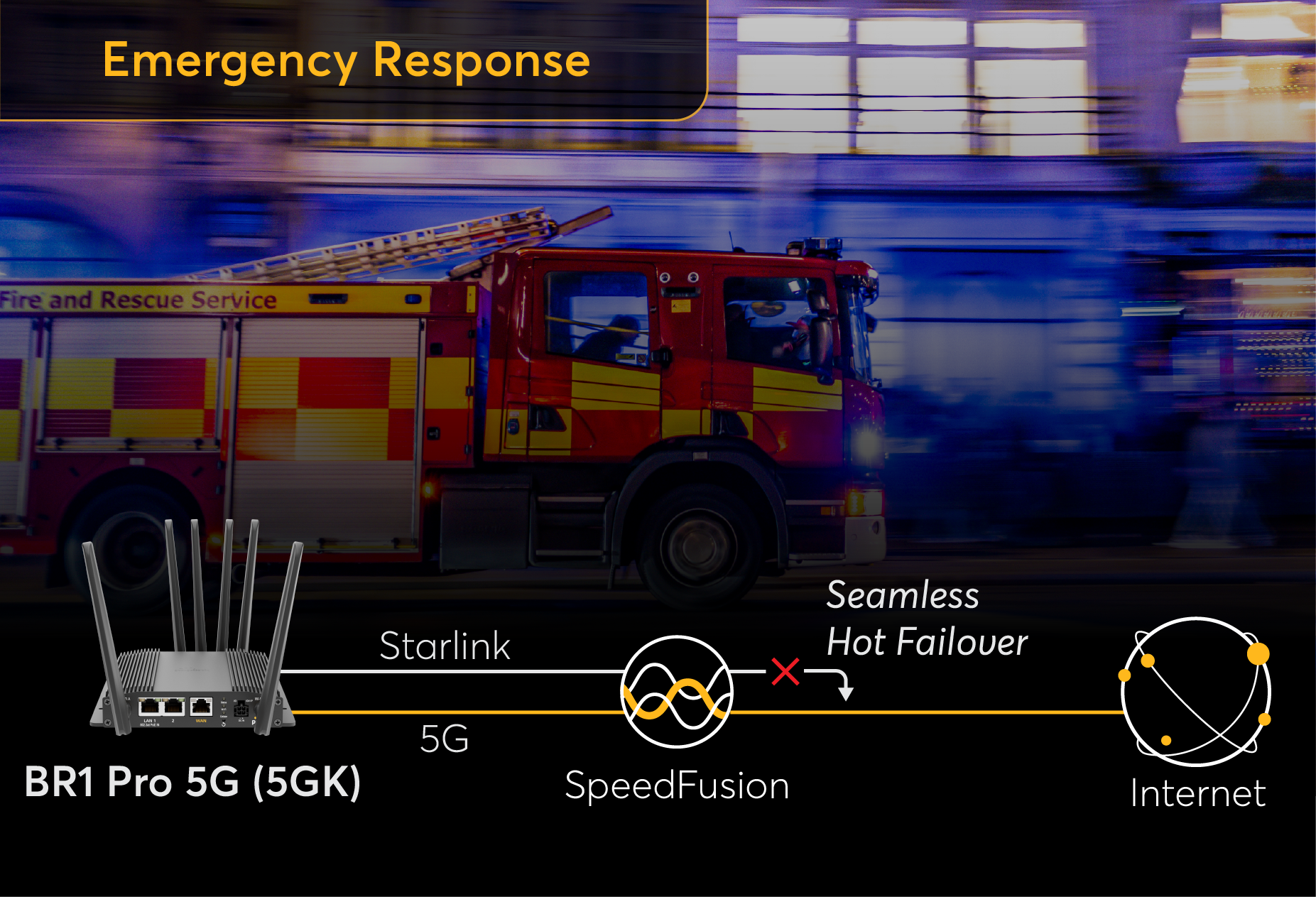

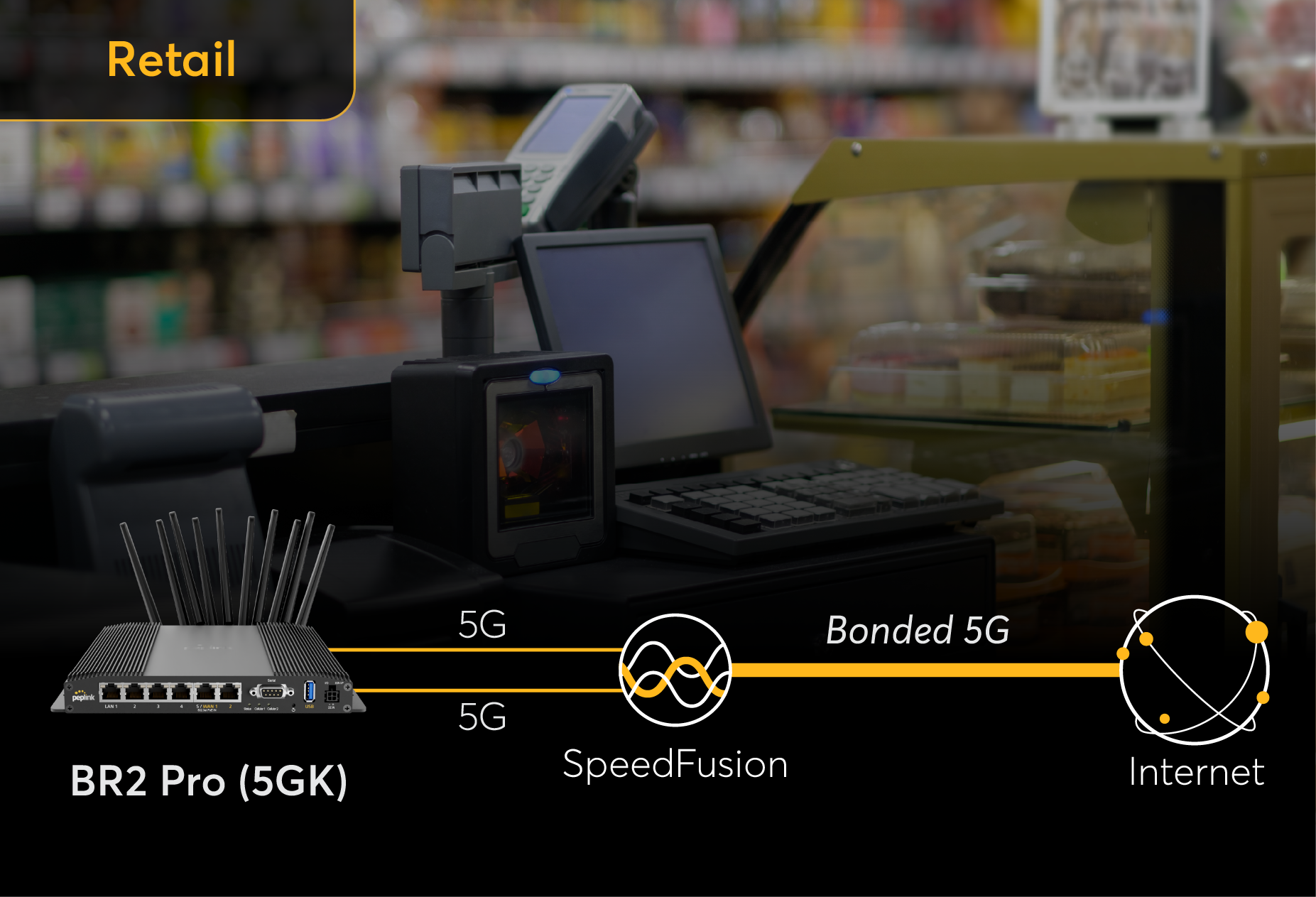

Seamless Failover for Starlink, Fiber, and FWA

Seamlessly integrate 5G with Starlink, fiber, and fixed wireless access (FWA) through SpeedFusion to deliver uninterrupted connectivity. Stay reliably online, always.

P07 - Seamless Failover BR1 Pro 5GK Diagram P07 - Seamless Failover BR2 Pro 5GK Diagram P07 - Seamless Failover BR1 Pro 5GK Diagram P07 - Seamless Failover BR2 Pro 5GK Diagram

Ports and Connections

BR2 Pro (5GK)

P08 - Ports and Connections BR2 Pro 5GK Front P08 - Ports and Connections BR2 Pro 5GK Back

BR1 Pro 5G (5GK)

P08 - Ports and Connections BR1 Pro 5GK Front P08 - Ports and Connections BR1 Pro 5GK Back

  • SoftwarePeplink MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingMultiple Outbound Policy Algorithms
    • Weighted Balance
    • Priority
    • Overflow
    • Persistence
    • Least Used
    • Lowest Latency
    • Enforced
    • Fastest Response Time
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionSpeedFusion VPN
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    X.509 Certificate Support *
    IPsec VPN (Network-to-Network) ^
    Remote User Access (PPTP/L2TP/OpenVPN)
    Edge ComputingSupport on Applications and Docker
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    AP ControllerSupport for Peplink AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl 2 Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    *   Feature is available as an upgrade (MAX-BR1-ADV).
    ^   IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

  • Product CodeEmbedded Modem Region5G BandsLTE Bands
    MAX-BR1-PRO-5GK-T-PRM1x 5GNorth America*


    *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet    		5G (NSA & SA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
    MAX-BR2-PRO-5GK-T-PRM2x 5GNorth America*


    *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet    		5G (NSA & SA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

  • Product CodeDescriptions
    PRM-C-1YPrimeCare C (1-Year)
    PRM-C-2YPrimeCare C (2-Year)
    PRM-C-4YPrimeCare C (4-Year)
    PCP-C-1YPrimeCare+ C (1-Year)
    PCP-C-2YPrimeCare+ C (2-Year)
    PCP-C-4YPrimeCare+ C (4-Year)
    ACW-63410ft DC Power Cable
    ACW-643Vehicle Cigarette to Molex Power Cable
    ACW-791Peplink 4-Pin to USB-C Power Cable
    ANT-SLM-40G-S-B-6Slim 40G - 4x4 MIMO 5G Ready Cellular Antenna System with GPS (Black)
    ANT-MB-42G-S-W-6Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (White)
    ANT-MB-42G-S-B-6Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (Black)
    ANT-MAXAntenna MAX - Enclosed with 4x LTE/5G, 2x Wi-Fi, 1x GPS 600-6000MHz, IP67, SMA male (Cellular, GPS), RP-SMA
    male (Wi-Fi), White
    MAX-BR1-ADVIPsec X.509 Certificate License Key

    * Learn more about Virtual WAN Activation License here.

  • Product CodeDescriptions
    PRM-E-1YPrimeCare E (1-Year)
    PRM-E-2YPrimeCare E (2-Year)
    PRM-E-4YPrimeCare E (4-Year)
    PCP-E-1YPrimeCare+ E (1-Year)
    PCP-E-2YPrimeCare+ E (2-Year)
    PCP-E-4YPrimeCare+ E (4-Year)
    ACW-111PoE Adapter
    ACW-622PoE+ Activation Kit
    ACW-63410ft DC Power Cable
    ACW-643Vehicle Cigarette to Molex Power Cable
    ACW-791Peplink 4-Pin to USB-C Power Cable
    ANT-SLM-40G-S-B-6Slim 40G - 4x4 MIMO 5G Ready Cellular Antenna System with GPS (Black)
    ANT-MB-42G-S-W-6Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (White)
    ANT-MB-42G-S-B-6Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (Black)
    ANT-MB-82G-S-W-6Mobility 82G - 8x8 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (White)



  • For BR2 Pro (5GK)

    • 1x BR2 Pro
    • 1x 12V 3A 4-Pin Power Supply (ACW-663)
    • 8x LTE/5G Antennas (ACW-235)
    • 2x Dual Band Wi-Fi Antennas (ACW-341)
    • 1x GPS Antenna (ACW-232)

    For BR1 Pro (5GK)

    • 1x BR1 Pro 5G
    • 1x 12V 2A 4 Pin Power Supply (ACW-632)
    • 4x LTE/5G Antennas
    • 2x Dual Band Wi-Fi Antennas
    • 1x GPS Active Antenna
