Overview Specs

Manage Centrally, No Extra Hardware Needed

AP One AX Lite comes equipped with InControl central management. Giving users the ability to control and monitor their network from any web browser. Manage network SSIDs, radio settings, and search event logs with ease to diagnose the entire network.

Available via eTailer
Locate a Reseller

Wi-Fi Just Got Better

Integrated Wi-Fi 6 is 45% faster than the average Wi-Fi 5, has 4 more device capacity and consumes less power for connected devices.

Enterprise-Grade Roaming Speeds

Supports 802.11k/v/r, providing users a seamless roaming experience between access points.

Turnkey or Custom Captive Portals

Offer users a more branded experience by customizing captive portals through InControl.

Seamless Peplink SD-WAN Integration

Effortlessly integrate Peplink solutions with AP One AX Lite to provide unique network capabilities and network flexibility, making the whole experience more user friendly.

1. Centrally Managed with InControl

Monitor network health on a single dashboard. Push configuration profiles on multiple devices at once. Remotely access the Web Admin of any device.

2. Balance/MAX/FusionHub

Provides unbreakable connectivity by
combining multiple WANs. Works with InControl to centralize VLAN, firewall, and outbound policy.

3. SD-Switch

Works with InControl to remotely configure and activate PoE ports. Monitor power consumption.

4. AP One

Works with InControl to centralize SSIDs, radio settings, and deliver captive portals.

Photos

  •
    Product CodeAPO-AX-LITE
    Ethernet Port1 x 1Gbps
    Gigabit Ethernet
    Wi-Fi StandardSimultaneous
    1x 2.4GHz 802.11b/g/n/ax
    1x 5GHz 802.11a/n/ac/ax
    Radio Chains/Streams2 x 2:2
    Data Rates2.4 GHz: up to 574 Mbps
    5 GHz: up to 1200 Mbps
    Channel Width20/40/80 MHz
    Recommended clients per Radio256
    SSID Per Radio16
    Maximum transmit Power
    (single chain)    		2.4GHz: 24dBm
    5GHz: 25dBm
    AntennaBuilt-in Omni antenna:
    2x 3dBi - 2.4GHz
    2x 3dBi - 5GHz
    EnclosurePlenum-rated enclosure
    Dimensions5.9 x 5.9 x 1.3 inches
    160 x 160 x 33 mm
    Weight0.84 pounds
    382 grams
    Power Input12V DC Jack
    (Plug 5.5 x 2.1 mm, center positive)*
    802.3at PoE*
    Power Consumption14.5W (max.)
    Operating Temperature32ºF - 104ºF
    0ºC - 40ºC
    CertificationsFCC, CE, RoHS
    Warranty1 Year Limited Warranty



    * AC/DC adapter and PoE Injector are not included.

  •
    NetworkBridge Mode
    Router (NAT) Mode
    Mesh
    Wireless Distribution System (WDS)
    Support for PPPoE, Static IP, DHCP
    Management VLAN
    Spanning Tree Protocol
    RadioMultiple SSID
    Auto Channel Selection
    Transmit Power Adjustment
    Neighbor AP Detection
    AP SecurityOpen
    WPA/WPA2/WPA3-Personal
    WPA/WPA2-Enterprise
    Device ManagementWeb Administrative Interface
    InControl Cloud Management
    Peplink AP Controller
    SNMP v1, v2c and v3
    Client ManagementPer SSID
    VLAN with QoS (802.1p/802.1q)
    Bandwidth Control
    MAC Address Filtering
    Layer 2 Client Isolation
    Limit on Max. Number of Clients

    Per Client
    VLAN with RADIUS
    VLAN with VLAN Pool
    Bandwidth Control
    Multicast Filter
    IGMP Snooping/Multicast Enhancement
    Captive Portal by InControl
  • Product CodeDescription
    ACW-107802.3af/at PoE Injector. Compatible with MAX Hotspot and AP One AX Series
    ACW-6021x12V3A Power Supply. Compatible with MAX HD2 and AP One AX Series
    SVL-APO-AX-LITE-1Y1-Year Essential Care for AP One AX Lite
    SVL-APO-AX-LITE-2Y2-Year Essential Care for AP One AX Lite
    ICS-0121-Year InControl 2 Subscription
    ICS-0242-Year InControl 2 Subscription
    ECP-A-1YEssentialCare+ A (1-Year)
    ECP-A-2YEssentialCare+ A (2-Year)
    ECP-A-4YEssentialCare+ A (4-Year)
  • Product CodeName Description
    APO-AX-LITEAP One AX Lite2 x 2 MU-MIMO Wi-Fi 6 AP for business, manageable by InControl. Simultaneous Dual-Band 802.11ax/ac/b/g/n

  • “I have several Peplink AP One Enterprise APs that provide decent coverage across three floors of a fairly large structure. But I had a connectivity dead spot in one area, so I decided to add the AP One AX Lite… and wow, the result on connectivity improvement is astonishing. Just wow. The AX Lite is a connectivity flamethrower. The difference in browser speed is astounding.”

    – Amazon.com Customer



    “I have the AX Lite unit connected via PoE and it’s working great!”

    – Amazon.com Customer

    • AP One AX Lite

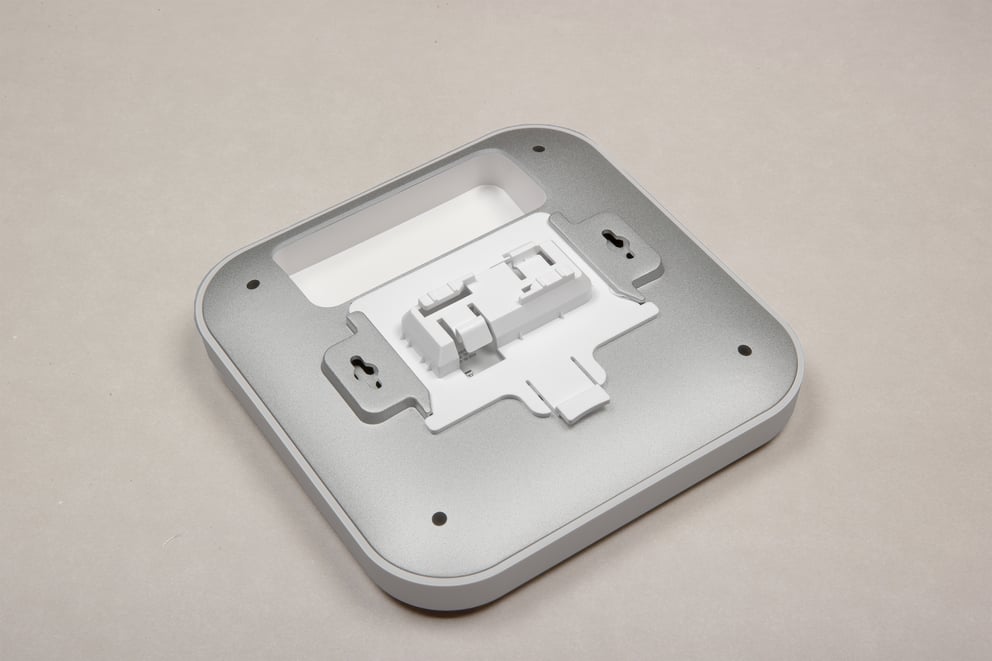

    • Ceiling Mount Base (9/16” T-Rail)
    • Ceiling Mount Base (15/16” T-Rail)
    • Mounting Screw Set

  • Pepwave AP One AX Lite Datasheet
    Installation Guide
    User Manual



    Case Studies
