Sigfox IoT Network, Netherlands

Service Providers | Industrial IoT

Sigfox is one of the biggest Low Power Wide Area Network (LPWAN) connectivity providers for Internet of Things (IoT). It connects and gives life to millions of objects all around the world. Aerea is the Sigfox operator for the Netherlands region. Applications for LPWAN connectivity include smart metering, logistics tracking, intelligent sensors in buildings and cities, Machine-to-Machine (M2M) communication, and connecting any IoT objects in a large scale, for both private and public sectors.

“Any connectivity is only as strong as the weakest link. And Peplink provides redundancy on our connectivity for a competitive price. Peplink is crucial to our success in deploying Sigfox for Internet of Things (IoT) in the Netherlands.”

-Nicholas van Hoey Smith, CEO. Aerea – Sigfox operator in the Netherlands.
Sigfox IoT SD-WAN with Peplink Unbreakable Connectivity #4

Challenges

Aerea maintains Sigfox base stations all over the Netherlands to provide Internet for Sigfox IoT objects.

The Sigfox IoT objects connect to the Sigfox base stations and the base stations connect to DSL, fibre or any kind of landline Internet that the national Internet service providers like KPN or Ziggo have available in the area. The Sigfox base stations provide Internet access to the Sigfox IoT objects via the KPN or Ziggo landline Internet connection.

The problem is when KPN or Ziggo experiences Internet outage, all the Sigfox IoT objects will be disconnected because the Sigfox base stations no longer have Internet access. The Sigfox IoT objects such as smart meters, logistics trackers, intelligent sensors, security equipment will not be able to operate at full capacity, when they lose Internet connectivity. This poses a serious problem for Aerea. They need a solution to maintain Internet connectivity for the Sigfox IoT objects when the KPN or Ziggo landline Internet fails.

Sigfox IoT SD-WAN with Peplink Unbreakable Connectivity #2

Solution

Instead of connecting the DSL or fibre landline Internet directly to the Sigfox base station, which will lose Internet access when the landline Internet fails, the Sigfox base station connects to a Peplink MAX BR1 router. The Peplink MAX BR1 router features one ethernet WAN port and an embedded 4G LTE/3G modem. It is able to connect to the DSL or fibre landline Internet as well as a mobile Internet provider e.g. Tele2 or T-Mobile for a 4G LTE/3G Internet backup.

When KPN or Ziggo experiences service outage, the MAX BR1 router will detect the connectivity failure and automatically switch to the backup Tele2 or T-Mobile 4G LTE/3G network. The Sigfox base station will remain connected to the Internet, and so do all the Sigfox IoT objects. The MAX BR1 will continuously monitor the KPN or Ziggo landline Internet, and will seamlessly switch back to it once its service restores.

Sigfox IoT SD-WAN with Peplink Unbreakable Connectivity #3

Result

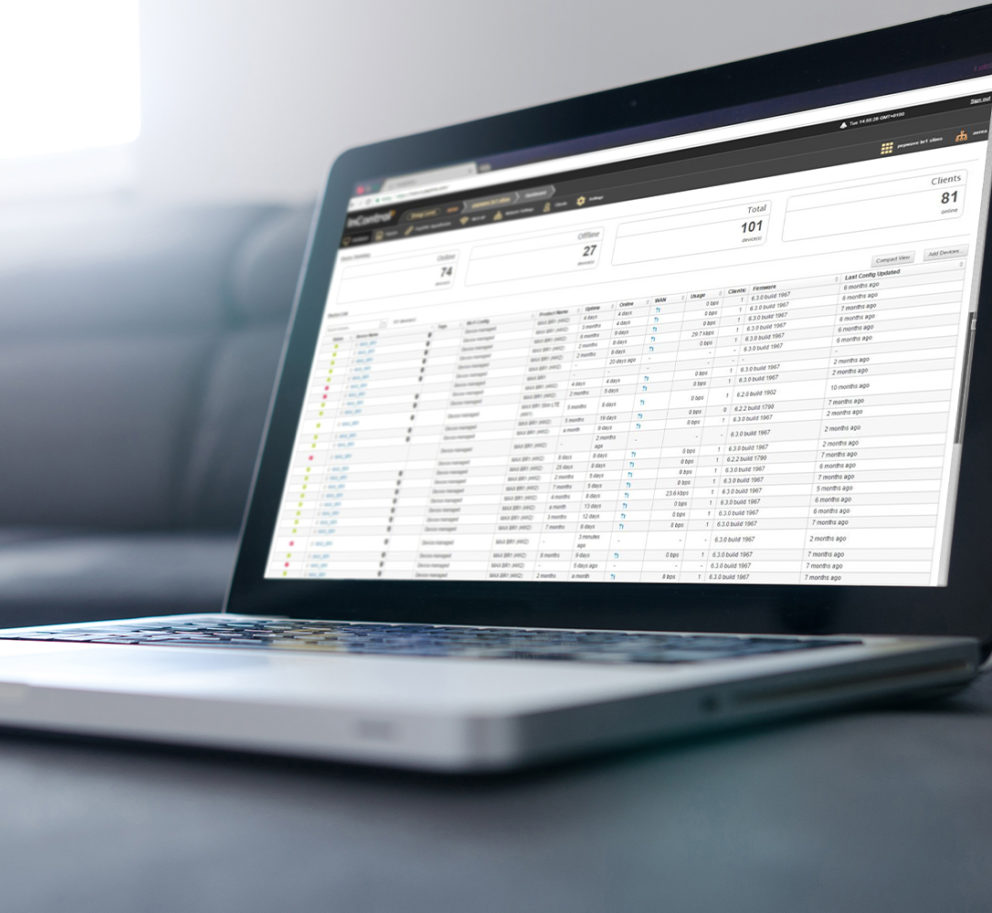

Peplink MAX BR1 router leverages the existing Tele2 or T-Mobile 4G LTE/3G network to backup the KPN or Ziggo landline Internet. Smart meters, logistics trackers, intelligent sensors, security equipment, and other Sigfox IoT objects, in both private and public sectors, will maintain Internet connectivity via the Tele2 or T-Mobile 4G LTE/3G network when KPN or Ziggo landline Internet fails. Peplink InControl 2 cloud management service allows Aerea to monitor and manage their 400+ MAX BR1 deployment all over the Netherlands on a single cloud platform. InControl 2 also provides instant email alert and detailed log on landline Internet failure which helps Aerea assess and maintain the highest level of network availability.

Deployment

Peplink InControl 2. Cloud Based SD-WAN Network Management.

InControl 2

Save configuration time, minimize truck rolls, stay on top of the status of your network, and proactively resolve any emerging problems with speed and precision.

Pepwave MAX BR1 MK2. Verizon Certified Automatic Failover 4G LTE Mobile Router.

MAX BR1 MK2

Automatic Failover 4G LTE Mobile Router
