MAX BR1 MK2

Automatic Failover 4G LTE Mobile Router

The MAX BR1 MK2 offers redundant SIM slots with automatic switching, DC or terminal block power capability, advanced GPS fleet tracking, and remote management, all packed into a durable metal enclosure. It is also Verizon certified.

Verizon Certified Automatic Failover Single Cellular Router MAX BR1 MK2 #2
Verizon Certified Automatic Failover Single Cellular Router MAX BR1 MK2 #2
Locate a Reseller
  • Verizon Certified Automatic Failover Single Cellular Router MAX BR1 MK2 #3

Redundant SIM Slots for Multiple Carriers

Redundant SIM slots with automatic switching for reliable network. You can also set the MAX BR1 mobile router to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you travel across borders without changing SIM cards manually.

Use Cases

Public Safety

Passenger Wi-Fi

Landline Replacement

Explore our Solutions

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

Topology

Verizon Certified Automatic Failover Single Cellular Router MAX BR1 MK2 #4
  1. SpeedFusion delivers unbreakable connectivity using two redundant 4G LTE connections from different carriers.
  2. In case of a WAN failure, SpeedFusion instantly switches traffic to another connection.
Verizon Certified Automatic Failover Single Cellular Router MAX BR1 MK2 #11

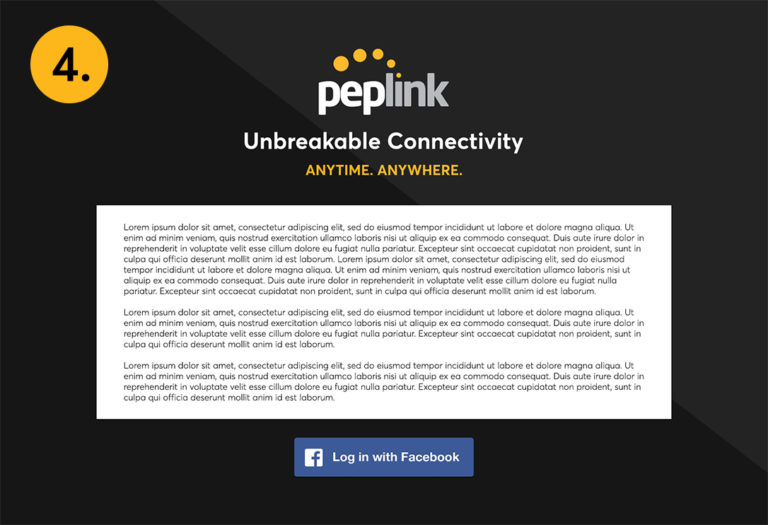

  1. Setting up a customizable portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS or LDAP servers.
Verizon Certified Automatic Failover Single Cellular Router MAX BR1 MK2 #12

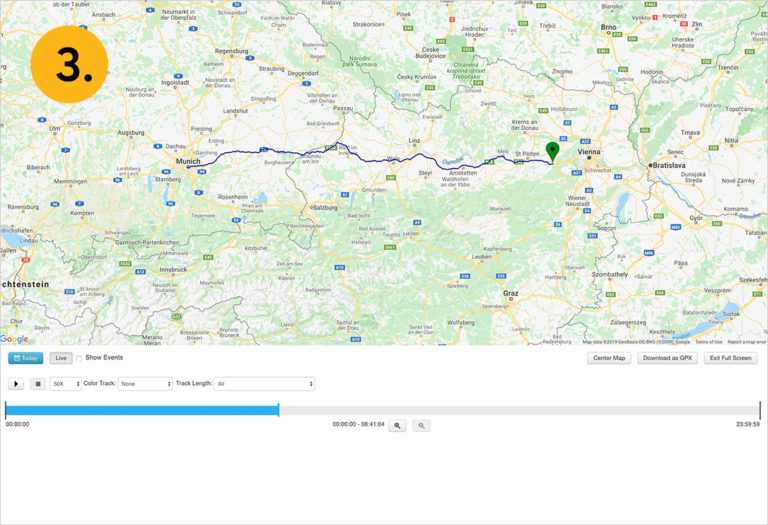

  1. InControl 2 provides complete cloud-based device management, monitoring, and reporting and let you check vehicle speed, view cellular coverage, and play back route histories in real-time.

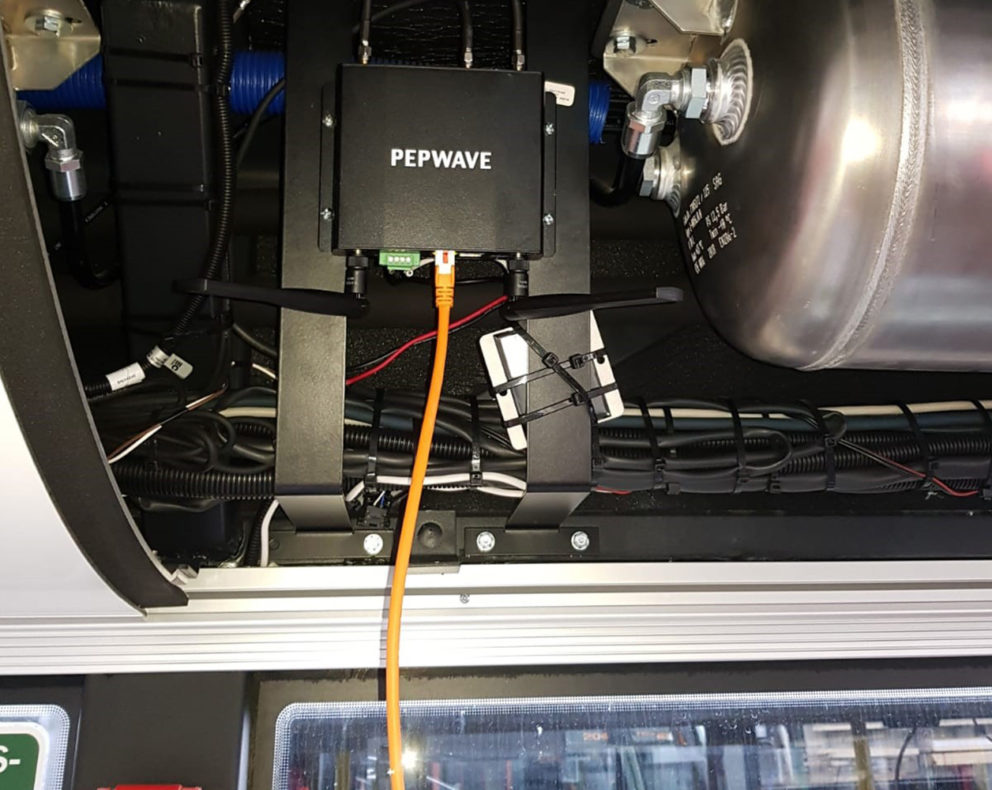

Certified Toughness

In addition to the rugged metal enclosure, the MAX BR1 MK2 mobile router HAS certifications for

Shock and vibration resistance

(EN 61373:1999, IEC 61373:1999)

Railway Applications

(EN 50155)

Electromagnetic Compatibility

(EN 61000)

Verizon Certified Automatic Failover Single Cellular Router MAX BR1 MK2 #6

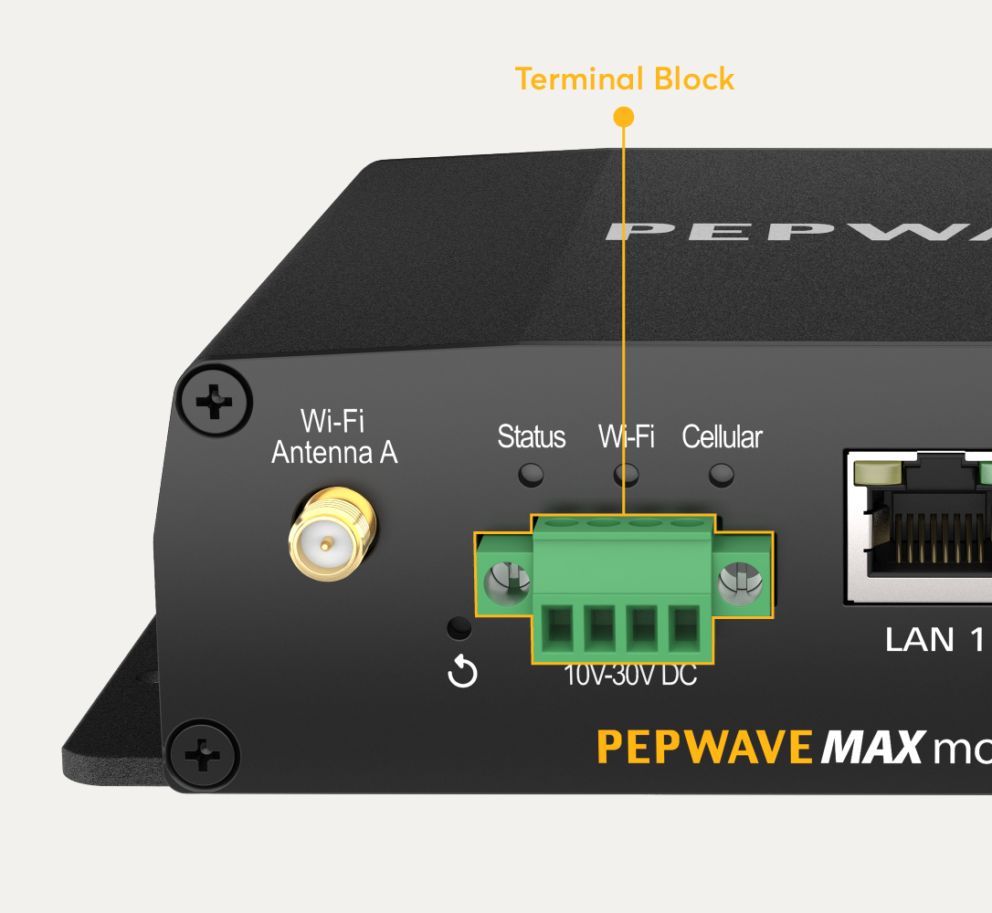

Terminal Block for Secure Power Supply

The MAX BR1 is equipped with a terminal block for secure power installation in vehicles and other locations.

There is More

We specialize in making complicated technologies simple.  Achieve what others cannot with the following.

Fleet Tracking
Captive Portal
Hot Failover

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #7





Fleet Tracking and Management





Track and manage your fleet from anywhere. With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #8





Customizable Captive Portal





Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.



Setup a Social Wi-Fi Hotspot to receive valuable demographic data from your users.

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #9





SpeedFusion Hot Failover





In case of a WAN failure, SpeedFusion technology powers the MAX BR1 Slim for instant failover, giving you reliable internet connectivity and resources access to datacenter.

#powerofpeplink

  • Verizon Certified Automatic Failover Single Cellular Router MAX BR1 MK2 #9
  • Verizon Certified Automatic Failover Single Cellular Router MAX BR1 MK2 #10
  • Ethernet WAN Ports1 (GE)
    Ethernet LAN Ports1 (GE)
    Embedded 4G LTE1
    Cellular Modem *
    		LTE / LTE-A
    Redundant SIM SlotsYes (( Mini-SIM (2FF))
    Wi-Fi WAN | Wi-Fi APYes
    Maximum number of SSID:16
    Transmit Power (2.4GHz) / (5GHz)24dBm / 17 dBm
    Recommended Users1-60
    Router Throughput100Mbps
    PepVPNYes
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingYes
    Drop-in ModeYes
    Number of PepVPN SpeedFusion Peers2/5!
    PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES)40 Mbps / 20 Mbps
    802.1q VLANs Supported16
    Drop-In ModeYes
    IP PassthroughYes
    High AvailabilityYes
    WAN as LANYes
    Web BlockingYes
    Web Filtering BlacklistLite
    AC AdapterAC Input 100V-240V
    DC Output 12V, 2A
    Power Input | Terminal BlockDC 10V-30V, 2A
    Power ConsumptionMax.: 16W, Typical: 11W, Min.: 8W
    Dimensions1.6 x 5.8 x 5.0 inches |
    40 x 147 x 128 mm
    Weight0.96 pounds |
    435 grams
    Operating Temperature–40° – 131°F |
    -40° – 55°C
    Certifications -FCC, CE, RoHS, E-Mark
    -EN 61373 Shock and Vibration Resistance
    -EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock
    -EN 61000 Electromagnetic Compatibility
    Warranty1-Year Limited Warranty



    * LTE-A option: 300Mbs / 50Mbs available. (LTE option: 100Mbs / 50Mbs).
    ! 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.
    # Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision. The throughput result is tested with DHCP/Static IP WAN.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionPepVPN/SpeedFusion
    -Hot Failover
    -Site-to-Site VPN
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    -X.509 Certificate Support *
    IPsec VPN (Network-to-Network) ^
    -X.509 Certificate Support *
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    Captive Portal SupportSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    *Feature is available as an upgrade.

    ^ IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

  •

    Product Code

    		 Feature Pack

    Description

     MAX-BR1-ADV

    		    Advanced Feature Pack

        Package includes a software license key for Advanced Car-Fi Roaming; and SpeedFusion and IPsec X.509 Certificate Support

    PVN-LC-05

    		     PepVPN License Key for Velocity and BR1 family

       Enables up to 5 PepVPN/SpeedFusion peers

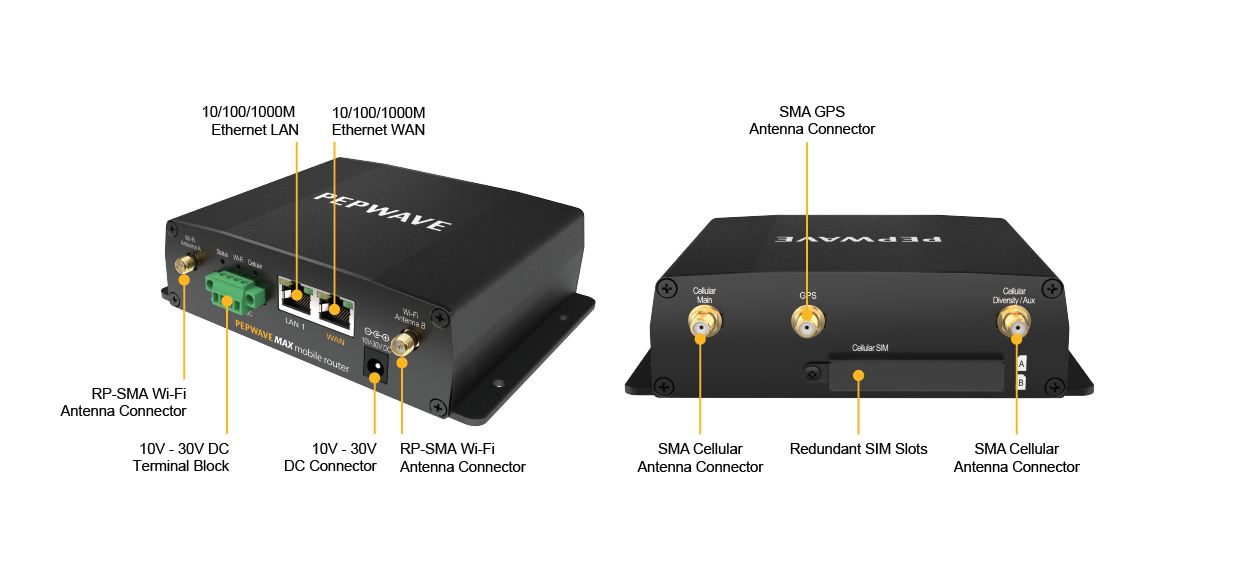

    • MAX BR1 MK2
    • 12V2A Power Supply (ACW-601)
    • 2x Wi-Fi Antennas (ACW-341)
    • 1x GPS Antenna (ACW-232)
    • 2x 4G LTE Antennas (4G LTE) (ACW-815)
  • Product CodeRegion | CarrierEmbedded Modem 4G Bands3G Bands
    MAX-BR1-MK2-LTEA-W-TWorldwide1FDD LTE:
    B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41
    		WCDMA/HSPA+/DC-HSPA+:
    B1, B2, B3, B4, B5, B8
    MAX-BR1-MK2-LTEA-P-TAsia Pacific1B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
    		WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B6, B8, B9, B19
    TD-SCDMA: B39

  • MAX BR1 MK2 Datasheet
