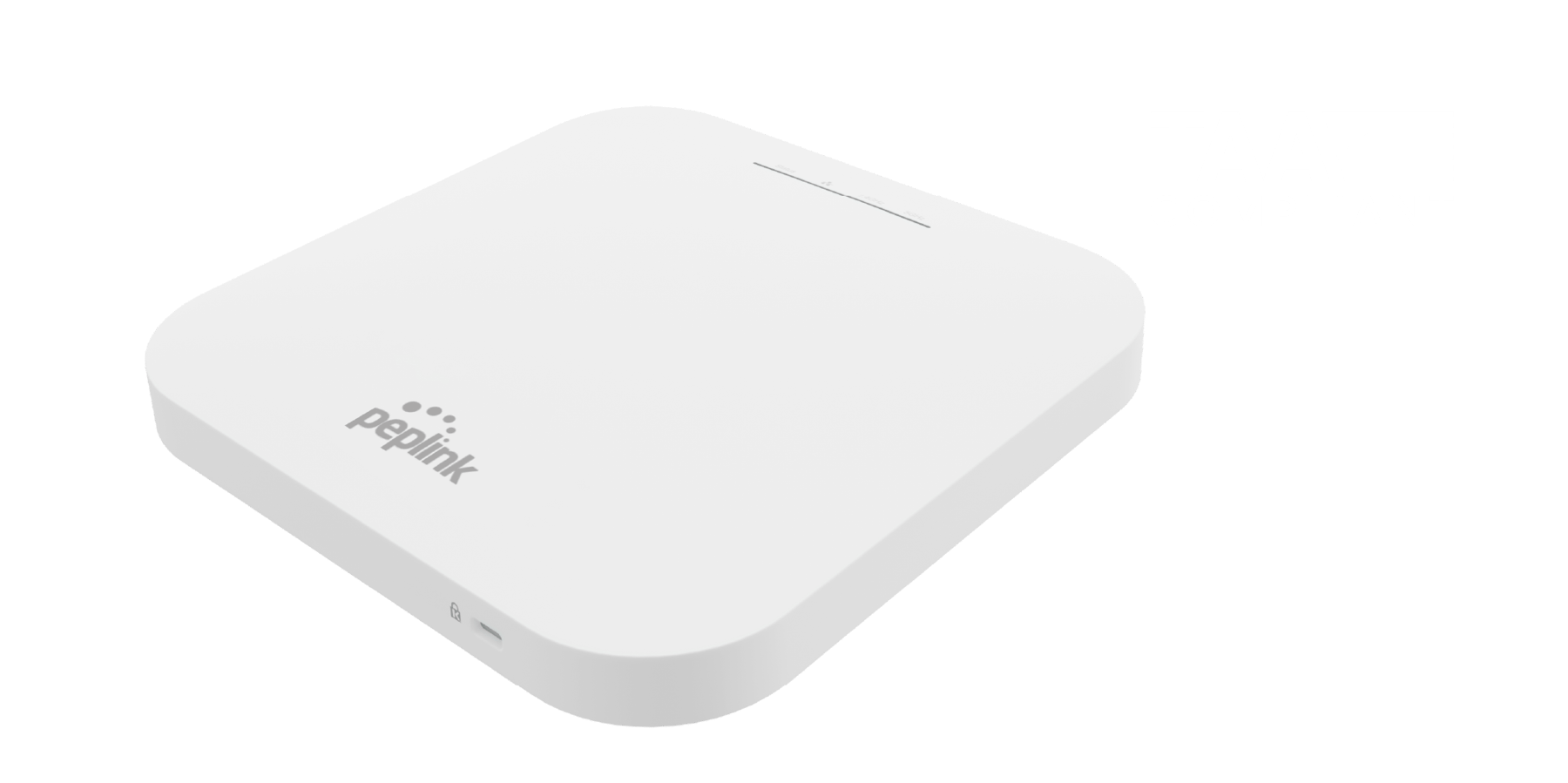

AP One AX Lite

Ideal for Those Needing an Enterprise Network Extended

AP One AX Lite

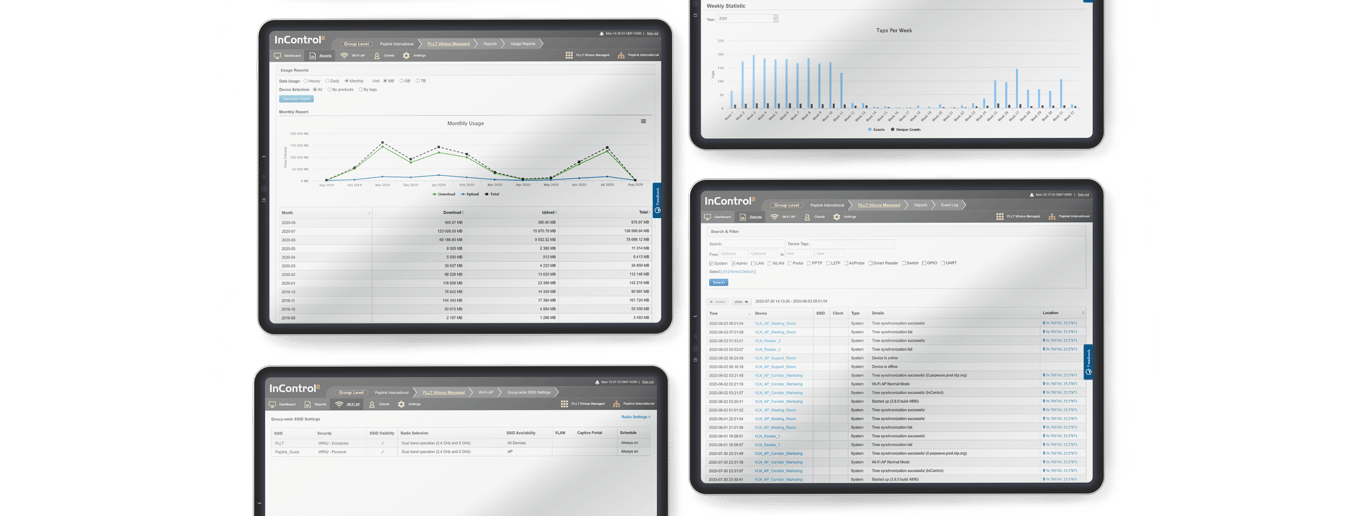

Manage Centrally, No Extra Hardware Needed

AP One AX Lite comes equipped with InControl central management. Giving users the ability to control and monitor their network from any web browser. Manage network SSIDs, radio settings, and search event logs with ease to diagnose the entire network.

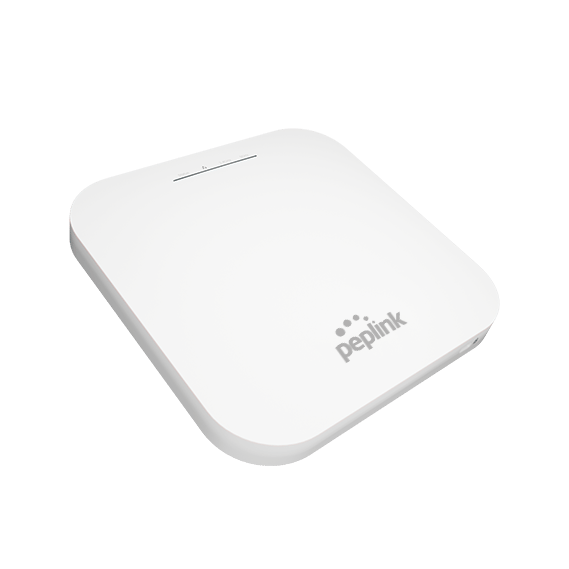

Wi-Fi Just Got Better

Wi-Fi Just Got Better

Integrated Wi-Fi 6 is 45% faster than the average Wi-Fi 5, has 4 more device capacity and consumes less power for connected devices.

Enterprise-Grade Roaming Speeds

Supports 802.11k/v/r, providing users a seamless roaming experience between access points.

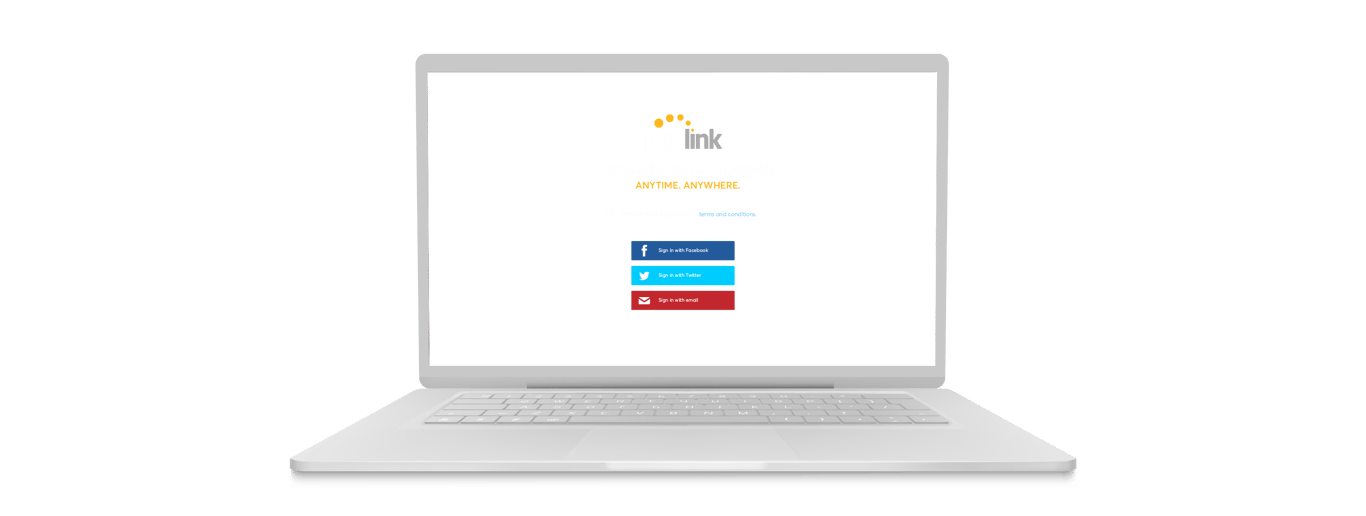

Turnkey or Custom Captive Portals

Offer users a more branded experience by customizing captive portals through InControl.

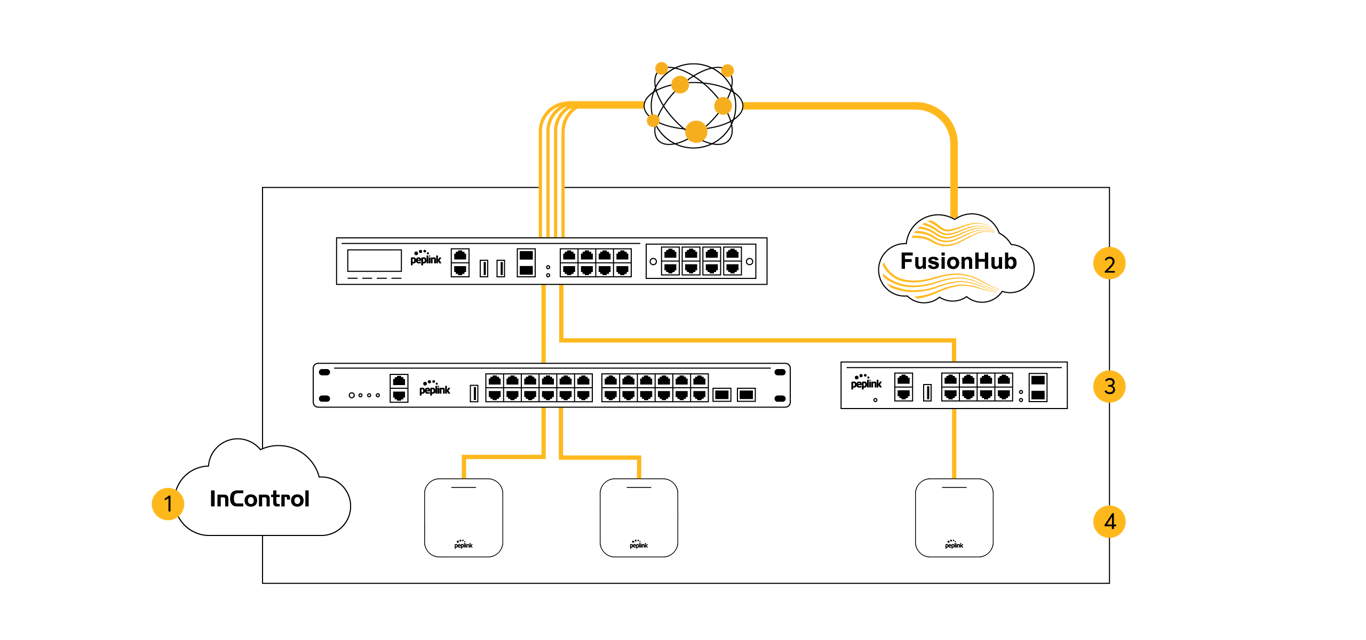

Seamless Peplink SD-WAN Integration

Effortlessly integrate Peplink solutions with AP One AX Lite to provide unique network capabilities and network flexibility, making the whole experience more user friendly.

Seamless Peplink SD-WAN Integration

1. InControl Central Management

Monitor network health on a single dashboard. Push configuration proles on multiple devices at once. Remotely access the Web Admin of any device.

2. Balance/MAX/FusionHub

Provides unbreakable connectivity by combining multiple WANs. Works with InControl to centralize VLAN, firewall, and outbound policy.

3. SD-Switch

Works with InControl to remotely configure and activate PoE ports. Monitor power consumption.

4. AP One

Works with InControl to centralize SSIDs, radio settings, and deliver captive portals.

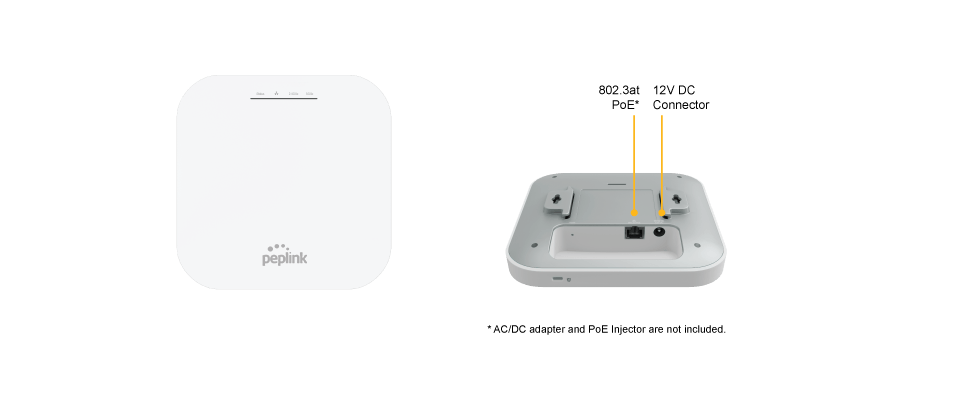

Ports and Connections

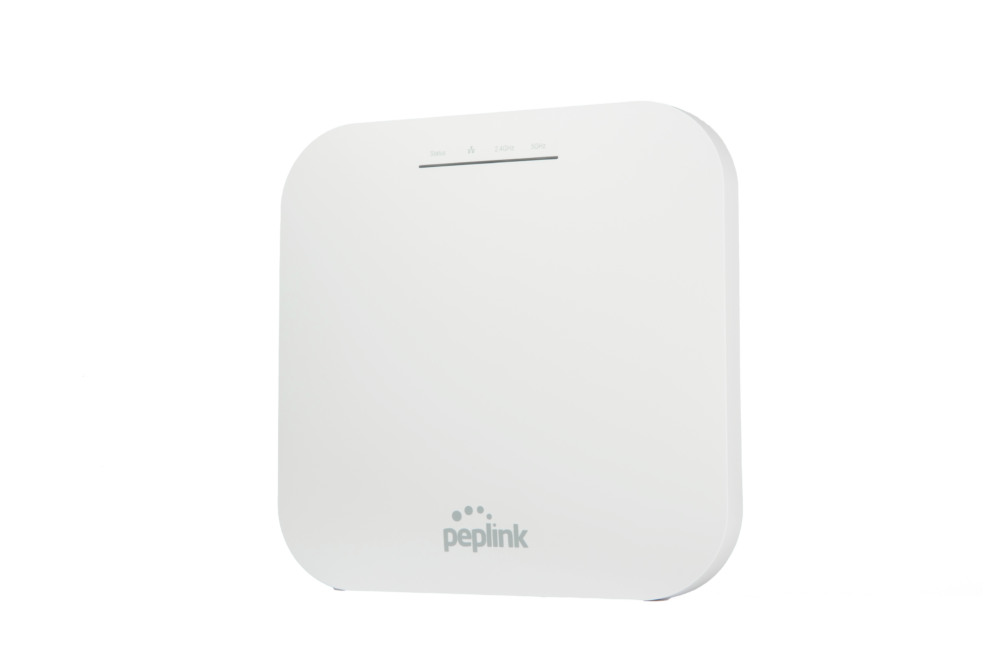

Photos

Overview

Specs

Product Overview
ItemContent
Product Code APO-AX-LITE
Ethernet Port 1 x 1Gbps Gigabit Ethernet
Wi-Fi Standard Simultaneous 1x 2.4GHz 802.11b/g/n/ax 1x 5GHz 802.11a/n/ac/ax
Radio Chains/Streams 2 x 2:2
Data Rates 2.4 GHz: up to 574 Mbps 5 GHz: up to 1200 Mbps
Channel Width 20/40/80 MHz
Recommended clients per Radio 256
SSID Per Radio 16
Maximum transmit Power (single chain) 2.4GHz: 24dBm 5GHz: 25dBm
Antenna Built-in Omni antenna: 2x 3dBi - 2.4GHz 2x 3dBi - 5GHz
Enclosure Plenum-rated enclosure
Dimensions 5.9 x 5.9 x 1.3 inches 160 x 160 x 33 mm
Weight 0.84 pounds 382 grams
Power Input 12V DC Jack (Plug 5.5 x 2.1 mm, center positive)* 802.3at PoE*
Power Consumption 14.5W (max.)
Operating Temperature 32ºF - 104ºF 0ºC - 40ºC
Certifications FCC, CE, RoHS
Warranty 1 Year Limited Warranty
* AC/DC adapter and PoE Injector are not included.
Deep Dive
CategoryDetails
Network Bridge Mode Router (NAT) Mode Mesh Wireless Distribution System (WDS) Support for PPPoE, Static IP, DHCP Management VLAN Spanning Tree Protocol
Radio Multiple SSID Auto Channel Selection Transmit Power Adjustment Neighbor AP Detection
AP Security Open (No Encryption) Enhanced Open (OWE) WPA3 – Personal (AES:CCMP) WPA3 – Enterprise (AES:CCMP) WPA2/WPA3 – Personal (AES:CCMP) WPA2 – Personal (AES:CCMP) WPA2 – Enterprise (AES:CCMP) WPA/WPA2 – Personal (TKIP/AES: CCMP) WPA/WPA2 – Enterprise (TKIP/AES: CCMP)
Device Management Web Administrative Interface InControl Cloud Management Peplink AP Controller SNMP v1, v2c and v3
Client Management Per SSID VLAN with QoS (802.1p/802.1q) Bandwidth Control MAC Address Filtering Layer 2 Client Isolation Limit on Max. Number of Clients Per Client VLAN with RADIUS VLAN with VLAN Pool Bandwidth Control Multicast Filter IGMP Snooping/Multicast Enhancement
Captive Portal by InControl
Ordering Information
Product CodeDescription
APO-AX-LITE AP One AX Lite - 2x2 MU-MIMO Wi-Fi 6 AP for business, manageable by InControl. Simultaneous Dual-Band 802.11ax/ac/b/g/n
User Feedback
“I have several Peplink AP One Enterprise APs that provide decent coverage across three floors of a fairly large structure. But I had a connectivity dead spot in one area, so I decided to add the AP One AX Lite… and wow, the result on connectivity improvement is astonishing. Just wow. The AX Lite is a connectivity flamethrower. The difference in browser speed is astounding.”
– Amazon.com Customer

“I have the AX Lite unit connected via PoE and it’s working great!”
– Amazon.com Customer
Feature Add - On
Product CodeDescription
ACW-107 802.3af/at PoE Injector. Compatible with MAX Hotspot and AP One AX Series
ACW-602 1x12V3A Power Supply. Compatible with MAX HD2 and AP One AX Series
SVL-APO-AX-LITE-1Y 1-Year Essential Care for AP One AX Lite
SVL-APO-AX-LITE-2Y 2-Year Essential Care for AP One AX Lite
ICS-012 1-Year InControl 2 Subscription
ICS-024 2-Year InControl 2 Subscription
ECP-A-1Y EssentialCare+ A (1-Year)
ECP-A-2Y EssentialCare+ A (2-Year)
ECP-A-4Y EssentialCare+ A (4-Year)

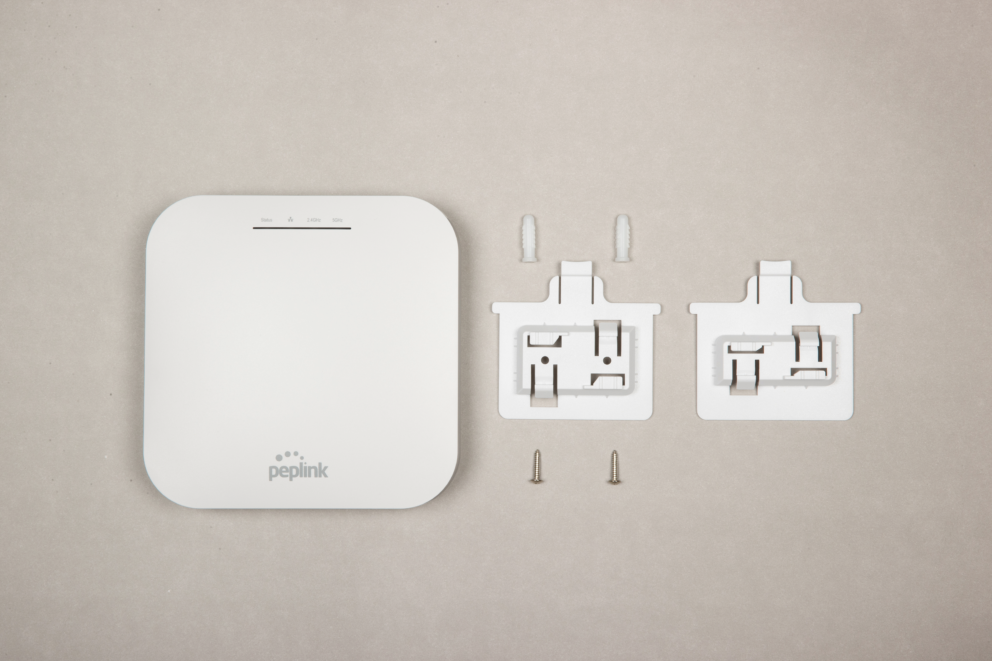

Package Content
  • AP One AX Lite

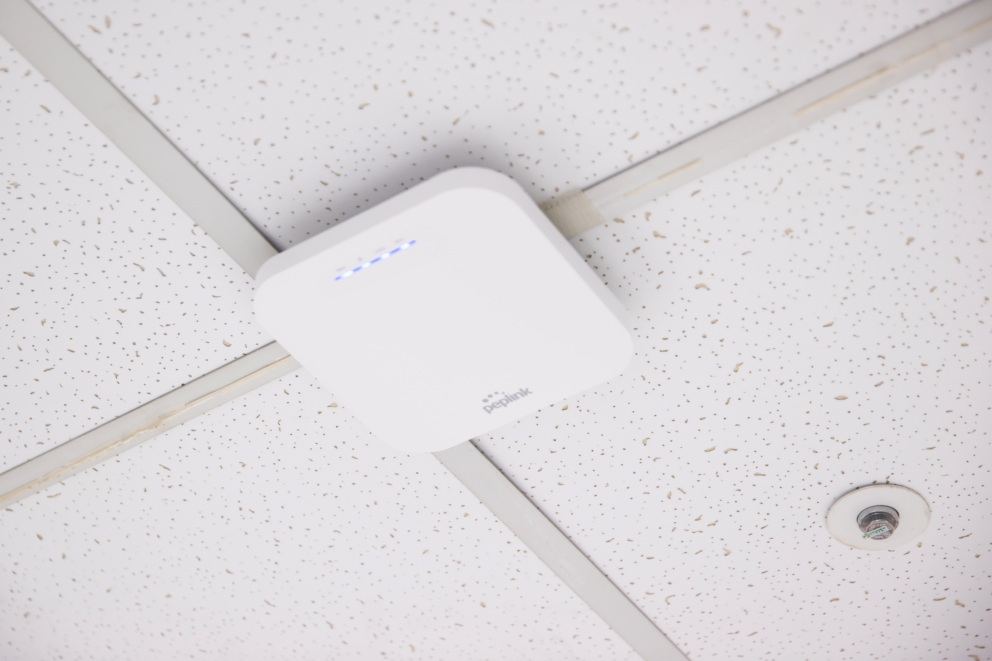

  • Ceiling Mount Base (9/16” T-Rail)
  • Ceiling Mount Base (15/16” T-Rail)
  • Mounting Screw Set
