AP One AX

Better Coverage and Speed with Wi-Fi 6

Deploy Anywhere, Manage Centrally, Turnkey or Custom Captive Portals, Enterprise-Grade Fast Roaming, Seamless Peplink SD-WAN Integration.

AP One AX
Available via E-tailers Locate A Reseller

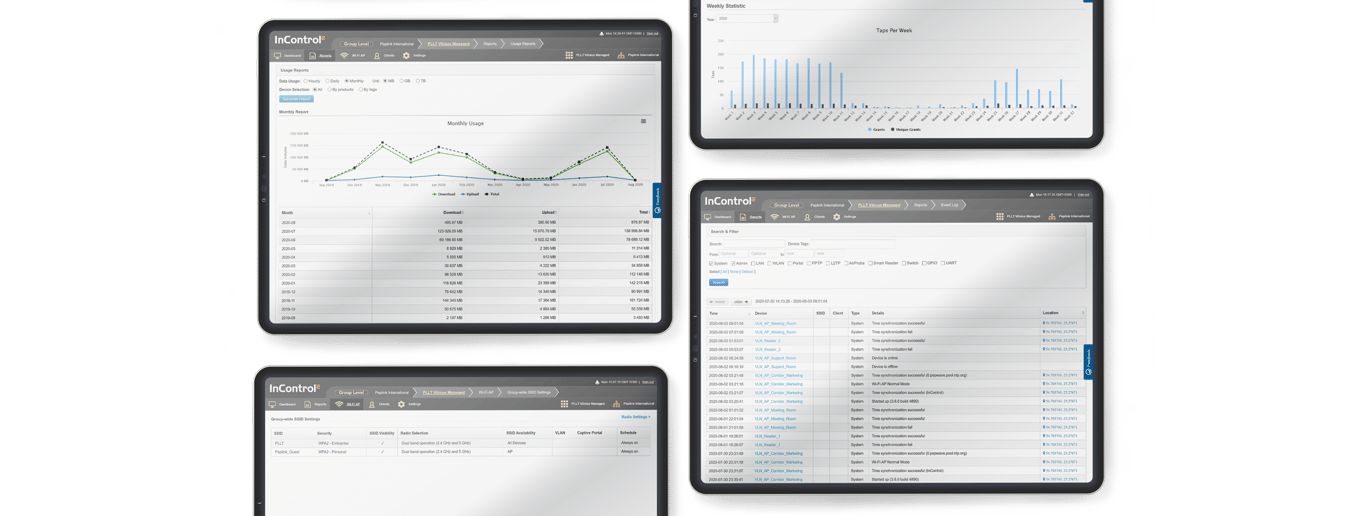

Manage Centrally, No Extra Hardware Needed

Each AP One AX comes equipped with InControl central management. View the health and data usage of your network from any web browser. Centrally manage your network’s SSID and radio settings from a single pane of glass. Use the searchable event log to quickly diagnose your entire network.

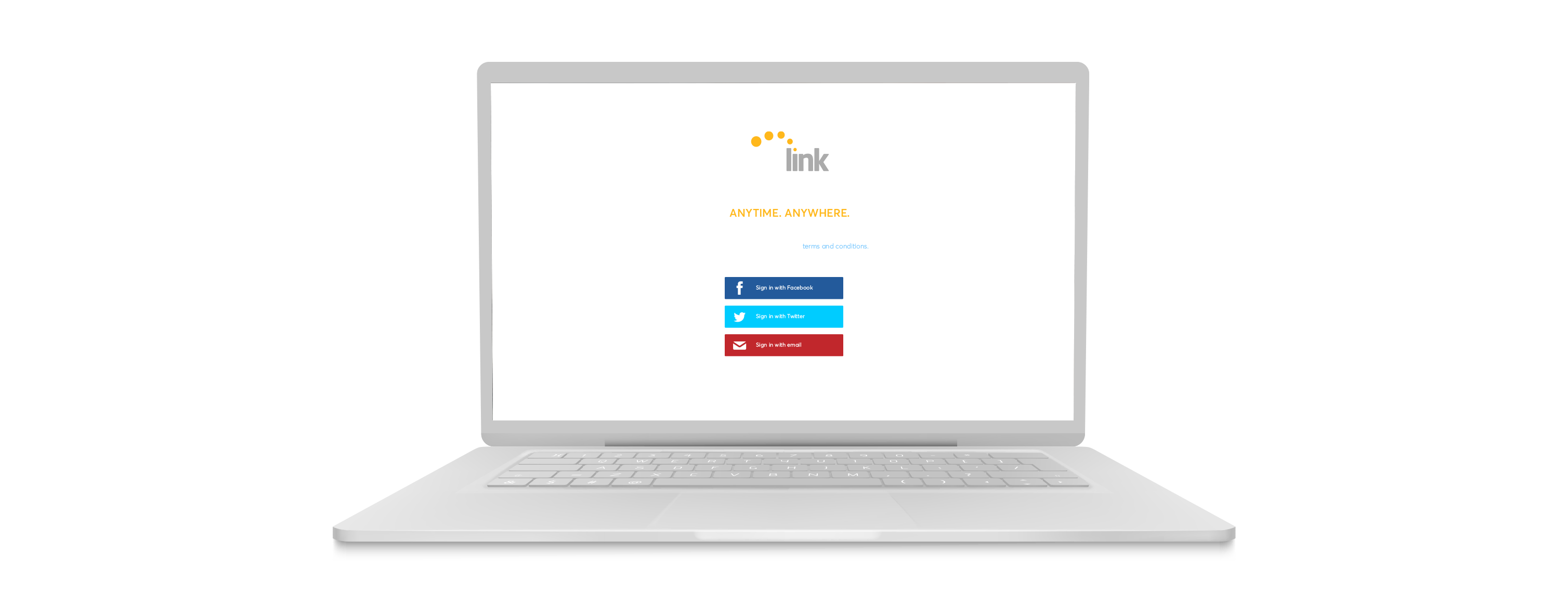

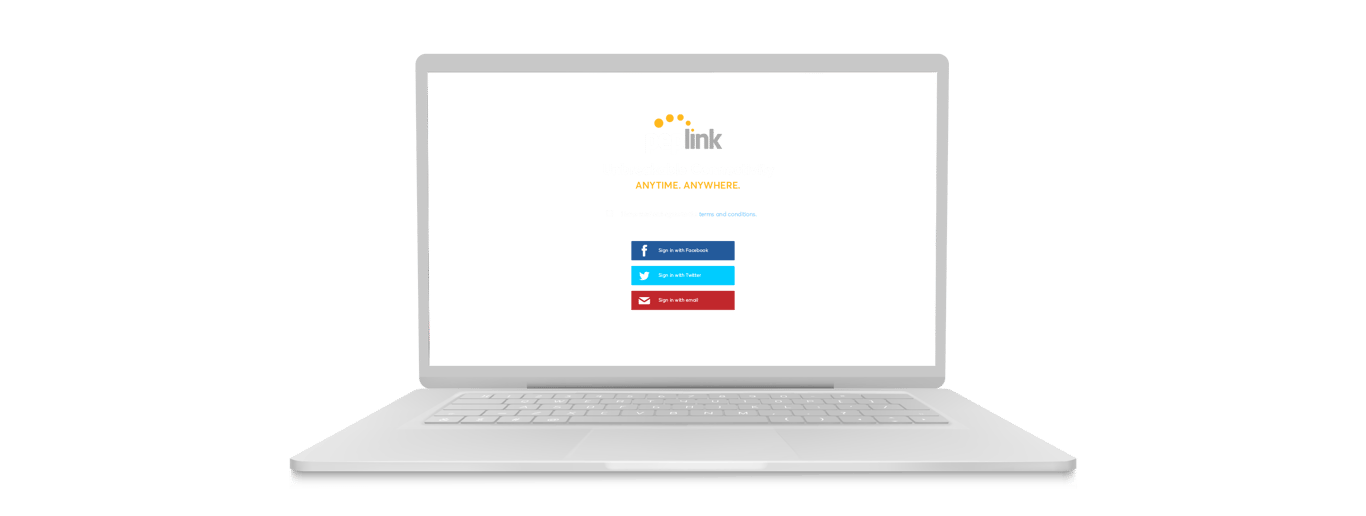

Turnkey or Custom Captive Portals

Customize your captive portal as little or as much as you would like. Right out of the box, it includes a captive portal ready for immediate use. For a more branded user experience, you can edit every aspect of the captive portal using InControl.

Seamless Peplink SD-WAN Integration

The AP One AX works seamlessly with other services in the Peplink ecosystem, providing unique network capabilities, unmatched network flexibility and ease of use.

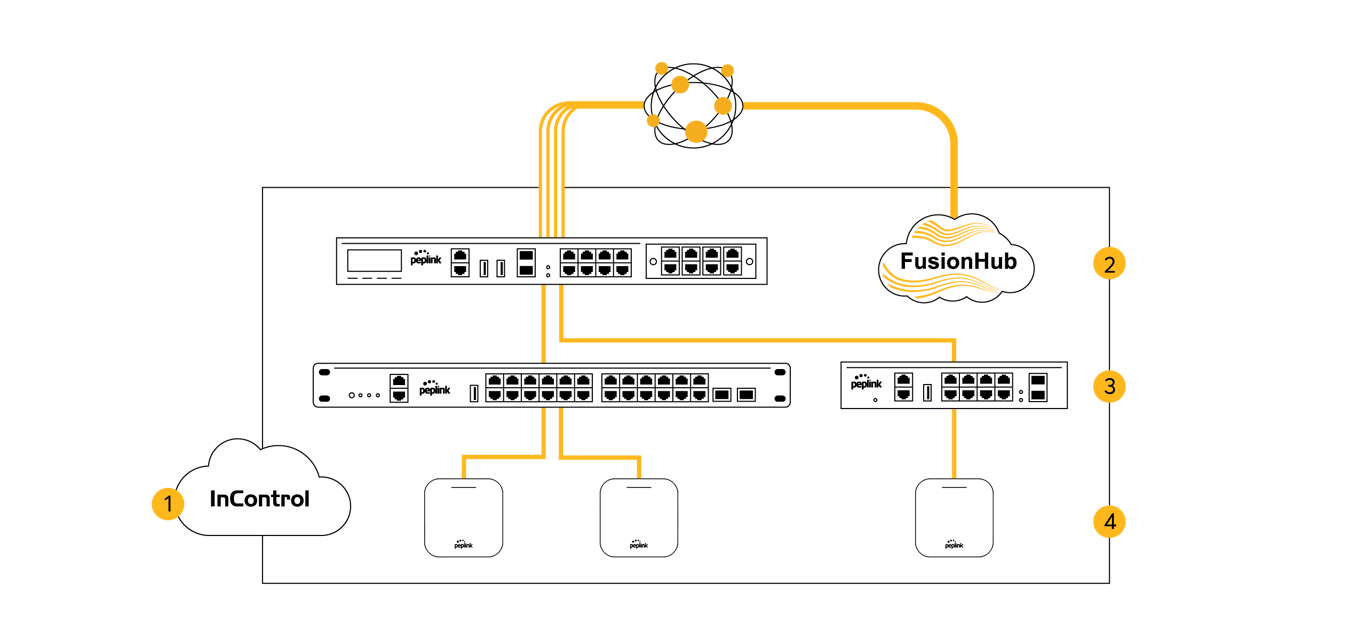

Seamless Peplink SD-WAN Integration

1. InControl Central Management

Monitor network health on a single dashboard. Push configuration proles on multiple devices at once. Remotely access the Web Admin of any device.

2. Balance/MAX/FusionHub

Provides unbreakable connectivity by combining multiple WANs. Works with InControl to centralize VLAN, firewall, and outbound policy.

3. SD-Switch

Works with InControl to remotely configure and activate PoE ports. Monitor power consumption.

4. AP One

Works with InControl to centralize SSIDs, radio settings, and deliver captive portals.

Simply Better Wi-Fi

Wi-Fi 6: Faster, Better

This technology is 45% faster than Wi-Fi 5, has 4x more device capacity, and consumes less power for connected devices.

Enterprise-Grade Fast Roaming

This device supports 802.11k, v, and r, providing users with a more seamless roaming experience between access points.

Overview

Specs

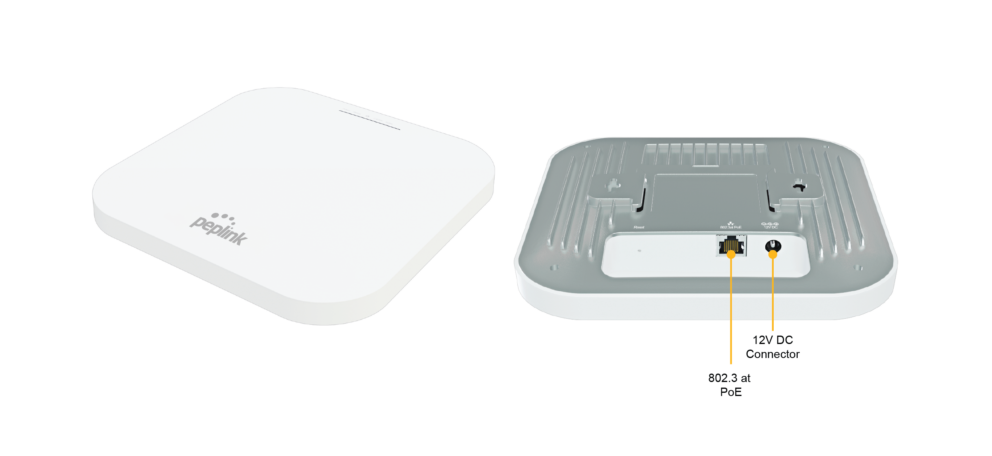

Product Overview
ItemContent
Product Code APO-AX
Ethernet Port 1x 2.5 Multigigabit Ethernet
Wi-Fi Standard 1x 2.4Ghz 802.11b/g/n/ax 1x 5Ghz 802.11a/n/ac/ax
Data Rates 4X4 MU-MIMO 2.4 GHz: up to 1148 Mbps 5 GHz: up to 2400 Mbps
Channel Width 20/40/80 MHz
Recommended Concurrent Users per Radio 256
SSID Per Radio 16
Transmit Power 2412 – 2472 MHz: 25dBm 5180 – 5825 MHz: 25dBm
Included Antenna Built-in Omni Antenna Antenna gain: 5dBi for 2.4GHz, 5dBi for 5GHz
Enclosure Plenum-rated, Indoor Plastic
Dimensions 8.1 x 8.1 x 1.3 inches 205 x 205 x 32 mm
Weight 1.73 pounds 785 grams
Power Input DC Jack: 12V DC AC Adapter: AC Input 100V − 240V, DC Output 12V, 2.5A* 802.3at PoE #
Power Consumption 23W (max.)
Operating Temperature 32° - 104°F 0° - 40°C
Certifications FCC, CE, RoHS
Warranty 1 Year Limited Warranty
* Optional feature.
#PoE Injector is available separately.
Deep Dive
CategoryDetails
Network Bridge Mode Router (NAT) Mode Support for PPPoE, Static IP, DHCP Management VLAN Mesh Spanning Tree Protocol IPv6 passthrough
Radio Multiple SSID Auto Channel Selection Transmit Power Adjustment Neighbor AP Detection
AP Security Open WPA/WPA2/WPA3-Personal WPA/WPA2-Enterprise
Device Management Web Administrative Interface InControl Cloud Management Peplink AP Controller SNMP v1, v2c and v3
Client Management Per SSID VLAN with QoS (802.1p/802.1q) Bandwidth Control MAC Address Filtering Layer 2 Client Isolation Limit on Max. Number of Client Per Client VLAN with RADIUS VLAN with VLAN Pool Bandwidth Control Multicast Filter IGMP Snooping/Multicast Enhancement
Captive Portal by InControl
Ordering Information
Product CodeDescription
APO-AX AP One AX - 4x4 MIMO Wi-Fi 6 AP for Business, manageable by InControl 2. Simultaneous Dual-Band 802.11ax/ac/b/g/n
User Feedback
“While this Wireless Access Point is certainly aimed more towards enterprise environments, there’s no reason not to use it in a SOHO environment as well. The 2.5GB backhaul is reason enough to favour this Peplink device over any of other current (and unavailable) Wi-Fi 6 offerings.”
– Amazon.com Customer
Feature Add - On
Product CodeDescription
ACW-107 802.3af/at PoE Injector, compatible with MAX Hotspot and AP One AX
ACW-602 1x12V3A Power Supply, compatible with MAX HD2 and AP One AX
ECP-B-1Y EssentialCare+ B (1-Year)
ECP-B-2Y EssentialCare+ B (2-Year)
ECP-B-4Y EssentialCare+ B (4-Year)
ICS-012 1-Year InControl 2 Subscription
ICS-024 2-Year InControl 2 Subscription
SVL-APO-AX-1Y 1-Year EssentialCare for AP One AX
SVL-APO-AX-2Y 2-Year EssentialCare for AP One AX
Package Content
  • AP One AX
  • Ceiling Mount Base (9/16” T-Rail)
  • Ceiling Mount Base (15/16” T-Rail)
  • Mounting Screw Set
Datasheet / Resources
