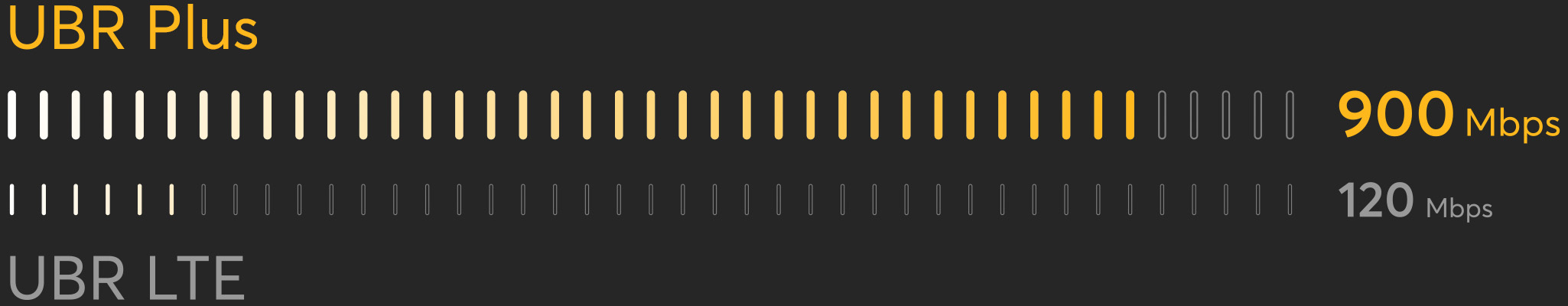

750% f a s t e r

With a max speed of 900 Mbps and at 7.5 times the speed of the original UBR, the UBR Plus brings you an unbreakable connection to keep your network running smoothly.

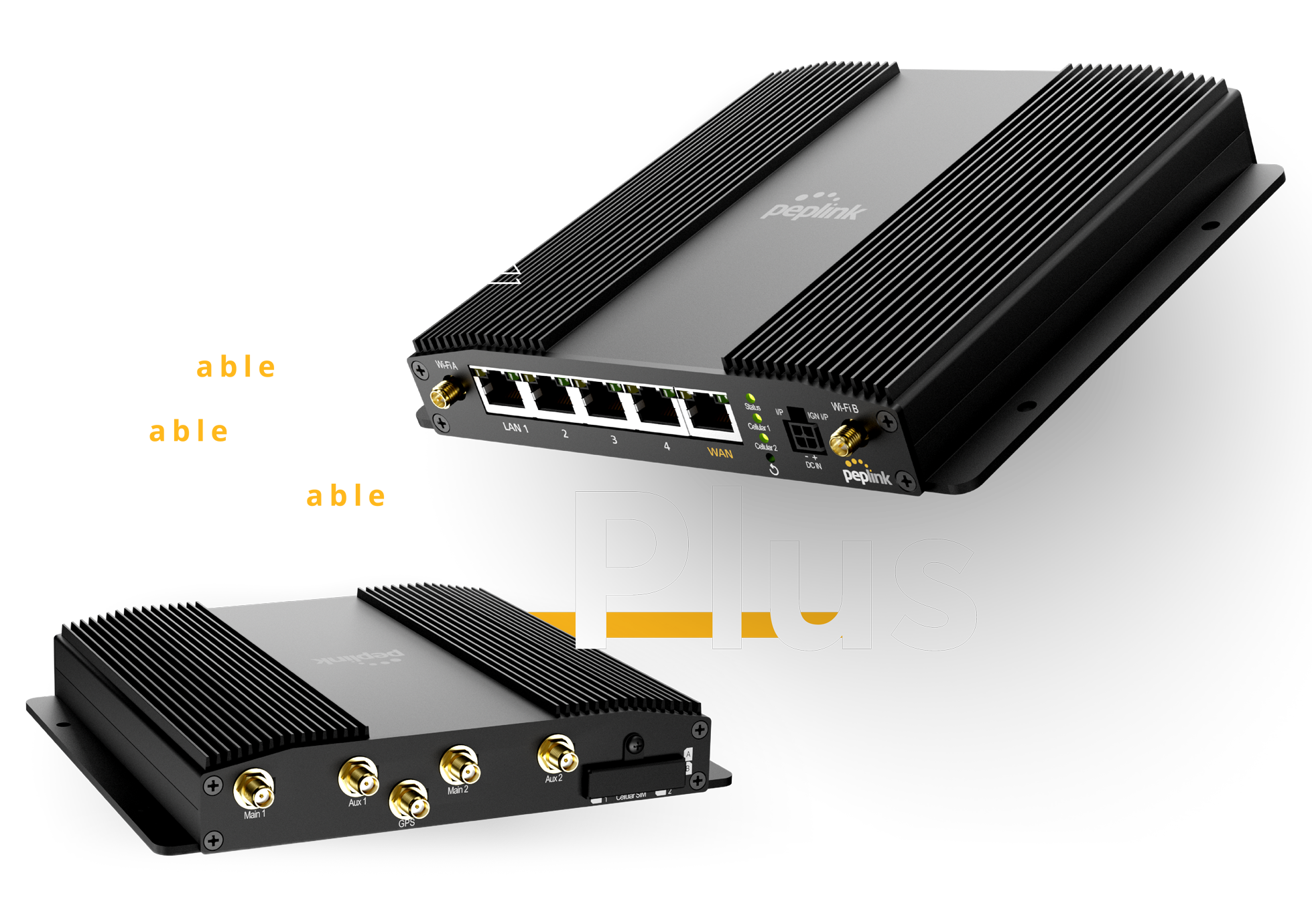

Sleek and Stealthy

The UBR Plus features a low profile, rugged design that is easy to deploy in even the smallest spaces.

SIM-pler than you think

Changing physical SIMs in your deployment may not be practical, but with Peplink it’s no longer a hassle. Swap carriers at any time with the UBR Plus’ built-in eSIM*, or connect one of our SIM Injectors and remotely manage 8 additional SIMs from up to 100m away!

Connectivity with Reliability

Making connectivity reliable has never been easier. With just a few clicks, you can protect your streams with SpeedFusion Connect^, and take full advantage of SpeedFusion’s network enhancing features. Or stay connected wherever you go with our on demand data plan, SpeedFusion Connect 5G/LTE.





^ Previously known as SpeedFusion Connect.

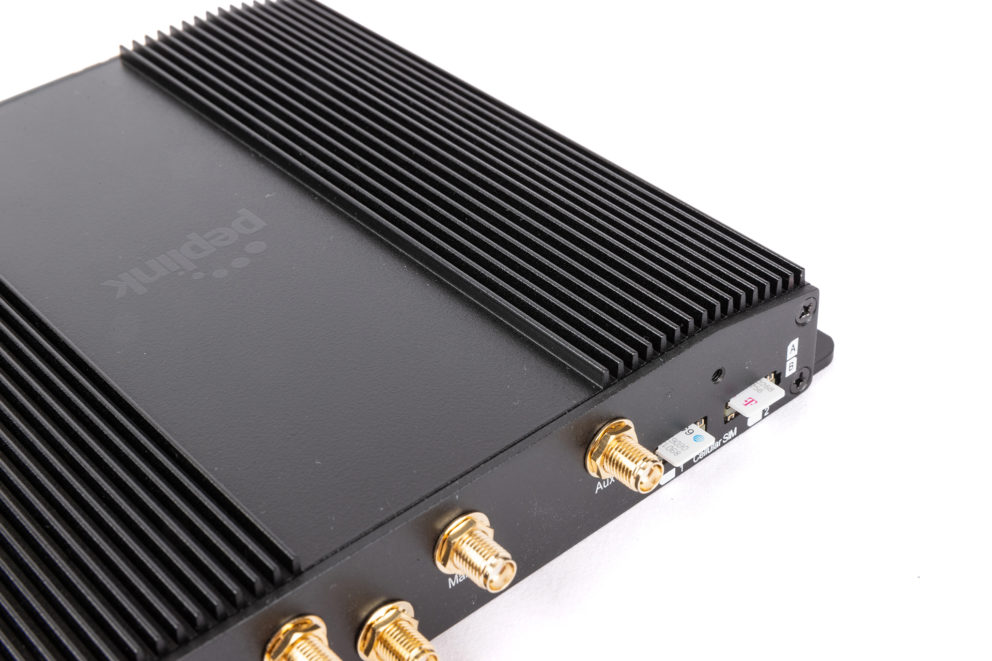

Definitely Tough Enough

The UBR Plus’ tough exterior makes the device as unbreakable as the connection it provides. Simply set it and forget it.

Ports and Connections

Photos

  • Product Overview & Comparison Table

  •
    SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    IPv6 Support
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    -Weighted Balance
    -Priority
    -Overflow
    -Persistence
    -Least Used
    -Lowest Latency
    -Enforced
    -Fastest Response Time
    Complete VPN SolutionSpeedFusion VPN
    SpeedFusion
    - Site-to-Site VPN
    - SpeedFusion Hot Failover^
    - SpeedFusion WAN Smoothing^
    - SpeedFusion Bandwidth Bonding ^
    - 256-bit AES Encryption
    - Pre-shared Key Authentication
    - Dynamic Routing
    - PPTP VPN Server
    - RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network)@
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    Security128-bit WEP
    WPA & WPA 2
    Stateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSIndividual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Social Wi-Fi Hotspot support
    External Captive Portal support
    CertificationsFCC*, CE*, RoHS*
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    ^ Requires a PrimeCare subscription, complimentary for the first year.
    @   IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
    * Certification pending.

  • Product CodeEmbedded
    Modem(s)    		RegionsLTE Bands3G Bands
    UBR-PLUS-LTEA-US-T-PRM2x CAT-7Primary: North America*B2, B4, B5, B7, B12, B13, B14,
    B25, B26, B41, B42, B43, B48,
    B66, B71    		HSPA+: B1, B5, B8
    UBR-PLUS-LTEA-B-T-PRM2x CAT-6Primary: APAC & EMEAB1, B2, B3, B4, B5, B7, B8, B12,
    B13, B14, B17, B18, B19, B20,
    B25, B26, B28, B29, B30, B38,
    B39, B40, B41, B42, B43, B48,
    B66, B71    		HSPA+/WCDMA: B1, B2, B4,
    B5, B6, B8, B9, B19



    *US Carrier Certification: AT&T, T-Mobile, US Cellular, Verizon, FirstNet.

  •

    Product Code Description
    PRM-B-1Y PrimeCare B (1-Year)
    PRM-B-2Y PrimeCare B (2-Year)
    PRM-B-4Y PrimeCare B (4-Year)
    ANT-MB-42G-S-B-6 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black)
    ANT-MB-42G-S-W-6 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White)
    ACW-634 10ft DC Power Cable
    PCP-B-1Y PrimeCare+ B (1-Year)
    PCP-B-2Y PrimeCare+ B (2-Year)
    PCP-B-4Y PrimeCare+ B (4-Year)
    LIC-VWAN Activate 1x Virtual WAN
    LIC-2VWAN Activate 2x Virtual WAN
    LIC-3VWAN Activate 3x Virtual WAN

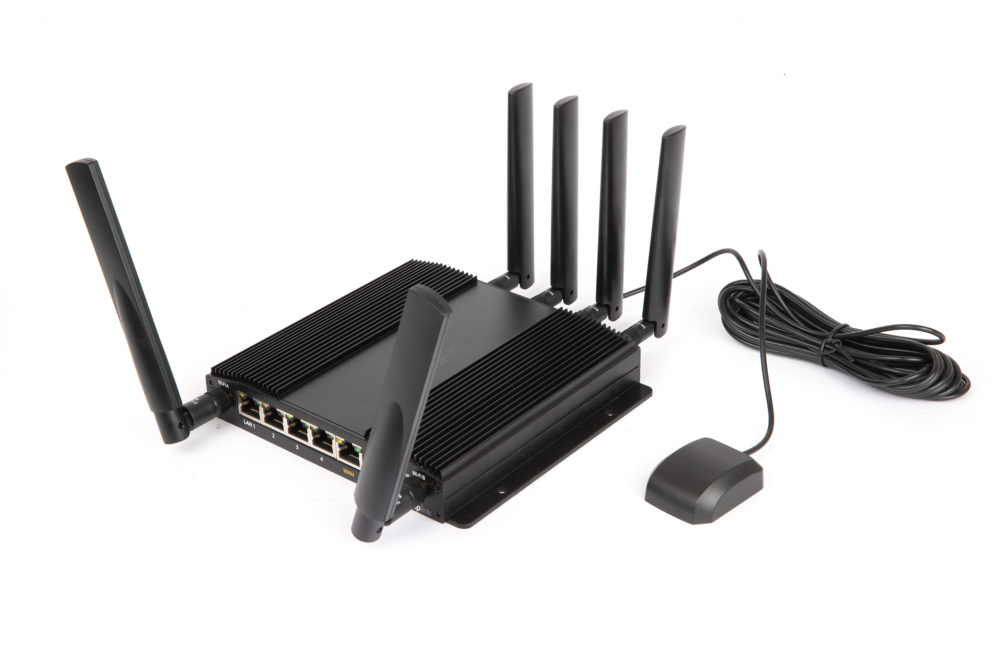

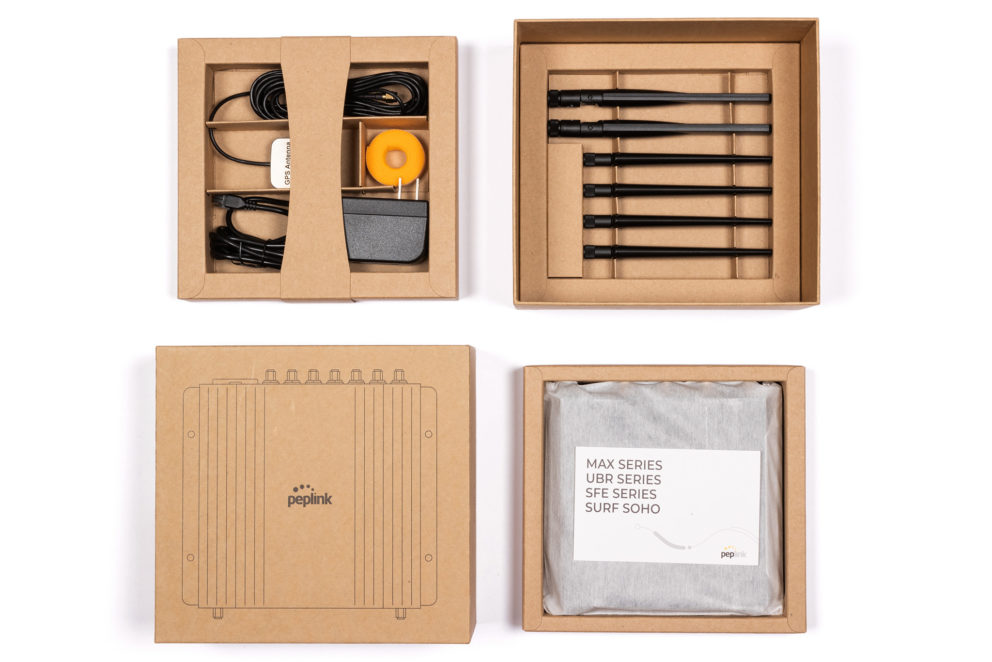

    • 1x UBR Plus
    • 4x LTE Antennas (ACW-235)
    • 2x Wi-Fi Dual Band Antennas (ACW-341)
    • 1x GPS Active Antenna (ACW-232)
    • 1x 12V 2A 4 Pin Power Supply (ACW-632)
