MAX Transit

Built for Transportation Deployments

With a compact form factor, simultaneous dual-band 11ac Wi-Fi, and embedded cellular modem, the MAX Transit is ready to deliver fast, reliable Wi-Fi hotspots to your passengers.

400Mbps 4G LTE Router for Public Transportation MAX Transit #10
400Mbps 4G LTE Router for Public Transportation MAX Transit #10
Locate a Reseller

Use Cases

Shock and vibration resistance

(EN 61373:2010)

Railway Applications

(EN 50155)

Electromagnetic Compatibility

(EN 61000)

Explore our Solutions

FirstNet Ready

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The MAX Transit supports band 14, providing additional coverage as the situation demands.

Simultaneous

Dual-Band 11ac Wi-Fi

Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi gives you two independent networks that also work together, maximizing the throughput that your passengers can enjoy.

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible on all major carriers. Certified with Verizon.

400Mbps 4G LTE Router for Public Transportation MAX Transit #5

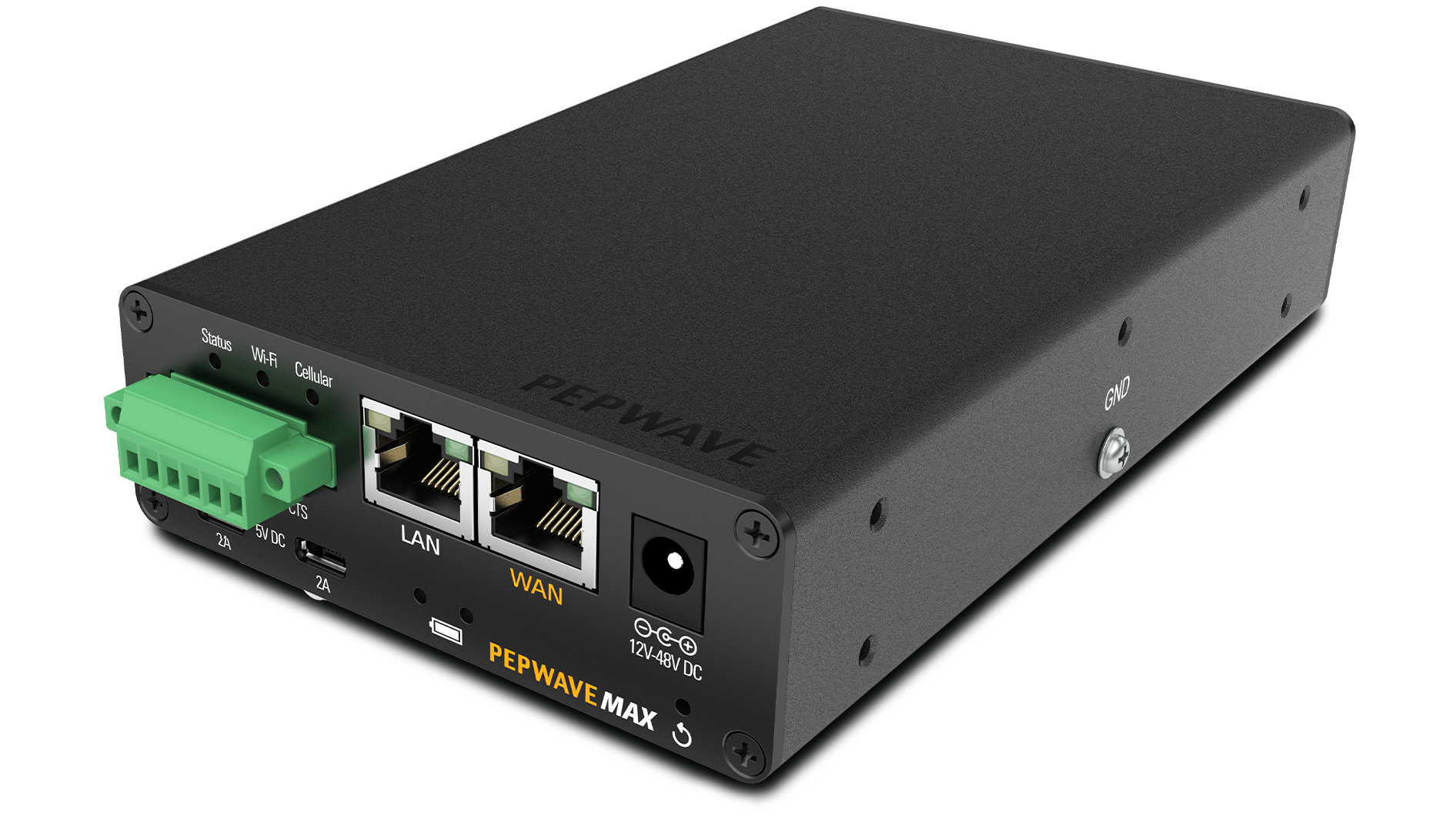

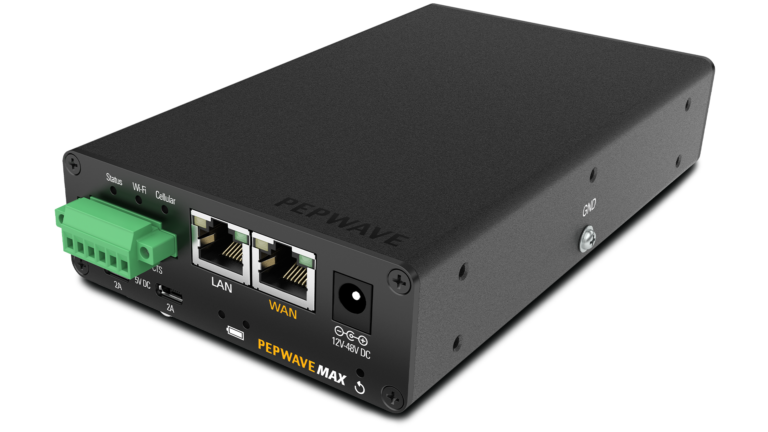

Install it Anywhere

With DIN rail mounts and mounting ears that can be installed from many angles, the MAX Transit is ready to fit into just about any space you have available.

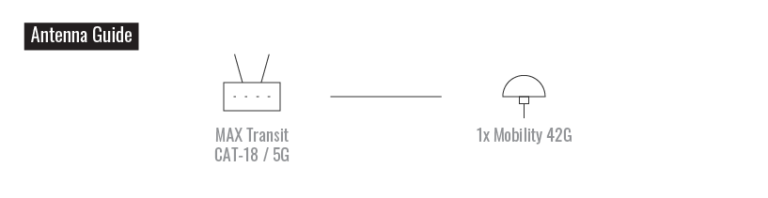

CAT 18 Option Available

400Mbps 4G LTE Router for Public Transportation MAX Transit #6
Captive Portal
Fleet Tracking
Advertising Services
Wi-Fi Mesh

400Mbps 4G LTE Router for Public Transportation MAX Transit #7





Integrated Captive Portal with Social Wi-Fi



The MAX Transit comes with a customizable captive portal what allows passengers to login with Facebook. As they login, you can use InControl 2 to see insightful reports on user demographics.



Learn More

400Mbps 4G LTE Router for Public Transportation MAX Transit #8





Fleet Tracking and Management



With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.



Learn More

400Mbps 4G LTE Router for Public Transportation MAX Transit #9





External Captive Portal for Advertising Servers



The MAX Transit also supports external captive portals, enabling you to connect to an advertising server. That way, your Wi-Fi hotspots can become a source of revenue.



Learn More

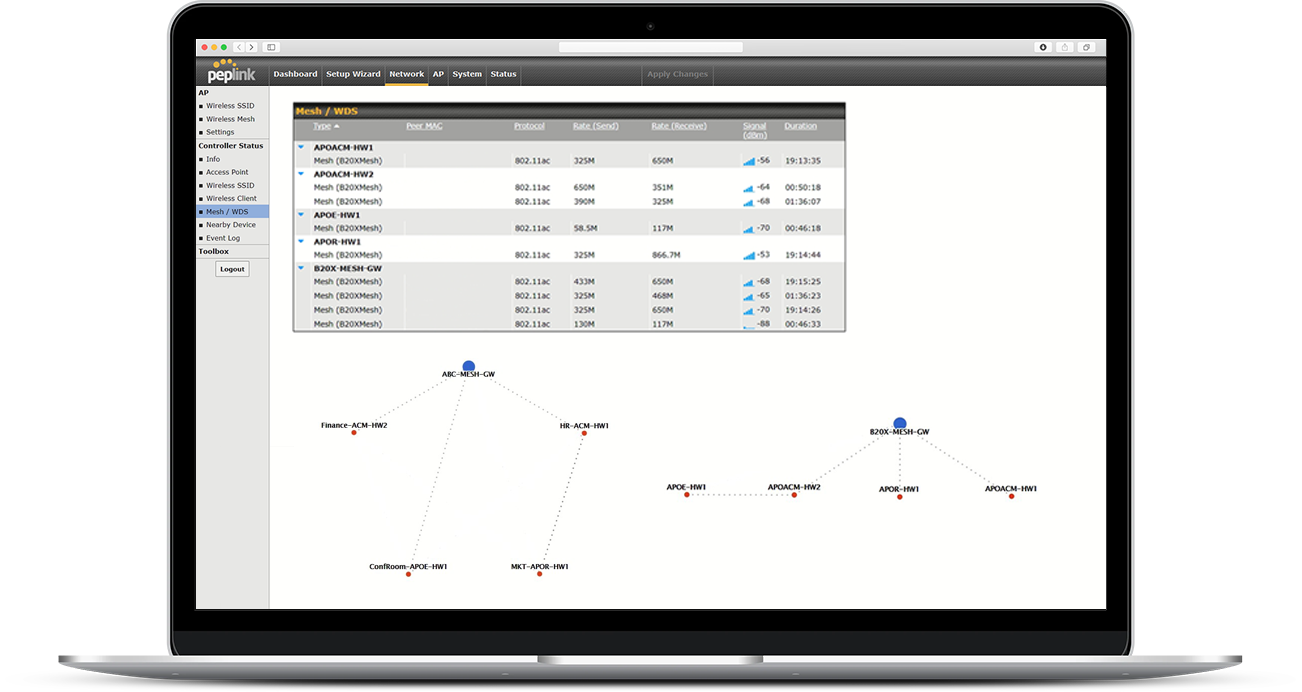

Wi-Fi Mesh Support



Along with an AP Controller, this feature allows for a mesh extension to your network, which can expand network coverage and minimize dead zones.



Learn More

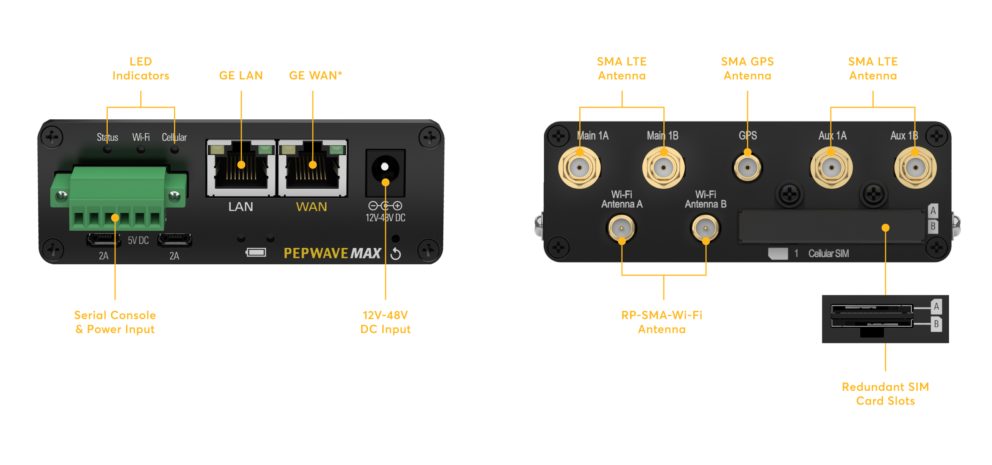

  • Embedded 4G LTE/3G1
    SIM Card SizeMini-SIM (2FF)
    Redundant SIM SlotsYes
    Ethernet WAN Ports1 (GE) *
    Ethernet LAN Ports1 (GE)
    Recommended Users150
    Router Throughput #400Mbps
    Wi-Fi Standard802.11ac/a/b/g/n 2×2 MIMO
    Maximum number of SSID:16
    Transmit Power (2.4GHz) | (5GHz)19dBm | 21dBm
    Simultaneous Dual-Band Wi-Fi APYes
    Wi-Fi as WANYes
    High AvailabilityYes
    WAN as LANYes
    Web BlockingYes
    Content Filtering BlacklistLite
    PepVPNYes
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingNo
    SpeedFusion Bandwidth BondingNo
    Number of PepVPN/SpeedFusion Peers2
    PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES)100Mbps | 60Mbps
    Number of IPsec Tunnels5
    EnclosureIndoor Metal
    Terminal Block Power Connector for Mobile/Vehicular DeploymentYes
    Dimensions
    (Height x Width x Depth)    		6.3 x 3.8 x 1.3 inches |
    160 x 97 x 33.5 mm
    Weight1.3 pounds |
    590 grams
    AC AdapterAC Input 100V – 240V / DC Output 12V, 2A
    Power Input2x Micro-USB B with 5V, 2A each
    Power Consumption18W (max.)
    Operating Temperature-40° – 149°F |
    -40° – 65°C
    Humidity15% – 95% (non-condensing)
    Certifications – FCC, CE, RoHS
    -E-Mark
    -EN 61373:1999 IEC 61373:1999
    Shock and Vibration Resistance
    -EN 50155
    Railway Applications – Electronic
    Equipment used on Rolling Stock
    -EN 61000
    Electromagnetic Compatibility
    Warranty1-Year Limited Warranty



    * The WAN port can act as a LAN port if needed.
    # Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision. The throughput result is tested with DHCP/Static IP WAN.

  • Embedded 4G LTE/3G1
    SIM Card SizeMini-SIM (2FF)
    Redundant SIM SlotsYes
    Ethernet WAN Ports1 (GE) *
    Ethernet LAN Ports1 (GE)
    Recommended Users150
    Router Throughput400Mbps
    Wi-Fi Standard802.11ac/a/b/g/n 2×2 MIMO
    Maximum number of SSID:16
    Transmit Power (2.4GHz) | (5GHz)19dBm | 21dBm
    Simultaneous Dual-Band Wi-Fi APYes
    Wi-Fi as WANYes
    High AvailabilityYes
    WAN as LANYes
    Web BlockingYes
    Content Filtering BlacklistLite
    PepVPNYes
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingNo ^
    SpeedFusion Bandwidth BondingNo ^
    Number of PepVPN/SpeedFusion Peers2/5 &
    PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES)100Mbps | 60Mbps
    Number of IPsec Tunnels5
    EnclosureIndoor Metal
    Terminal Block Power Connector for Mobile/Vehicular DeploymentYes
    Dimensions
    (Height x Width x Depth)    		6.3 x 3.8 x 1.3 inches |
    160 x 97 x 33.5 mm
    Weight1.3 pounds |
    590 grams
    AC AdapterAC Input 100V – 240V / DC Output 12V, 2A
    Power Input2x Micro-USB B with 5V, 2A each
    Power Consumption18W (max.)
    Operating Temperature-40° – 149°F |
    -40° – 65°C
    Humidity15% – 95% (non-condensing)
    Certifications – FCC, CE, RoHS
    -E-Mark
    -EN 61373:1999 IEC 61373:1999
    Shock and Vibration Resistance
    -EN 50155
    Railway Applications – Electronic
    Equipment used on Rolling Stock
    -EN 61000
    Electromagnetic Compatibility
    Warranty1-Year Limited Warranty



    * The WAN port can act as a LAN port if needed.
    ^ Feature is available as an add-on license OR PrimeCare model.
    & 2 PepVPN Peers are enabled by default. 5 PepVPN Peers are enabled for PrimeCare models which requires PrimeCare Subscription, complementary for the first year.



  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    IPv6 Support
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    -Weighted
    -Enforced
    -Persistence
    -Priority
    -Overflow
    -Least Used
    -Lowest Latency
    -Fastest Respond
    Time
    Complete VPN SolutionPepVPN
    SpeedFusion
    – Site-to-Site VPN
    – SpeedFusion Hot Failover
    – SpeedFusion WAN Smoothing^
    – SpeedFusion Bandwidth Bonding ^
    – 256-bit AES Encryption
    – Pre-shared Key Authentication
    – Dynamic Routing
    – X.509 Certificate Support *
    PPTP VPN Server
    -RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network) @
    X.509 Certificate Support *
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    Security128-bit WEP
    WPA & WPA 2
    Stateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSIndividual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Social Wi-Fi Hotspot support
    External Captive Portal support
    Certifications-FCC, CE, RoHS, IC
    -E-Mark
    -EN 61373:1999 IEC 61373:1999 Shock and Vibration Resistance
    -EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock
    -EN 61000 Electromagnetic Compatibility
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    .
    ^ Feature is available as an add-on license.

    * IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
    @ X.509 is only supported on MAX-TST-DUO.

    • MAX Transit
    • 12V2A Power Supply (ACW-601)
    • 2x 5dBi Wi-Fi Antennas (ACW-341)
    • 1x GPS Active Antenna (ACW-232)
    • 2x 2dBi 4G LTE Antennas (ACW-234)
    • 1 Pair of Mounting Brackets (ACW-724)



    • MAX Transit (CAT-18)
    • 12V2A Power Supply (ACW-601)
    • 2x 5dBi Wi-Fi Antennas (ACW-341)
    • 1x GPS Active Antenna (ACW-232)
    • 4x 2dBi 4G LTE Antennas (ACW-234)
    • 1 Pair of Mounting Brackets (ACW-724)
  • Product CodeCarrierModem4G Bands3G Bands
    MAX-TST-E-TEurope /
    International/
    CAT-4
    		14G LTE: B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
    MAX-TST-LTEA-W-TWorldwide /
    CAT-6
    		14G LTE-A:
    B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
    		2500WCDMA/HSPA+/DC-HSPA+:
    B1, B2, B3, B4, B5, B8
    MAX-TST-LTEA-P-TAsia Pacific/
    CAT-6
    		14G LTE-A:
    B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
    		WCDMA/HSPA+/DC-HSPA+: B1, B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
    MAX-TST-LTEA-R-TAmerica /
    FirstNet /
    CAT-12
    		14G LTE-A Pro:
    B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66    		HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
    MAX-TST-LTEA-K-TGlobal* /
    CAT-12
    		14G LTE-A Pro:
    B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66    		HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
    MAX-TST-GLTE-G-T-PRMGlobal /
    CAT-18
    		1B1, B3, B25(B2), B66(B4), B26(B5/B18/B19), B7, B8, B12(17),
    B13, B14 , B20, B28, B29, B30, B32,
    B71, B38, B39, B40, B41, B42, B43,
    B46, B48
    		B1, B2, B4, B5(B19), B8
    MAX-TST-ESN-GLTE-G-T-PRMGlobal / ESN
    CAT-18
    		1B1, B3, B25(B2), B66(B4), B26(B5/B18/B19), B7, B8, B12(17),
    B13, B14 , B20, B28, B29, B30, B32,
    B71, B38, B39, B40, B41, B42, B43,
    B46, B48
    		B1, B2, B4, B5(B19), B8

    * China & HK TD LTE are excluded.
