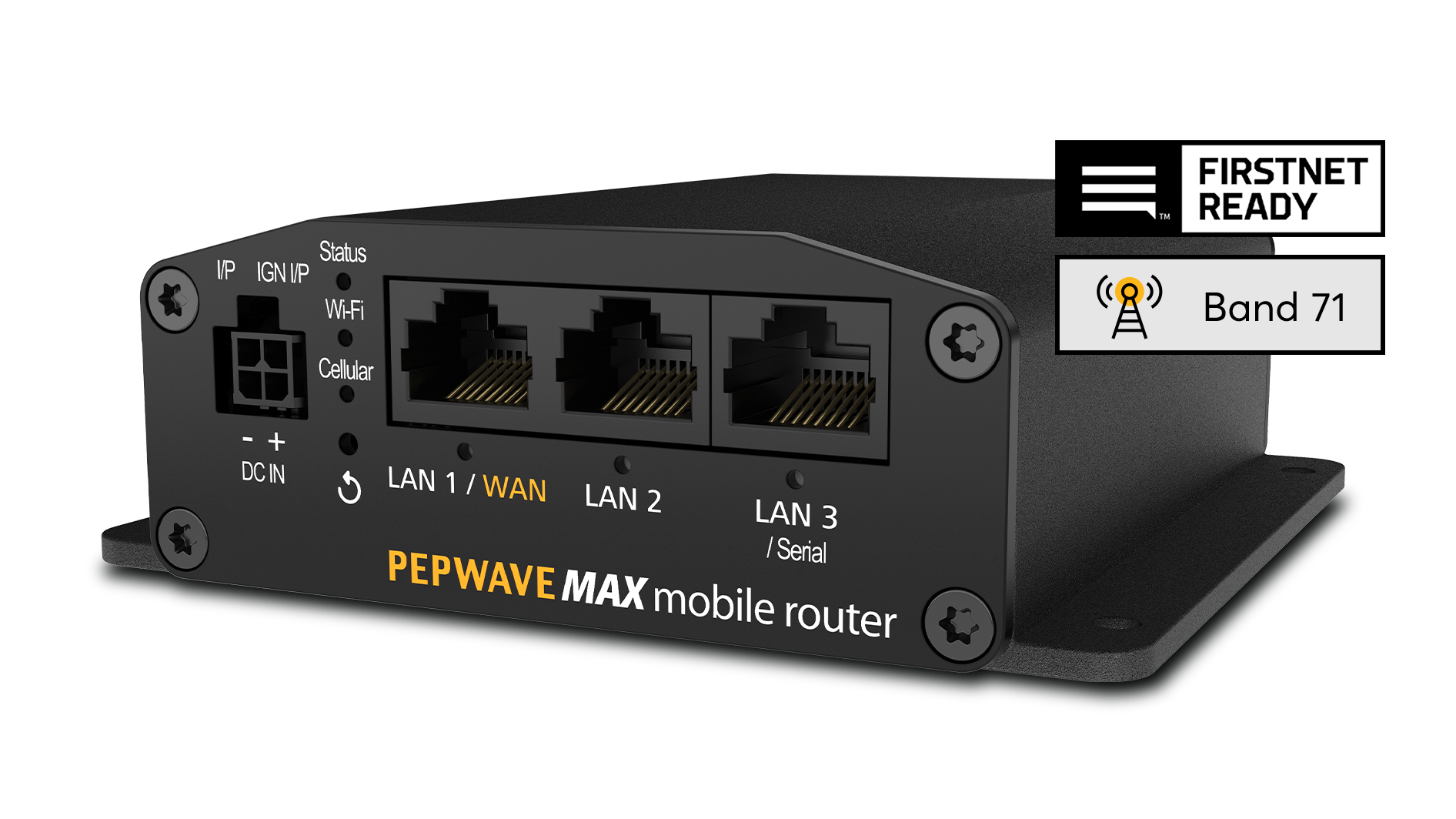

MAX Transit Mini

Band 71 and FirstNet Ready

The Transit Mini supports both band 71 and FirstNet, providing additional coverage as the situation demands. Band 71 operates at a 600MHz frequency that travels twice as far and works four times better in buildings than conventional LTE bands. This means Band 71 provides better coverage in remote areas as well as indoors. FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity.

100Mbps 4G LTE Router for Transportation MAX Transit Mini #2
100Mbps 4G LTE Router for Transportation MAX Transit Mini #2

Use Cases

Public Safety. First Responders.
Transportation. On – Board Deployments.
In – Vehicle Deployments & Fleet Tracking

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

Topology, First Responder Connectivity to HQ

100Mbps 4G LTE Router for Transportation MAX Transit Mini #4

Designed for Mobility

The MAX Transit Mini has specialized features for vehicular deployments. Ignition sensing, which detects the ignition status of the vehicle, enables the device to turn on and off as the vehicle starts up and shuts down. It is also equipped with GPS, enabling you to track its movements. With InControl’s fleet management, you can review the route history of all your vehicles from any web browser.

100Mbps 4G LTE Router for Transportation MAX Transit Mini #6

Scalable Management

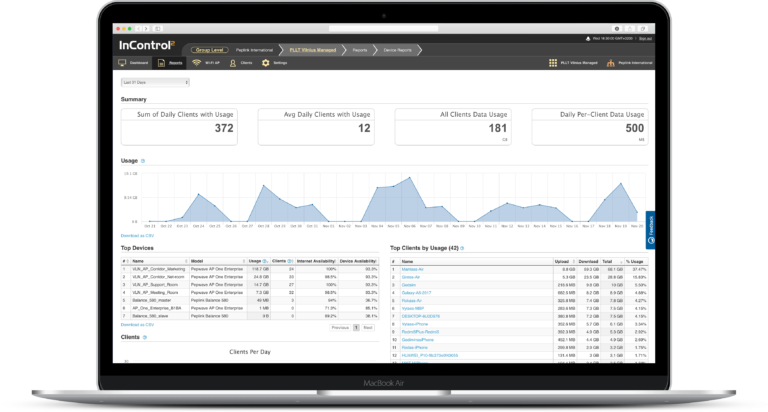

With a footprint of 4.1 x 4.3 inches, the Transit Mini can fit in just about any small space. It can be powered using Passive PoE, reducing the number of wires in the vehicle. Most importantly, the Transit Mini can be remotely managed by InControl cloud management^. This enables you to bulk push configurations and firmware updates, ensuring infinite scalability.

Get it all with PrimeCare

SpeedFusion
InControl2
Warranty

PrimeCare makes SpeedFusion networks easier to build. It bundles InControl, Warranty, SpeedFusion licence upgrades, FusionHub licenses into one subscription

  • Cellular WAN InterfacesSingle LTE Modem
    Redundant SIM SlotYes
    SpeedFusion Hot FailoverYes ^
    SpeedFusion WAN SmoothingYes ^
    WAN Interface1x 10/100M Ethernet Port ^
    LAN Interface3x 10/100M Ethernet Port
    (1x WAN Port shared with LAN Interface)
    (1x Serial Port shared with LAN Interface)
    Load BalancingYes
    Stateful Firewall Throughput100Mbps
    Recommended Users60
    LTE ModemDownlink/Uplink Data Rate:
    LTE Modem 150Mbps/50Mbps
    Wi-Fi Standard802.11b/g/n Wi-Fi WAN^ and AP
    Antenna Connectors2x SMA Cellular, 1x SMA GPS, 1x RP-SMA Wi-Fi
    Power InputPassive PoE Input (WAN Port, 12V – 28V DC) / Power + GPIO
    Power Consumption12W (max.)
    Dimensions4.1 x 4.3 x 1.2 inches |
    105 x 110 x 30 mm
    Weight0.54 pound |
    244 grams
    Operating Temperature -40 ° – 149 °F
    -40 ° – 65 °C
    Humidity15% – 95% (non-condensing)
    Certifications-FCC, CE, RoHS, IC
    -EN 61000: Electromagnetic Compatibility
    -EN61373: Rolling Stock
    Warranty1-Year Limited Warranty



    ^ Requires PrimeCare Subscription, complementary for the first year.

    All specifications are subject to change without notice.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Complete VPN SolutionPepVPN
    Site-to-Site VPN
    SpeedFusion Hot Failover^
    256-bit AES Encryption
    Pre-shared Key Authentication
    IPsec VPN (Network-to-Network) *

    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSIndividual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    Captive Portal SupportSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page

    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    ^ Requires PrimeCare Subscription, complementary for the first year.

    All specifications are subject to change without notice.

    • MAX Transit Mini
    • 1x GPS Antenna
    • 1x WiFi Antenna
    • 2x 2dBi 4G LTE Antennas
    • 1x DC Cable (ACW-634)
  • Q. Is there a WAN activation license for the MAX Transit Mini?

    WAN activation license is not required when covered under PrimeCare.
    PrimeCare subscription comes complementary for the first year. Click HERE to discover more about PrimeCare.



    Q. How can I get the wiring diagram for the MAX Transit Mini?

    Please check the diagram below for the wiring assignment for the Transit Mini. For additional details, you may refer to the MAX user manual section 24.7, titled “Ignition Sensing”.



  • Product CodeCarrierStandard4G Bands3G Bands
    MAX-TST-MINI-LTE-E-T-PRMEULTE Cat. 4B1, B3, B5, B7, B8, B20,
    B38, B40, B41
    WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B8
    MAX-TST-MINI-LTE-F-T-PRMAmerica/FirstNet ReadyLTE Cat. 4B2, B4, B5, B12, B13,
    B14, B66, B71
    WCDMA/HSPA+/DC-HSPA+:
    B2, B4, B5
  •

    Product Code

    Description

    ACW-632

        Power Supply Unit for MAX Transit Mini 12V2A
