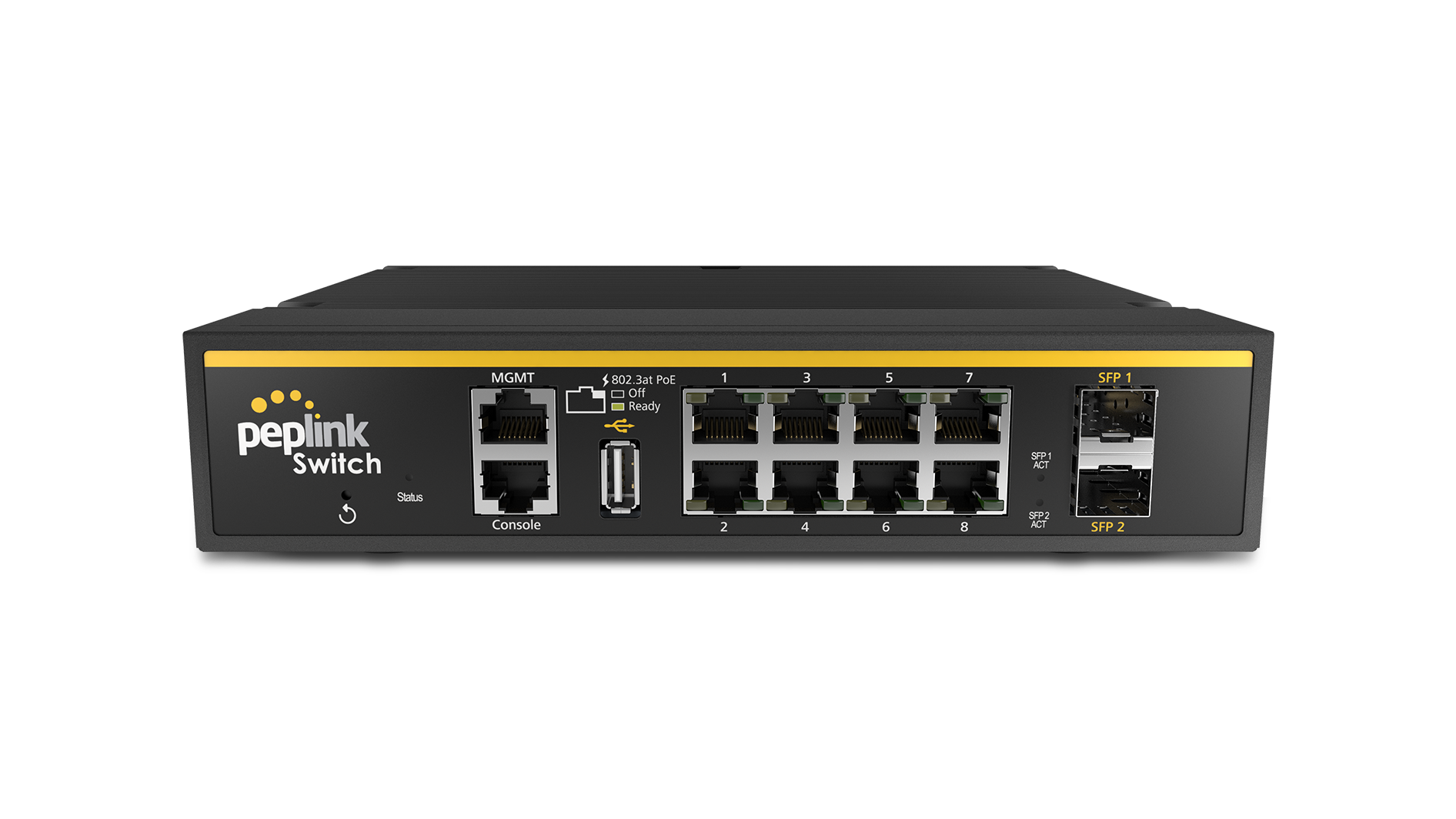

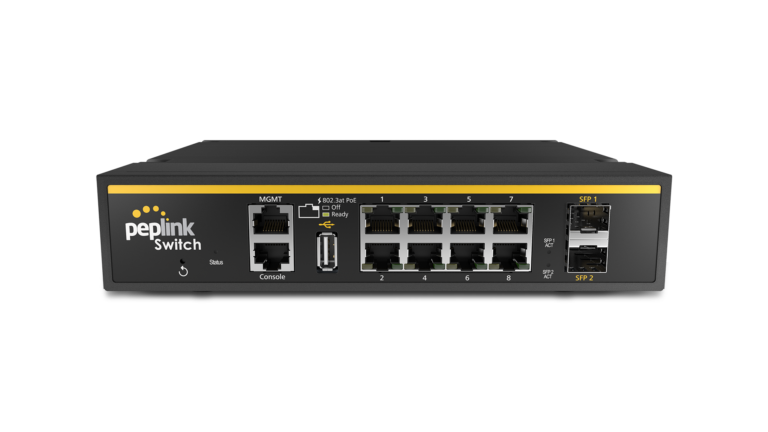

SD Switch 8 Port Rugged

Simplified LAN Management

Meet Peplink SD Switches Rugged. Benefit from multiple redundancy technologies for the always-on uptime your network needs.

No more Command Lines

Use InControl 2 cloud management to remotely monitor, troubleshoot, and configure your network.

Monitor

Port status, connectivity, firmware version.

Troubleshoot

See all clients, search by MAC address.

Configure

Centralize VLAN, firmware, and configurations.

Powerful Robust Performance

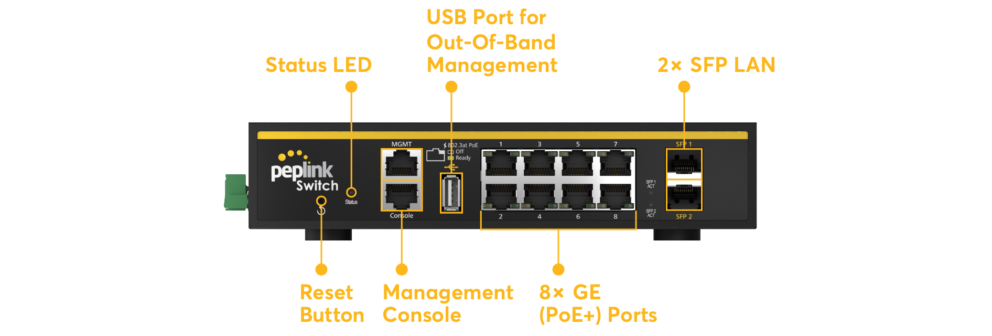

Industrial Grade 8-Port SD Switch for Rugged Environment #4

High Capacity Uplinks

PoE+ Output

Out-Of-Band Management

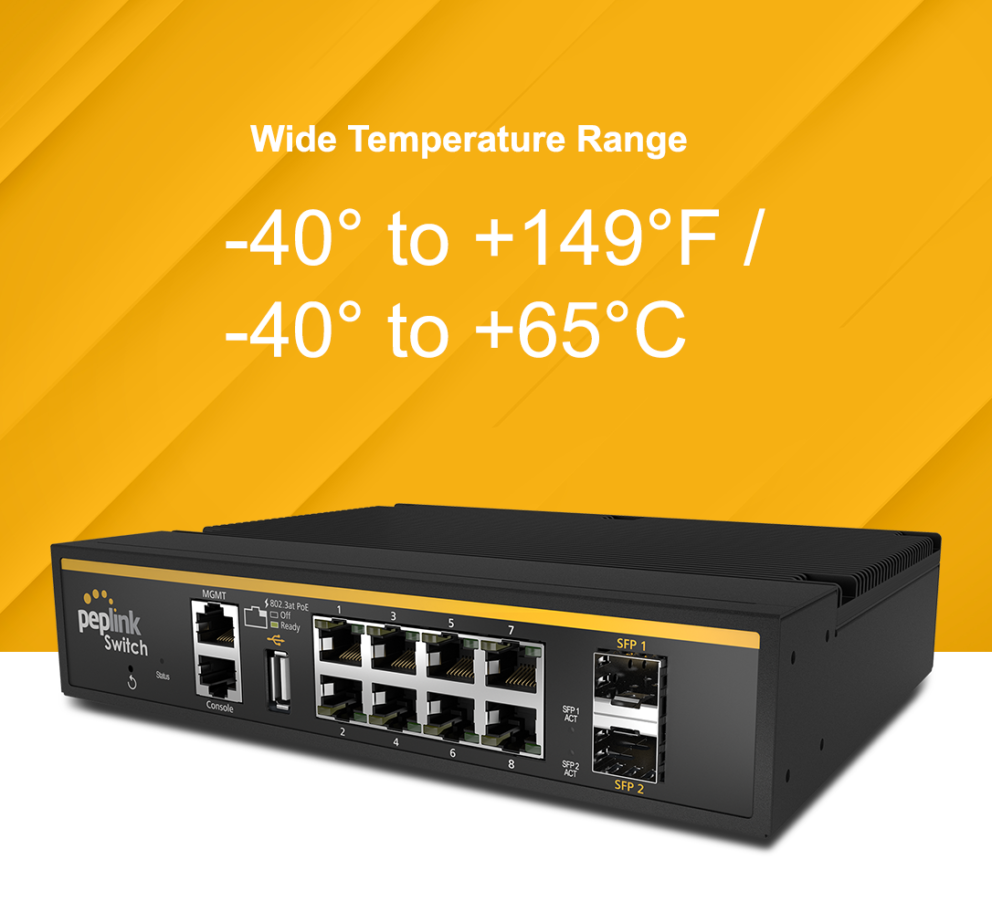

Industrial Grade 8-Port SD Switch for Rugged Environment #5

Fanless Design. Ready for Any Environment

The SD-Switch Rugged can handle -40°F (-40°C) to 149°F (65°C). The fanless design enables it to function in high-particle environments.

  •
    LAN Interface8x 802.3at (PoE+) GE Ports*,
    2x SFP Port
    VLAN GroupsYes
    Fiber Module2x 1 Gbps
    Switch Capacity20 Gbps
    Max. Packet
    Forwarding Rate    		14.9 Mpps
    MAC Address Table8,000
    Inter-VLAN RoutingNo
    AC AdaptorAC Input 100V-240V
    DC Output 54V^
    Power InputDC Power DIN 2x 54V
    Terminal Block: 12V - 56V DC
    Power
    Consumption
    		20W System,
    90W PoE+ Power Budget
    (supports up to 240W^
    Dimensions
    (D x W x H)
    		8.2 x 6.3 x 1.7 inches |
    210 x 160 x 43 mm
    Weight2.2 pounds |
    1.0 kg
    Operating Temperature-40° – 149°F |
    -40° – 65°C
    Humidity15% – 95% (non-condensing)
    CertificationFCC, CE, RoHS, E-Mark, IC
    EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance
    EN 50155: Railway Applications
    EN 61000: Electromagnetic Compatibility
    EN 45545-2: Fire Protection on Railway Vehicles
    Warranty1-Year Limited Warranty

    * PoE output requires a minimum of 48V power input.

    ^The bundled PSU provides 90W of PoE power budget. If you require 240W of power budget, please add 180W PSU (ACW-630) to your device.

  •

    Product Code

    		 Description
    PSW-8-240W-RUG

            PoE enabled (delivers up to 240W) Gigabit (8 ports) and SFP (2 ports) switch with a fanless design for industrial environments.
  • Product Code Description
    SVL-458 1-Year EssentialCare for SD Switch 8-Port Rugged
    SVL-573 2-Year EssentialCare for SD Switch 8-Port Rugged
    ICS-V03-1Y 1-Year InControl 2 Subscription for SD Switch
    ICS-V03-2Y 2-Year InControl 2 Subscription for SD Switch
    ECP-D-1Y EssentialCare+ D (1-Year)
    ECP-D-2Y EssentialCare+ D (2-Year)
    ECP-D-4Y EssentialCare+ D (4-Year)
    • SD Switch 8-Port Rugged
    • 1x PSU 120W
    • 1x Power Cord (ACW-614)
    • Ear Mounts/DIN Rail Mount kit (ACW-DIN-PSW8)
    • 4pin Terminal Block Connector (Power supply)
    • Rubber Foot Pad set

  • SD Switch 8-Port Rugged Datasheet
