Switch 24 Port Rugged

Industrial Grade 24-Port SD Switch for Rugged Environment #2

Simplified LAN Management

Meet Peplink SD Switches. Benefit from multiple redundancy technologies for the always-on uptime your network needs.

Locate a Reseller

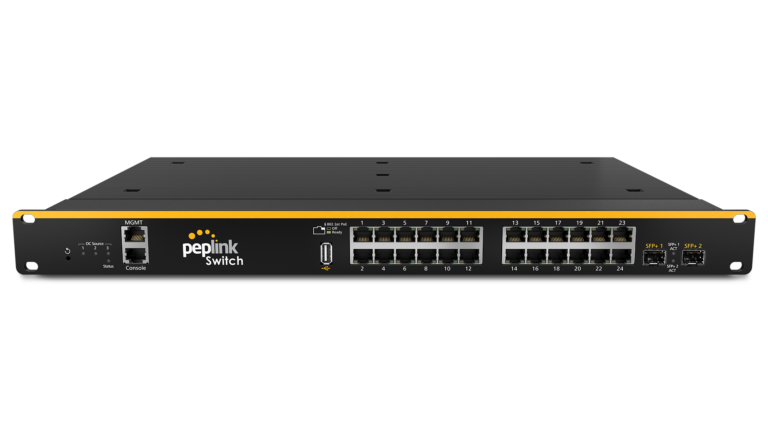

Industrial Grade 24-Port SD Switch for Rugged Environment #2

No more Command Lines

Use InControl 2 cloud management to remotely monitor, troubleshoot, and configure your network.

Monitor

Port status, connectivity, firmware version.

Troubleshoot

See all clients, search by MAC address.

Configure

Centralize VLAN, firmware, and configurations.

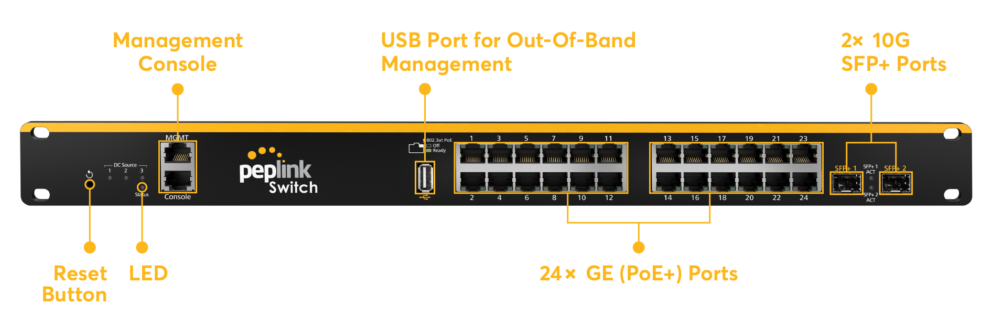

Powerful Robust Performance

High Capacity Uplinks

PoE+ Output

Out-Of-Band Management

Industrial Grade 24-Port SD Switch for Rugged Environment #5

Fanless Design. Ready for Any Environment

The SD-Switch Rugged can handle -40°F (-40°C) to 149°F (65°C). The fanless design enables it to function in high-particle environments.

  • LAN Interface24x 802.3at (PoE+) GE Ports,
    2x SFP+ Ports
    VLAN GroupsYes
    Fiber Module2x 10 Gbps
    Switch Capacity88 Gbps
    Max. Packet
    Forwarding Rate
    66 Mpps
    MAC Address Table32,000
    Inter-VLAN RoutingYes
    AC AdaptorAC Input 100V-240V
    DC Output 54V*
    Power InputRedundant DC Power DIN: 54V
    Terminal Block: 12V - 54V DC
    Power
    Consumption
    50W System,
    120W PoE+ Power Budget
    (supports up to 250W * )
    Dimensions
    (L x W x H)
    10.5 x 19.1 x 1.7 inches |
    265 x 485 x 45mm
    Weight11.3 pounds |
    5.14 kg
    Operating Temperature-40° – 149°F |
    -40° – 65°C
    Humidity15% – 95% (non-condensing)
    CertificationFCC, CE, RoHS, IC #
    EN 61000: Electromagnetic Compatibility #
    Warranty1-Year Limited Warranty



    * The bundled PSU provides 120W of PoE power budget. If you require 250W of power budget, please add 180W PSU (ACW-623) to your device.
    # Pending certification.

  • Product Code

    Description
    PSW-24-250W-RUG

           PoE enabled (delivers up to 250W) Gigabit (24 ports) and SFP (2 ports) switch with a fanless design for industrial environments.
