Switch 24 Ports

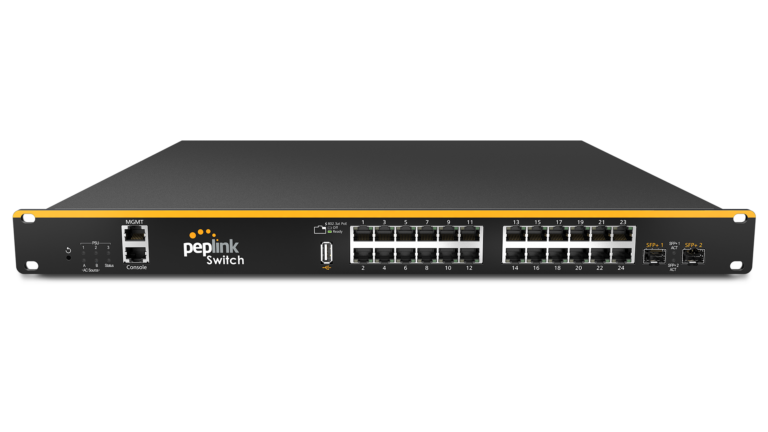

Dual AC Power Input 24-Port SD Switch w. 850W Power Budget #2

Enterprise-Grade PoE Switch with Cloud Intelligence

Presenting highly scalable Peplink enterprise switches that provide carrier-grade reliability, LAN management and out-of-band management.

Locate a Reseller
Dual AC Power Input 24-Port SD Switch w. 850W Power Budget #2

Scalable LAN Management

Effortlessly manage hundreds of SD-Switches and Peplink Routers. The InControl 2 cloud management platform makes it possible.


Port status, connectivity, firmware version.


See all clients, search by MAC address.


Centralize VLAN, firmware, and configurations.

Essential Building Block for Every Network

High Capacity Uplinks

PoE+ Output

Out-Of-Band Management

Uninterrupted Power

The SD-Switch has redundant power supplies. So even if one PSU stops working, the SD-Switch will keep connecting your network.

Dual AC Power Input 24-Port SD Switch w. 850W Power Budget #6

No Connection? No Problem

With Out-Of-Band management, simply plug in a USB dongle to remotely access your SD-Switch. Remotely access the web admin using InControl 2.

  • LAN Interface24x 802.3at PoE GE Ports,
    2x SFP+ Ports
    VLAN GroupsYes
    Fiber Module2x 10 Gbps
    Switch Capacity88 Gbps
    Max. Packet Forwarding Rate66 Mpps
    MAC Address Table32,000
    Inter-VLAN RoutingYes
    Power Input2x 100V – 240V AC Input,
    With Power Redundancy
    Integrated Power Source850W: 3x Redundant PSU
    Power Consumption
    50W System,
    850W PoE+ Power Budget
    Weight13.7 pounds | 6.2 kg
    Operating Temperature32° – 104°F | 0° – 40°C
    Humidity15% – 95% (non-condensing)
    Certification FCC, CE, RoHS, IC
    EN 61000: Electromagnetic Compatibility
    Warranty1-Year Limited Warranty

    Product Code


                PoE enabled (delivers up to 850W) Gigabit (24 ports) and SFP+ (2 ports) switch with redundant power inputs and 2x power supplies.


    • SD Switch 24-Port Enterprise
    • 2x Power Cord (ACW-614)
    • 2x L-Mount for switch back side
    • Screw set for rack mounting
    • Rubber Foot Pad set
