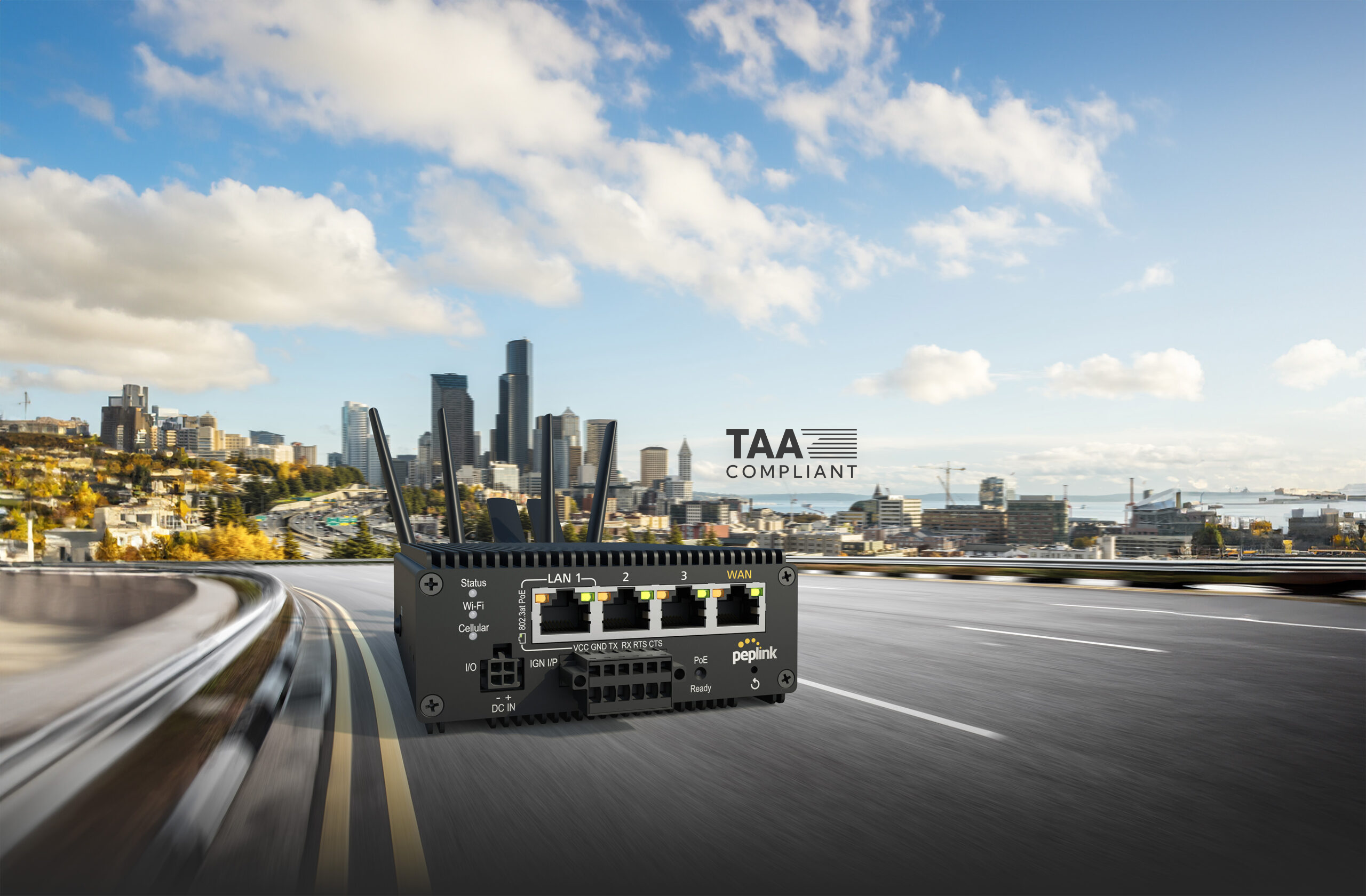

Transit Pro E

Rugged, Mobile 5G Router with Edge Compute Engine

5G
and
LTE

1 Gbps
throughput

Wi-Fi 6
2.4 GHz
5 GHz

Wi-Fi
WAN

WAN
as
LAN

High-speed, flexible 5G router in a rugged portable package

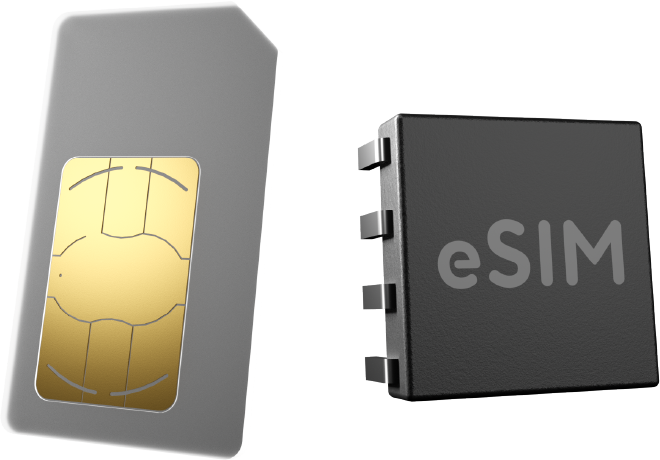

SIM and eSIM

Physical SIM, Peplink eSIM,
Remote SIM and BYO eSIM

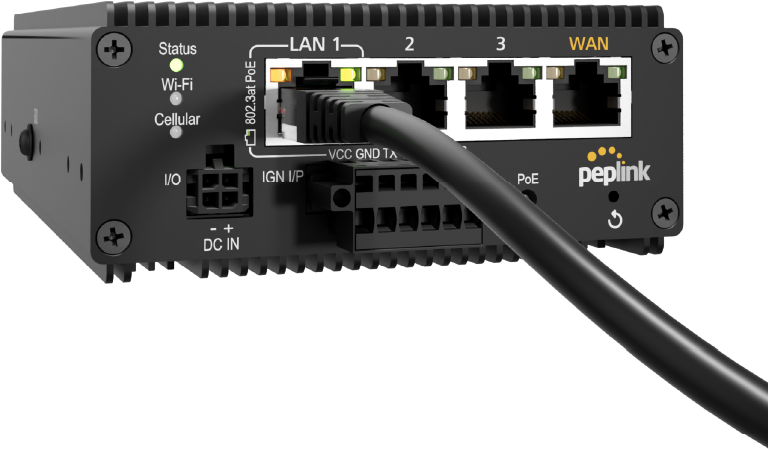

PoE+

PoE + (802.3at)
output power up to 30 W

Built for Adverse Remote and Mobile Applications

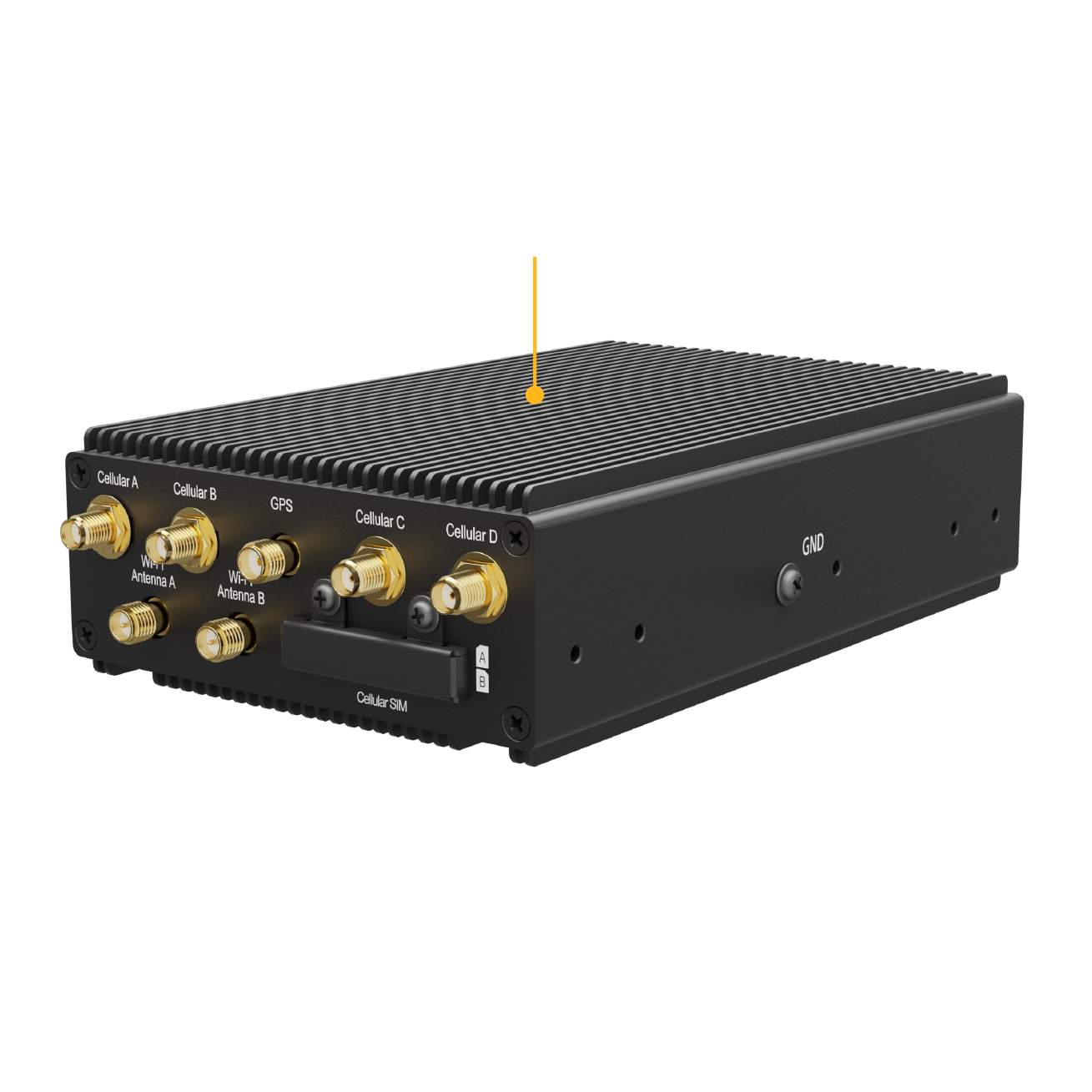

Transit Pro E Case
Rugged

Rugged Metal and Ventless Design Case

Temperature

Widest operating temperature range

-40°C to +70°C

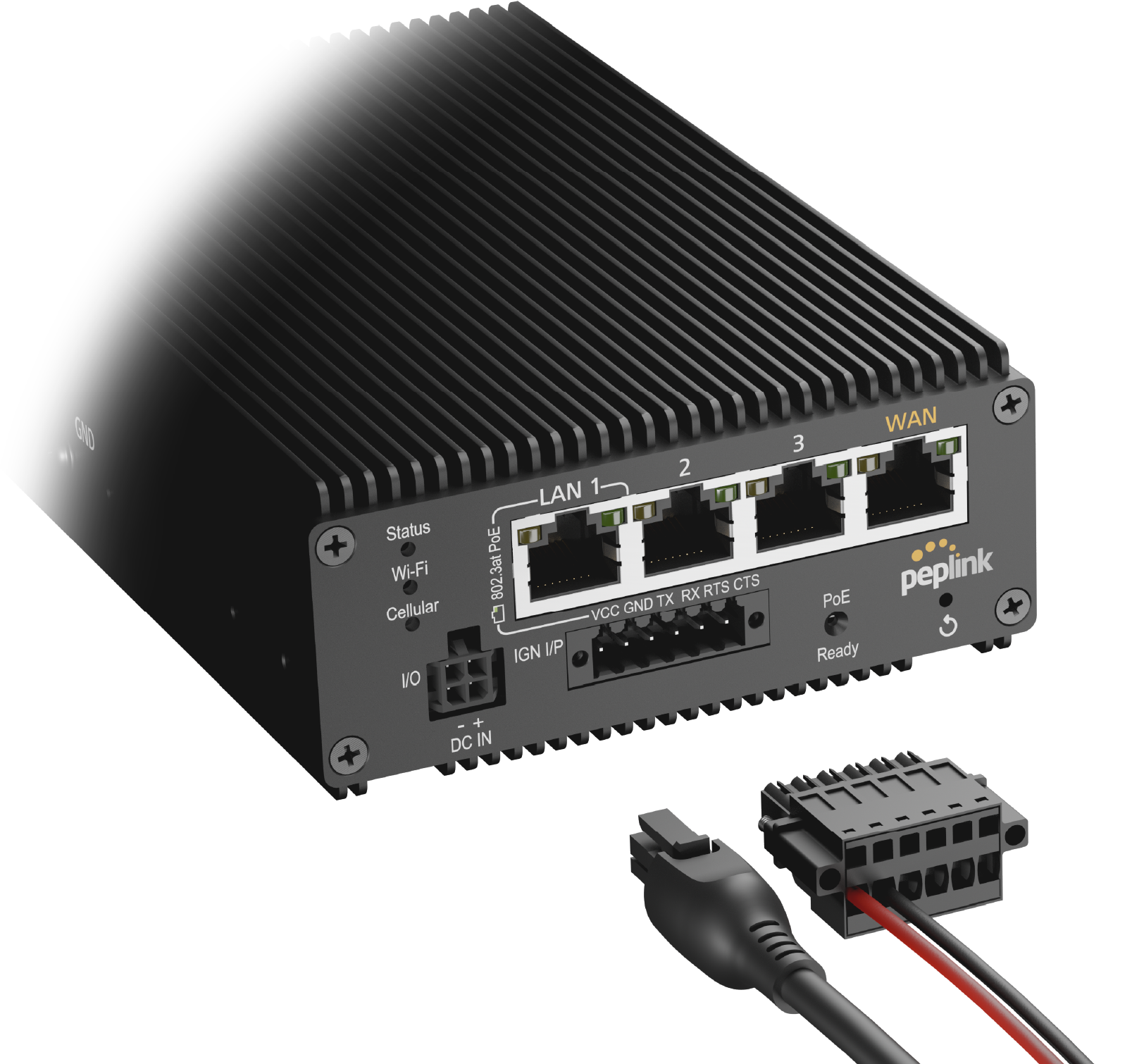

Power

Flexible powering options

12-56V DC via power port or terminal block (included 100-240V AC adapter)

Transit Pro E Powering

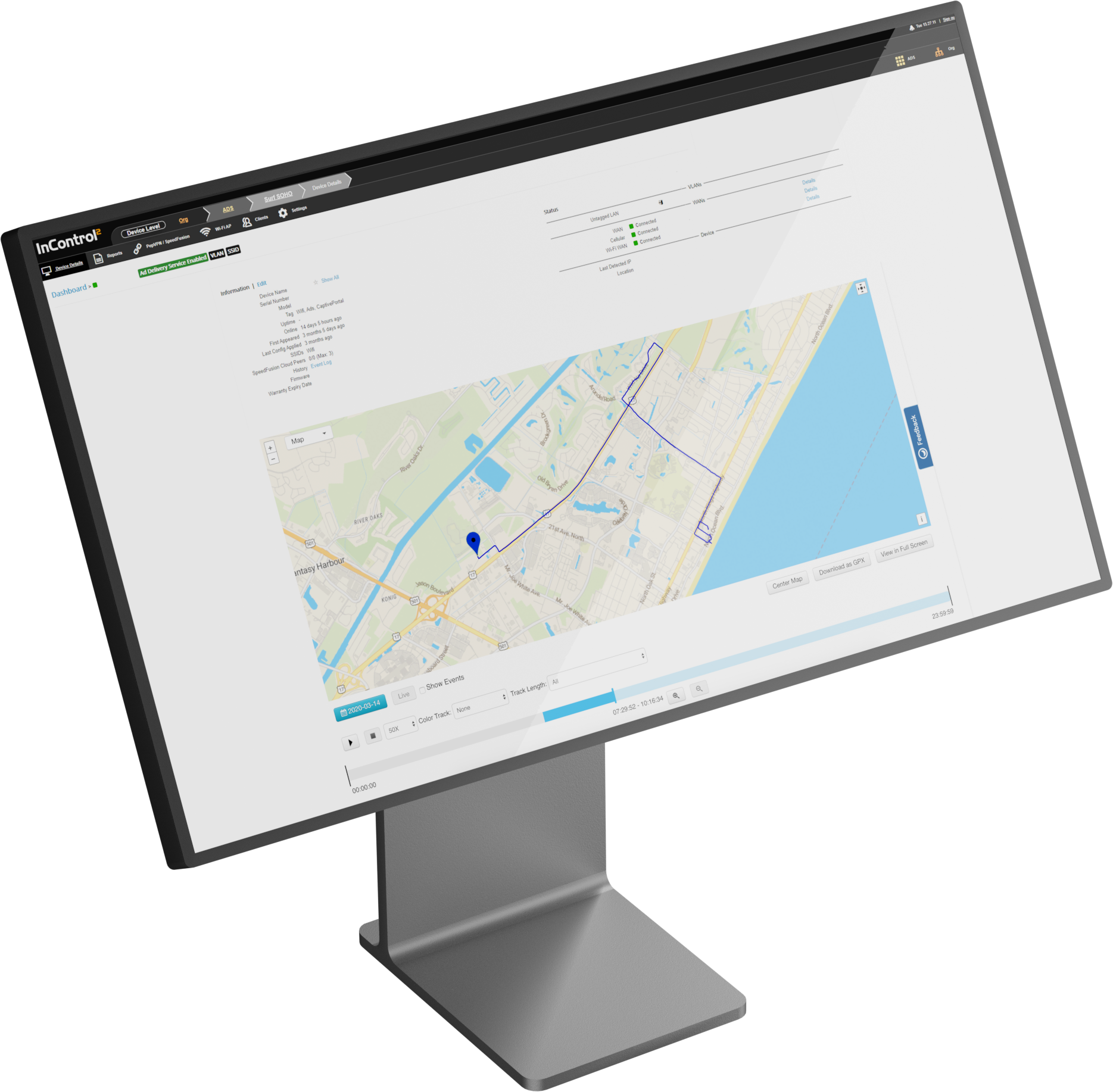

Transit Pro E Remote
InControl2

Remotely manage external devices

(via InControl IP or Serial)

Built-in Edge Computing

Run containerized software without additional hardware

Docker

Docker

Other Applications

Other Applications

Transit Pro E Edge Computing Transit Pro E Edge Computing

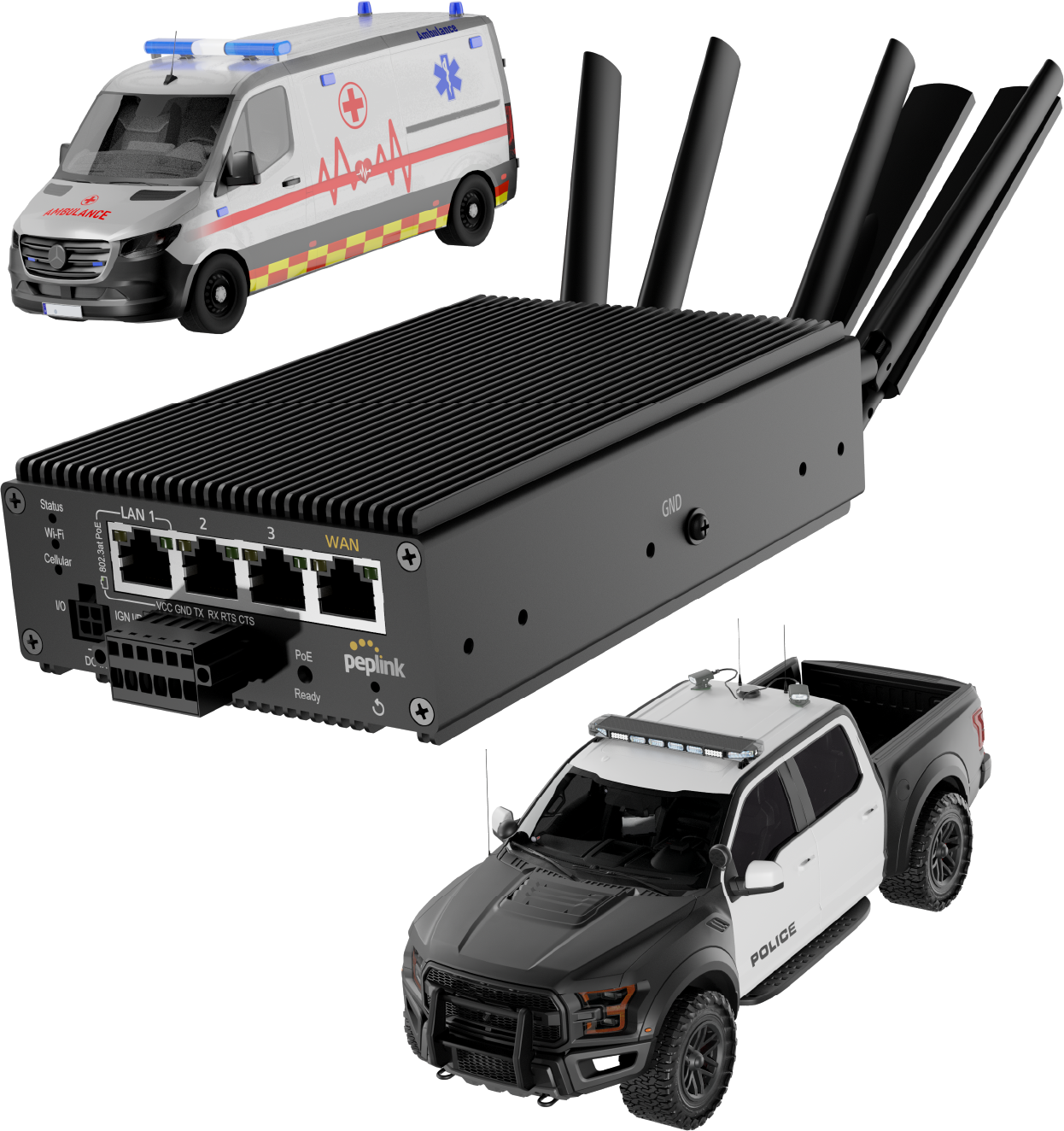

Designed for Emergency Response Mobility

GPS

Built-in GPS and Dead-Reckoning Position Tracking

GPIO

Ignition-Sensing, GPIO and Powering

Secondary Internet

Seamlessly supports secondary Internet such as Starlink

Wi-Fi 6

Built-in Wi-Fi 6 delivers reliable connectivity throughout the mobile environment

Supports up to 150 users

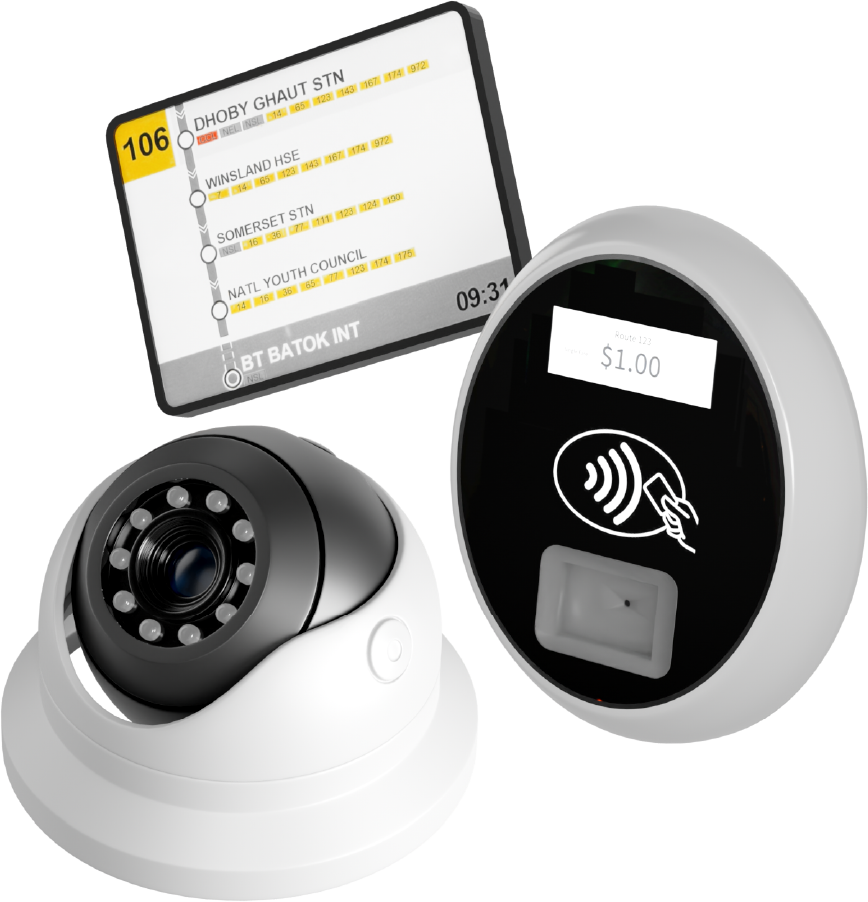

Vehicle-as-a-Node applications

Transit Pro E Emergency

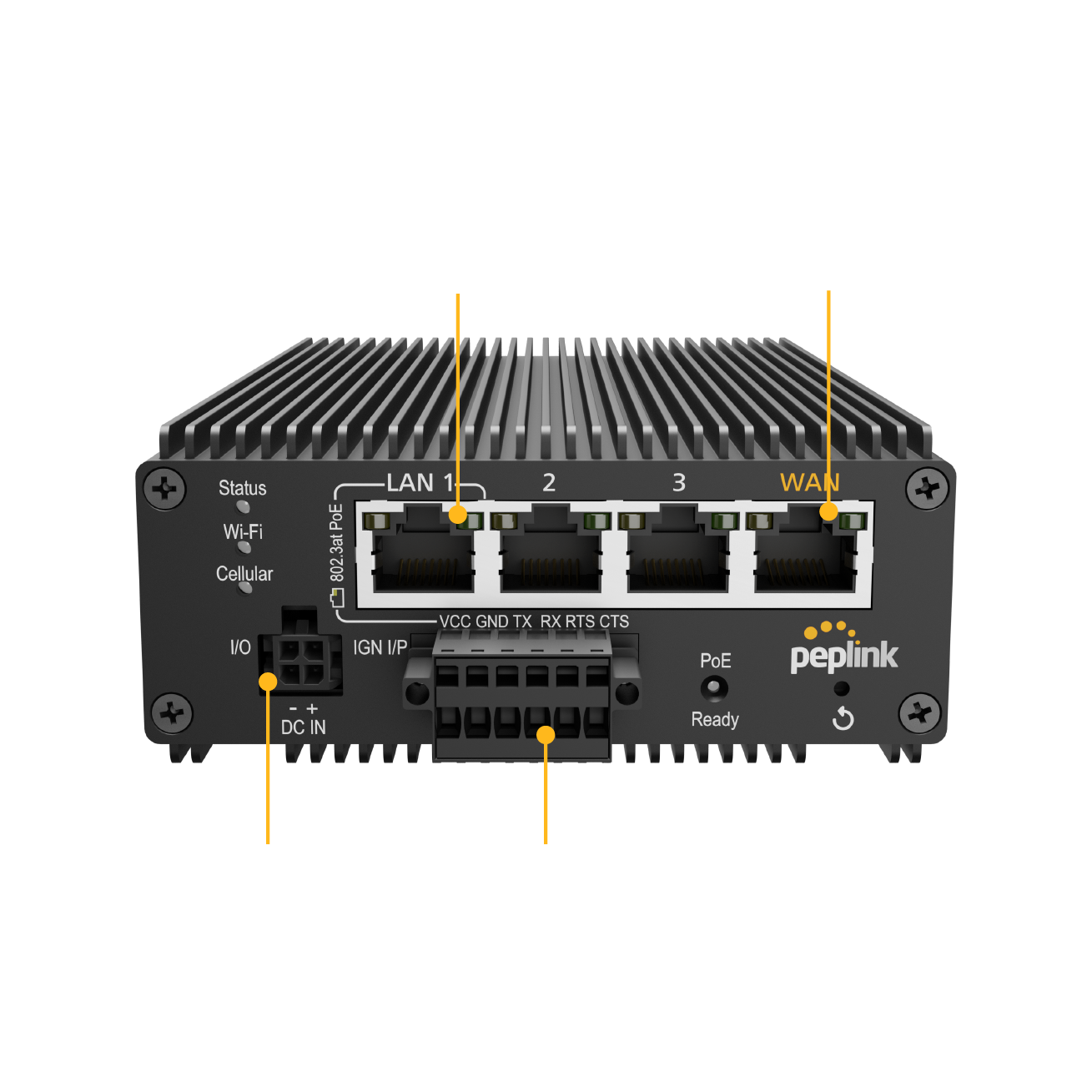

Port and Connections

Transit Pro E Spec Front Transit Pro E Spec Back

  • Product Overview

  • SoftwarePeplink MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingMultiple Outbound Policy Algorithms
    • Weighted Balance
    • Priority
    • Overflow
    • Persistence
    • Least Used
    • Lowest Latency
    • Enforced
    • Fastest Response Time
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionSpeedFusion VPN
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    X.509 Certificate Support
    IPsec VPN (Network-to-Network) ^
    Remote User Access (PPTP/L2TP/OpenVPN)
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS
    Edge ComputingSupport on Applications and Docker
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    AP ControllerSupport for Peplink AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Global Positioning SystemIntegrated GPS
    Device Location Map with InControl 2
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl 2 Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
  • Product CodeEmbedded Modem Region5G BandsLTE Bands
    MAX-TST-PROE-5GN-T-PRM1 x 5GAPAC & EMEA5G (NSA & SA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
  • Product CodeDescriptions
    PRM-C-1YPrimeCare C (1-Year)
    PRM-C-2YPrimeCare C (2-Year)
    PRM-C-4YPrimeCare C (4-Year)
    PCP-C-1YPrimeCare+ C (1-Year)
    PCP-C-2YPrimeCare+ C (2-Year)
    PCP-C-4YPrimeCare+ C (4-Year)
    ACW-63410ft DC Power Cable
    ACW-643Vehicle Cigarette to Molex Power Cable
    ACW-66954V1.2A 4-Pin Power Supply for PoE+ (802.3at) output
    ACW-791Peplink 4-Pin to USB-C Power Cable
    ACW-341Dual-Band Indoor Wi-Fi Omni Antenna in Black (RP-SMA)
    ANT-MB-42G-S-B-6Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (Black)
    ANT-MB-42G-S-W-6Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (White)
    ANT-SLM-40G-S-B-6Slim 40G - 4x4 MIMO Cellular Antenna System with GPS (Black)
    ACW-DIN-TSTDIN Rail mount kit
    • 1x Transit Pro E
    • 4x 5G/LTE Antennas (ACW-235)
    • 2x Dual Band Wi-Fi Antennas (ACW-815)
    • 1x GPS Active Antenna (ACW-232)
    • 1x 12V 2A 4 Pin Power Supply (ACW-632)
    • 1x 6 Pin Terminal Block Connector (ACW-131)
    • 1 Pair of Mounting Brackets (ACW-724)

  • Transit Pro E Datasheet
    Transit Pro E Hardware Reference Guide
    User Manual
    FAQ
    GPIO and Ignition Sensing Guide
