Overview Specs

CAT-20

BR1 Pro

Here LTE gets Sonic.

   
Locate a Reseller
Available via eTailer
   
Locate a Reseller
×
Product Image

Model:

Buy Online

Wi-Fi just got better

Connect multiple devices simultaneously, and experience faster throughput speeds and better bandwidth congestion with the latest Wi-Fi 6, all with less interference.

SpeedFusion Ready

Enable the endless possibilities of SpeedFusion technology just by simply connecting to SpeedFusion Connect from wherever you are.

Performance Boost

The BR1 Pro has been boosted with a CAT-20 modem which can achieve speeds of up to 800% faster than the original BR1 Pro.

Hardcore Capabilities

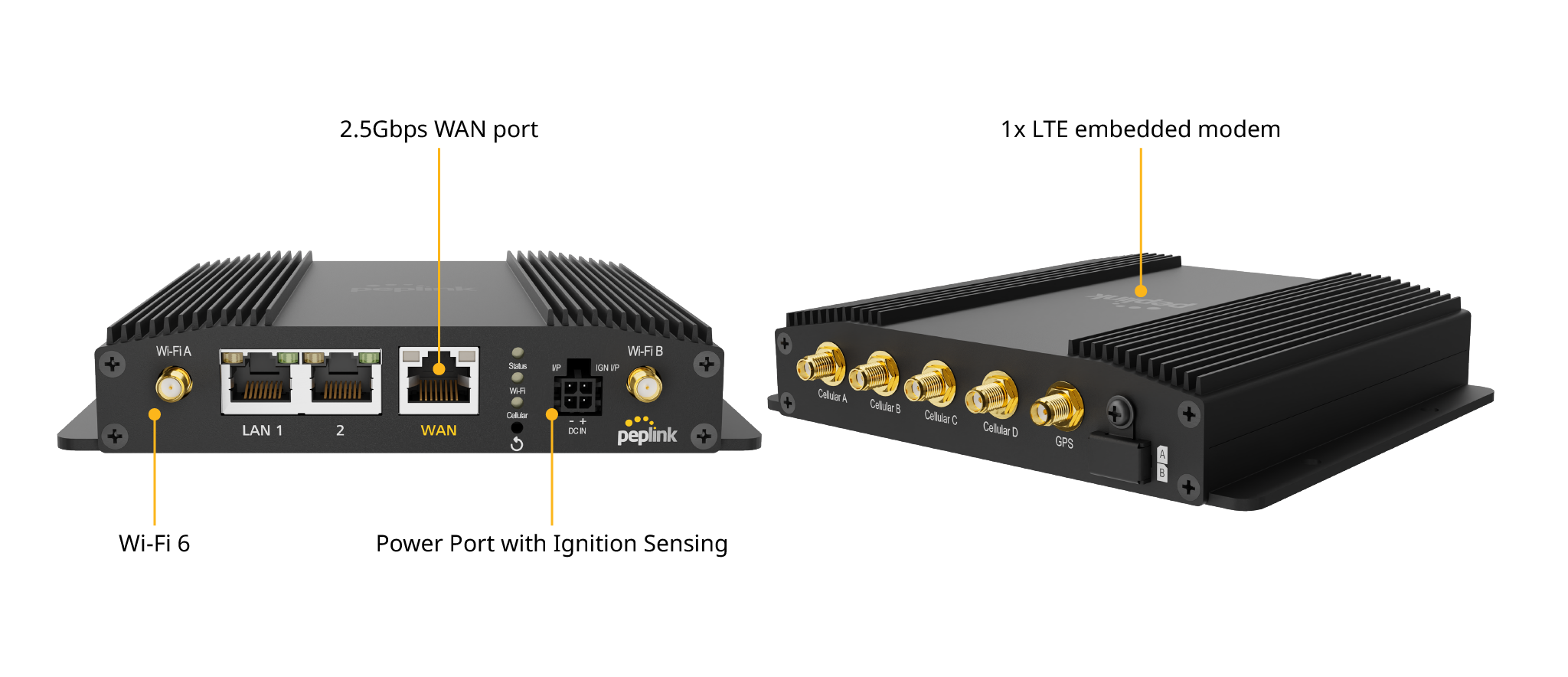

The BR1 Pro comes equipped with a 2.5Gbps Ethernet port, making it compatible for your network devices to run at their designated speeds without limitations.

Deploy Anywhere

Certified toughness and wide operating temperatures mean you can just deploy, forget, and enjoy the benefits.

  • Product Overview & Comparison Table

  •
    SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionSpeeedFusion VPN/SpeedFusion
    – Hot Failover
    – Site-to-Site VPN
    – 256-bit AES Encryption
    – Pre-shared Key Authentication
    – Dynamic Routing
    X.509 Certificate Support *
    IPsec VPN (Network-to-Network) ^
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    AP ControllerSupport for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3

    *   Feature is available as an upgrade (MAX-BR1-ADV).
    ^   IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

  • Product CodeEmbedded ModemsRegions 4G Bands3G Bands
    MAX-BR1-PRO-GLTE-S-T-PRM1x LTE-A Pro (CAT-20)Compatibility: Global B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71HSPA+/WCDMA: B1, B2, B3, B4, B5, B8, B9
  • Product Code Description
    ACW-634 10ft Direct Wire DC Cable
    ANT-MB-42G-S-W-6 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White)
    ANT-MB-42G-S-B-6 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black)
    LIC-VWAN Activate 1x Virtual WAN
    LIC-2VWAN Activate 2x Virtual WAN

    * Learn more about Virtual WAN Activation License here.



    • 1x MAX BR1 Pro CAT-20
    • 1x 12V2A Power Supply (ACW-632)
    • 4x LTE/5G Antennas (ACW-234)
    • 2x Wi-Fi Dual Band Antenna (ACW-341)
    • 1x GPS Antenna (ACW-232)

  • MAX BR1 PRO (CAT-20) Datasheet
    User Manual
    FAQ
