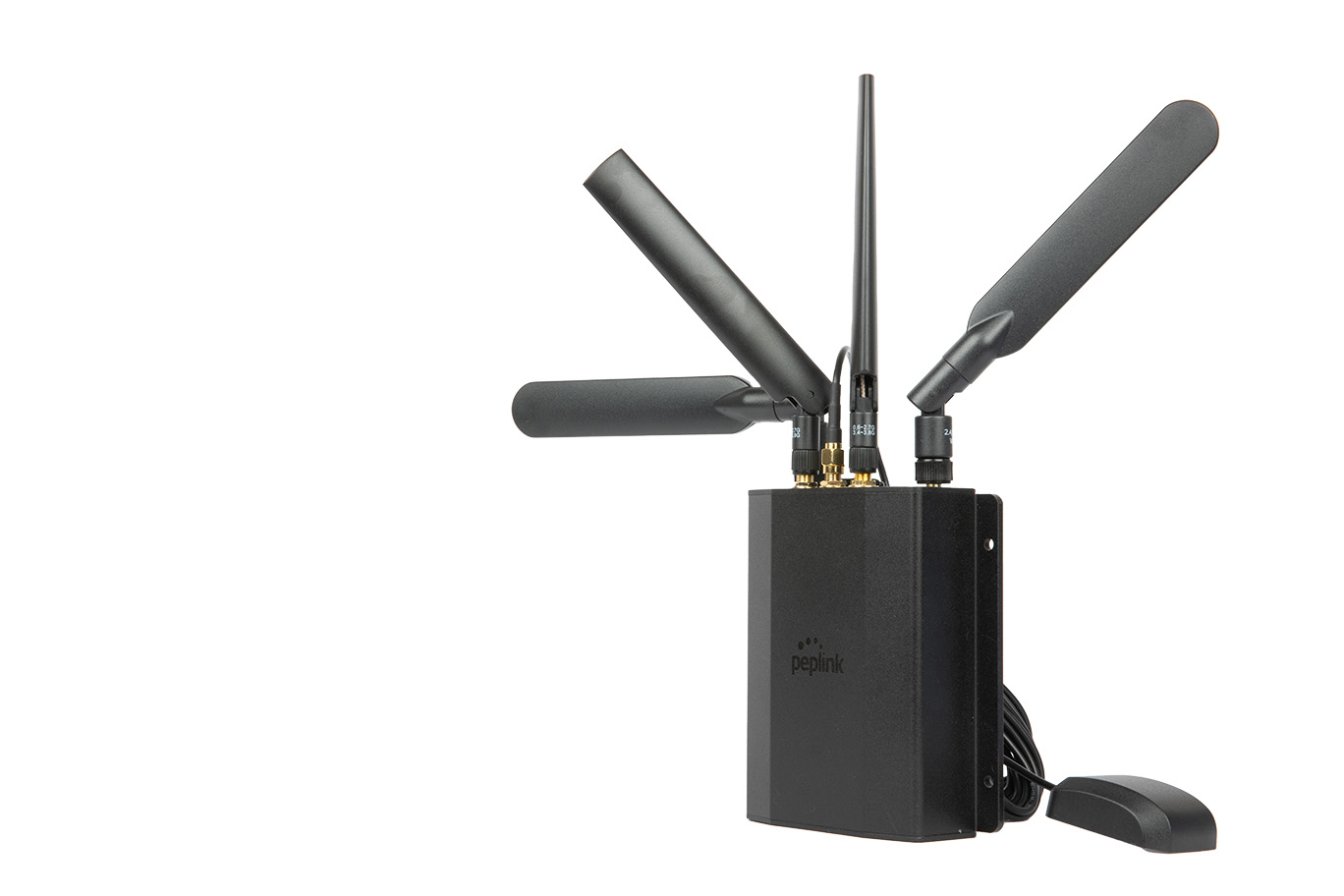

BR1 Mini
Durable. Unbeatable Price Performance.
Just one remarkable device
Engineered with the highest quality build in mind. Sleek outside, yet ruggedized inside, this device has been built to withstand whatever deployment scenario thrown at it.
Stay in touch with InTouch
InTouch extends your reach to third party devices connected to the BR1 Mini. Remotely view, configure or troubleshoot third party devices, all within the InControl 2 environment, eliminating the need for a separate and costly OOBM infrastructure.
Manage with confidence
Control the BR1 Mini using InControl 2 cloud-based endpoint management system. Generate useful reports and push configurations, as you remotely access any Peplink device with ease.
Use Cases
POS Failover / Retail
Branch / Kiosks / IoT
VoIP / Remote Work
Mobile Vehicles / Utilities
Why BR1 Mini?
Remote Access to Third Party Device Interface (InTouch)
Other Solutions
will require network engineers to maintain and be costly
VS
Our BR1 Mini
enables access to linked devices through a single platform
Seamless Connection Transfer Without Interruption (Hot Failover)
Other Solutions
will experience network interruptions
VS
Our BR1 Mini
provides seamless network connectivity
Option to Enable Additional Features (Optional Subscription)
Other Solutions
require licenses for features or otherwise lock the device
VS
Our BR1 Mini
offers an optional package inclusive of several features
Improve your Video and Collaboration (Smoothing)
Other Solutions
may experience jitter and delays
VS
Our BR1 Mini
improves the quality of real-time applications such as Zoom / Teams
Private LTE Network Availability (CAT-7)
Other Solutions
operate within limited bands that don’t have access to private LTE
VS
Our BR1 Mini
can operate within LTE bands dedicated to private LTE networks
Privately Hosted Management Platform (On-Premise Network)
Other Solutions
are managed only through cloud-based platforms
VS
Our BR1 Mini
can be managed through a platform hosted on private server hardware
Now Available on PrimeCare
Launching the BR1 Mini on PrimeCare^, giving the device prime access to InControl 2, eSIM compatibilities*, increased VPN throughput, more PepVPN peers, WAN Activation, Wi-Fi WAN, Hot Failover, Smoothing, and standard warranty & support.
* eSIM available with Firmware 8.4.0 or above.
^ With Firmware 8.3.1, PrimeCare includes all feature pack features (WAN Activation, Wi-Fi WAN, Hot Failover & Smoothing).
Plug and play, anyone?
SpeedFusion Connect* services makes the BR1 Mini the ultimate plug-and-play device. Power up, switch on, and get connected. SpeedFusion Connect also works with Peplink technologies such as Hot Failover^, ensuring reliable connectivity is accessible at all times.
* SpeedFusion Connect is available in select countries and regions. Learn more.
^ PrimeCare is required to utilize the benefits of Peplink technology and services.

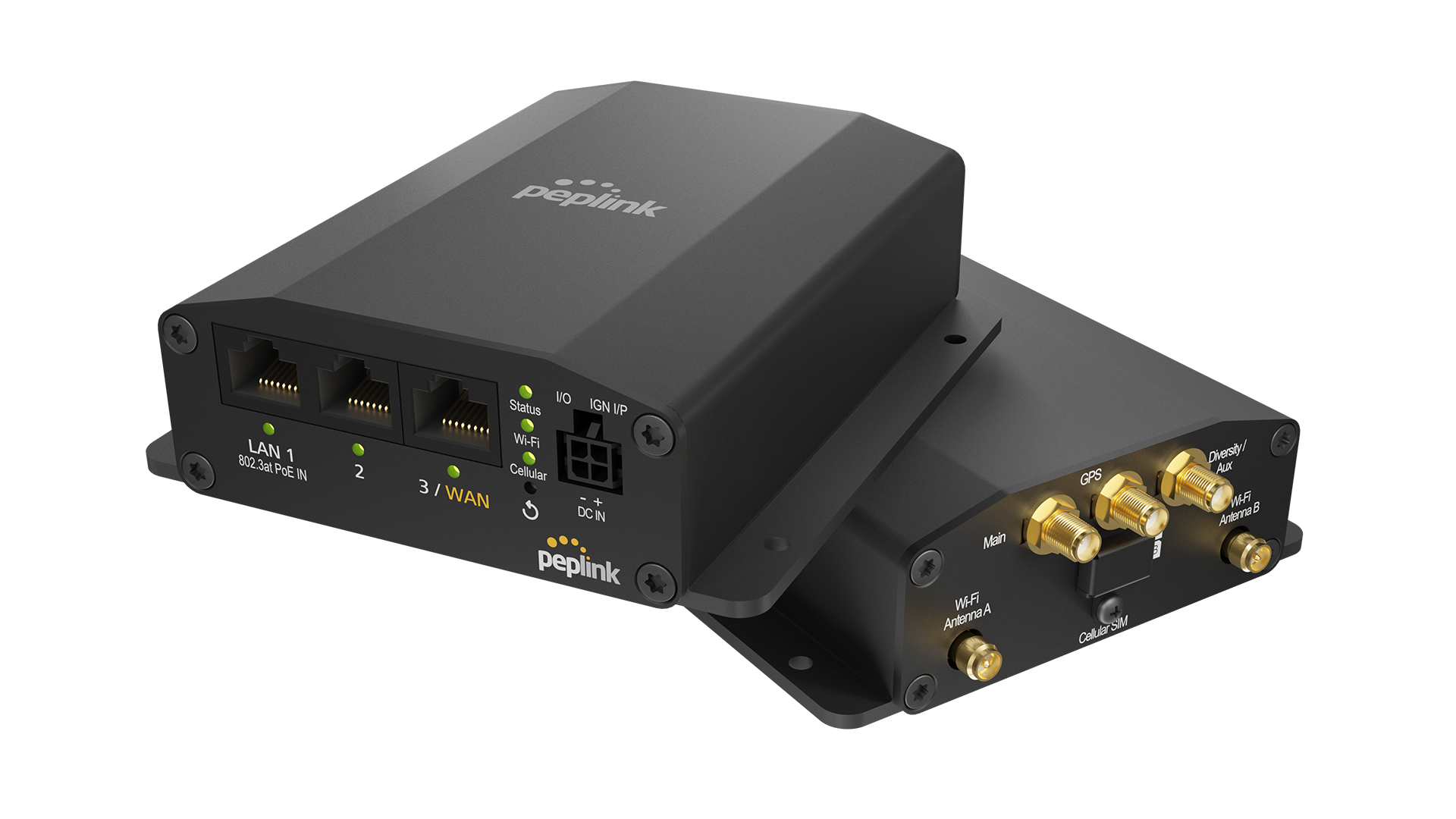

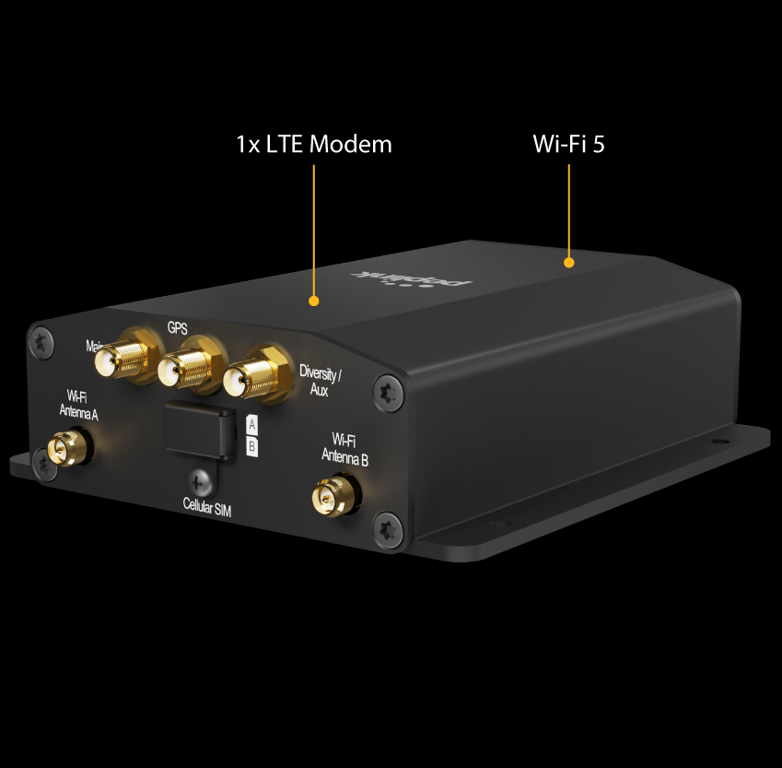

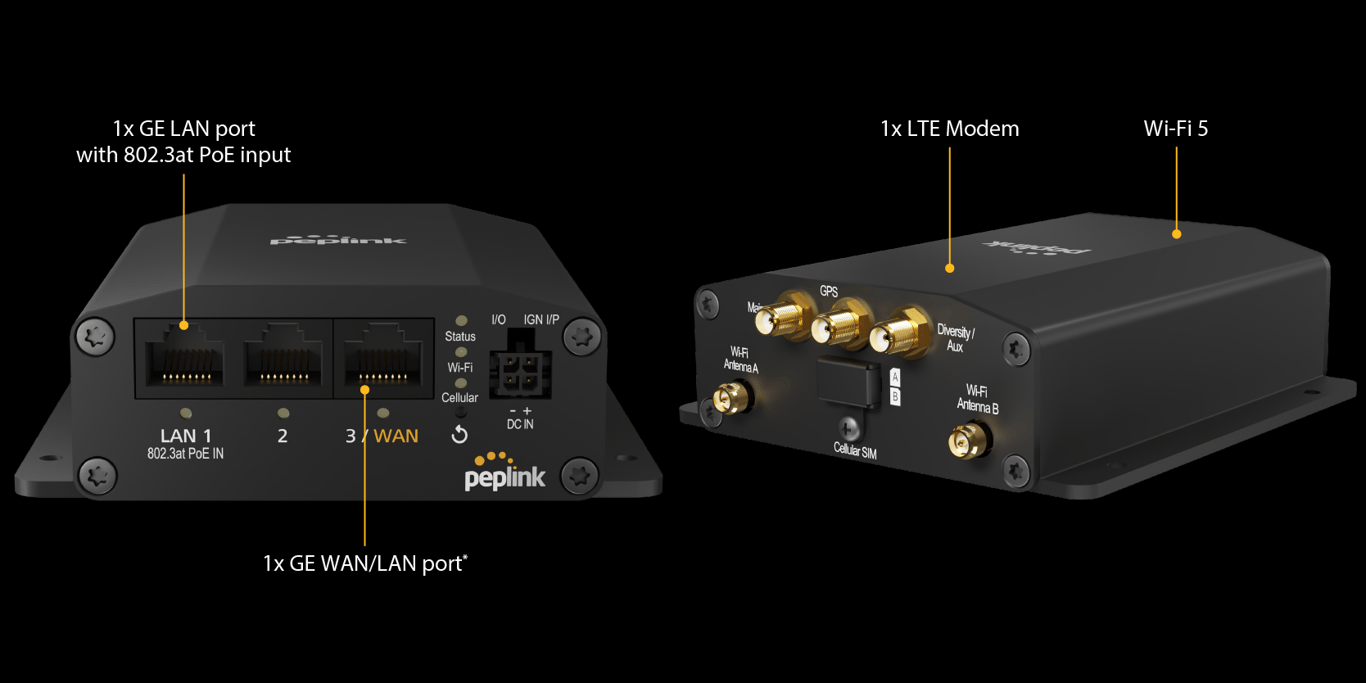

Ports and Connections
* Available in firmware 8.3.0.
Photos
Overview
Specs
Product Overview & Comparison Table
Deep Dive
| Software | Peplink MAX Firmware |
|---|---|
| WAN | Support for PPPoE, Static IP, DHCP WAN Link Health Check Bandwidth Allowance Monitor Support for Dynamic DNS services |
| LAN | DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support |
| Load Balancing | Intelligent Failover Session Persistence Per-Service Load Distribution Multiple Algorithms -Weighted Balance -Priority -Overflow -Persistence -Least Used -Lowest Latency -Enforced -Fastest Response Time |
| Complete VPN Solution | SpeedFusion VPN SpeedFusion - Site-to-Site VPN - SpeedFusion Hot Failover^ - SpeedFusion WAN Smoothing^ - 256-bit AES Encryption - Pre-shared Key Authentication - Dynamic Routing - PPTP VPN Server - RADIUS, LDAP Authentication IPsec VPN (Network-to-Network)* ^Feature is available as an upgrade. *IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices. |
| Networking | NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP WINS Server |
| Security | 128-bit WEP WPA & WPA 2 Stateful Firewall DoS Prevention Web Blocking |
| Advanced QoS | Individual Bandwidth Limit Application Prioritization -SIP, HTTPS, VPN QoS -Custom Application QoS |
| Global Positioning System | Integrated GPS Device Location Map Location Tracking Data with InControl 2 Fleet Management with InControl 2 |
| Captive Portal Support | Support for Wired and Wireless LAN Clients Support RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page Social Wi-Fi Hotspot support External Captive Portal support |
| Device Management | Web Administrative Interface Command Line Interface InControl Cloud Management Email Notification Active Client and Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3 |
Ordering Information
| Product Code | Embedded Modem | Region | LTE Bands | 3G Bands |
|---|---|---|---|---|
| MAX-BR1-MINI-LTEA-US-T-PRM | 1x CAT-7 | North America* *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet, US Cellular | B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71 | B2, B4, B5 |
| MAX-BR1-MINI-LTEA-US-DC-T-PRM* Comes with a DC power cable instead of the regular 4 Pin Power Supply. | 1x CAT-7 | North America* *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet, US Cellular | B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71 | B2, B4, B5 |
| MAX-BR1-MINI-LTEA-E-T-PRM | 1x CAT-7 | APAC, EMEA | B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43 | B1, B5, B8 |
| MAX-BR1-MINI-LTEA-B-T-PRM | 1x CAT-6 | APAC, EMEA | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71 | B1, B2, B4, B5, B6, B8, B9, B19 |
| MAX-BR1-MINI-LTEA-B-T-JPC-PRM | 1x CAT-6 | Japan | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71 | B1, B2, B4, B5, B6, B8, B9, B19 |
| MAX-BR1-MINI-LTE-US-T-PRM | 1x CAT-4 | North America* *US Carrier Certifications: AT&T, T-Mobile, Verizon | B2, B4, B5, B12, B13, B14, B66, B71 | B2, B4, B5 |
| MAX-BR1-MINI-LTE-E-T-PRM | 1x CAT-4 | APAC, EMEA | B1, B3, B5, B7, B8, B20, B38, B40, B41 | B1, B5, B8 |
| MAX-BR1-MINI-LTE-MX-T-PRM | 1x CAT-4 | APAC, Latin America, | B1, B2, B3, B4, B5, B7, B8, B28, B40 | B1, B2, B3, B4, B5, B8 |
| Australia |
Featured Add-Ons
| Product Code | Descriptions |
|---|---|
| PRM-A-1Y | PrimeCare A (1-Year) |
| PRM-A-2Y | PrimeCare A (2-Year) |
| PRM-A-4Y | PrimeCare A (4-Year) |
| PCP-A-1Y | PrimeCare+ A (1-Year) |
| PCP-A-2Y | PrimeCare+ A (2-Year) |
| PCP-A-4Y | PrimeCare+ A (4-Year) |
| MAX-BR1-MINI-LC-FP | Feature pack for BR1 Mini enables Ethernet WAN, Wi-Fi WAN, Hot Failover, Smoothing, GPIO and Ignition Sensing |
| ANT-MB-22G-S-B-6 | 5-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black) |
| ANT-MB-22G-S-W-6 | 5-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White) |
| ACW-634 | 10ft DC Power Cable |
| ACW-643 | Vehicle Cigarette to Molex Power Cable |
| ACW-DIN-BR1-MINI | DIN Rail Mount |
| MAX-BR1-MINI-BD-FP-2Y | MAX BR1 Mini Bundle Offer – 2 year PrimeCare extension with complimentary Feature Pack |
| MAX-BR1-MINI-BD-FP-4Y | MAX BR1 Mini Bundle Offer – 4 year PrimeCare extension with complimentary Feature Pack |
| MAX-BR1-MINI-BD-FP-PLUS-2Y | MAX BR1 Mini Bundle Offer – 2 year PrimeCare+ extension with complimentary Feature Pack |
| MAX-BR1-MINI-BD-FP-PLUS-4Y | MAX BR1 Mini Bundle Offer – 4 year PrimeCare+ extension with complimentary Feature Pack |
| LIC-VWAN | Activate 1x Virtual WAN |
| LIC-2VWAN | Activate 2x Virtual WAN |
| LIC-3VWAN | Activate 3x Virtual WAN |
Package Content
MAX BR1 Mini
- MAX BR1 Mini (HW3)
- 2x LTE Antennas (ACW-235)
- 2x Wi-Fi Dual Band Antennas (ACW-342)
- 1x GPS Active Antenna (ACW-232)
- 1x 12V 2A 4 Pin Power Supply (ACW-632)
MAX BR1 Mini (MAX-BR1-MINI-LTEA-B-T-JPC-PRM)
- MAX BR1 Mini (HW3)
- 2x iAN067 LTE Antennas
- 2x Wi-Fi Dual Band Antennas (ACW-342)
- 1x GPS Active Antenna (ACW-232)
