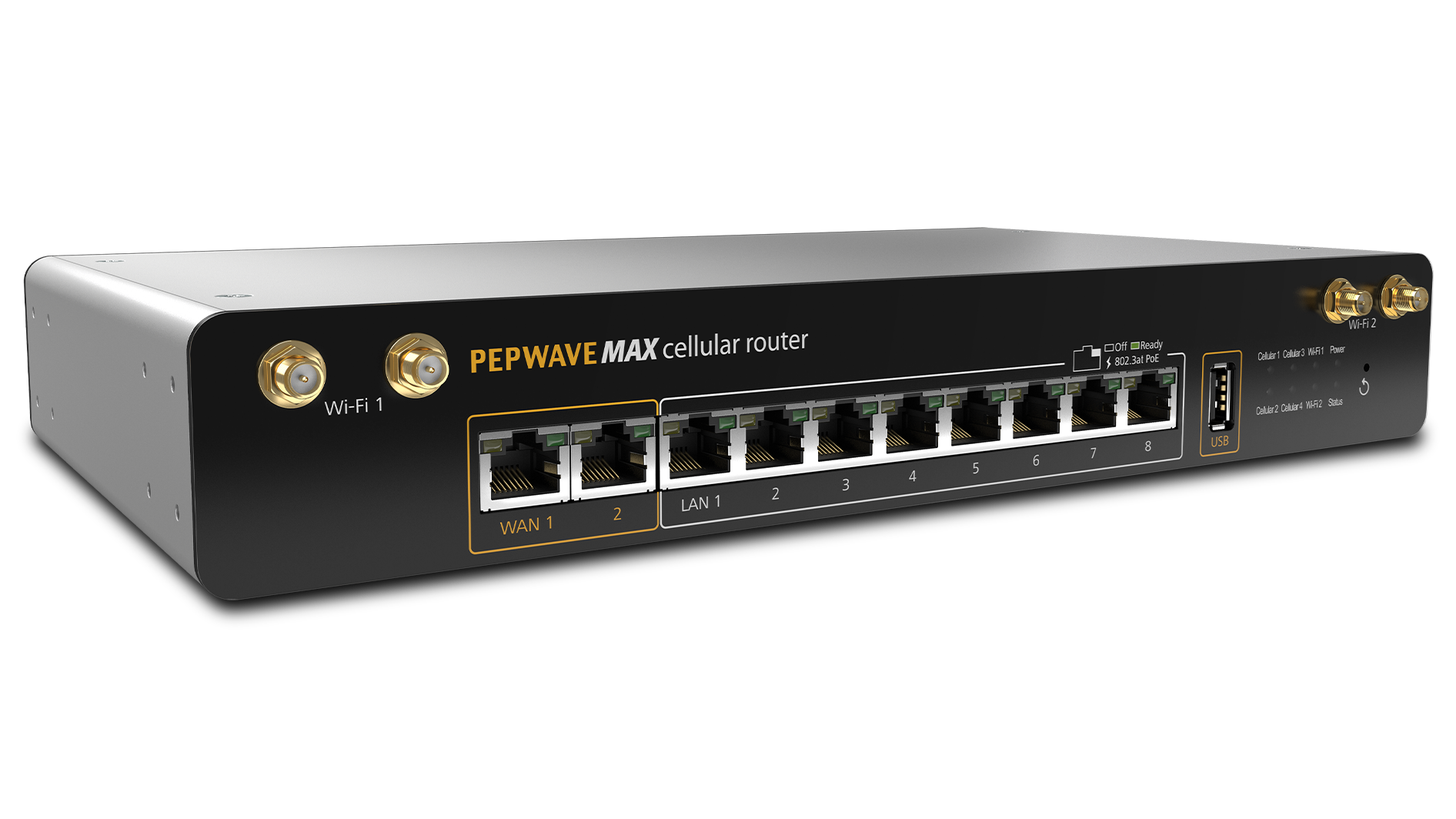

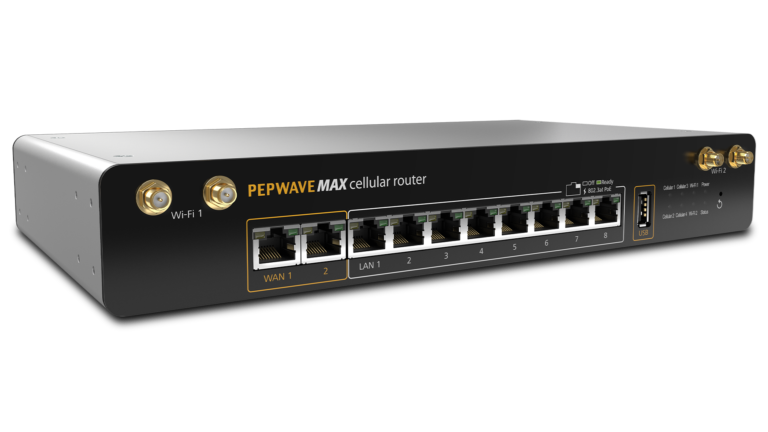

MAX HD2 & HD4 with MediaFast

Unbreakable Connectivity with Content Caching

The HD2 MediaFast and HD4 MediaFast team up embedded cellular modems and other great features of the HD Series with our MediaFast content caching, which lets you store content for later playback anywhere, regardless of connectivity.

300Mbps400Mbps Content Caching Cellular Modems MAX HD2 HD4 #2
300Mbps400Mbps Content Caching Cellular Modems MAX HD2 HD4 #2

Works With

  • iTunes
  • iOS Updates
  • TED.com

Mobile Content Caching

Accelerated by MediaFast

Deliver endless content without consuming endless bandwidth. The MediaFast Editions of the HD2 and HD4 let you download content once and play it back without limit, even in locations where connectivity is spotty or absent.

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data streem.

#PowerofPeplink in Action

UK’s Pluss demonstrates unbreakable VoIP with SpeedFusion

300Mbps400Mbps Content Caching Cellular Modems MAX HD2 HD4 #4

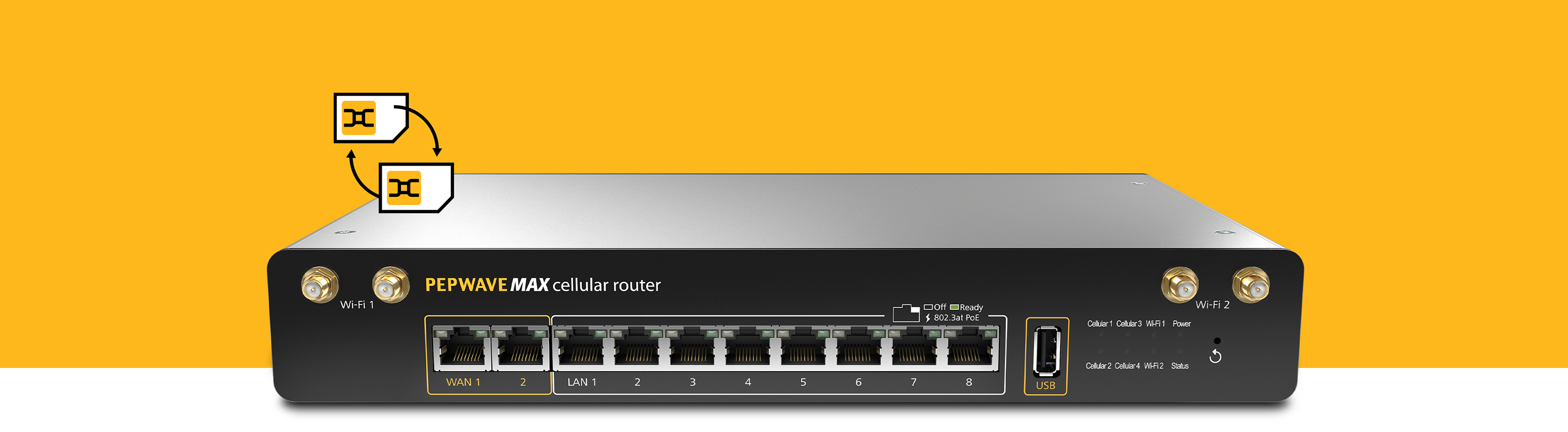

Dual/Quad Embedded Cellular Modems

The HD2 with MediaFast includes two built-in 4G LTE modems (four on the HD4 with Mediafast). It allows you to use the same or different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.

Terminal Block for Secure Power Supply

MAX HD2 with MediaFast is equipped with a terminal block for secure installation in vehicles and other locations.

PoE Output Option Available

Cut down on cabling and simplify deployments. With a PoE activation kit purchase, the HD2 with Mediafast supports 802.3at PoE, so one wire is all you need for both connectivity and power.

200Mbps Content Cashing Router MediaFast 200 #8

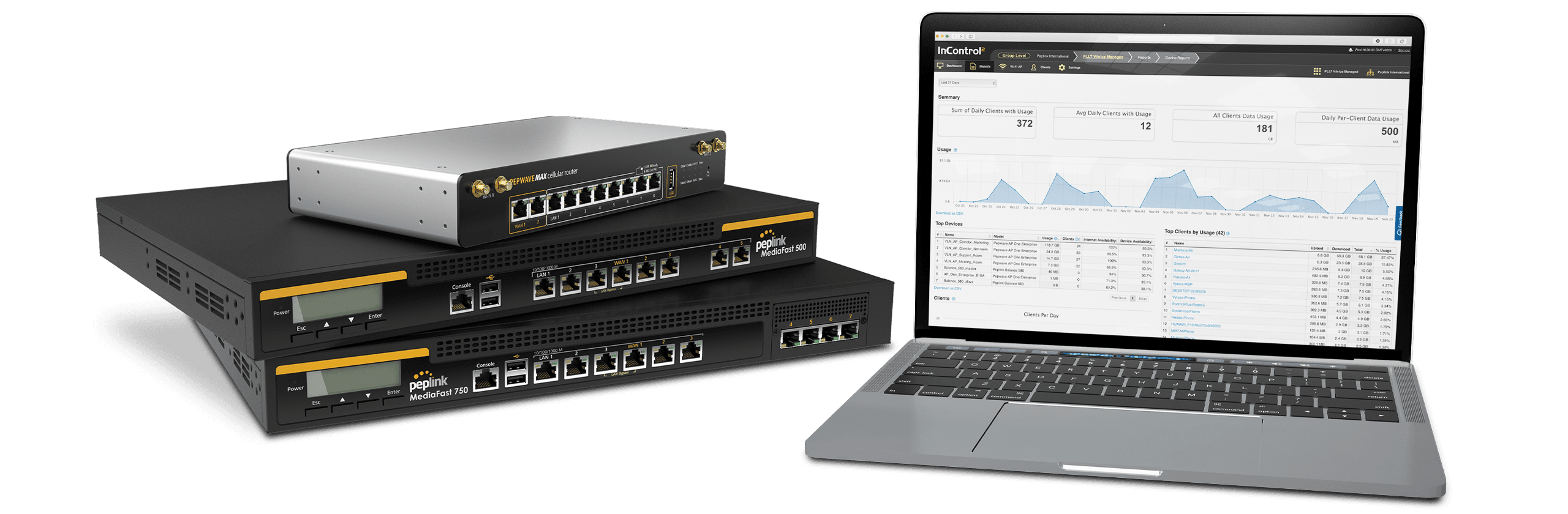

Complete Solution & Centralized Management

The MAX HD2/ HD4 are supported by InControl 2, Peplinks Cloud-Based SD-WAN Network Management Platform, which lets you provision, monitor, and manage your routers. With built-in GPS fleet tracking you can keep tabs on location and manage your mobile network from any Internet-connected device. All from a single screen.

  • ModelMAX HD2/HD4 with MediaFast
    Product CodeHD2-MFA-LTE/
    HD4-MFA-LTE
    Ethernet WAN Ports2 (GE)
    Ethernet LAN Ports8 (GE)
    Embedded 4G LTE/3G2/4
    Redundant SIM SlotsYes
    SIM Card SizeMini-SIM (2FF)
    USB WAN Modem Port1
    Wi-Fi WAN [1]Yes
    Wi-Fi AP [1]Yes
    Maximum number of SSID:16
    Wi-Fi Standard802.11ac/a/b/g/n
    1166Mbps 2×2 MIMO
    Transmit Power (2.4GHz)23dBm
    Transmit Power (5GHz)21dBm
    Simultaneous Dual-Band Wi-Fi APYes
    Recommended Users [2]150/500
    Router Throughput [3]400Mbps
    LTE ModemsDownlink/Uplink Datarate: 100Mbps/50Mbps
    LTE-A ModemsDownlink/Uplink Datarate: 300Mbps/50Mbps
    LTE-A Pro Modems/
    Cache Throughput [4]150Mbps
    Disk Drive120GB SSD
    Core Functionality
    802.1q VLANs Supported128
    Drop-in ModeYes
    High AvailabilityYes
    WAN as LANNo
    Web BlockingYes
    Web Filtering Blacklist
    Lite
    VPN Functionality
    PepVPNYes
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingYes
    SpeedFusion Bandwidth BondingYes
    Number of PepVPN SpeedFusion Peers2/20 +
    PepVPN/SpeedFusion Throughput
    (No Encryption)
    150Mbps
    PepVPN/SpeedFusion Throughput
    (256-bit AES)
    120Mbps
    IPsec/L2TP/PPTP/OpenVPN Functionality
    Number of IPsec Tunnels5
    GRE (Network-to-Network)5
    Central Management
    InControl Cloud ManagementYes
    GPS Fleet ManagementYes
    AP Controller Functionality
    Manage Pepwave AP SeriesYes
    Maximum Number of AP Support30
    Hardware Features
    EnclosureIndoor Metal
    PoE OutputUp to 8x 802.3at PoE+ Outputs #
    Terminal Block Power Connector for Mobile/Vehicular DeploymentYes
    Dimensions
    (Height x Width x Depth)
    1.9 x 11.5 x 6.9 inches
    50 x 292 x 177 mm
    Weight4.20 pounds
    1.9 kg
    Operations
    AC AdapterAC Input 100V – 240V
    DC Output 12V , 4A
    Power InputDC 12V – 56V
    Terminal BlockDC 12V – 56V
    Power Consumption38W (max.)
    Operating Temperature-40° – 149°F
    -40° – 65°C
    Humidity15% – 95% (non-condensing)
    Certifications
    FCC, CE, RoHSYes
    RF Port Lightning Immunity:
    ITU-T K.20 (+/- 1.5 kV)
    No
    ESN (Emergency Services Network)No
    Certifications – Motor Vehicle
    E-MarkYes
    Certifications – Rolling Stock
    EN 61373:2010
    Shock and Vibration Resistance
    Yes
    EN 50155
    Railway Applications –
    Electronic Equipment used on Rolling Stock
    Yes
    EN 61000
    Electromagnetic Compatibility
    Yes
    Warranty
  • Product CodeHD2-MFA-LTE HD4-MFA-LTE
    WAN Interface2x Embedded LTE Modems with Redundant SIM Slots 1x USB Interface 2x GE4x Embedded LTE Modems with Redundant SIM Slots 1x USB Interface 2x GE
    LAN Interface8 (GE)8 (GE)
    Wi-Fi Interface802.11ac/a/b/g/n 1166Mbps 2×2 MIMO Wi-Fi WAN and/or AP Simultaneous Dual-Band AP802.11ac/a/b/g/n 1166Mbps 2×2 MIMO Wi-Fi WAN and/or AP Simultaneous Dual-Band AP
    Cache Throughput150Mbps150Mbps
    Cache Storage120GB SSD120GB SSD
    Video and Content CachingYesYes
    Router Throughput 1400Mbps400Mbps
    Recommended Users 2150500
    LTE ModemDownlink/Uplink Datarate: 100Mbps/50MbpsDownlink/Uplink Datarate: 100Mbps/50Mbps
    LTE-A ModemDownlink/Uplink Datarate: 300Mbps/50MbpsDownlink/Uplink Datarate: 300Mbps/50Mbps
    PepVPNYesYes
    SpeedFusion Hot FailoverYesYes
    SpeedFusion WAN SmoothingYesYes
    SpeedFusion Bandwidth BondingYesYes
    Number of PepVPN SpeedFusion Peers2/20 +2/20 +
    Cellular Antenna Connectors4x SMA Antenna Connectors 8x SMA Antenna Connectors
    GPS and Wi-Fi Antenna Connector2x SMA GPS Antenna Connector 4x Dual Band Wi-Fi Antennas 2x SMA GPS Antenna Connector 4x Dual Band Wi-Fi Antennas
    Power InputDC Jack/Terminal Block: 12V – 56V, 4ADC Jack/Terminal Block: 12V – 56V, 4A
    Power OutputUp to Eight 802.3at PoE Outputs*Up to Eight 802.3at PoE Outputs*
    Power Consumption38W (Max. Before PoE Output)38W (Max. Before PoE Output)
    Dimensions1.9 x 11.5 x 6.9 inches | 50 x 292 x 177 mm1.9 x 11.5 x 6.9 inches | 50 x 292 x 177 mm
    Weight4.20 pounds | 1.9 kg4.20 pounds | 1.9 kg
    Operating Temperature-40° – 149°F  |  -40° – 65°C-40° – 149°F  |  -40° – 65°C
    Humidity15% – 95% (non-condensing)15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHS, E-Mark, IC
    EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance:
    EN 50155: Railway Applications
    EN 61000: Electromagnetic Compatibility
    FCC, CE, RoHS, E-Mark, IC
    EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance:
    EN 50155: Railway Applications
    EN 61000: Electromagnetic Compatibility
    Warranty1-Year Limited Warranty1-Year Limited Warranty
  • WANWAN Support for PPPoE
    Static IP
    DHCP WAN Link Health Check
    Bandwidth Allowance Monitor
    USB 4G LTE/3G Modem Support
    Support for Dynamic DNS
    Services IPv6 Support
    LANDHCP Server for LAN Clients
    Extended DHCP Options
    DHCP Reservation
    DNS Proxy for LAN Clients
    DNSBuilt-in Authoritative DNS
    Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT Records
    QoSUser Groups
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    Content CachingVideo Caching
    iTunes
    iTunes U
    TED.com
    Content Caching
    HTML
    JavaScript
    Flash Applications
    AP ControllerSupport for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi usage statistics
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Router Utility Mobile App
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    Complete VPN SolutionPepVPN/ SpeedFusion
    Site-to-Site VPN
    Bandwidth Aggregation
    Intelligent Failover
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    PPTP VPN Server
    RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network)
    Security Stateful Firewall
    DoS Prevention
    Web Filtering Blacklist
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
  • Product CodeDescription
    ACW-618Includes 2x 56V/2.1A Power Supply
    Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)
    ACW-622ncludes 1x 56V/2.1A Power Supply
    Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)
    MAX-HD-020-SPFSupports up to 20 PepVPN/SpeedFusion Peers
    MAX-HD4-LC-5WANWAN Port Activation License for MAX HD4. Convert LAN ports 1-3 to WAN ports 3-5.
    • MAX HD2 with MediaFast
        • MAX HD2 with MediaFast
        • 12V4.2A Power Supply
        • 4x 5dBi Wi-Fi Antennas
        • 1x GPS Active Antenna
        • 4x 2dBi 4G LTE Antennas (4G LTE)
        • 1 Pair of Mounting Brackets



    • MAX HD4 with MediaFast
        • MAX HD4 with MediaFast
        • 12V4.2A Power Supply
        • 4x Dual Band Wi-Fi Antennas
        • 1x GPS Active Antenna
        • 8x 2dBi 4G LTE Antennas
        • 1 Pair of Mounting Brackets
  • Product CodeCarrierEmbedded Modems4G Bands3G Bands
    MAX-HD2-MFA-LTE-E-TEurope/International24G LTE:
    B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)
    WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
    MAX-HD4-MFA-LTE-E-TEurope/International44G LTE:
    B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)
    WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
    MAX-HD2-MFA-LTEA-W-TAmericas/Europe24G LTE-A:
    B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
    2500WCDMA/HSPA+/DC-HSPA+: B1,B2, B3, B4, B5, B8
    MAX-HD2-MFA-LTEA-P-TAsia Pacific24G LTE-A:
    B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
    WCDMA/HSPA+/DC-HSPA+: B1,B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
    MAX-HD4-MFA-LTEA-W-TAmericas/Europe44G LTE-A:
    B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41
    2500WCDMA/HSPA+/DC-HSPA+: B1,B2, B3, B4, B5, B8
    MAX-HD4-MFA-LTEA-P-TAsia Pacific44G LTE-A:
    B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
    WCDMA/HSPA+/DC-HSPA+: B1,B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
