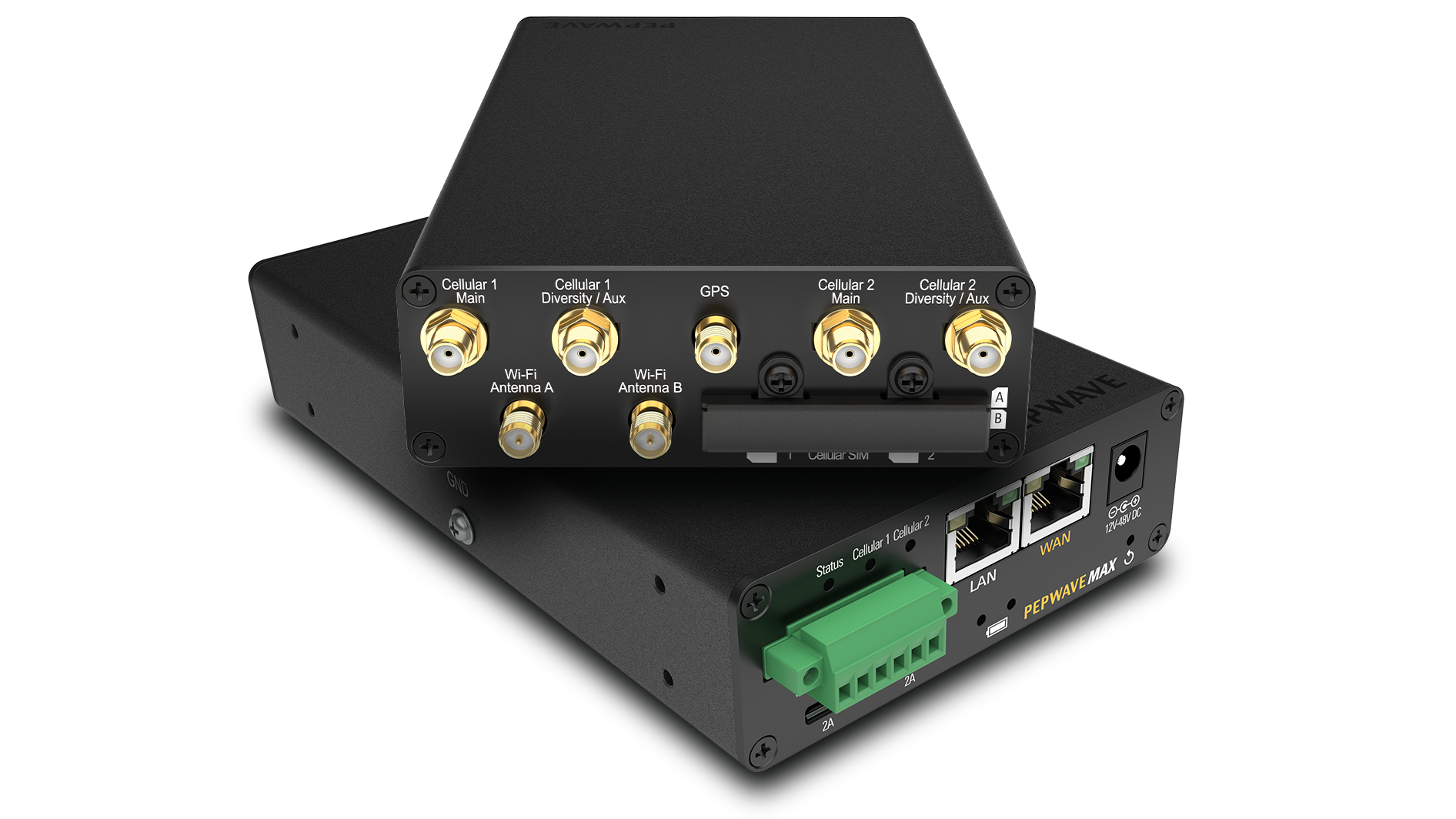

MAX Transit Duo
Built for Transportation Deployments
With a compact form factor, simultaneous dual-band 11ac Wi-Fi, and two embedded LTE modems, the MAX Transit Duo is ready to deliver fast, reliable connectivity in transportation and public safety deployments
Compatible With:
Compatible with all major carriers. Certified on Verizon.
Certified Toughness
In addition to rugged metal enclosure, the MAX Transit Duo has certifications on:
Shock and vibration resistance
(EN 61373:2010)
Railway Applications
(EN 50155)
Electromagnetic Compatibility
(EN 61000)
FirstNet Ready
FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The MAX Transit Duo supports band 14, providing additional coverage as the situation demands.

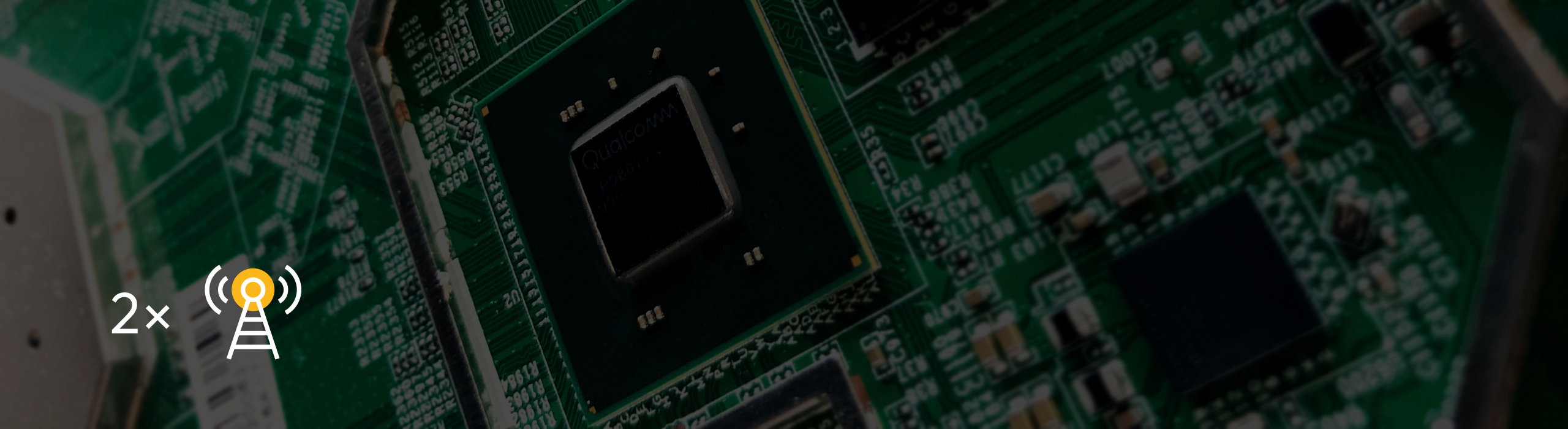

Dual Embedded Cellular Modems
The MAX-TST-DUO has up to two cellular modems and two redundant SIM slots, allowing you to use up to four different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.
Simultaneous
Dual-Band 11ac Wi-Fi
Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi gives you two independent networks that also work together, maximizing the throughput that your passengers can enjoy.
Get it all with PrimeCare
SpeedFusion
InControl2
Warranty
PrimeCare makes SpeedFusion networks easier to build. It bundles InControl, Warranty, SpeedFusion licence upgrades, FusionHub licenses into one subscription.
Captive Portal
Fleet Tracking
Advertising Services
Wi-Fi Mesh

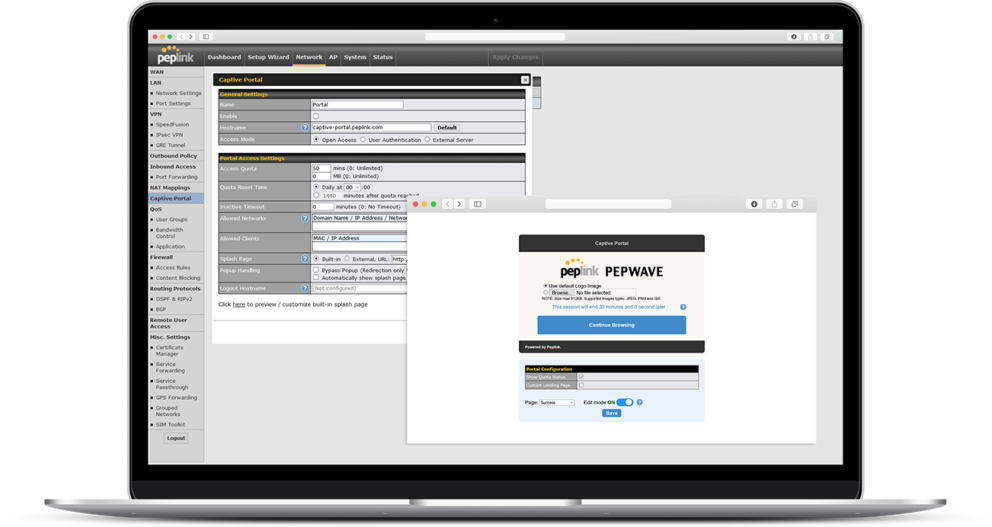

Integrated Captive Portal with Social Wi-Fi
The MAX Transit comes with a customizable captive portal what allows passengers to login with Facebook. As they login, you can use InControl 2 to see insightful reports on user demographics.

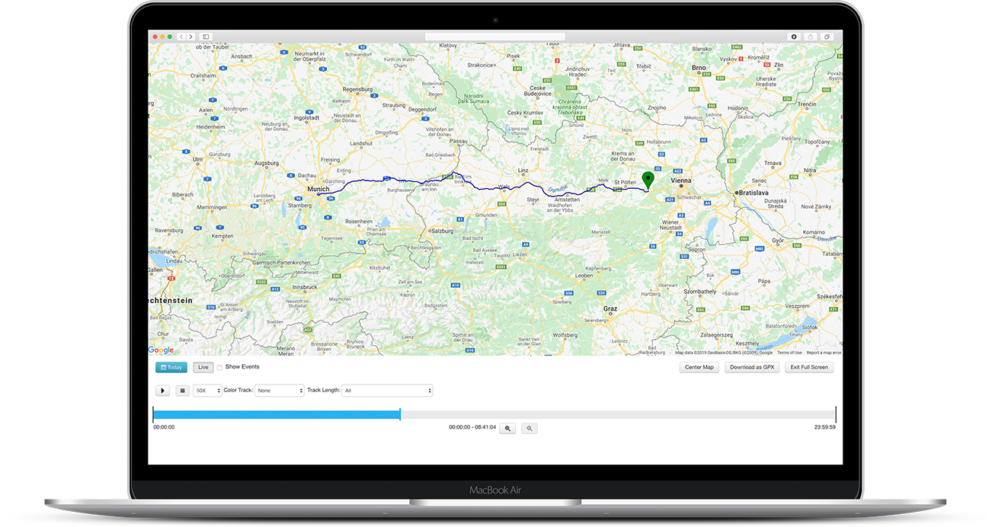

Fleet Tracking and Management
With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.
External Captive Portal for Advertising Servers
The MAX Transit also supports external captive portals, enabling you to connect to an advertising server. That way, your Wi-Fi hotspots can become a source of revenue.
Wi-Fi Mesh Support
Along with an AP Controller, this feature allows for a mesh extension to your network, which can expand network coverage and minimize dead zones.
-
Embedded 4G LTE/3G 2 SIM Card Size Mini-SIM (2FF) Redundant SIM Slots Yes Ethernet WAN Ports 1 (GE) * Ethernet LAN Ports 1 (GE) Recommended Users 150 Router Throughput # 400Mbps Wi-Fi Standard 802.11ac/a/b/g/n 2×2 MIMO Maximum number of SSID: 16 Transmit Power (2.4GHz) | (5GHz) 19dBm | 21dBm Simultaneous Dual-Band Wi-Fi AP Yes Wi-Fi as WAN Yes High Availability Yes WAN as LAN Yes Web Blocking Yes Content Filtering Blacklist Lite PepVPN Yes SpeedFusion Hot Failover Yes SpeedFusion WAN Smoothing No ^ SpeedFusion Bandwidth Bonding No ^ Number of PepVPN/SpeedFusion Peers 2/5 & PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES) 100Mbps | 60Mbps Number of IPsec Tunnels 5 Enclosure Indoor Metal Terminal Block Power Connector for Mobile/Vehicular Deployment Yes Dimensions
(Height x Width x Depth)6.3 x 3.8 x 1.3 inches |
160 x 97 x 33.5 mmWeight 1.3 pounds |
590 gramsAC Adapter AC Input 100V – 240V / DC Output 12V, 2A Power Input 2x Micro-USB B with 5V, 2A each Power Consumption 18W (max.) Operating Temperature -40° – 149°F |
-40° – 65°CHumidity 15% – 95% (non-condensing) Certifications – FCC, CE, RoHS
-E-Mark
-EN 61373:1999 IEC 61373:1999
Shock and Vibration Resistance
-EN 50155
Railway Applications – Electronic
Equipment used on Rolling Stock
-EN 61000
Electromagnetic CompatibilityWarranty 1-Year Limited Warranty * The WAN port can act as a LAN port if needed.
^ Feature is available as an add-on license OR PrimeCare model.
& 2 PepVPN Peers are enabled by default. 5 PepVPN Peers are enabled for PrimeCare models which requires PrimeCare Subscription, complementary for the first year.
# Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision. The throughput result is tested with DHCP/Static IP WAN. -
Software Pepwave MAX Firmware WAN Support for PPPoE, Static IP, DHCP
WAN Link Health Check
Bandwidth Allowance Monitor
Support for Dynamic DNS services
IPv6 SupportLAN DHCP Server for LAN Clients
Extended DHCP Option
DHCP Reservation
DNS Proxy for LAN Clients
VLAN on LAN Support
Load Balancing Intelligent Failover
Session Persistence
Per-Service Load Distribution
Multiple Algorithms
-Weighted
-Enforced
-Persistence
-Priority
-Overflow
-Least Used
-Lowest Latency
-Fastest Respond
TimeComplete VPN Solution PepVPN
SpeedFusion
– Site-to-Site VPN
– SpeedFusion Hot Failover
– SpeedFusion WAN Smoothing^
– SpeedFusion Bandwidth Bonding ^
– 256-bit AES Encryption
– Pre-shared Key Authentication
– Dynamic Routing
– X.509 Certificate Support *
PPTP VPN Server
-RADIUS, LDAP Authentication
IPsec VPN (Network-to-Network) @
X.509 Certificate Support *
Networking NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
SIP ALG, H.323 ALG
UPnP, NAT-PMP
WINS Server
Security 128-bit WEP
WPA & WPA 2
Stateful Firewall
DoS Prevention
Web Blocking
Advanced QoS Individual Bandwidth Limit
Application Prioritization
-SIP, HTTPS, VPN QoS
-Custom Application QoS
AP Controller AP Controller Support
Wi-Fi Usage StatisticsGlobal Positioning System Integrated GPS
Device Location Map
Location Tracking Data with InControl 2
Fleet Management with InControl 2
Captive Portal Support Support for Wired and Wireless LAN Clients
Support RADIUS Authentication
Time and Usage Quotas on Open Access Mode
Built-in Customizable Splash Page
Social Wi-Fi Hotspot support
External Captive Portal supportCertifications -FCC, CE, RoHS, IC
-E-Mark
-EN 61373:1999 IEC 61373:1999 Shock and Vibration Resistance
-EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock
-EN 61000 Electromagnetic CompatibilityDevice Management Web Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client and Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3
.
^ Feature is available as an add-on license.* IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
@ X.509 is only supported on MAX-TST-DUO. -
Product Code
Product Description
MAX-TST-DUO-LC-SF
SpeedFusion License for the MAX Transit Duo Enables SpeedFusion Bandwidth Bonding and WAN Smoothing for the MAX Transit Duo
-
- MAX Transit Duo
- 12V2A Power Supply (ACW-601)
- 2x 5dBi Wi-Fi Antennas (ACW-341)
- 1x GPS Active Antenna (ACW-232)
- 4x 2dBi 4G LTE Antennas (ACW-234)
- 1 Pair of Mounting Brackets (ACW-724)
-
Product Code
Carrier
Embedded Modems
4G Bands
3G Bands
MAX-TST-DUO-E-T Europe /
International/
CAT-4
2
4G LTE: B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)
WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
MAX-TST-DUO-LTEA-W-T Worldwide /
CAT-6
2
4G LTE-A:
B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
2500WCDMA/HSPA+/DC-HSPA+:
B1, B2, B3, B4, B5, B8
MAX-TST-DUO-LTEA-W-T-PRM MAX-TST-DUO-LTEA-P-T Asia Pacific/
CAT-6
2
4G LTE-A:
B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
WCDMA/HSPA+/DC-HSPA+:
B1, B5, B8, B9, B19
UMTS: B6
TD-SCDMA: B39
MAX-TST-DUO-LTEA-P-T-PRM MAX-TST-DUO-LTEA-R-T America /
FirstNet /
CAT-12
2
4G LTE-A Pro:
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66
HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
MAX-TST-DUO-LTEA-R-T-PRM MAX-TST-DUO-LTEA-K-T Global* /
CAT-12
2
4G LTE-A Pro:
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
MAX-TST-DUO-LTEA-K-T-PRM * China & HK TD LTE are excluded.
