MAX BR1 PRO

Versatile Single Cellular with High Port Capacity

The MAX BR1 Pro comes with 4-port LAN switch and automatic failover, making it an ideal choice for deployments that demand outstanding reliability and flexibility.

4G LTE Branch Networking Router (w. 4 LAN Ports) MAX BR1 PRO #2
4G LTE Branch Networking Router (w. 4 LAN Ports) MAX BR1 PRO #2

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

4G LTE Branch Networking Router (w. 4 LAN Ports) MAX BR1 PRO #3

Connect Everything Affordably

The BR1 PRO features 4x GE LAN ports to connect your wired clients, and 802.11 a/b/g/n Wi-Fi to connect your wireless clients. All this in rugged DIN mount compatible enclosure.

4G LTE Branch Networking Router (w. 4 LAN Ports) MAX BR1 PRO #4

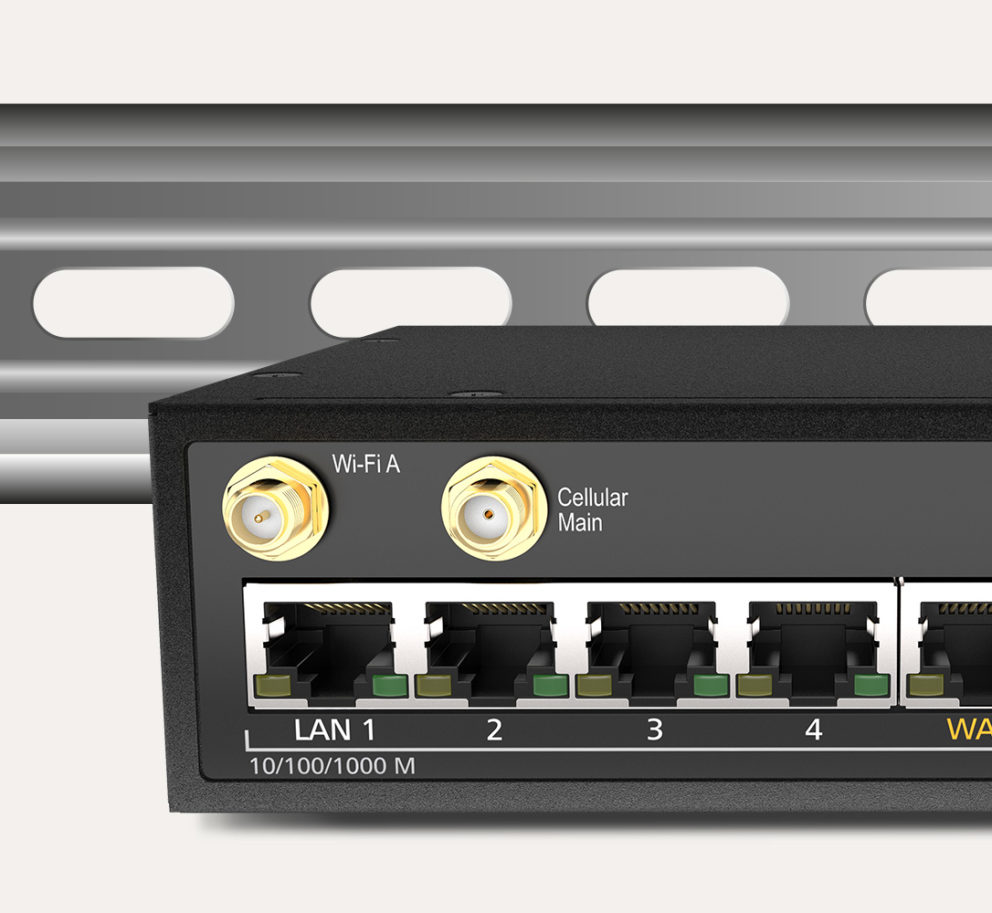

Fits Anywhere

At 5.1 x 4.3 x 1.6 inches, the BR1 Pro can fit into tight spaces. It can also be mounted on DIN rails from different angles, so it fits anywhere that the rails can be installed.

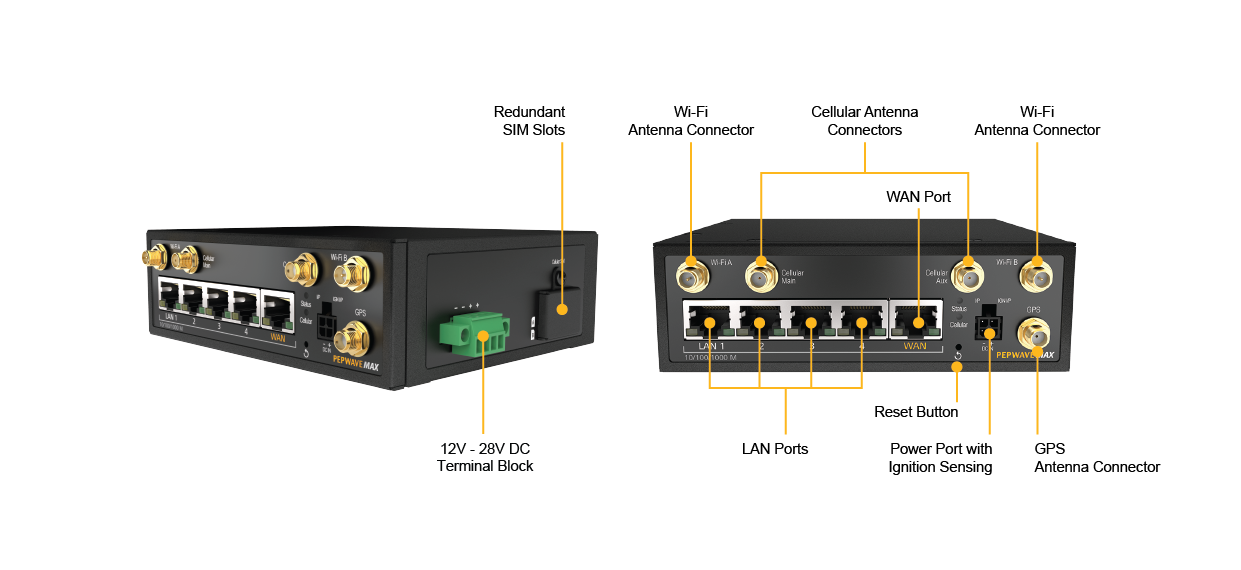

Mobile Ready

The BR1 Pro can accept power via a terminal block and is equipped with GPS. It also supports Ignition Sense, enabling it to power up or down depending on the vehicle’s ignition status.

Ignition Sense

Terminal Block

GPS

Primary Line with LTE Backup

In case of a WAN failure, SpeedFusion Hot Failover technology powers the MAX BR1 Pro for instant failover between wired and cellular links as needed to keep your connection stable and fast.

4-Port LAN Switch

The four-port GE LAN switch allows the BR1 Pro to be dropped into any network transparently, without needs for extra cabling. Perfect for Branch Networking.

Dual-Band Wi-Fi

The MAX BR1 Pro comes with embedded dual radio 802.11n Wi-Fi AP. It operates both in 2.4Ghz and 5GHz bands concurrently, reaching 300Mbps.

Redundant SIM Slots

Device utilizes redundant SIM slots with automatic switching for reliable network. You can also set the MAX BR1 PRO to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you to travel across borders without changing SIM cards manually.

Use Cases

In-Vehicle Deployments

Passenger Wi-Fi

LTE Backup for Branch Office

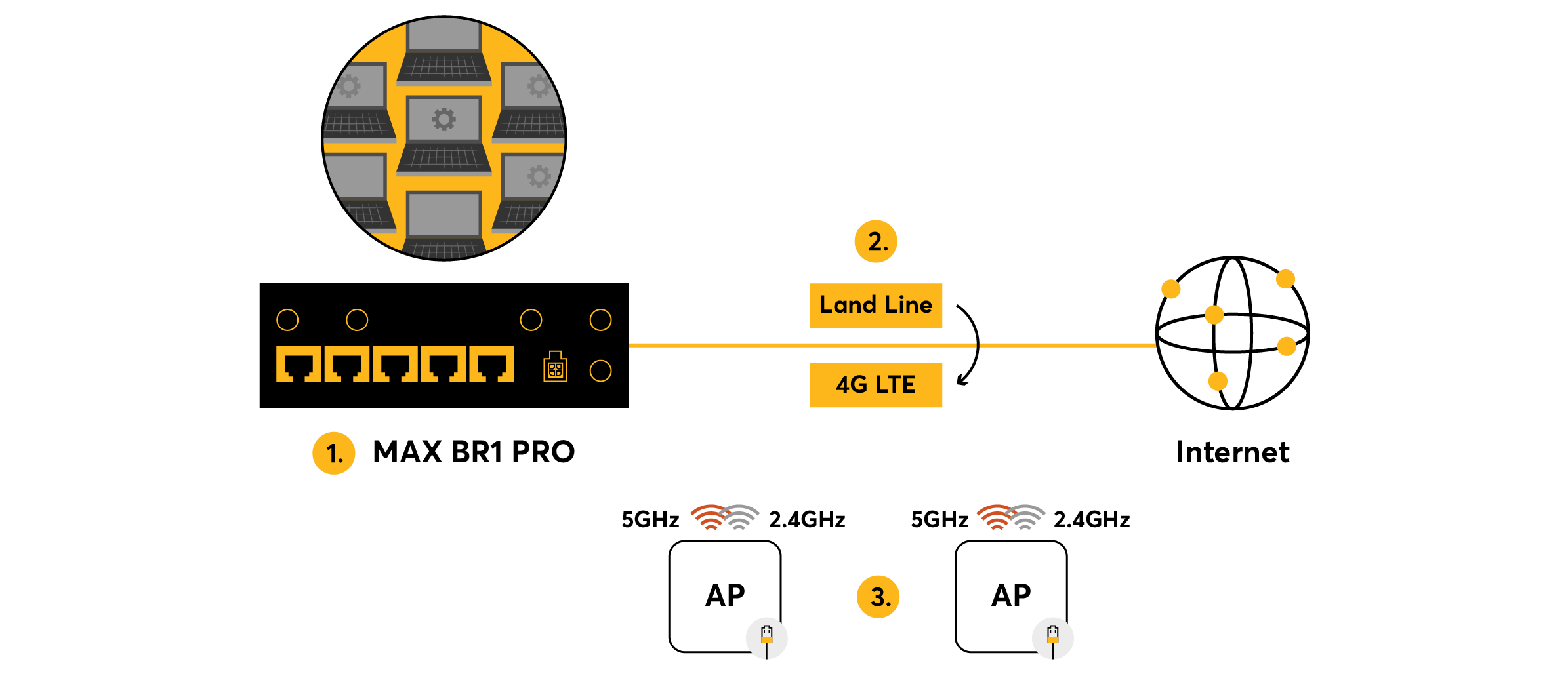

Topology

  1. The BR1 PRO provides 4-Port GE LAN switch and 11a Wi-Fi.
  2. In case of Landline, failure, SpeedFusion instantly and seamlessly switches traffic to 4G LTE backup; for always-on networking.
  3. Integrate easily with existing wireless networks. The BR1 PRO is compatible with wireless access points from Pepwave as well as third-party AP manufacturers.

There is More

We specialize in making complicated technologies simple.  Achieve what others cannot with the following.

Fleet Tracking
Captive Portal
Hot Failover
Easy to Deploy

4G LTE Branch Networking Router (w. 4 LAN Ports) MAX BR1 PRO #12





Fleet Tracking and Management





Track and manage your fleet from anywhere. With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

4G LTE Branch Networking Router (w. 4 LAN Ports) MAX BR1 PRO #13





Customizable Captive Portal





Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.



Setup a Social Wi-Fi Hotspot to receive valuable demographic data from your users.

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #9





SpeedFusion Hot Failover





In case of a WAN failure, SpeedFusion technology powers the MAX BR1 Slim for instant failover, giving you reliable internet connectivity and resources access to datacenter.

4G LTE Branch Networking Router (w. 4 LAN Ports) MAX BR1 PRO #14





Easy to Deploy





Set up the BR1 Pro without changing the network configuration of your other devices. Use InControl to manage your whole network from any web browser.

  • WAN1x GE
    1x Embedded LTE Modem with Redundant SIM Slots
    LAN Interface 4x GE
    Drop-in ModeYes
    Router Throughput120Mbps
    Recommended Users60
    LTE ModemDownlink/Uplink Data rate:
    150Mbps/50Mbps
    LTE-A ModemDownlink/Uplink Data rate:
    300Mbps/50Mbps
    Antenna Connector2x SMA Cellular, 2x Wi-Fi, 1x SMA GPS
    Power InputDevice: 12V – 28V DC
    AC Adapter: AC Input 100V – 240V / DC Output 12V
    Terminal Block: 12V – 28V DC
    Power Consumption24W (max.)
    Dimensions (L x W x H)5.1 x 4.3 x 1.6 inches |
    130 x 110 x 41 mm
    Weight1.2 pounds | 515 grams
    Operating Temperature -40° – 149°F | -40° – 65°C
    Humidity15% – 95% (non-condensing)
    Certifications FCC, CE, RoHS
    IC: 20682-P1930LITER5
    Warranty 1-Year Limited Warranty



  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port

    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionPepVPN/SpeedFusion
    -Hot Failover
    -Site-to-Site VPN
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    IPsec VPN (Network-to-Network)
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    Captive Portal Support Support for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
  •

    Product Code

    Product Name

    Description

    MAX-BR1-ADV

      Advanced Feature Pack

    Package includes a software license key for Advanced Car-Fi Roaming; and SpeedFusion and IPsec X.509 Certificate Support

    PVN-LC-05

      PepVPN License Key for Velocity and BR1 family

    Enables up to 5 PepVPN / SpeedFusion peers

    ACW-DIN-M2MS

    DIN Rail Mount

    DIN Rail mount kit that fits the BR1 M2M, BR1 Slim, BR1 Pro, SFE and UBR LTE.

    • MAX BR1 Pro
    • 12V2A Power Supply
    • 2x 5dBi Wi-Fi Antennas
    • 1x GPS Active Antenna
    • 2x 2dBi 4G LTE Antennas
  • Product CodeRegion | CarrierEmbedded Modem 4G Bands3G Bands
    MAX-BR1-PRO-LTEA-W-TWorldwide/
    CAT-6
    1FDD LTE:
    B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29,
    B30, B41
    WCDMA/HSPA+/DC-HSPA+: B1, B5, B8

    MAX-BR1-PRO-LTEA-P-TAsia Pacific/
    CAT-6
    14G LTE-A:
    B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
    Cellular 1: WCDMA/HSPA+/DC-HSPA+:
    B2, B4, B5
    Cellular 2: B2, B4, B5
    MAX-BR1-PRO-LTE-E-TEurope/
    International/
    CAT-4
    14G LTE: B1, B3, B5, B7, B8, B20, B38 , B40, B41WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
