MAX BR1 ENT

Your LTE Highspeed Broadband Router.

The MAX BR1 ENT delivers blazing 300Mbps router throughput with automatic failover to LTE and comes without Wi-Fi, making it an ideal choice for deployments that demand high performance, and outstanding reliability. It is also Verizon XLTE certified.

300Mbps Automatic Failover 4G LTE Mobile Router MAX BR1 ENT #2
300Mbps Automatic Failover 4G LTE Mobile Router MAX BR1 ENT #2

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

Redundant SIM Slots for Multiple Carriers

Redundant SIM slots with automatic switching for reliable network. You can also set the MAX BR1 to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you to travel across borders without changing SIM cards manually.

Use Cases

Enterprise

Military

Government

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Topologies

FirstNet Ready

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The HD4 MBX supports band 14, providing additional coverage as the situation demands.

Meet Strict Security Compliance

Got a strict no-Wi-Fi security policy? Built without Wi-Fi, the BR1 ENT is a great choice for deployments with compliance requirements.

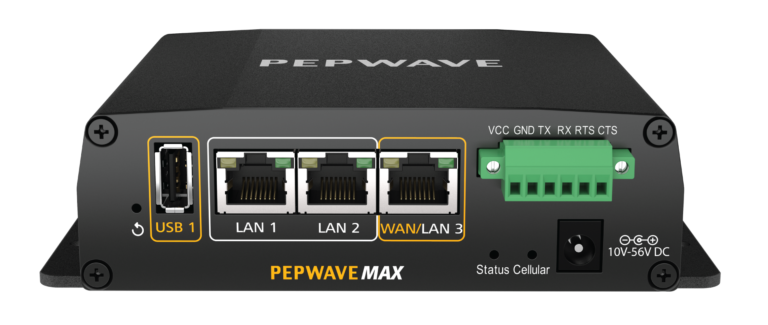

Terminal Block for Secure Power Supply

The MAX BR1 ENT is equipped with a terminal block for secure power installation.

HighSpeed Primary Line with LTE Backup

In case of a WAN failure, SpeedFusion Hot Failover technology powers the MAX BR1 ENT for instant failover between wired and cellular links as needed to keep your connection stable and fast.

PoE Output Option Available

Cut down on cabling and simplify deployments. With an optional PoE activation kit, the BR1 ENT supports 802.3af PoE Output, so one cable is all you need for both connectivity and power.

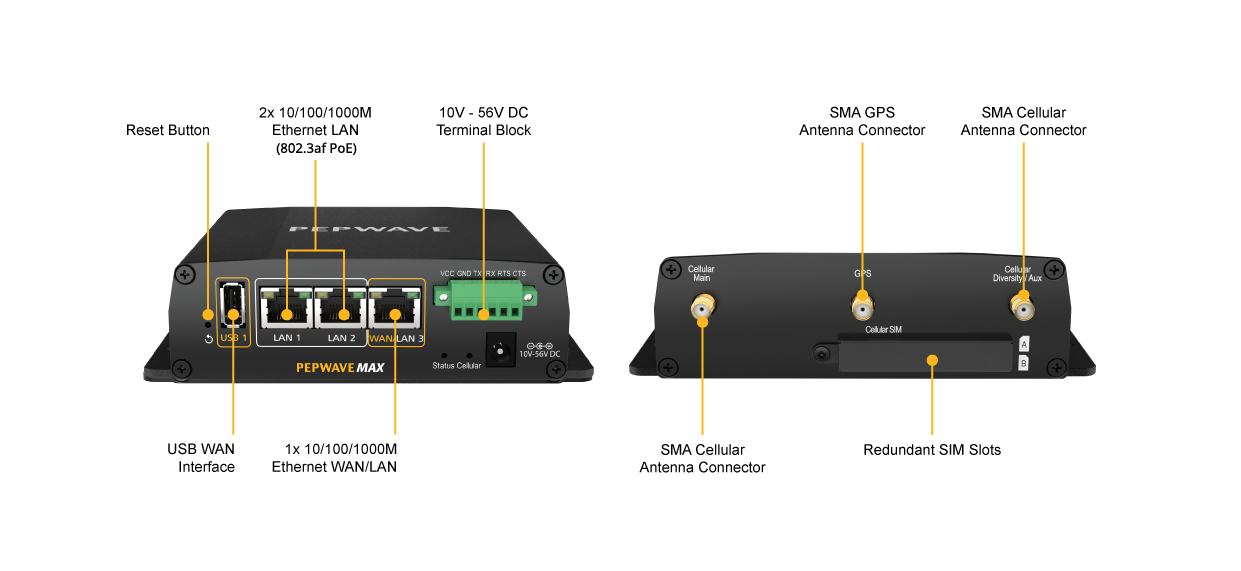

  • Ethernet WAN Ports1 (GE)
    Ethernet LAN Ports2 (GE)
    Embedded 4G LTE1
    Cellular Modem @
    LTE / LTE-A
    Redundant SIM SlotsYes (( Mini-SIM (2FF))
    USB WAN Modem Port1
    Recommended Users25-150
    Router Throughput300Mbps
    PepVPNYes
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingYes
    Drop-in ModeYes
    Number of PepVPN SpeedFusion Peers2/5/20 (!)
    PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES)100 / 60 Mbps
    802.1q VLANs Supported16
    IP PassthroughYes
    High AvailabilityYes
    WAN as LANYes
    Web Filtering BlacklistLite
    Power Output802.3af PoE Output*
    AC AdapterAC Input 100V-240V
    DC Output 12V, 2A
    Power Input | Terminal BlockDC 10V-56V 2A
    Power ConsumptionMax.: 16W, Typical: 11W, Min.: 8W
    Dimensions1.6 x 5.8 x 5.0 inches |
    40 x 147 x 128 mm
    Weight0.96 pounds |
    435 grams
    Operating Temperature-40° – 149°F |
    -40° – 65°C
    Certifications -FCC, CE, RoHS, E-Mark, IC
    -RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV)
    Warranty1-Year Limited Warranty

    @ LTE-A option: 300Mbs / 50Mbs available. (LTE option: 100Mbs / 50Mbs)

    (!) 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05 or to 20 Peers using license MAX-HD-020-SPF.

    * Optional PoE Activation Kit is required to activate 802.3af PoE Output.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port

    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionPepVPN/SpeedFusion
    -Hot Failover
    -Site-to-Site VPN
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    IPsec VPN (Network-to-Network)
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    Captive Portal SupportSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
  •

    Product Code

    Description

    MAX-BR1-ADV

        Package includes a software license key for Advanced Car-Fi Roaming; and SpeedFusion and IPsec X.509 Certificate Support

    ACW-622

       Includes 1x 56V Power Supply

          Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)

    PVN-LC-05

      Enables up to 5 PepVPN/SpeedFusion Peers

    MAX-HD-020-SPF

      Enables up to 20 PepVPN/SpeedFusion Peers



    • MAX BR1 ENT
    • 12V2A Power Supply
    • 1x GPS Antenna
    • 2x 2dBi 4G LTE Antennas
  • Product CodeRegion | CarrierEmbedded Modem 4G Bands3G Bands
    MAX-BR1-ENT-LTE-E-TEurope/International14G LTE:
    B1, B3, B5, B7, B8, B20,
    B38 (TDD), B40(TDD), B41 (TDD)
    WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B8
    MAX-BR1-ENT-LTEA-W-TAmericas/Europe14G LTE-A:
    B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
    WCDMA/HSPA+/DC-HSPA+:
    B1,B2, B3, B4, B5, B8
    MAX-BR1-ENT-LTEA-P-TAsia Pacific14G LTE-A:
    B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
    WCDMA/HSPA+/DC-HSPA+:
    B1 ,B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
    MAX-BR1-ENT-LTEA-R-TAmerica/FirstNet Ready14G LTE-A Pro:
    B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66
    HSPA+:
    B1, B2, B4, B5, B6, B8, B9, B19
    MAX-BR1-ENT-LTEA-K-TGlobal *
    14G LTE-A Pro:
    B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
    HSPA+:
    B1, B2, B4, B5, B6, B8, B9, B19




    * China & HK TD LTE are excluded.
