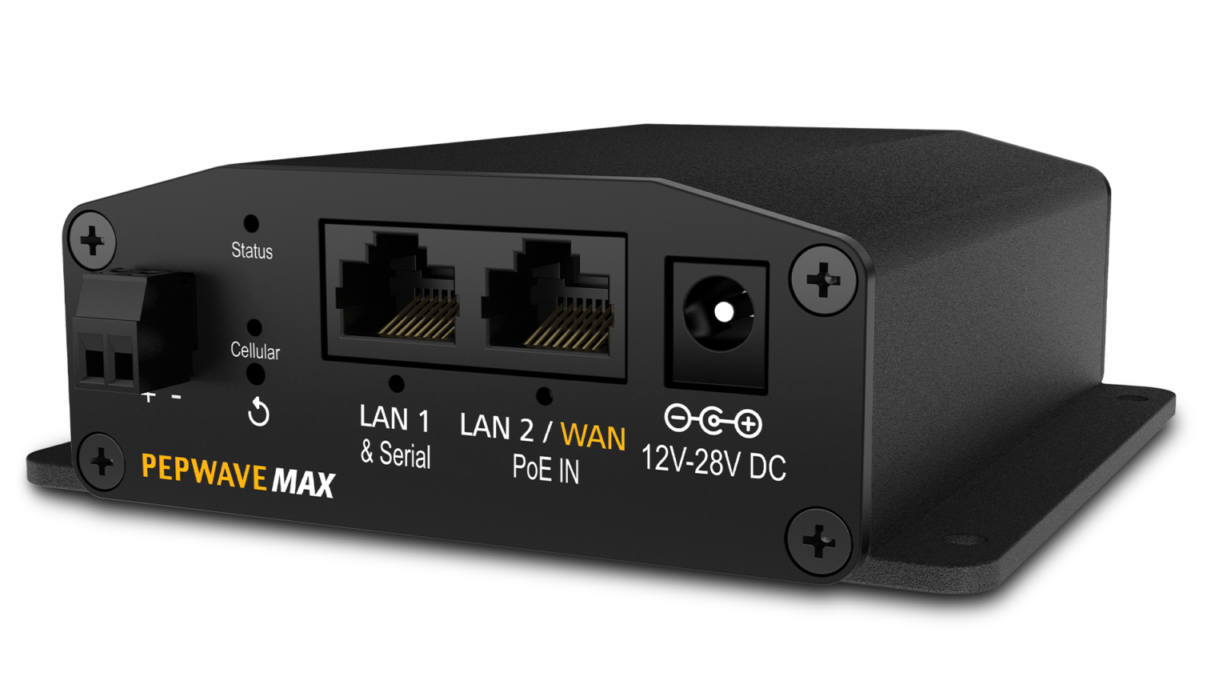

MAX BR1 Mini Core

Unbreakable Connectivity. Unbeatable Price.

Singe Cellular Mobile Router with OOBM support MAX BR1 Core #2
Singe Cellular Mobile Router with OOBM support MAX BR1 Core #2

Use Cases

Government

Enterprise

Military

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

Singe Cellular Mobile Router with OOBM support MAX BR1 Core #4

Constant Connectivity

With the BR1 Mini Core, there is always a way to connect. Use a combination of cellular and Ethernet# to provide users with constant connectivity.

# Sold Separately.

High Security

To minimize the attack surface, some enterprise deployments require routers to have no Wi-Fi or GPS. The BR1 Mini Core fulfills these requirements while providing high functionality at a low price point.

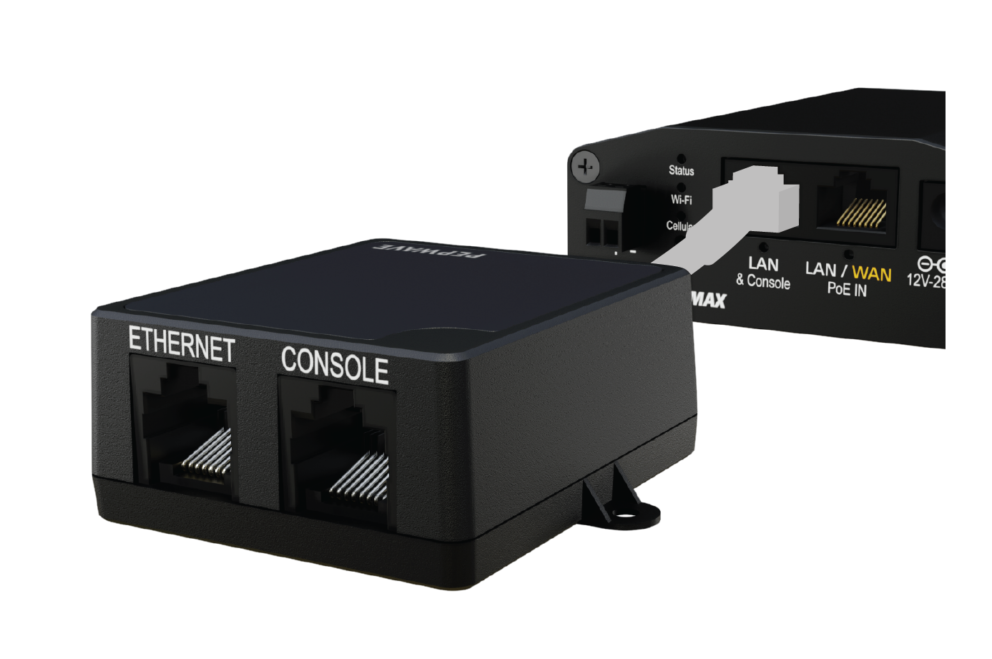

OOBM Support

Create a modern out-of-band network to manage all your equipment. Give yourself console and Ethernet connectivity to all of your devices. Display your devices console interface over the cloud via InControl so you can securely manage from anywhere without the usual headaches.

*Available with optional accessory (ACW-411)

Deploy Anywhere

The BR1 Mini Core is designed to function where other routers can’t.

Certified for vibration resis-tance and rolling stock

Accepts multiple power inputsand a wide voltage range.

Has an optional mount for Class 1 Div 2 support*

Can function in extreme temperatures

  • Cellular WAN InterfacesSingle LTE Modem
    Redundant SIM SlotYes
    WAN Interface1x 10/100M Ethernet Port #
    LAN Interface2x 10/100M Ethernet Port
    (1x Console Port shared with LAN Interface)
    (1x WAN Port shared with LAN Interface)
    Drop-in ModeYes
    Number of PepVPN SpeedFusion Peers2/5 *
    Stateful Firewall Throughput100 Mbps
    Number of IPsec Tunnels5
    Recommended Users60
    Downlink/Uplink Datarate150Mbps/50Mbps (LTE Modem)
    Antenna Connectors2x SMA Cellular
    Power InputDC Jack/Terminal Block: 12V – 28V DC
    Passive PoE Input (WAN Port, 12V – 28V DC)
    Power Consumption12W (max.)
    Dimensions4.1 x 4.3 x 1.2 inches
    |105 x 110 x 30 mm
    Weight0.54 pound | 244 grams
    Operating Temperature-40° – 149°F | -40° – 65°C
    Humidity15% – 95% (non-condensing)
    Warranty1-Year Limited Warranty
    Certifications-FCC, CE, RoHS, E-Mark
    -EN 61373: Shock and Vibration Resistance
    -EN 50155: Railway Applications - Electronic Equipment used on Rolling Stock
    -EN 61000: Electromagnetic Compatibility IC: 20682-P1930LITER5

    # Sold Separately.
    *2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port

    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionPepVPN/SpeedFusion Hot Failover ^
    -Site-to-Site VPN
    -Hot Failover ^
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    IPsec VPN (Network-to-Network)

    ^ Feature is available as an add-on license.
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    Captive Portal SupportSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
  •



    Product Code

    Description

    ACW-102

             PoE injector for delivering passive PoE power to the BR1 Mini series

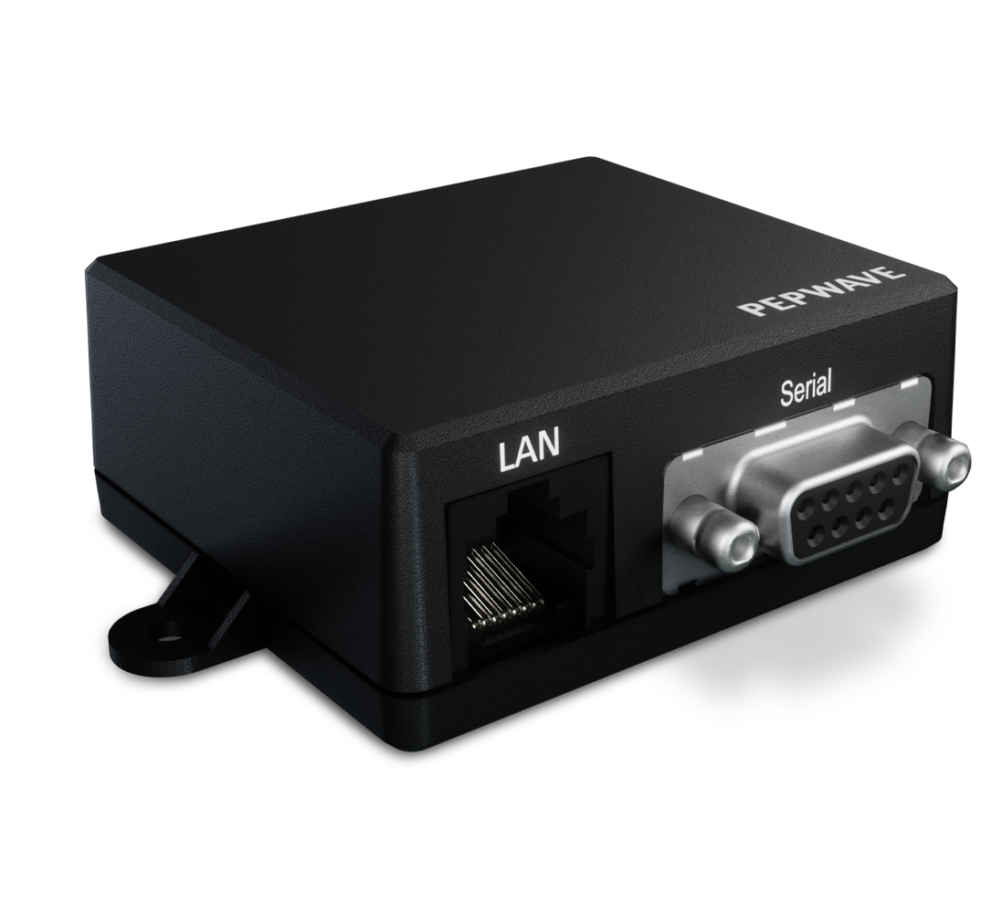

    ACW-411

             Serial Console Port Adapter for BR1 Mini series

    MAX-BR1-MINI-LC-FS

             Failover software license and related feature set for BR1-MINI, enables Ethernet WAN.

    ACW-749

     Class 1 Division 2 Mounting Kit for BR1 Mini

    • MAX BR1 Mini Core
    • 12V2A Power Supply

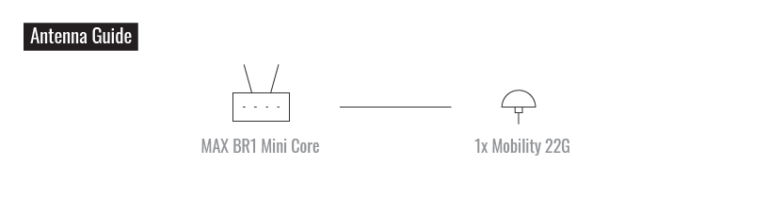

    • 2x 2dBi 4G LTE Antennas
  • Product CodeRegion | CarrierEmbedded Modem 4G Bands3G Bands
    MAX-BR1-MINI-LTE-US-T-MUnited States1B2, B4, B5, B12, B13HSPA+: B2, B5
