MAX HD4

Quad 4G LTE Mobile Router

The MAX HD4 delivers outstanding performance from all your connections with the help of SpeedFusion bandwidth bonding and intelligent load balancing.

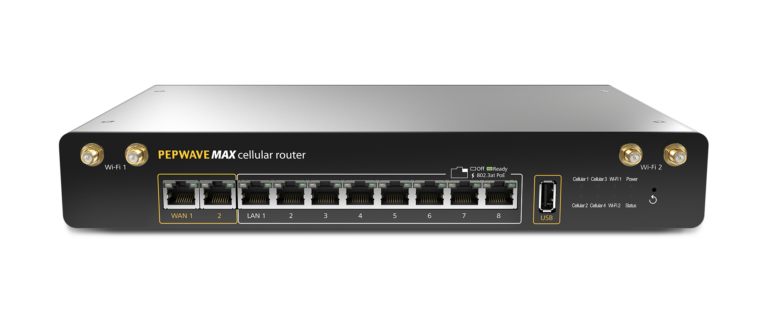

Quad 4G LTE Mobile Router MAX HD4 #16
Quad 4G LTE Mobile Router MAX HD4 #16

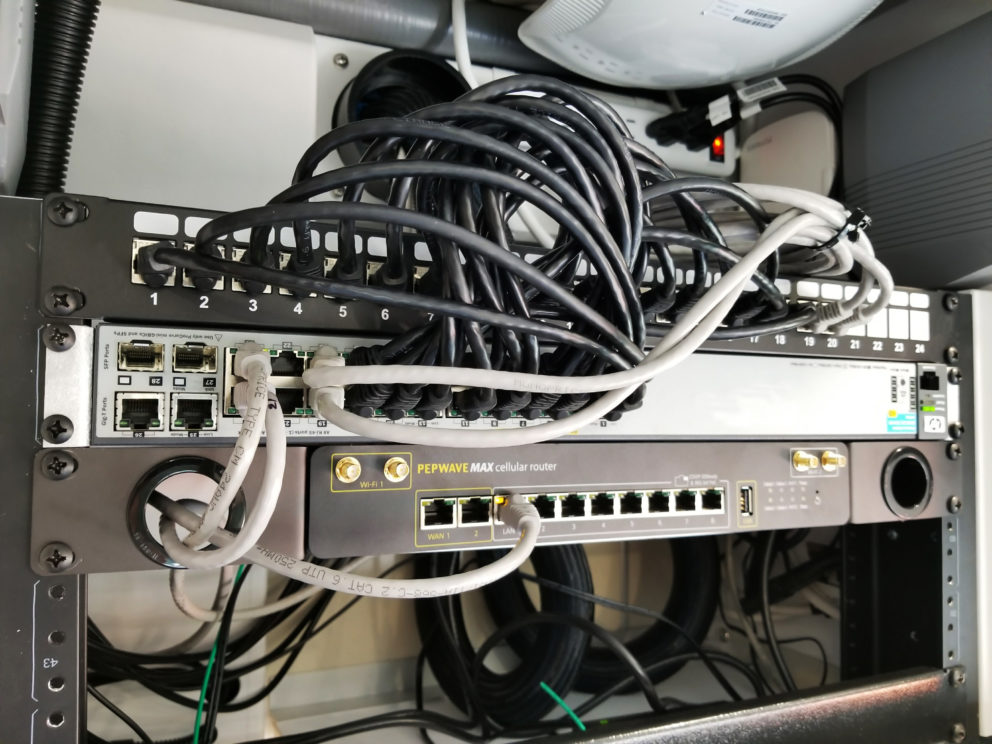

Use Cases

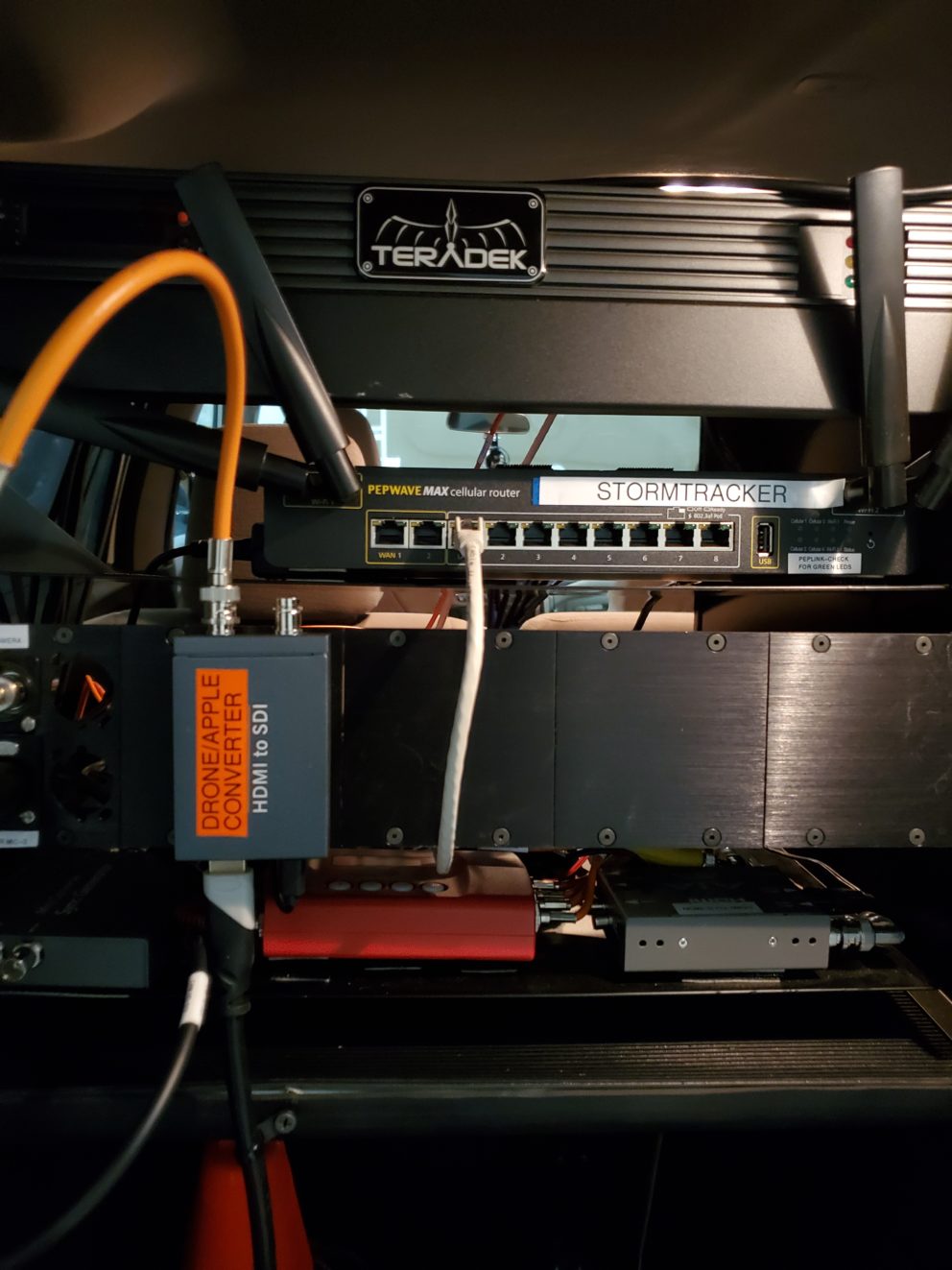

Broadcasting

Telemedicine

Disaster Recovery

Public Safety & First Responders

Sample Topology, Disaster Recovery

In a disaster, reliable connectivity is a must for first responders, aid workers & everyone affected

  1. SpeedFusion creates an unbreakable and bonded connection using multiple 4G LTE/3G modems from different carriers.
  2. In case of a WAN failure, SpeedFusion instantly and seamlessly switches traffic to another connection; for always-on mobile networking.
  3. Multipurpose wireless applications, including video surveillance, VoIP communication, emergency Wi-Fi are possible in disaster recovery projects.
Quad 4G LTE Mobile Router MAX HD4 #4

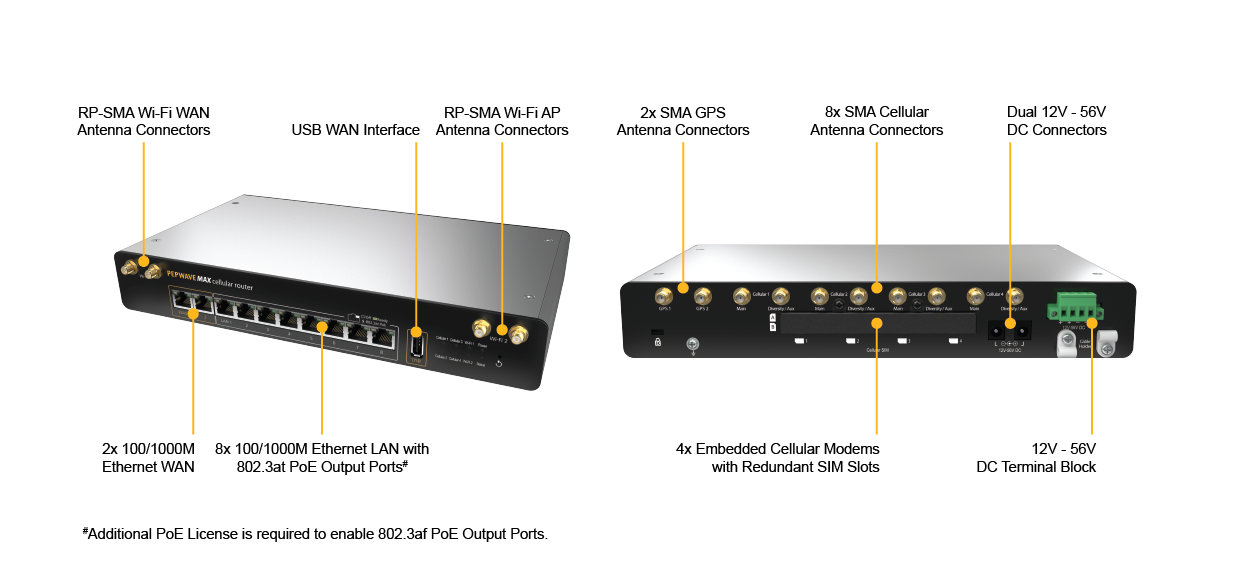

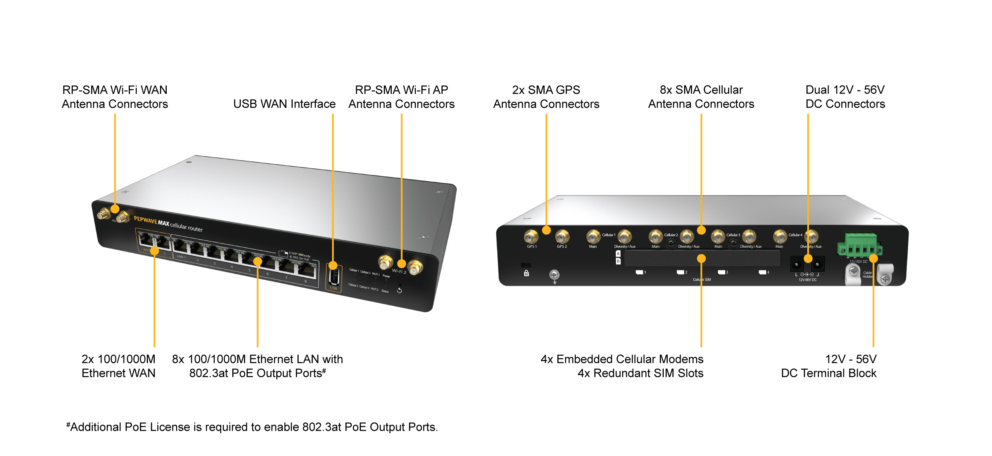

Quad Embedded Cellular Modems

Quad Cellular Modems and Redundant SIM slots allow you to use up to four different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.

Quad 4G LTE Mobile Router MAX HD4 #5

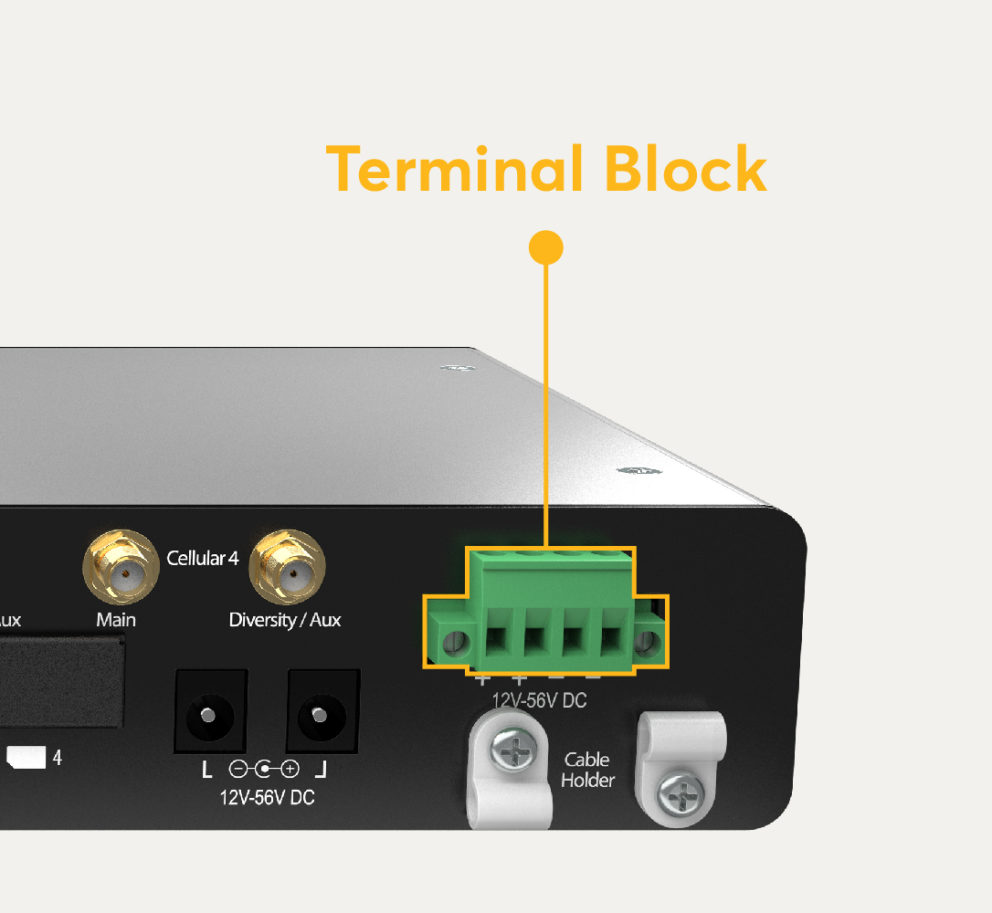

Terminal Block for Secure Power Supply

The MAX HD4 is equipped with a terminal block for secure installation in vehicles and other locations.

Quad 4G LTE Mobile Router MAX HD4 #6

8-Port GE Switch and Optional PoE Output

Cut down on cabling and simplify deployments. With a PoE activation kit purchase, the HD4 supports 802.3at PoE Output, so one cable is all you need for both connectivity and power.

Certified Toughness

In addition to rugged metal enclosure, the MAX HD4 is certified on:

Shock and vibration resistance

(EN 61373:1999 IEC 61373:1999)

Railway Applications

(EN 50155)

Electromagnetic Compatibility

(EN 61000)

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

FirstNet Ready & ESN Certified

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The HD4 supports band 14, providing additional coverage as the situation demands.

MAX HD4 wireless routers are also certified by UK’s Emergency Services Network (ESN). The routers are now approved for use in the country’s fleet of first responders and emergency services vehicles.

Cloud Based SD-WAN Network Management Solution InControl 2

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.

Quad 4G LTE Mobile Router MAX HD4 #9

Customizable Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.

With Social Wi-Fi Hotspot support, you can also receive valuable demographic data from your users.

#PowerofPeplink

  • Product CodeHD4-LTE
    Ethernet WAN Ports2/[email protected] (GE)
    Ethernet LAN Ports8/[email protected] (GE)
    Embedded 4G LTE/3G4
    Redundant SIM SlotsYes
    SIM Card SizeMini-SIM (2FF)
    USB WAN Modem Port1
    Wi-Fi WAN [1]Yes
    Wi-Fi AP [1]Yes
    Maximum number of SSID16
    Wi-Fi Standard802.11ac/a/b/g/n 1166Mbps 2×2 MIMO
    Transmit Power (2.4GHz)23dBm
    Transmit Power (5GHz)21dBm
    Simultaneous Dual-Band Wi-Fi APYes
    Recommended Users [2]500
    Router Throughput [3]400Mbps
    LTE ModemsDownlink/Uplink Datarate: 100Mbps/50Mbps
    LTE-A ModemsDownlink/Uplink Datarate: 300Mbps/50Mbps
    LTE-A Pro ModemsDownlink/Uplink Datarate: 600Mbps/150Mbps
    802.1q VLANs Supported128
    Drop-in ModeYes
    High AvailabilityYes
    Web BlockingYes
    Web Filtering BlacklistLite
    PepVPNYes
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingYes
    SpeedFusion Bandwidth BondingYes
    Number of PepVPN SpeedFusion Peers2/20 [5]
    PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES)150Mbps | 120Mbps
    Number of IPsec Tunnels5
    GRE (Network-to-Network)5
    InControl Cloud ManagementYes
    GPS Fleet ManagementYes
    Manage Pepwave AP SeriesYes
    Maximum Number of AP Support30
    EnclosureIndoor Metal
    PoE OutputUp to 8x 802.3af PoE Outputs 6
    Terminal Block Power Connector for Mobile/Vehicular DeploymentYes (DC 10V – 56V)
    Dimensions (H x W x D)1.9 x 11.5 x 6.9 inches (50 x 292 x 177 mm)
    Weight4.20 pounds ( 1.9 kg )
    AC AdapterAC Input 100V – 240V | DC Output 12V , 4A
    Power InputDC 12V – 56V
    Power Consumption38W (max.)
    Operating Temperature-40° – 149°F
    CertificationsFCC, CE, RoHS
    ESN (Emergency Services Network)
    E-Mark
    EN 61373:2010 (Shock and Vibration Resistance)
    EN 50155 (Railway Applications –
    Electronic Equipment used on Rolling Stock)
    EN 61000 (Electromagnetic Compatibility)
    Humidity15% – 95% (non-condensing)
    Warranty1-Year Limited Warranty

    [1] The frequency range for 802.11b/g/n Wi-Fi and 802.11ac/a/n Wi-Fi are 2412−2472 MHz and 5180−5825 MHz respectively.
    [2] Transmit power can be configured on the Web Admin Interface.
    [3] Recommendation for sizing purposes only. No software restrictions applied.
    [5] Cache Throughput refers to the speed of routing content from disk drive to LAN.
    @ If the WAN Port Activation License (BPL-ONE-LC-5WAN) is activated, LAN ports 1-3 will be converted to WAN ports 3-5.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    USB 3G/4G LTE Modem Support
    IPv6 Support
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    Weighted
    Enforced
    Persistence
    Priority
    Overflow
    Least Used
    Lowest Latency
    Fastest Response Time
    Global Positioning Systemntegrated GPS
    Device Location Map
    Location Tracking Data
    GPS eXchange Format (GPX)
    Up to Seven Days
    Fleet Management with InControl 2
    Complete VPN SolutionPepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    Site-to-Site VPN
    Bandwidth Aggregation
    Hot Failover
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    X.509 Certificate Support
    PPTP/L2TP/OpenVPN Server
    Local User, LDAP, RADIUS, Active Directory Authentication
    IPsec VPN (Network-to-Network) 7
    X.509 Certificate Support
    GRE Tunnel (Network-to-Network)
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    Package ContentMAX HD4
    12V4A Power Supply (ACW-635)
    4x Dual Band Wi-Fi Antennas (ACW-341)
    1x GPS Active Antenna (ACW-232)
    8x 2dBi 4G LTE Antennas (ACW-813)
    1 Pair of Mounting Brackets (ACW-731)
  • Product CodeDescription
    ACW-618Includes 2x 56V/2.1A Power Supply
    Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)
    ACW-622Includes 1x 56V Power Supply
    Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)
    MAX-HD-020-SPFActivates 20 PepVPN/SpeedFusion Peers
    MAX-HD4-LC-5WANWAN Port Activation License for MAX HD4. Convert LAN ports 1-3 to WAN ports 3-5.
  • Product CodeCarrierEmbedded Modem4G Bands3G Bands
    MAX-HD4-LTE-E-TEurope /
    International /
    CAT-4
    44G LTE:
    B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)
    WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
    MAX-HD4-LTEA-W-TWorldwide /
    CAT-6
    44G LTE-A:
    B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
    2500WCDMA/HSPA+/DC-HSPA+:
    B1, B2, B3, B4, B5, B8
    MAX-HD4-LTEA-P-TAsia Pacific /
    CAT-6
    44G LTE-A:
    B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
    WCDMA/HSPA+/DC-HSPA+:
    B1,B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
    MAX-HD4-LTEA-WF-TAmerica / FirstNet /
    CAT-12 / CAT-6
    4Cellular 1:
    4G LTE-A Pro:
    B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66

    Cellular 2-4:
    4G LTE-A:
    B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
    Cellular 1:
    HSPA+: B1, B2, B4, B5, B6, B8, B9, B19

    Cellular 2-4:
    WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8
    MAX-HD4-LTEA-WK-TGlobal* /
    CAT-12 / CAT-6
    4Cellular 1:
    4G LTE-A Pro:
    B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66

    Cellular 2-4:
    4G LTE-A:
    B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
    Cellular 1:
    HSPA+: B1, B2, B4, B5, B6, B8, B9, B19

    Cellular 2-4:
    WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8
