MAX HD4 IP67

Quad 4G/3G Mobile Outdoor Router

The HD4 IP67 outdoor router offers quad embedded cellular modems and PoE support, all encased in a shock and vibration certified, waterproof enclosure that’s more than a match for almost any environment.

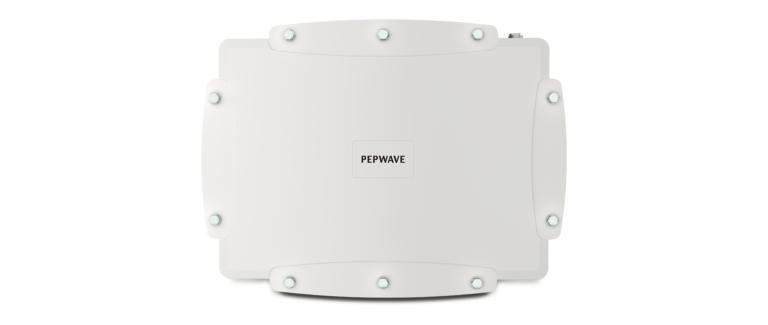

Quad 4G LTE/3G Outdoor Mobile Router HD4 IP67 #2

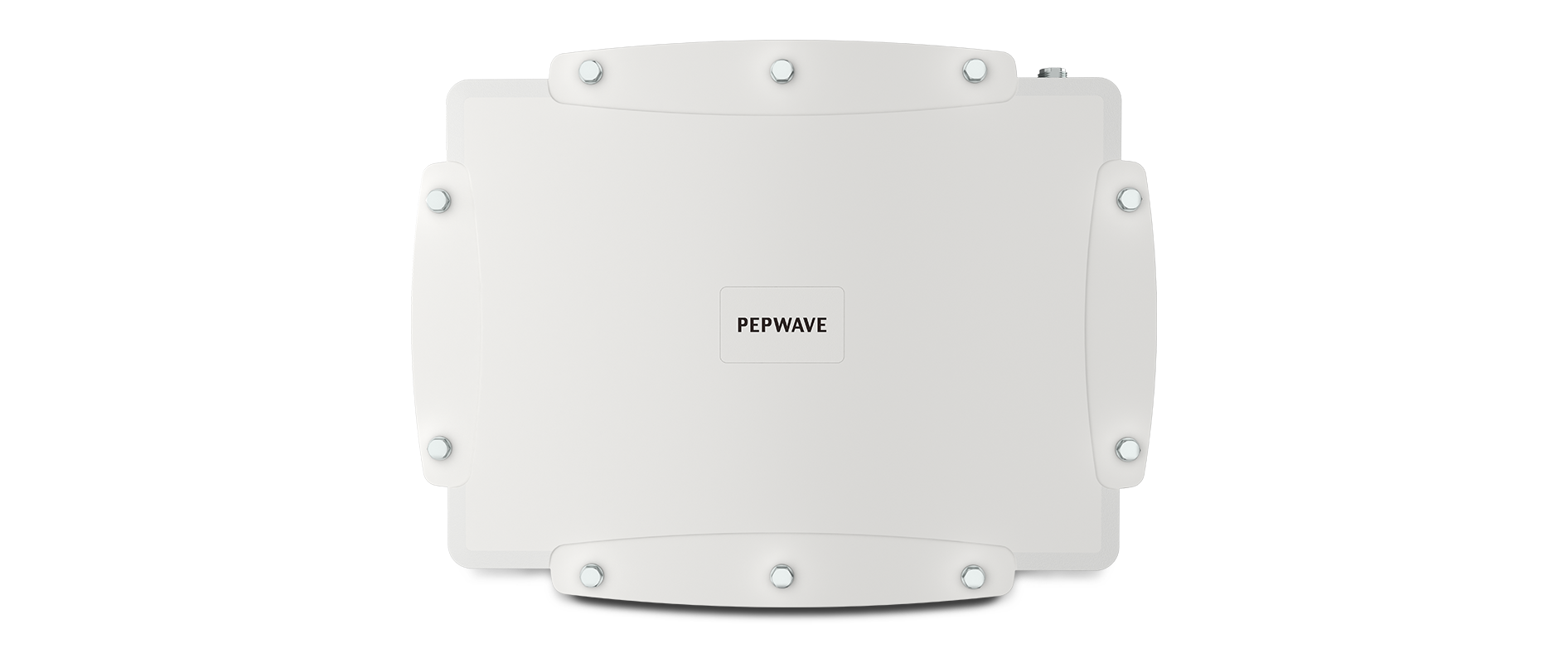

Quad 4G LTE/3G Outdoor Mobile Router HD4 IP67 #2

Use Cases

Maritime

Constructions

Public Safety & First Responders

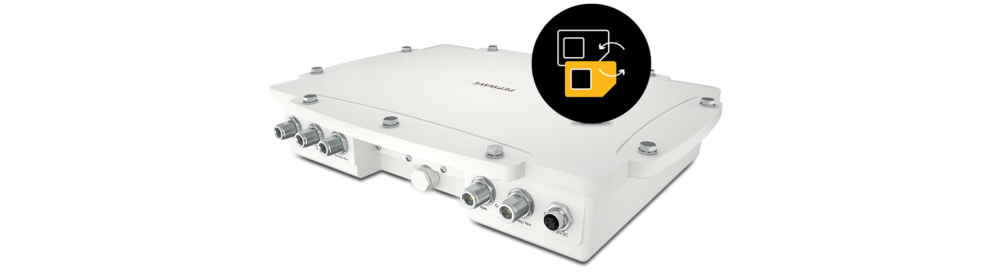

Quad Cellular and Redundant SIM slots for Multiple Carrier

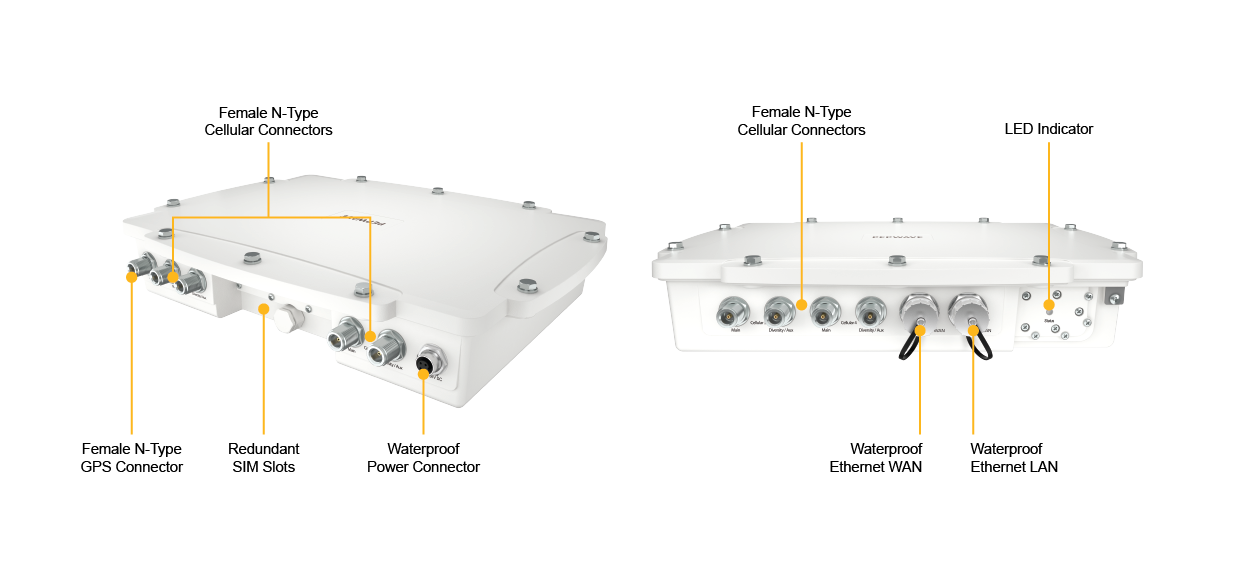

The HD4 IP67 includes four built-in outdoor 4G LTE/3G modems, each with two SIM slots to support a total of 8 SIM slots. This enables you to use the same or different cellular providers for bandwidth bonding or eliminating blind spots.

Dedicated for Heavy-Duty Applications

The HD4 IP67 outdoor router has a waterproof IP67 metal enclosure that stands up to dust, vibration, and inclement weather. And, it is certified shock and vibration resistant, making it a great choice for construction, drilling, and other heavy-duty applications.

Dusk Protection

Shock & Vibration

Water Proof (IP-67 Enclosure)

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

Case Study. MAX HD Series

The IT / Audio team from RTL Radio Center Berlin was looking for a suitable connectivity solution for their mobile broadcasting studio that flexibly meets the special requirements for external broadcasts. The solution should guarantee uninterrupted  transmission through a stable connection.

  • Product CodeHD4-IP67
    Ethernet WAN Ports1 (GE)
    Ethernet LAN Ports1 (GE)
    Embedded 4G LTE4
    SIM Card SizeMini-SIM (2FF)
    Recommended Users *500
    Router Throughput ^400Mbps
    802.1q VLANs Supported128
    Drop-in ModeYes
    High AvailabilityYes
    WAN as LANYes
    Web BlockingYes
    Web Filtering BlacklistLite
    PepVPNYes
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingYes
    SpeedFusion Bandwidth BondingYes
    Number of PepVPN SpeedFusion Peers2/20 (&)
    PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES)150Mbps | 120Mbps
    InControl Cloud ManagementYes
    GPS Fleet ManagementYes
    Manage Pepwave AP SeriesYes
    Maximum Number of AP Support30
    Enclosure.  Ingress Protection Rating IP-67
    PoE Output1x 802.3at PoE Output (Requires 56V DC input for full 25.5W PoE+ Output)
    Dimensions (Height x Width x Depth)11.6 x 15.3 x 2.6 inches | 295 x 390 x 66 mm
    Weight9.48 pounds | 4.3 kg
    Power InputDC: 12V – 56V #
    Power Consumption38W (max. w/o PoE)
    Operating Temperature-40° – 149°F | -40° – 65°C
    CertificationsFCC, CE, RoHS
    EN 61373:2010 (Shock and Vibration Resistance)
    Humidity15% – 95% (non-condensing)
    Power Requirements10V – 30V DC
    Package ContentMAX HD4 IP67
    Waterproof Power Connector Kit
    2x Waterproof Ethernet Connector Kit
    Mounting Kit
    Warranty1-Year Limited Warranty



    * Recommendation for sizing purposes only. No software restrictions applied.

    ^ Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.

    & The HD4 IP67 comes with 2 PepVPN/SpeedFusion peers by default. With an optional add-on, device supports up to 20 peers.

    # PoE injector and AC power adapter are available separately.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    USB 3G/4G LTE Modem Support
    IPv6 Support
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    Weighted
    Enforced
    Persistence
    Priority
    Overflow
    Least Used
    Lowest Latency
    Fastest Response Time
    Complete VPN SolutionPepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    Site-to-Site VPN
    Bandwidth Aggregation
    Hot Failover
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    X.509 Certificate Support
    PPTP VPN Server
    RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network) *
    X.509 Certificate Support
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    * IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

    All specifications are subject to change without notice.

  •

    Product Code

    Description

    ACW-622

    Includes 1x 56V Power Supply

    Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)

    MAX-HD-020-SPF

    Activates 20 PepVPN/SpeedFusion Peers



  • Product CodeCarrierEmbedded Modem4G Bands3G Bands
    MAX-HD4-M-LTE-E-IP67Europe /
    International
    4B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B8
    MAX-HD4-M-LTEA-W-IP67Worldwide4B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8
    MAX-HD4-M-LTEA-P-IP67Asia Pacific 4B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
