MAX HD2 Mini

Compact Dual 4G LTE Mobile Router

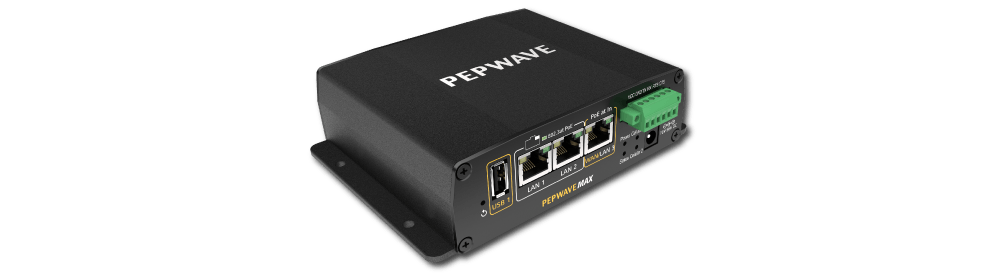

The MAX HD2 Mini packs big features, such as dual embedded cellular, SpeedFusion bandwidth bonding, and PoE, into a tough, compact enclosure that stands up to life on the go.

Compact Dual 4G LTE Mobile Router - MAX HD2 Mini #15
Compact Dual 4G LTE Mobile Router - MAX HD2 Mini #15

Use Cases

Railway Deployments


Events & Temporary Connectivity

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

Compact Dual 4G LTE Mobile Router - MAX HD2 Mini #3

Dual Cellular and Redundant SIM Slots

Dual Cellular and Redundant SIM slots allow you to use the same or different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.

Compact and Powerful

The MAX HD2 mini’s compact metal enclosure (1.6 x 5.0 x 5.8 inches), gives you a tough and powerful mobile connectivity solution.

Compact Dual 4G LTE Mobile Router - MAX HD2 Mini #5

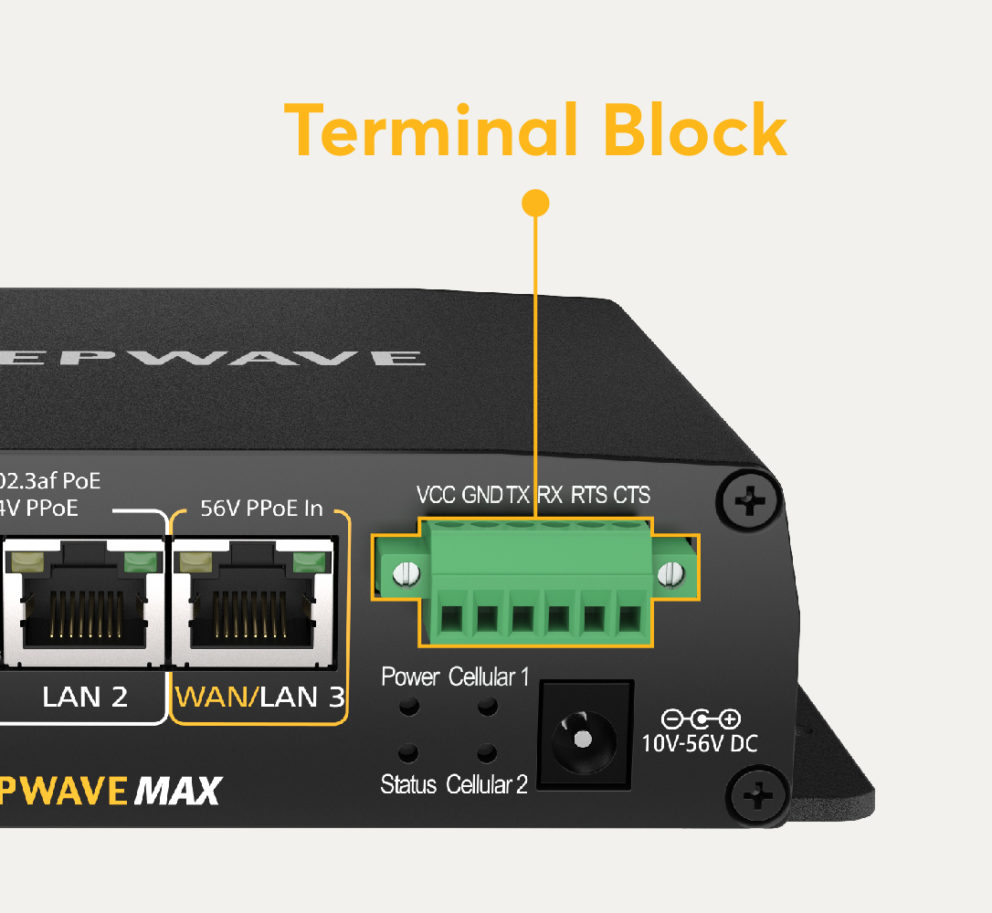

Terminal Block for Secure Power Supply

The MAX HD2 Mini is equipped with a terminal block for secure power installation in vehicles and other locations.

Compact Dual 4G LTE Mobile Router - MAX HD2 Mini #6

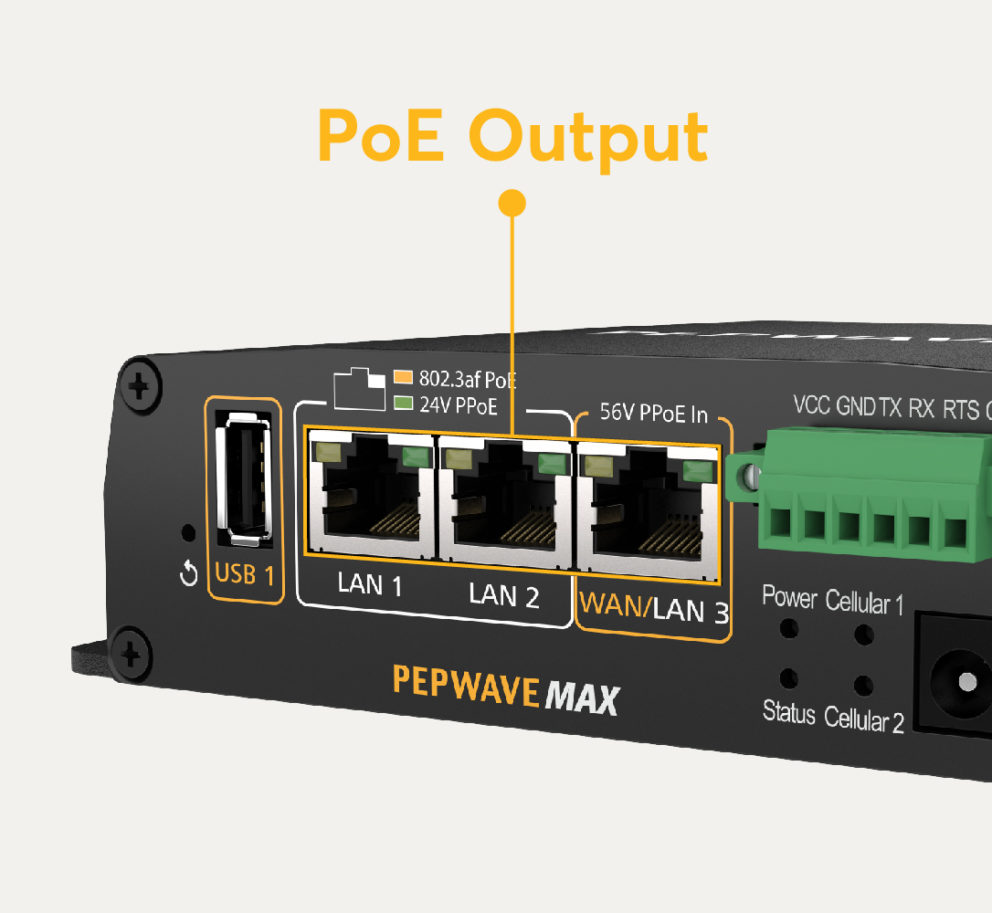

PoE Output Option Available

Cut down on cabling and simplify deployments. With an optional PoE activation kit purchase, the MAX HD2 Mini supports 802.3af PoE output, so one cable is all you need for both connectivity and power.

Meets Strict Security Compliance

Got a strict no-Wi-Fi security policy? Built without Wi-Fi, the MAX HD2 Mini is a great choice for deployments with compliance requirements.

Certified Toughness

In addition to rugged metal enclosure, the MAX HD2 mini is certified on:

Shock and vibration resistance

(EN 61373:1999 IEC 61373:1999)

RF Port Lightning Immunity

(ITU-T K.20 (+/- 1.5 kV))

Railway Applications

(EN 50155)

Electromagnetic Compatibility

(EN 61000)

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

Cloud Based SD-WAN Network Management Solution InControl 2

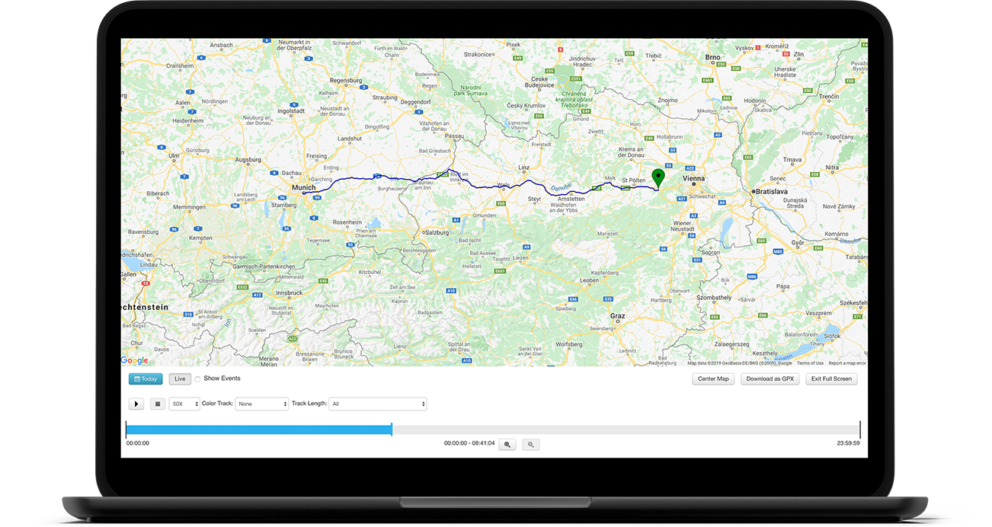

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.

Compact Dual 4G LTE Mobile Router - MAX HD2 Mini #9

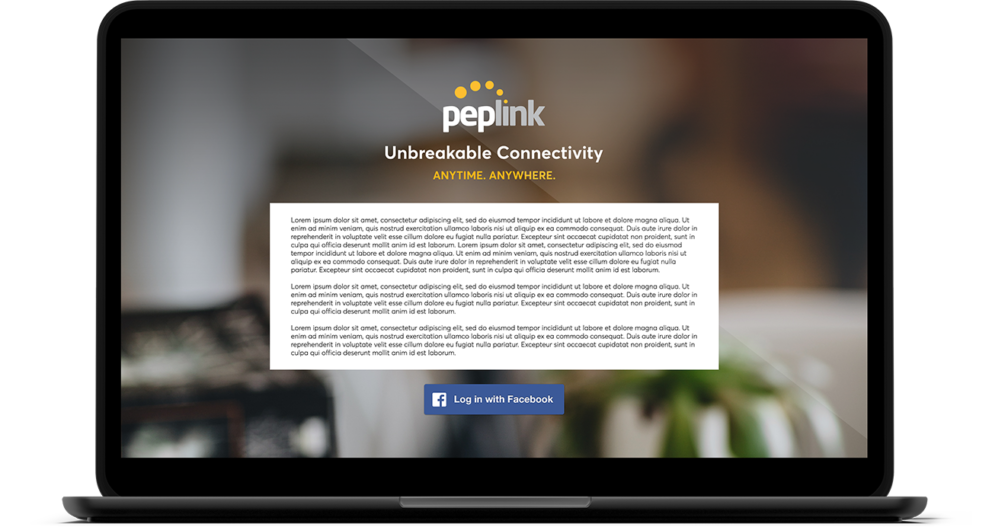

Customizable Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.

With Social Wi-Fi Hotspot support, you can also receive valuable demographic data from your users.

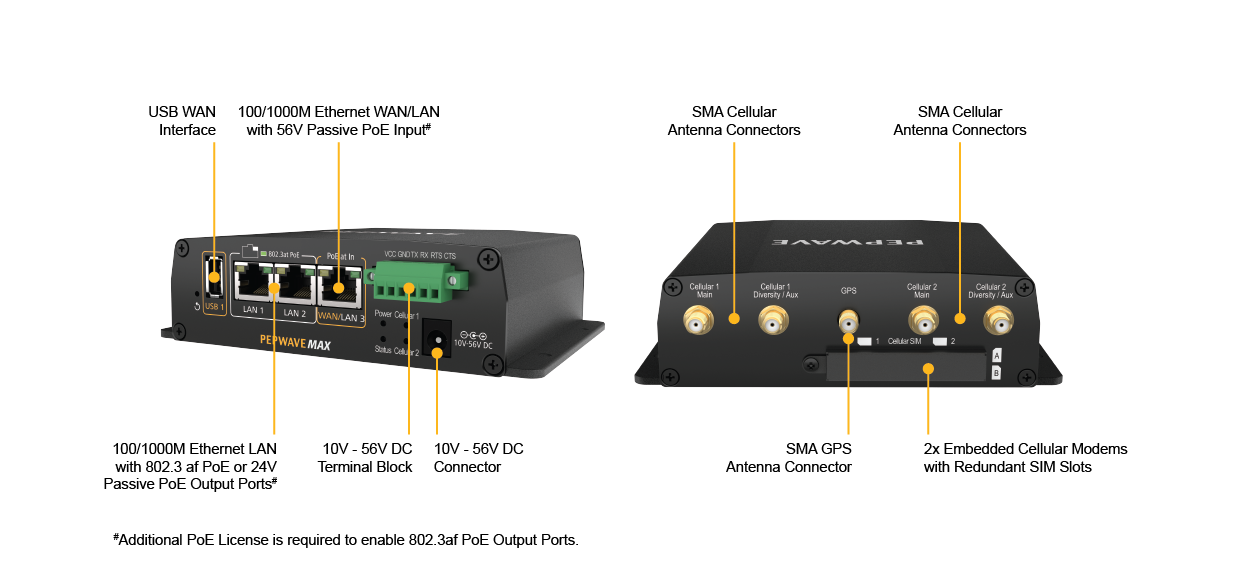

  • Product CodeHD2-MINI-LTE
    Ethernet WAN Ports1 (GE)
    Ethernet LAN Ports2 (GE)
    Embedded 4G LTE/3G2
    Redundant SIM SlotsYes
    SIM Card SizeMini-SIM (2FF)
    USB WAN Modem Port1
    Recommended Users ^150
    Router Throughput #300Mbps
    LTE ModemsDownlink/Uplink Datarate: 100Mbps/50Mbps
    LTE-A ModemsDownlink/Uplink Datarate: 300Mbps/50Mbps
    802.1q VLANs Supported128
    Drop-in ModeYes
    High AvailabilityYes
    WAN as LANYes
    Web BlockingYes
    Web Filtering BlacklistLite
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingYes
    SpeedFusion Bandwidth BondingYes
    Number of PepVPN SpeedFusion Peers2/20 *
    PepVPN/SpeedFusion Throughput (No Encryption) / 256 – bit AES100Mbps / 60Mbps
    Number of IPsec Tunnels5
    GRE (Network-to-Network)5
    InControl Cloud ManagementYes
    GPS Fleet ManagementYes
    Management of AP One SeriesYes
    Maximum Number of AP Support30
    EnclosureCompact Indoor Metal
    PoE OutputUp to 3x 802.3af PoE Outputs (&)
    Terminal Block Power Connector for Mobile/Vehicular DeploymentYes (DC 10V – 56V)
    Dimensions (H x W x D)1.6 x 5.8 x 5 inches | 40 x 147 x 128 mm
    Weight0.96 pounds | 0.5 kg
    AC AdapterAC Input 100V – 240V | DC Output 12V , 2A
    Power InputDC 10V – 56V
    Power Consumption15W (max.)
    Operating Temperature-40° – 149°F | -40° – 65°C
    Humidity15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHS
    EN 61373:2010 (Shock and Vibration Resistance)
    EN 50155 (Railway Applications –
    Electronic Equipment used on Rolling Stock)
    EN 61000 (Electromagnetic Compatibility)
    Package ContentMAX HD2 Mini
    12V2A Power Supply
    1x GPS Active Antenna
    4x 2dBi 4G LTE Antennas
    Warranty1-Year Limited Warranty


    ^ Recommendation for sizing purposes only. No software restrictions applied.

    # Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision. The throughput result is tested with DHCP/Static IP WAN.


    * The HD2 Mini come with 2 PepVPN/SpeedFusion peers by default. With an optional add-on, they support up to 20 peers.

    (&)Optional PoE Activation Kit is required to activate PoE Output.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    USB 3G/4G LTE Modem Support
    IPv6 Support
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    Least Used
    Lowest Latency
    Fastest Response Time
    Complete VPN SolutionPepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    Site-to-Site VPN
    Bandwidth Aggregation
    Hot Failover
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    X.509 Certificate Support
    PPTP VPN Server
    RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network) *
    X.509 Certificate Support
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    WINS Server
    VRRP HA support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3


    * IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

    All specifications are subject to change without notice.

  • Product CodeDescription
    ACW-622Includes 1x 56V Power Supply
    Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)
    MAX-HD-020-SPFActivates 20 PepVPN/SpeedFusion Peers
  • Product CodeCarrierEmbedded Modems4G Bands3G Bands
    MAX-HD2-MINI-LTE-E-TEurope/International24G LTE:
    B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)
    WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
    MAX-HD2-MINI-LTE-MX-TLatin America/Australia24G LTE:
    B1, B2, B3, B4, B5, B7, B8, B28, B40
    WCDMA/HSPA+/DC-HSPA+: B1, B2, B5, B8
    MAX-HD2-MINI-LTEA-W-TAmericas/Europe24G LTE-A:
    B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41
    2500WCDMA/HSPA+/DC-HSPA+: B1,B2, B3, B4, B5, B8
    MAX-HD2-MINI-LTEA-P-TAsia Pacific24G LTE-A:
    B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
    WCDMA/HSPA+/DC-HSPA+: B1,B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
