MAX HD1 Dome

Single Cellular Router for Mobile Outdoor Deployments

The HD1 Dome provides single-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal. With redundant SIM, the HD1 Dome supports single cellular radios and four SIM cards. Combine the HD1 Dome with the SIM Injector, and the number of cards increases to twelve.

Dual-Cellular Outdoor Router MAX HD2 DOME #2
Dual-Cellular Outdoor Router MAX HD2 DOME #2

Minimum Cable Loss, Best Cellular Signal Quality

Most outdoor deployments require a centrally placed router attached to strategically placed antennas. With the HD1 Dome, the antennas are placed in the same integrated enclosure as the cellular radios. This arrangement minimizes cable loss, giving you the best signal possible.

Simple Installation Running a Single Ethernet Cable

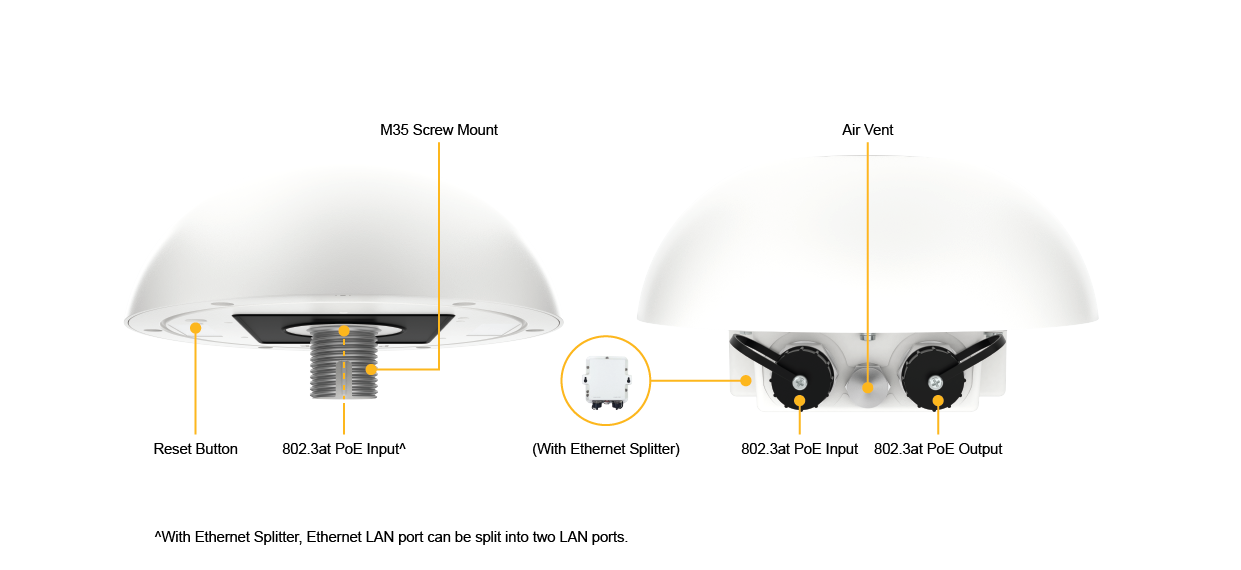

The HD1 Dome has a M35 screw mount, and only requires a single Ethernet cable to install. For wall or pole mounted deployments, the HD1 Dome comes with an Ethernet splitter and a mounting rack that provides a multitude of installation options.

Dual-Cellular Outdoor Router MAX HD2 DOME #8

8 Additional SIM With the SIM Injector

With the addition of the SIM Injector, the HD1 Dome can support up to 12 SIM at your fingertips. Simply connect an Ethernet cable between the SIM Injector and the HD1 Dome. The SIM Injector is capable of PoE output, so you don’t need to add another PoE switch to your deployment.

Certified Toughness

In addition to rugged metal enclosure, the MAX HD1 is certified on:

Shock and vibration resistance

(EN 61373:1999 IEC 61373:1999)

RF Port Lightning Immunity

(ITU-T K.20 (+/- 1.5 kV))

Railway Applications

(EN 50155)

Electromagnetic Compatibility

(EN 61000)

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

Dual-Cellular Outdoor Router MAX HD2 DOME #10

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.

Dual-Cellular Outdoor Router MAX HD2 DOME #11

Multiple Mounting Options

The HD1 Dome offers significant deployment flexibility due to its modular construction. By itself, it has an M35 thread, making it easy to mount on top of any pole or on the rooftop of any vehicle.

The HD1 Dome comes with an Ethernet splitter that enables an additional GE LAN output. With the splitter installed, the HD2 Dome can then be used with the included mounting bracket to fix onto any wall, or to securely tie onto any pole.

The HD1 Dome, Ethernet splitter, and the mounting bracket are all included, so you can deploy this device just about anywhere.

SIM Injector – More SIM, More Range

Together, the HD1 Dome and SIM Injector can make deployments significantly easier to set up and manage.

  • MAX HD1 DOME (CAT 18)
    Product CodeMAX-HD1-DOM-M-GLTE-G
    WAN Interface1x Embedded LTE Modems with Redundant SIM Slots#
    LAN Interface1x 10/100/1000M Ethernet Port*
    Downlink/Uplink Datarate1.2 Gbps/150 Mbps (CAT-18)
    EnclosureRugged outdoor IP67
    Recommended Users 150
    Cellular Antenna4×4 Internal MIMO Antennas
    1x Internal GPS Antenna
    Included AntennaBuilt-In Omni Antenna
    Antenna gain: 5dBi
    Power Input1x Power over Ethernet 802.3at
    Power Consumption20W (max.)
    Dimensions4.33in. (radius) x 4.49in. (height) | 110mm (radius) x 114mm (height)
    WeightWith Ethernet Splitter (1700 grams, 3.75 pounds)) | Without Ethernet Splitter (1200 grams, 2.65 pounds)
    Operating Temperature-40° – 149°F | -40° – 65°C
    Humidity15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHS
    Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999
    RF Port Lighting Immunity – ITU-T K.20 (+/- 1.5 kV)
    Package ContentMAX HD1 Dome
    Ethernet Splitter
    Mounting Kit
    SIM Injector (Optional)
    SIM Injector
    C14 power cord
    56V PSU
    Power Requirement 802.3at
    Warranty1-Year Limited Warranty



    #SIM Injector is available separately.

    *Ethernet LAN port can be split into two LAN ports using the included splitter (1x LAN 802.3af PoE out, 1x LAN 802.at PoE in).



    SIM Injector. Overview
    Specification Description
    SIM Slots8x Active SIM Slots, Standard Size
    LAN Interface4x GE, PoE 802.3at Support
    Power InputDC Jack/Terminal Block: 12-56V
    Dimensions1.6 x 5.8 x 5 inches | 40 x 147 x 128 mm
    Weight430 grams | 0.94 pounds
    Operating Temperature-40° – 149°F | -40° – 65°C
    Humidity15% – 95% (non-condensing)
  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    USB 3G/4G LTE Modem Support
    IPv6 Support
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    Weighted
    Enforced
    Persistence
    Priority
    Overflow
    Least Used
    Lowest Latency
    Fastest Response Time
    Complete VPN SolutionPepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    Site-to-Site VPN
    Bandwidth Aggregation
    Hot Failover
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    X.509 Certificate Support
    PPTP VPN Server
    RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network) *
    X.509 Certificate Support
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    *IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.



    All specifications are subject to change without notice.

  • MAX-HD1-DOM-M-GLTE-GGlobal /
    CAT-18
    1B1, B3, B25(B2), B66(B4),
    B26(B5/B18/B19), B7, B8,
    B12(17), B13, B14 , B20,
    B28, B29, B30, B32, B71,
    B38, B39, B40, B41, B42,
    B43, B46, B48
    B1, B2, B4, B5(B19), B8



    * China & HK TD LTE are excluded.



    Product CodeDescription
    SIM-BK8-4E-56VSIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC
