360° Hardware View

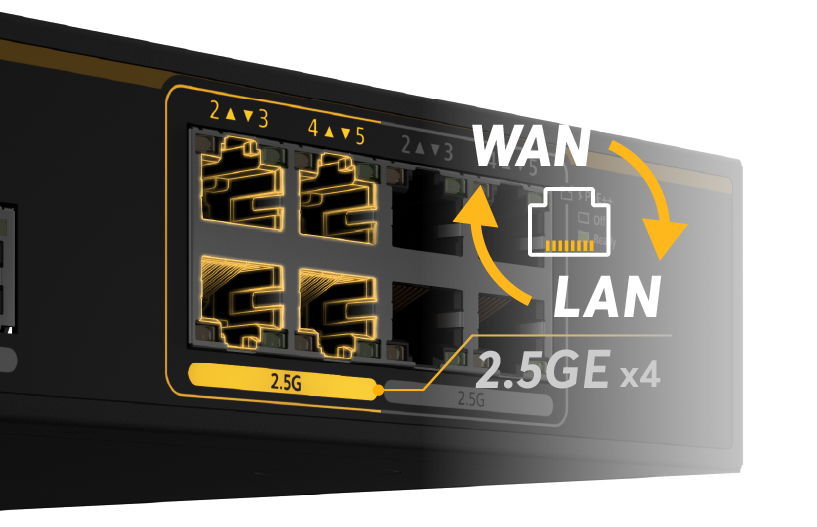

Configurable Multi-Gig Ports
Configure the 2.5G PoE++ ports as WAN or LAN to match your network topology. Adapt to changing deployment needs while maximizing flexibility and infrastructure efficiency.
Gigabit
Throughput
ThroughputDeliver gigabit bonding to meet enterprise‑grade network demands. Maintain consistent performance across multiple remote sites, ensuring bandwidth and reliability at scale.

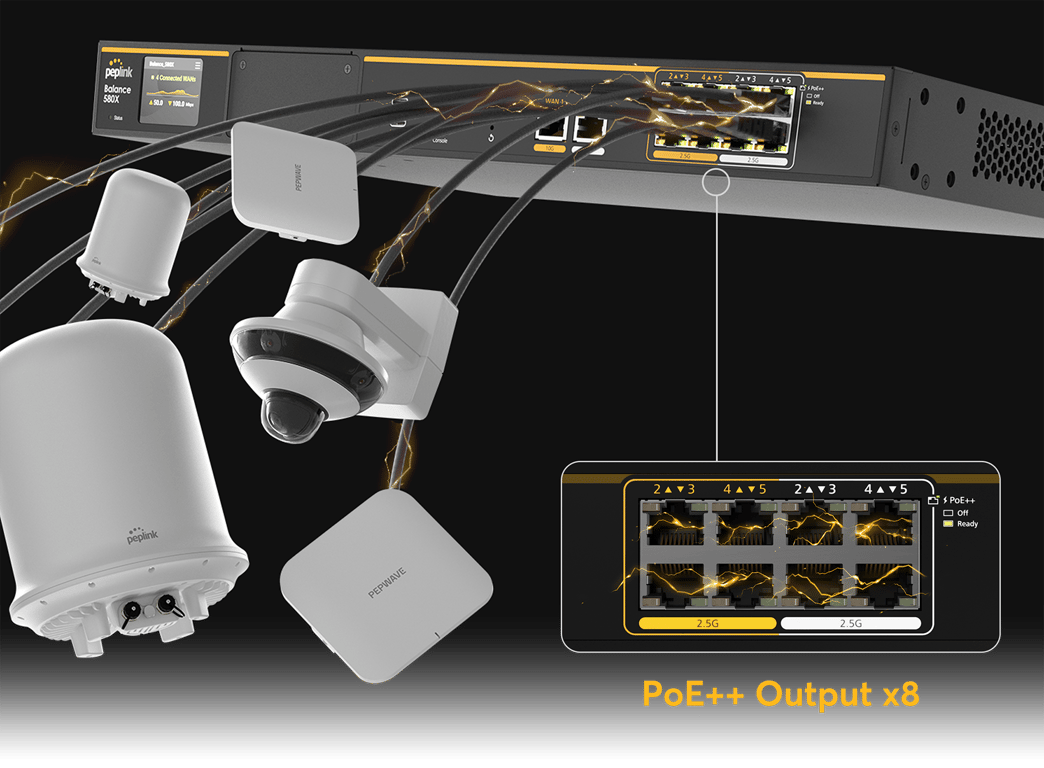

One PoE++ Platform, Clean Deployments
Easily integrate 5G with Peplink Dome or Antenna MAX solutions while powering heavy‑duty devices such as pan‑tilt‑zoom cameras and Wi‑Fi 7 access points. Streamline deployment by eliminating extra injectors and cabling.

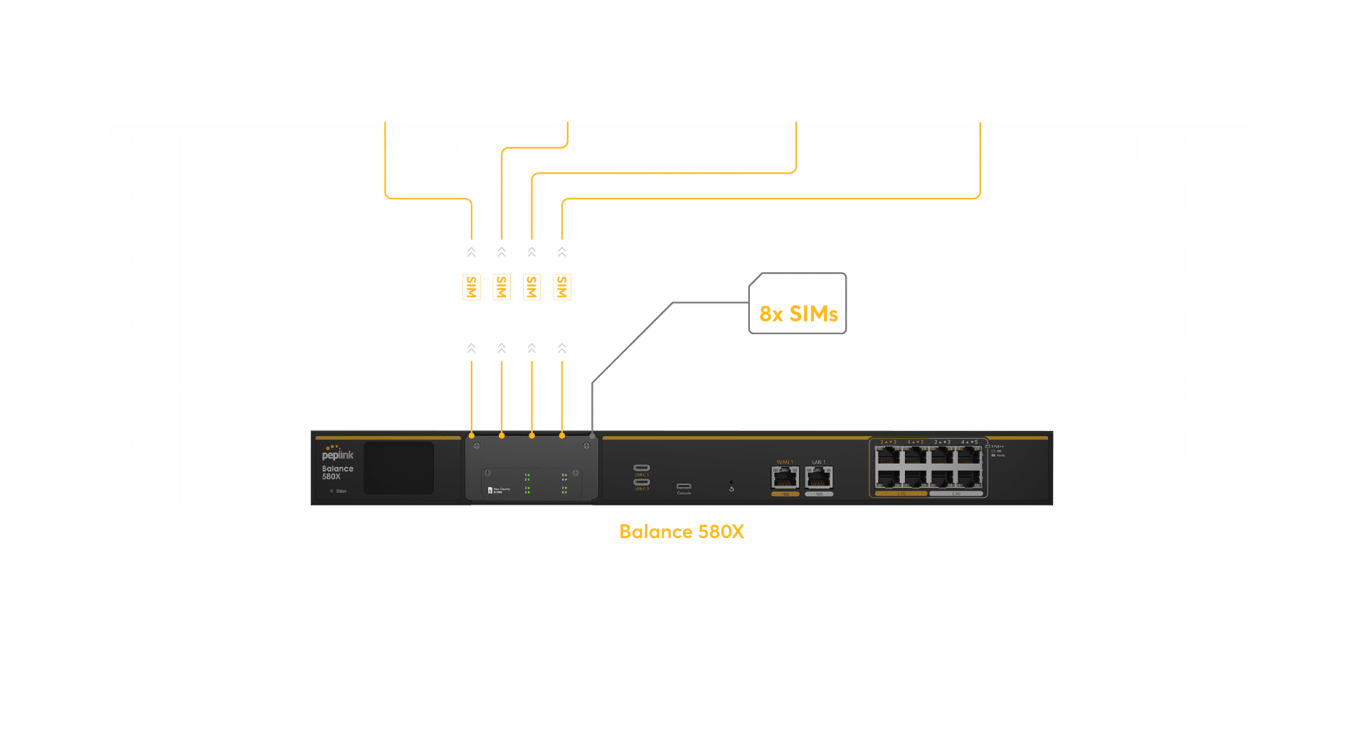

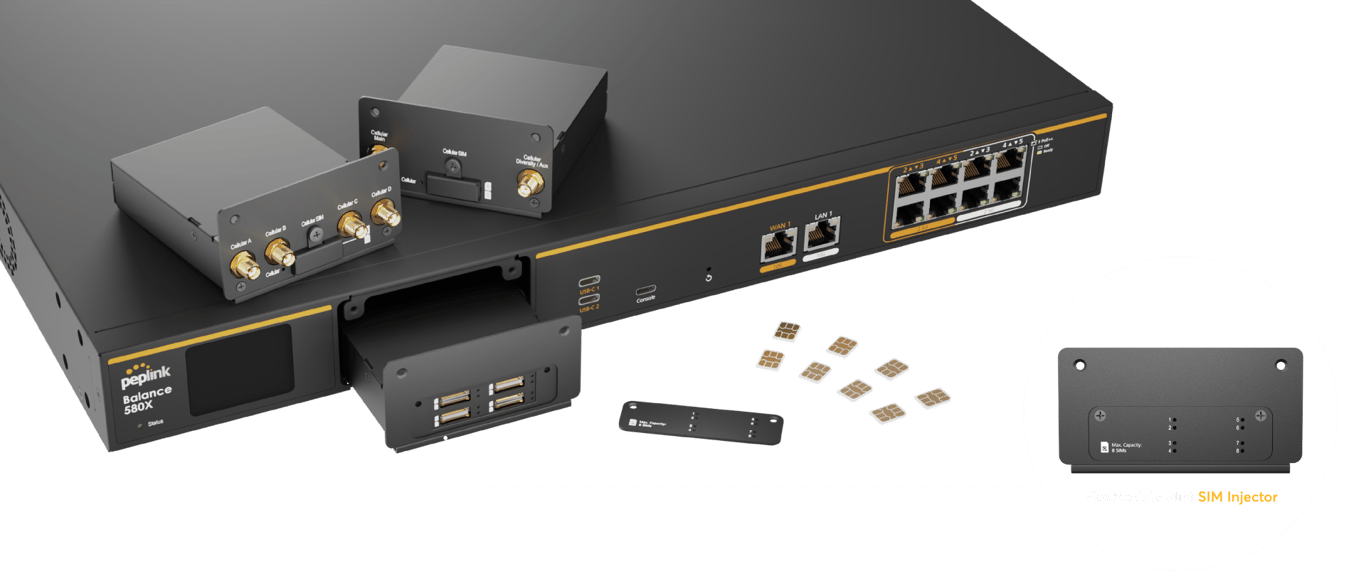

Flexible, Centralized SIM Management
Seamlessly manage SIMs for connected Dome or Antenna MAX with a SIM Injector FlexModule*. Maintain optimal 5G performance with increased carrier redundancy and easier SIM provisioning.
* Compatible with FlexModule Mini (LTE/5G/SIM Injector). FlexModule units are sold separately.
Centralized Network Management
Manage access points and switches alongside all other Peplink devices via InControl, all from a single pane of glass.
Maintain local control from the router interface when needed for on‑site management.

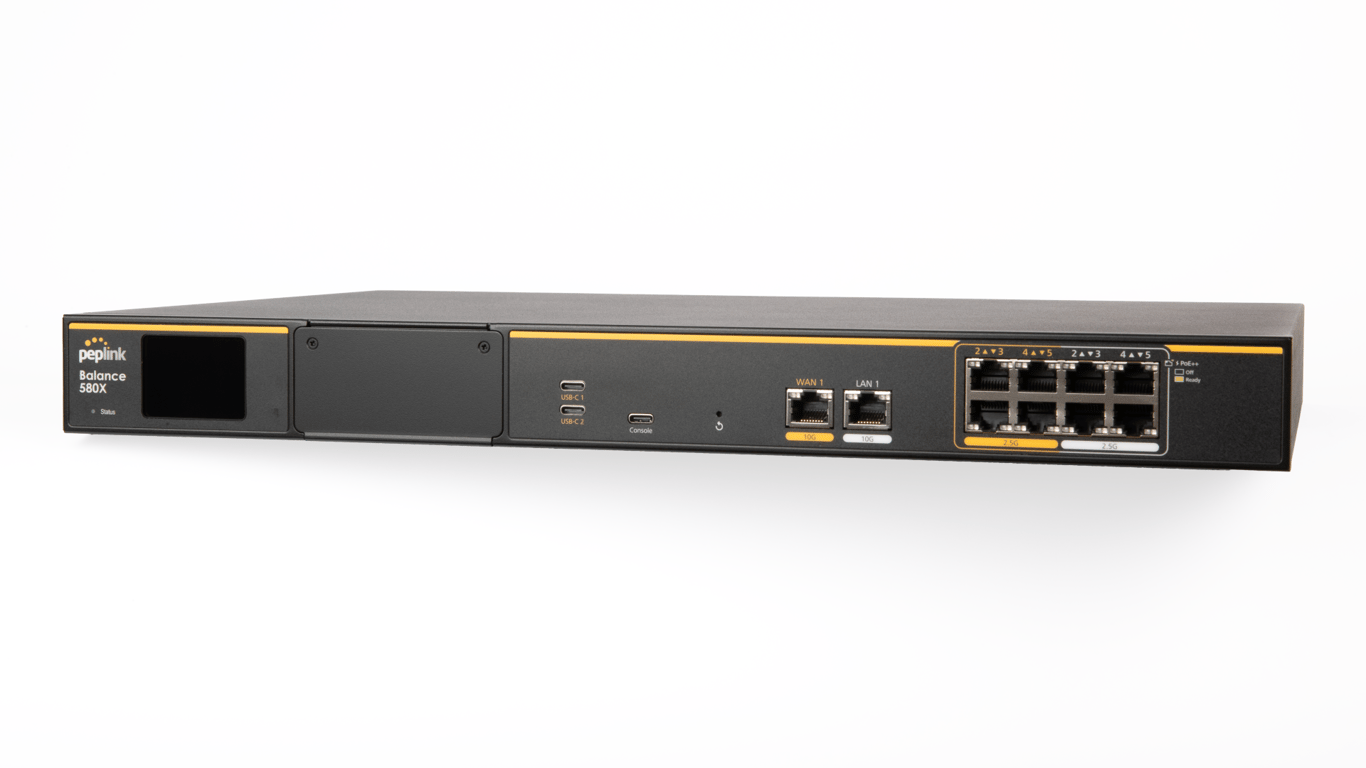

Photos
Ports and Connections
1 Ethernet WAN ports 2-5 are configurable WAN/LAN ports. WAN/LAN Configuration is changeable on the Web Admin.
Resources
Deep Dive
| Software | Peplink Balance Firmware |
| WAN | Support for PPPoE, Static IP, DHCP WAN Link Health Check PING DNS Lookup HTTP Bandwidth Allowance Monitor IPv6 Support USB 5G/4G/3G Modem Support Support for Dynamic DNS services changeip.com dyndns.org no-ip.org tzo.com DNS-O-Matic WAN Port Convertible into LAN Port |
| LAN | DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support |
| Load Balancing | Intelligent Failover Session Persistence Per-Service Load Distribution Multiple Algorithms - Weighted - Enforced - Persistence - Priority - Overflow - Least Used - Lowest Latency |
| Security | DoS Prevention Stateful Firewall Web Blocking |
| Complete VPN Solution | SpeedFusion VPN/SpeedFusion Bandwidth Bonding - Site-to-Site VPN - Bandwidth Aggregation - Hot Failover - 256-bit AES Encryption - Pre-shared Key Authentication - Dynamic Routing - X.509 Certificate Support PPTP/L2TP/OpenVPN Server - Local User, LDAP, RADIUS, Active Directory Authentication IPsec VPN (Network-to-Network) - X.509 Certificate Support GRE Tunnel (Network-to-Network) |
| Advanced QoS | User Groups - Bandwidth Reservation - Individual Bandwidth Limit Application Prioritization - By User Groups - SIP, HTTPS, VPN QoS - Custom Application QoS |
| Networking | NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP WINS Server BGP, OSPFv2 and RIPv2 Support Bonjour Forwarding |
| AP Controller | Support for Pepwave AP Series Auto AP Discovery Auto AP Firmware Management AP Profile Configuration Wi-Fi Usage Statistics |
| Captive Portal | Support for Wired and Wireless LAN Clients Support RADIUS Authentication Support LDAP Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page |
| DNS | Built-in Authoritative DNS - Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT Records |
| Device Management | Web Administrative Interface Command Line Interface InControl Cloud Management Email Notification Active Client & Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3 |
| Power Requirements | Universal Input 100V – 240V AC |
Ordering Information
| Product Code | Description |
|---|---|
| BPL-580X-PRM | Balance 580X |
Feature Add-on
| Product Code | Descriptions |
|---|---|
| PRM-J-1Y | PrimeCare J (1-Year) |
| PRM-J-2Y | PrimeCare J (2-Year) |
| PRM-J-4Y | PrimeCare J (4-Year) |
| PCP-J-1Y | PrimeCare+ J (1-Year) |
| PCP-J-2Y | PrimeCare+ J (2-Year) |
| PCP-J-4Y | PrimeCare+ J (4-Year) |
| EXM-MINI-15GN | FlexModule Mini 5G |
| EXM-MINI-1LTEA-Q | FlexModule Mini LTEA (CAT-12) |
| EXM-MINI-1LTEA-B | FlexModule Mini LTEA (CAT-6) |
| EXM-MINI-SIM-8 | FlexModule Mini SIM Injector |

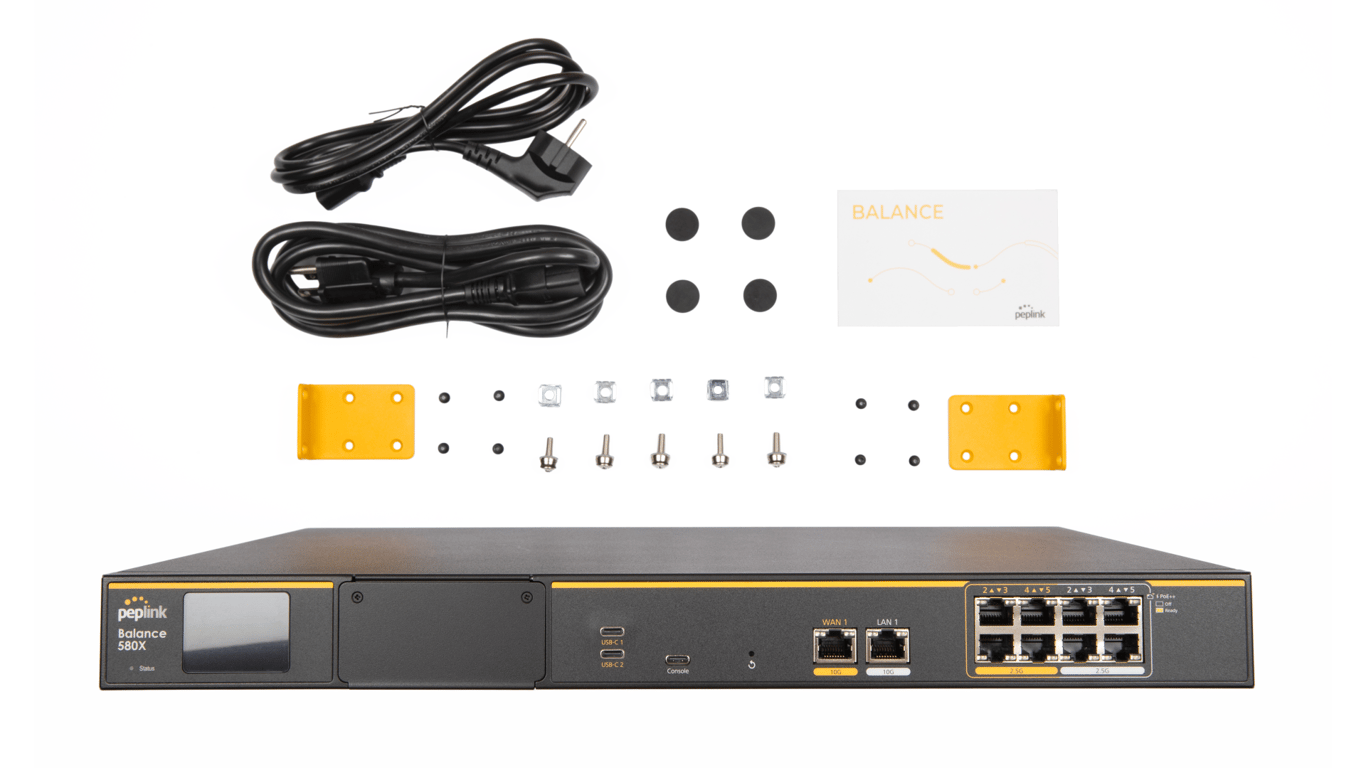

Package Content
| 1x Balance 580X |
| 1x Power Cord (ACW-614) |
| 4x Rubber Foots |
| 1x Ear Rack Mount Kit with screws |
