Device Connector IP55

Vendor Neutral Long Range Wireless Bridge

The Device Connector IP55 enables Ethernet devices to access wireless networks with unbreakable reliability. Using our signal bonding technology, Ethernet devices can connect using the combined bandwidth of 2.4GHz and 5GHz frequency Wi-Fi in a single LAN connection. The Device Connector is compatible with any access point, so you can just drop it in and go – no network reconfiguration or device upgrades needed.

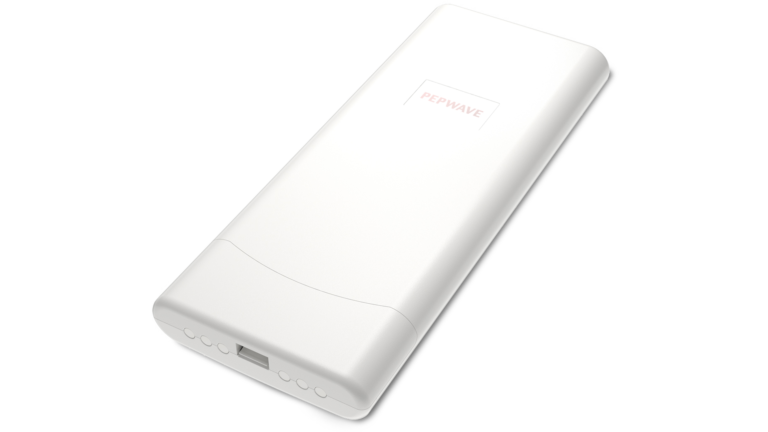

Long Range Wireless Bridge Device Connector IP55 #2

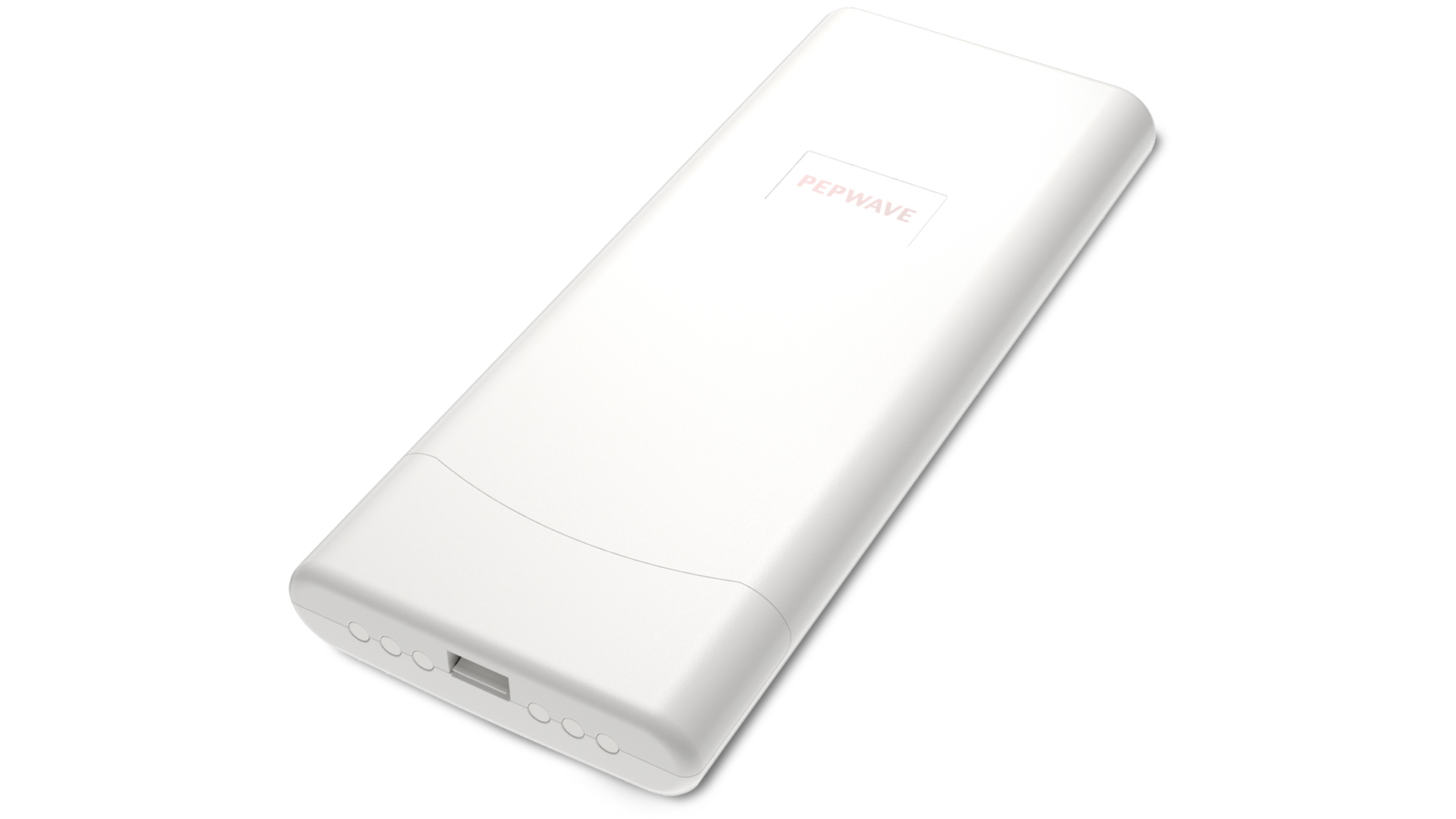

Long Range Wireless Bridge Device Connector IP55 #2

Use Cases

Public Safety
Retail
Hospitality
EXPLORE OUR SOLUTIONS

One Access Point, Multiple Devices

Sample Topology
Long Range Wireless Bridge Device Connector IP55 #4

Multiple devices could connect to headquarters using both the 2.4GHz and 5 GHz frequencies coming from a single AP. This is achieved by hooking up a Device Connector IP55 to each device, and then connecting them any AP. Using this configuration, the device connector will be able to form SpeedFusion connections with the Balance Router located at the network infrastructure, providing the enhanced reliability of combined bandwidth.

Consistent Wi-Fi Coverage & Reliable Connectivity

Plug-and-Play

Easily extend Wi-Fi coverage in minutes with Pepwave’s Device Connector IP55. The Device Connector gets your devices talking over a large area without wires or configuration headaches. And because it works transparently at Layer 2, the Device Connector is compatible with any access point.

Merge 2.4GHz & 5GHz Signals

Normally, Wi-Fi devices will force you to choose between 5GHz or 2.4GHz. With the Device Connector IP55, you can have both. Simply connect your device to the Ethernet port and the device connector will combine 5GHz and 2HGz into a single reliable connection.

Advanced Roaming

Advanced Roaming lets your Device Connector IP55 seamlessly hop from AP to AP in a matter of seconds. Whether you’re commanding an emergency situation, coordinating a construction project, or keeping your warehouse stocked, Advanced Roaming keeps everyone communicating at all times.

Compact Super-Duty IP55 Enclosure

The Device Connector IP55 has a waterproof IP55 enclosure that stands up to dust, vibration, and inclement weather.

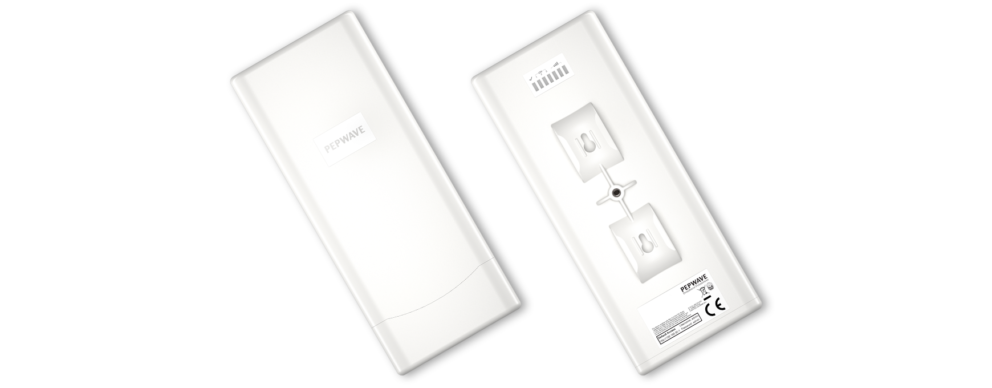

Long Range Wireless Bridge Device Connector IP55 #8
  • Dust Protected
  • Lightning Immune
  • Waterproof
  •
    Wi-Fi Interface802.11ac wave 2/ac/a/b/g/n Wi-Fi WAN and AP
    2x2 MIMO
    Ethernet Port3 x GE
    Data Rate2x2 MIMO,
    2.4GHz: 300Mbps
    5GHz: 866Mbps
    Transmit Power2412 - 2472 MHz: 26dBm
    5180 - 5825 MHz: 26dBm
    Maximum Concurrent Users60
    EnclosureIP55 Outdoor Enclosure
    Dimensions11.8 x 4.9 x 1.2 inches |
    300 x 124 x 31 mm
    Weight0.96 pounds |
    435 grams
    PoE Input802.3at
    Power Input802.3at PoE+ (56V Pepwave Passive PoE Input is Needed for full 1x 802.3at PoE+ LAN Output#)
    Power Consumption22W (max.)
    Operating Temperature-40° – 131°F |
    -40° – 55°C
    Humidity15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHS
    Warranty1-Year Limited Warranty
  •
    NetworkBridge Mode
    Router (NAT) Mode
    Support for PPPoE, Static IP, DHCP
    RadioMultiple SSID
    Transmit Power Adjustment
    Client AuthenticationEAP-TTLS/EAP-PEAP/EAP-TLS
    CHAP/MSCHAP/MSCHAPV2/PAP
    EAP Outer Authentication Identity
    RADIUS Server with Certificate Authentication
    AP SecurityOpen
    WPA/WPA2-Personal
    WPA/WPA2-Enterprise
    Complete VPN Solution PepVPNSite-to-Site VPN
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    Device ManagementWeb Administrative Interface
    InControl Cloud Management
    SNMP v1, v2c and v3
    Power RequirementsUniversal Input
    802.3at PoE+

  •

    Product Code

    		  Product Name Description
    DCS-GN-IP55     Device Connector IP55

           802.11ac/a/b/g/n 1166Mbps layer 2 client bridge in waterproof IP55 outdoor enclosure. Manageable by InControl cloud management.
    • Device Connector IP55
    • 2 x Plastic Cable Tie
  • Product Code Description
    ACW-510 Wall/pole mount with flexible ball joint for high-precision installation.
    ACW-107 802.3af/at PoE Injector
    ACW-109 x 56V/2.1A Power Supply and PoE License to Enable 802.3at PoE+ Output
    SVL-750 1-Year EssentialCare for Device Connector IP55
    SVL-628 2-Year EssentialCare for Device Connector IP55
    ICS-012 1-Year InControl 2 Subscription
    ICS-024 2-Year InControl 2 Subscription
    ECP-C-1Y EssentialCare+ C (1-Year)
    ECP-C-2Y EssentialCare+ C (2-Year)
    ECP-C-4Y EssentialCare+ C (4-Year)
