AP Pro AC

Deliver fast and reliable Wi-Fi in even the harshest conditions with the AP Pro AC . The AP Pro’s sealed, all-metal IP67 enclosure stands up to dirt, water, and extreme temperatures for years of dependable operation in industrial, public safety, transport, and other applications. Built-in PoE gives you more installation options and reduces deployment costs. And intuitive console- and cloud-based control makes configuration and maintenance simple for everyone.

2.45GHz (3x3 MIMO) Industrial-Grade Access Point AP Pro AC #2
2.45GHz (3x3 MIMO) Industrial-Grade Access Point AP Pro AC #2

Use Cases

Marine Connectivity

Full onboard Wi-Fi network coverage for crew members

Construction Site Connectivity

Extended Wi-Fi coverage across the site ensures security, connectivity back to the corporate network

Industrial Connectivity

Offer reliable long-range wireless coverage for harsh indoor environments

Sample Topology, Construction Site Connectivity

2.45GHz (3x3 MIMO) Industrial-Grade Access Point AP Pro AC #4
2.45GHz (3x3 MIMO) Industrial-Grade Access Point AP Pro AC #5

Simultaneous Dual Band

Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi on the AP One Pro AC gives you two independent networks that work together, so all of your devices can connect without clashing.

2.45GHz (3x3 MIMO) Industrial-Grade Access Point AP Pro AC #6

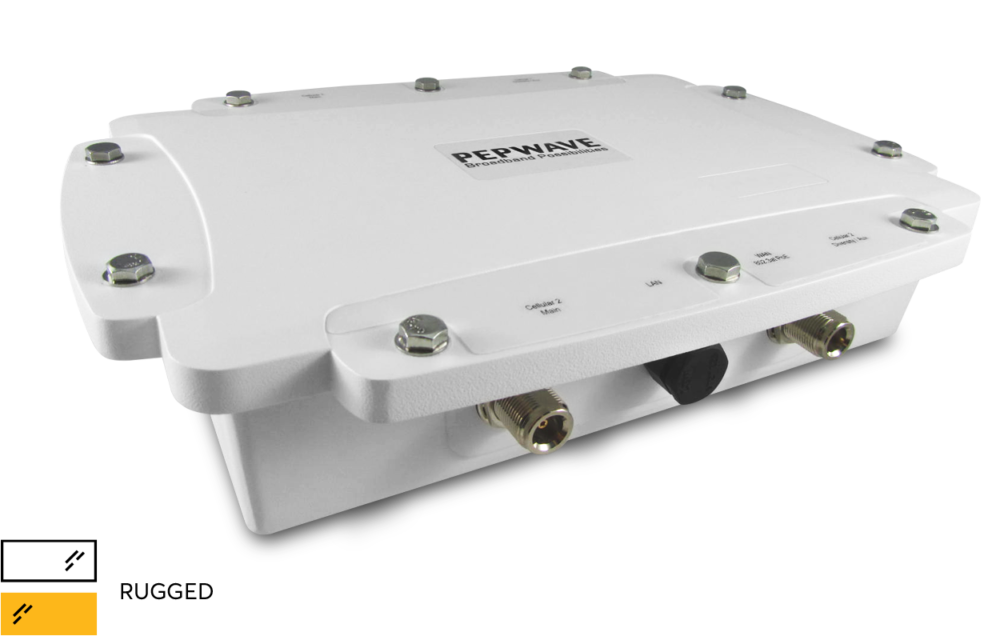

Robust Carrier-Grade Enclosure

The AP Pro AC is designed and manufactured with the strictest standards. Built from rugged electronics and tough aircraft-grade aluminum enclosure to seal against water and dust, the AP Pro AC handles just about anything the factory floor, construction site, or Mother Nature can dish out. The device can also withstand temperatures from -40° to 65°C, and it’s protected against ESD and surges, so it stays up and running in conditions that would quickly shut down other access points.

2.45GHz (3x3 MIMO) Industrial-Grade Access Point AP Pro AC #7

Centralized Management

The AP Pro AC features Peplink’s WLAN Controller for quick and simple onsite setup and configuration. Not onsite? Not a problem. Just open a Web browser and take control anywhere with our cloud-based InControl configuration and administration solution.

2.45GHz (3x3 MIMO) Industrial-Grade Access Point AP Pro AC #8

Complete Network Solution

Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.

  • AP Pro ACAp Pro DuoAP Pro 300M
    Ethernet Port2x GE1x GE1x GE
    Wi-Fi Standard802.11 a/b/g/n/ac
    802.11 a/b/g/n
    802.11 a/b/g/n
    Data Rates3 x 3 MIMO
    2.4 GHz: 450 Mbps
    5 GHz: 1300 Mbps
    2X2 MIMO
    2.4 GHz: 300 Mbps
    5 GHz: 300 Mbps
    2X2 MIMO
    2.4 GHz: 300 Mbps
    5 GHz: 300 Mbps
    Simultaneous
    2.4GHz and 5GHz
    YesYes2.4 GHz or 5 GHz
    Wi-Fi Transmit Power2412-2472 MHz: 24 dBm (FCC) / 17 dBm (CE)
    5180-5825 MHz: 22 dBm (FCC) / 17 dBm (CE)
    2412-2472 MHz: 26 dBm (FCC) / 20 dBm (CE)
    5180-5825 MHz: 25 dBm (FCC) / 20 dBm (CE)
    2412-2472 MHz: 26 dBm (FCC) / 20 dBm (CE)
    5180-5825 MHz: 25 dBm (FCC) / 20 dBm (CE)
    Recommended Concurrent Users Per Radio606060
    Number of SSID Per Radio161616
    Antenna Type3 x Female N-Type Connectors4 x Female N-Type Connectors2 x Female N-Type Connectors
    EnclosureIP67 Outdoor Metal EnclosureIP67 Outdoor Metal EnclosureIP67 Outdoor Metal Enclosure
    Dimensions9.0 x 12.2 x 2.6 inches | 230 x 310 x 66 mm9.0 x 12.2 x 2.6 inches | 230 x 310 x 66 mm9.0 x 12.2 x 2.6 inches | 230 x 310 x 66 mm
    Weight5.84 pounds | 2.65 kg5.84 pounds | 2.65 kg5.84 pounds | 2.65 kg
    PoE InputDevice: 12V – 36V DC
    Power over Ethernet 802.3af
    Device: 10V – 30V DC, 3A
    Power over Ethernet 802.3af
    Power over Ethernet 802.3at
    Power Consumption13W (max.)25.5W (max.)13W (max.)
    Operating Temperature-40° – 149°F | -40° – 65°C-40° – 149°F | -40° – 65°C-40° – 149°F | -40° – 65°C
    Humidity15% – 95% (non-condensing)15% – 95% (non-condensing)15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHSFCC, CE, RoHSFCC, CE, RoHS
  • NetworkBridge Mode
    Router (NAT) Mode
    Wireless Distribution System (WDS on 2.4GHz Only)
    Support for PPPoE, Static IP, DHCP
    Management VLAN (802.1p)
    Spanning Tree Protocol (802.1d)
    RadioMultiple SSID
    Auto Channel Selection
    Transmit Power Adjustment
    Neighbor AP Detection
    AP SecurityOpen, WEP
    802.1x with Dynamic WEP
    WPA-PSK/RADIUS
    WPA2-PSK/RADIUS
    Device ManagementWeb Administrative Interface
    InControl Cloud Management
    Peplink AP Controller
    SNMP v1, v2c and v3
    Client ManagementMulticast Filter
    IGMP Snooping/Multicast Enhancemen
    Client Management per SSIDVLAN with QoS (802.1p/802.1q)
    Bandwidth Control
    MAC Address Filtering
    Layer 2 Client Isolation
    Limit on Max. Number of Client

    Client Management per ClientVLAN with RADIUS
    VLAN with VLAN Pool
    Bandwidth Control
    Complete VPN Solution PepVPNSite-to-Site VPN
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    Captive PortalBy InControl
    By Peplink AP Controller
    Power RequirementsUniversal Input
    100V – 240V AC



    All specifications are subject to change without notice.

    • 1 x AP Pro AC
    • 1x Waterproof Power Connector Kit
    • 2x Waterproof Ethernet Kit
  •

    Product Name

    Product Code Description
    AP Pro AC APP-AGN3

    Industrial-grade 802.11 a/b/g/n/ac 1750 Mbps simultaneous 2.4 & 5 GHz access point in metallic waterproof and dust-tight IP67 outdoor enclosure.

    AP Pro Duo APP-AGN2

    Industrial-grade 802.11 a/b/g/n 600 Mbps simultaneous 2.4 & 5 GHz access point in metallic waterproof and dust-tight IP67 outdoor enclosure.

    AP Pro 300M APP-AGN

    Industrial-grade 802.11 a/b/g/n 300 Mbps access point in metallic waterproof and dust-tight IP67 outdoor enclosure.



  •

    Product Code

    Description

    ACW-835

    Package includes 3x 2.4 GHz and/or 5 GHz 4/6 dBi fiberglass outdoor dual-band Wi-Fi omni antennas

    ACW-107

    Includes 1x 802.3af/at PoE injector.
