AP One Flex

Super-Tough Outdoor AP

The AP One Flex 802.11ac Outdoor Access Point includes an IP55 enclosure, integrated directional MIMO antenna, supports 16 SSIDs, WPA-2 encryption and more

300 866Mbps 11ac Dual-Band Outdoor Access Point AP One Flex #2
300 866Mbps 11ac Dual-Band Outdoor Access Point AP One Flex #2
300 866Mbps 11ac Dual-Band Outdoor Access Point AP One Flex #3

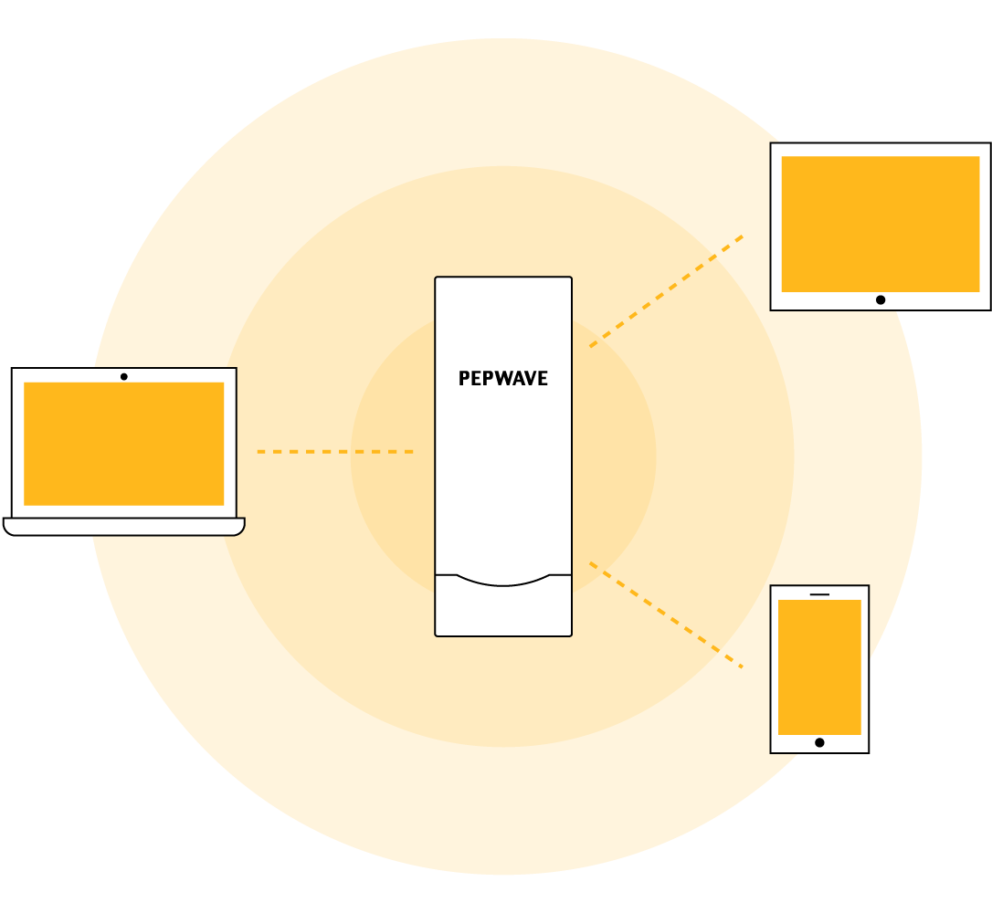

MU – MIMO

MU-MIMO offers significantly increased efficiency to your network. Now multiple client devices can receive data simultaneously through AP One Flex MU-MIMO and beamforming antenna technology, which concentrates and steers radio signals towards specific client devices.

300 866Mbps 11ac Dual-Band Outdoor Access Point AP One Flex #4

Simultaneous Dual Band

Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi on the AP One Flex gives you two independent networks that work together, so all of your devices can connect without clashing.

300 866Mbps 11ac Dual-Band Outdoor Access Point AP One Flex #5

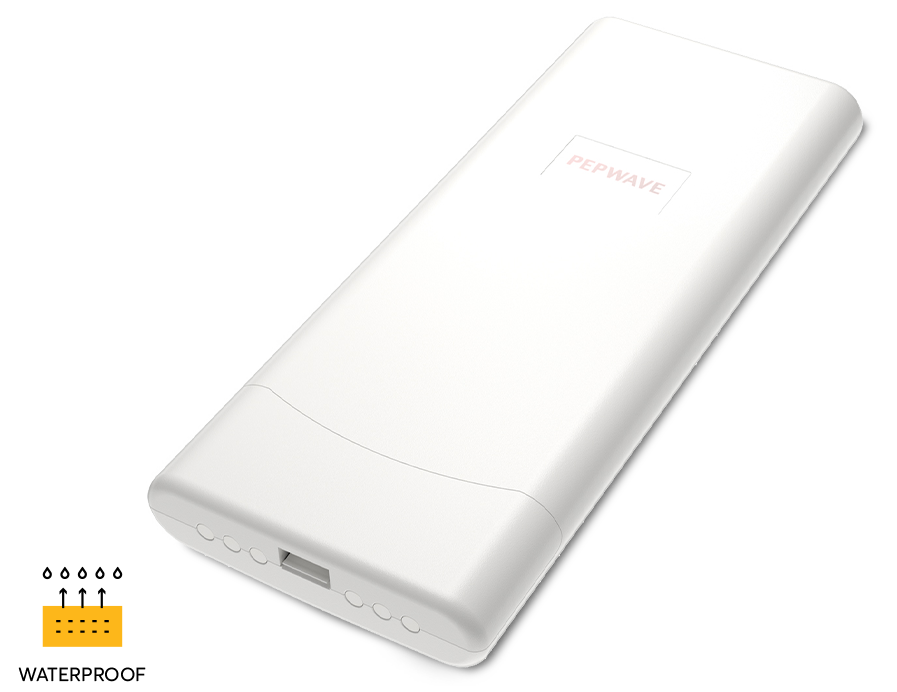

Waterproof Enclosure

Provide Wave 2 ac Wi-Fi in more places with Flex. The tough IP55 rated enclosure is perfect for outdoor environments as well as other dusty and moist locations.

Boost your Network

Increase your wireless speeds with AP One Flex. Connect your devices with Wave 2 11ac while enjoying enterprise-grade reliability

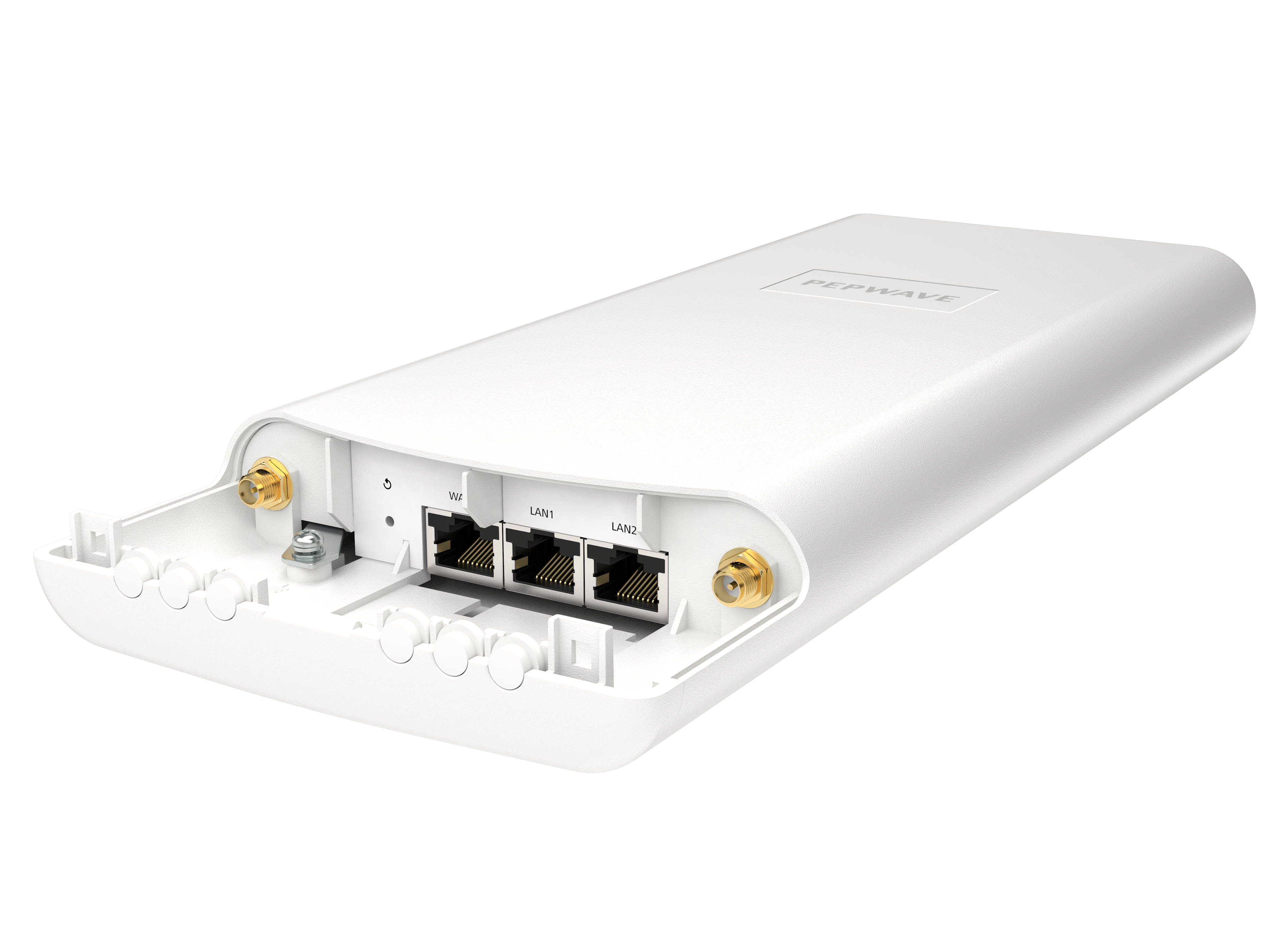

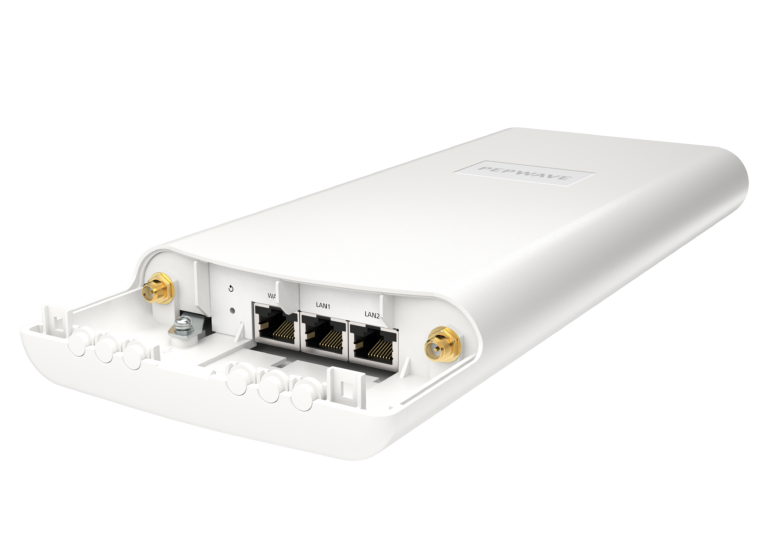

3-Port Switch

Connect to all of your devices, wired and wireless. Hooking up cameras, video surveillance, and even another AP One Flex is a breeze thanks to a built-in GE port and a PoE input.

User Access Control

Control network access with separate logins for each user group. AP One access points support up to 16 SSIDs, each with independent bandwidth limits and web blocking.

MIMO Directional Antenna

Forget about outboard antennas. The Flex has MIMO directional antennas built right in.

300 866Mbps 11ac Dual-Band Outdoor Access Point AP One Flex #7

Centralized Management

Configure AP One Flex onsite or from the cloud. Peplink AP Controller lets you locally manage access points from your Balance router, while InControl 2 offers a complete cloud-based solution accessible from any web-browser.

Social Wi-Fi Hotspot

Guests can now access your Wi-Fi hotspot with their Facebook login. In exchange, you can learn more about your customer base with insightful reports

300 866Mbps 11ac Dual-Band Outdoor Access Point AP One Flex #9

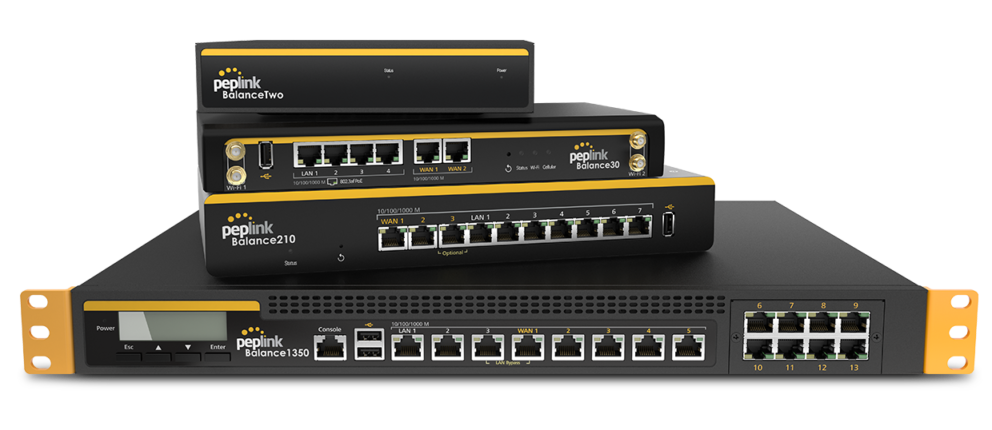

Complete Network Solution

Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.

#PowerofPeplink

  • Ethernet Port3x GE
    Wi-Fi StandardSimultaneous 802.11ac wave 2/ac/a/b/g/n
    2.4GHz *300Mbps
    5GHz *866Mbps
    Simultaneous
    2.4GHz and 5GHz
    Yes
    Wi-Fi Transmit Power2.4GHz: 20dBm |
    5GHz: 21dBm
    Coverage (With line of sight in open environments)2000ft |
    609m
    Recommended Concurrent Users Per Radio60
    Number of SSID Per Radio16
    Antenna TypeBuilt-In, Directional: 2.4GHz (65° Horizontal x 60° Vertical), 5GHz (70° Horizontal x 30° Vertical)
    Antenna Gain2.4GHz: 9dBi |
    5GHz: 10dBi
    EnclosureWaterproof Outdoor IP55
    Dimensions11.8 x 4.9 x 1.9 inches |
    300 x 124 x 47 mm
    Weight1.15 pounds |
    520 grams
    PoE Input802.3at/802.3af
    PoE Output802.3at2 ^
    Power Consumption13W (max.)
    Operating Temperature-40 – 122°F |
    -40 – 50°C
    Humidity15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHS



    *  The frequency range for 2.4GHz and 5GHz are 2412−2472 MHz and 5180−5825 MHz respectively.

    802.3at output requires the PoE injector (ACW-109), available separately.

  • NetworkBridge Mode
    Router (NAT) Mode
    Wireless Distribution System (WDS on 2.4GHz Only)
    Support for PPPoE, Static IP, DHCP
    Management VLAN (802.1p)
    Spanning Tree Protocol (802.1d)
    RadioMultiple SSID
    Auto Channel Selection
    Transmit Power Adjustment
    Neighbour AP Detection
    AP SecurityOpen
    WPA-PSK/RADIUS
    WPA2-PSK/RADIUS
    Device ManagementWeb Administrative Interface
    InControl Cloud Management
    Peplink AP Controller
    SNMP v1, v2c and v3
    Client Management per SSIDVLAN with QoS (802.1p/802.1q)
    Bandwidth Control
    MAC Address Filtering
    Layer 2 Client Isolation
    Limit on Max. Number of Client
    Client Management per ClientVLAN with RADIUS
    VLAN with VLAN Pool
    Bandwidth Control
    Multicast Filter
    IGMP Snooping/Multicast Enhancement
    Complete PepVPN SolutionSite-to-Site VPN
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    Captive PortalBy InControl
  • Product CodeDescription
    ACW-107802.3af/at PoE Injector (to power up the AP One Flex)
    ACW-109PoE Kit for IP55 Outdoor Products (to enable 802.3at PoE Output on the second port of AP One Flex)
    ACW-510Ball Joint Mount for IP55 Outdoor Products. Wall/pole mount with flexible ball-joint for high-precision installation.
    ACW-622 Includes 1x 56V Power Supply
    Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)
      • 1 x AP One Flex
      • 1 x Cable Tie

    * Power supply or Pepwave Passive PoE Injector are not included

  • Suitable ForProduct NameProduct CodeDescription
    Outdoor Installation. Wall and Pole Mount Friendly.AP One FlexAPO-FLX802.11 ac wave 2/ac/a/n 866Mbps and 802.11b/g/n 300Mbps. MIMO directional antennas: 2.4GHz, 8dBi (65° Horizontal x 60° Vertical); 5GHz, 10dBi (70° Horizontal x 30° Vertical).
    3x 10/100/1000M Ethernet Ports with 1x 802.3at PoE Output option.
  • What is the difference between ACW-107 and ACW-109?



    Please check with the End User what’s their setting for the application and choose the correct PoE injector

    • Standard PoE in (using ACW-107 or other 802.3at injector) can provide ~15W Power range PSE to the APO-FLX IP55
    • 56V 2.1A power supply (ACW-109) with Passive PoE injector can provide standard 802.3at Power range PSE

    In other words, ACW-109 is not required. But if the End User is aiming for the first case, then they would need to buy ACW-107 (802.3af/at PoE Injector).
