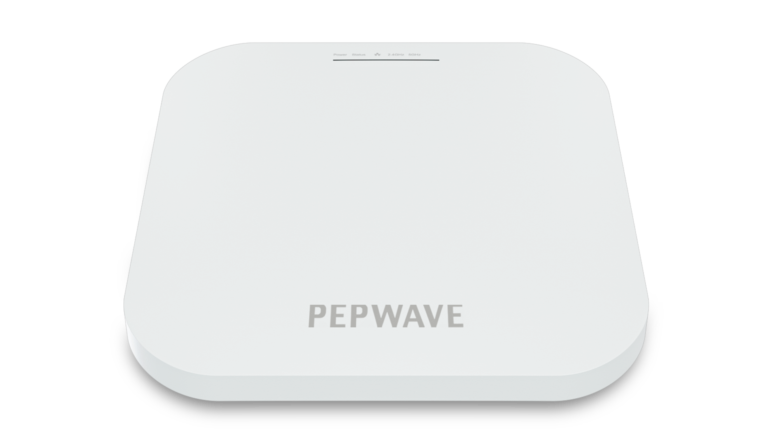

AP One AX

Better Coverage and Speed with Wi-Fi 6

Deploy Anywhere, Manage Centrally, Turnkey or Custom Captive Portals, Enterprise-Grade Fast Roaming, Seamless Peplink SD-WAN Integration.

Manage Centrally, No Extra Hardware Needed

Each AP One AX comes equipped with InControl central management. View the health and data usage of your network from any web browser. Centrally manage your network’s SSID and radio settings from a single pane of glass. Use the searchable event log to quickly diagnose your entire network.

Turnkey or Custom Captive Portals

Customize your captive portal as little or as much as you would like. Right out of the box, it includes a captive portal ready for immediate use.

For a more branded user experience, you can edit every aspect of the captive portal using InControl.

Seamless Peplink SD-WAN Integration

The AP One AX works seamlessly with other services in the Peplink ecosystem, providing unique network capabilities, unmatched network flexibility and ease of use.

1. InControl Central Management

Monitor network health on a single dashboard. Push configuration proles on multiple devices at once. Remotely access the Web Admin of any device.

2. Balance/MAX/FusionHub

Provides unbreakable connectivity by
combining multiple WANs. Works with InControl to centralize VLAN, firewall, and outbound policy.

3. SD-Switch

Works with InControl to remotely configure and activate PoE ports. Monitor power consumption.

4. AP One

Works with InControl to centralize SSIDs, radio settings, and deliver captive portals.

Simply Better Wi-Fi

Wi-Fi 6: Faster, Better

This technology is 45% faster than Wi-Fi 5, has 4x more device capacity, and consumes less power for connected devices.

Enterprise-Grade Fast Roaming

This device supports 802.11k, v, and r, providing users with a more seamless roaming experience between access points.


  • Product CodeAPO-AX
    Ethernet Port1x 2.5 Multigigabit Ethernet
    Wi-Fi Standard1x 2.4Ghz 802.11b/g/n/ax
    1x 5Ghz 802.11a/n/ac/ax
    Data Rates4X4 MU-MIMO
    2.4 GHz: up to 1148 Mbps
    5 GHz: up to 2400 Mbps
    Channel Width20/40/80 MHz
    Recommended Concurrent
    Users per Radio
    256
    SSID Per Radio16
    Transmit Power2412 – 2472 MHz: up to 17dBm
    5180 – 5825 MHz: up to 17dBm
    Included AntennaBuilt-in Omni Antenna
    Antenna gain: 2.7 – 5dBi for 2.4GHz,
    3.8 – 5.6dBi for 5GHz
    EnclosurePlenum-rated,
    Indoor Plastic
    Dimensions8.1 x 8.1 x 1.3 inches
    205 x 205 x 32 mm
    Weight1.73 pounds
    785 grams
    Power InputDC Jack: 12V DC
    AC Adapter: AC Input 100V − 240V, DC Output 12V, 3A*
    802.3at PoE #
    Power Consumption24W (max.)
    Operating Temperature32° - 104°F
    0° - 40°C
    CertificationsFCC, CE, RoHS
    Warranty1 Year Limited Warranty



    * Optional feature.
    #PoE Injector is available separately.

  • NetworkBridge Mode
    Router (NAT) Mode
    Support for PPPoE, Static IP, DHCP
    Management VLAN
    Spanning Tree Protocol
    RadioMultiple SSID
    Auto Channel Selection
    Transmit Power Adjustment
    Neighbor AP Detection
    AP SecurityOpen
    WPA/WPA2/WPA3-Personal
    WPA/WPA2-Enterprise
    Device ManagementWeb Administrative Interface
    InControl Cloud Management
    Peplink AP Controller
    SNMP v1, v2c and v3
    Client ManagementPer SSID
    VLAN with QoS (802.1p/802.1q)
    Bandwidth Control
    MAC Address Filtering
    Layer 2 Client Isolation
    Limit on Max. Number of Client
    Per Client
    VLAN with RADIUS
    VLAN with VLAN Pool
    Bandwidth Control
    Multicast Filter
    IGMP Snooping/Multicast Enhancement
    Captive Portal by InControl
  • Product CodeDescription
    ACW-107802.3af/at PoE Injector, compatible with MAX Hotspot and AP One AX
    ACW-6021x12V3A Power Supply, compatible with MAX HD2 and AP One AX
  • Product CodeName Description
    APO-AXAP One AX4x4 MIMO Wi-Fi 6 AP for Business, manageable by InControl 2. Simultaneous Dual-Band 802.11ax/ac/b/g/n
