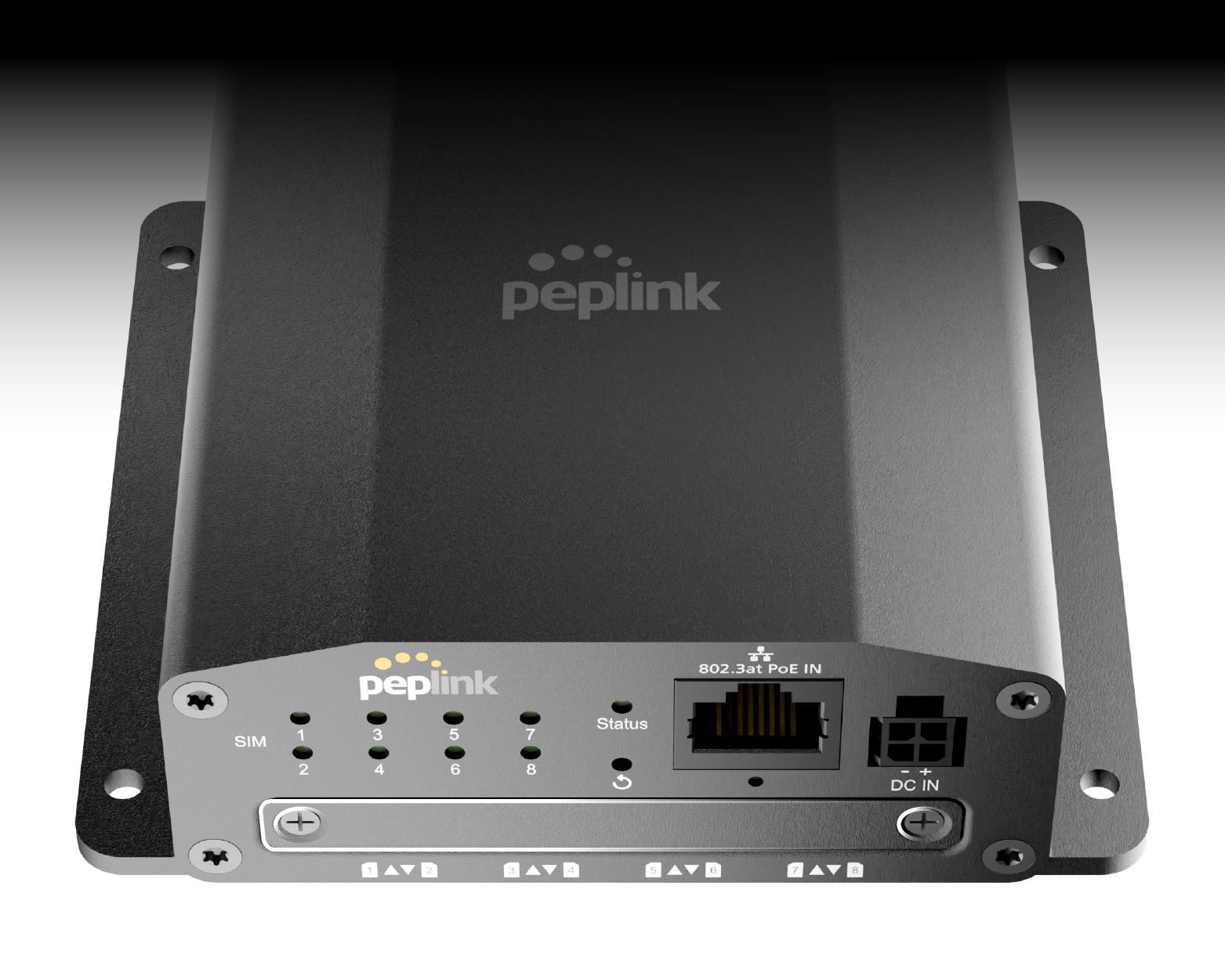

SIM Injector
SIM Injector
SIM Management from Afar.
SIM Management from Afar.
Remotely manage up to 8x SIMs
Integrate up to 8 additional SIMs into your network without the need for physical intervention. Perfect for hard to reach deployments.
One Ethernet cable is all you need
Power your device through PoE and forgo the need for a nearby power outlet. Power through Microfit Connector is also available for more flexibility.
The best accessory we’ve ever made at only $499*
Durable, rugged, simple to use. At the affordable price of $499*, easy SIM management won’t be gated behind a paywall.
*Pricing applies to US region only, other regions may vary
Ports and Connections
-
Product SIM Injector SIM Injector Mini SKU SIM-BK8-4E-56V SIM-MINI-8-1E SIM Slots 8x Active SIM Slots, Mini-SIM (2FF) 8x Active SIM Slots, Nano-SIM (4FF) LAN Interface 4x 10/100/1000M Ethernet, PoE 802.3at Output Support* 1x 10/100 Ethernet, PoE 802.3at Input Support Power Input DC Jack / Terminal Block: 12-56V DC Jack: 10-30V /
802.3at PoEDimensions 5 x 5.8 x 1.6 inches /
128 x 147 x 40 mm3.9 x 4.2 x 1.4 inches /
100 x 107 x 35 mmWeight 430 grams /
0.94 pounds244 grams /
0.54 poundsOperating Temperature -40° – 149°F /
-40° – 65°C-40° – 149°F /
-40° – 65°CHumidity 15% – 95% (non-condensing) 15% – 95% (non-condensing) Remarks * 56V DC input is needed for 4x LAN ports to have 802.3at – -
Product Code Description SIM-MINI-8-1E SIM Injector Mini -
Product Code Description SVL-SIM-MINI-1Y EssectialCare (1-Year) for SIM Injector Mini SVL-SIM-MINI-2Y EssectialCare (2-Year) for SIM Injector Mini ECP-C-1Y EssentialCare+ C (1-Year) ECP-C-2Y EssentialCare+ C (2-Year) ECP-C-4Y EssentialCare+ C (4-Year) -
- 1x SIM Injector Mini
- 1x 12V 2A 4 Pin Power Supply (ACW-632)
-
^ Balance 20X, Balance 380X, and Balance 580X require FlexModule Mini for SIM Injector Mini support, while SDX, SDX Pro, and EPX require a compatible FlexModule Plus.
* Please cross-check and confirm with the image below, the form factor of your FlexModule Plus.
Supported FlexModule Plus
Includes membrane marking ‘Cellular’
SIM slot size 4FF
Not Supported FlexModule Plus
Includes membrane marking ‘Main’
SIM slot size 2FF
