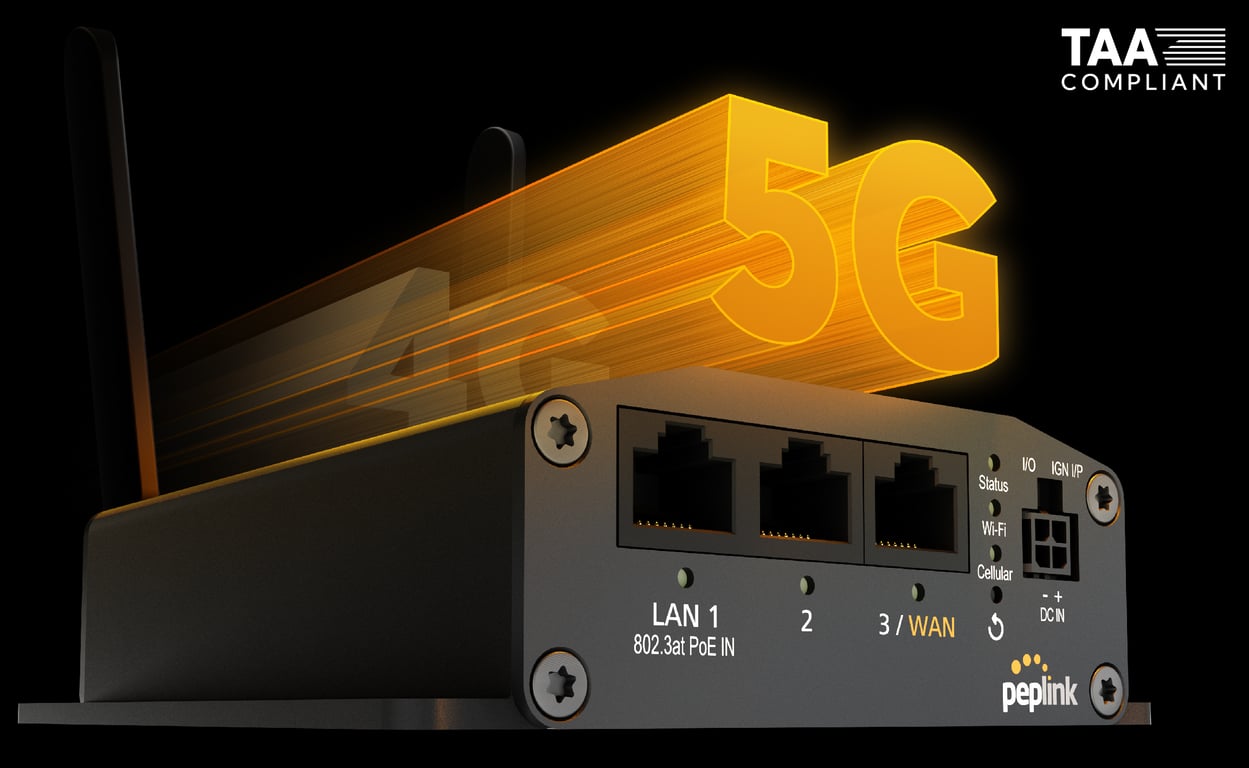

BR1 Mini 5G
Affordable, Long-lasting 5G for Mass Deployments
4G connectivity might work fine today, but the switch to 5G is inevitable. Futureproof your network with the latest 5G technology, and keep your network running for many years to come.
A single SKU for global deployments
Extensive list of compatible 5G/LTE bands. Native 5G NSA and SA mode support.
Private 5G Support
Adding devices to your Private 5G network is no longer a hassle. Integration can be as simple as plug and play.

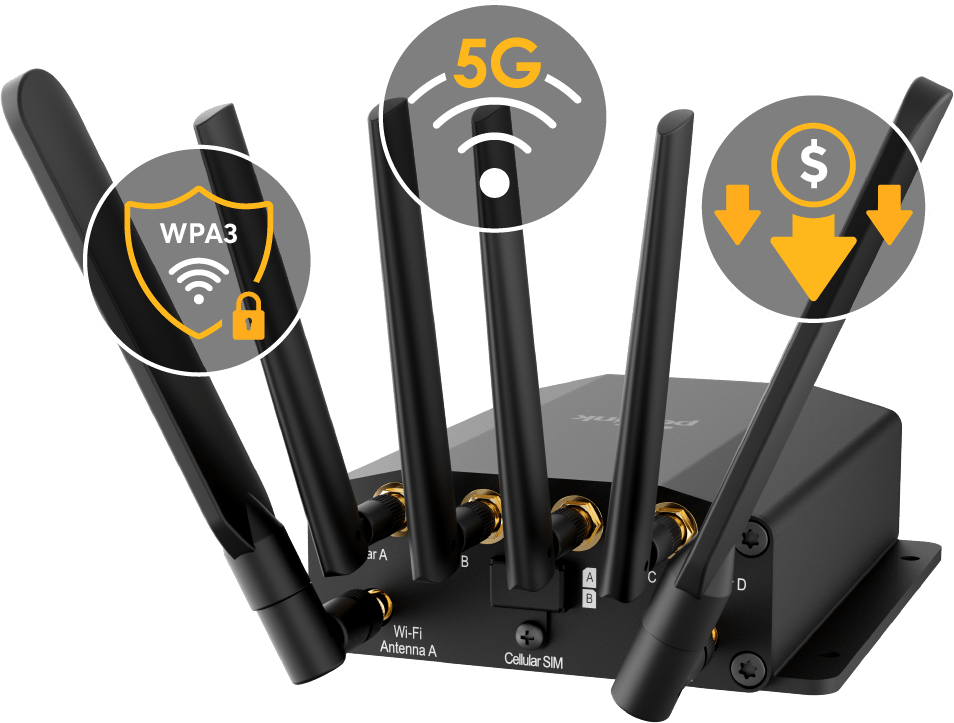

One device to do it all
Bring 5G Wi-Fi to your setup with a single compact device. This means simpler networks, lower costs and fewer points of failure.

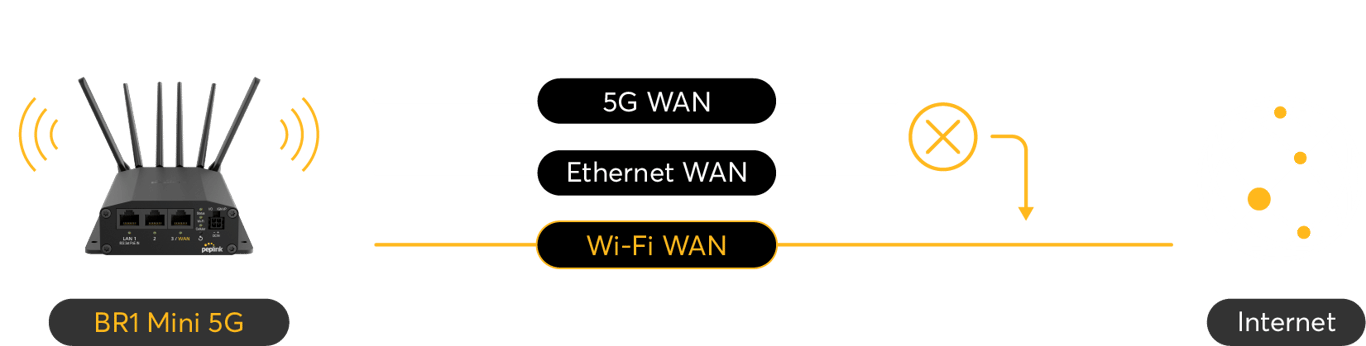

Utilize Wi-Fi WAN for Added Reliability
Take an existing Wi-Fi connection and use it as an additional WAN for yourself.
Having multiple redundant WANs helps ensure your connection stays up when your 5G or wired connection falters.

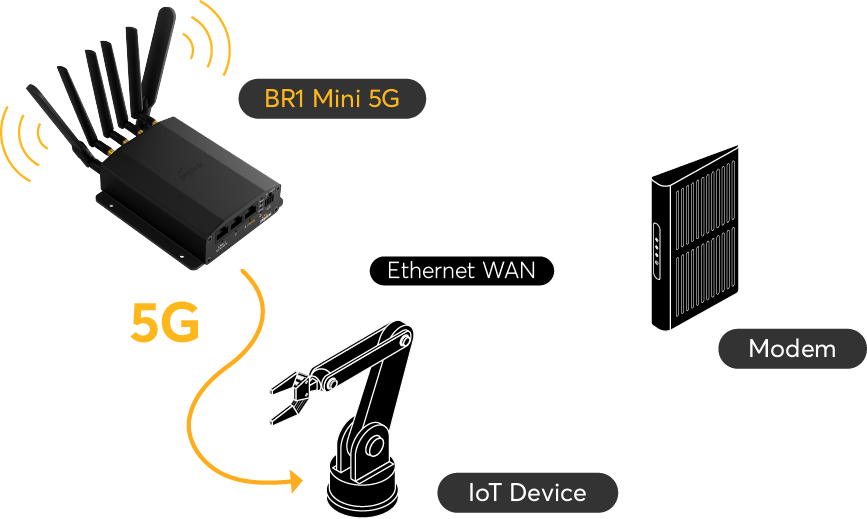

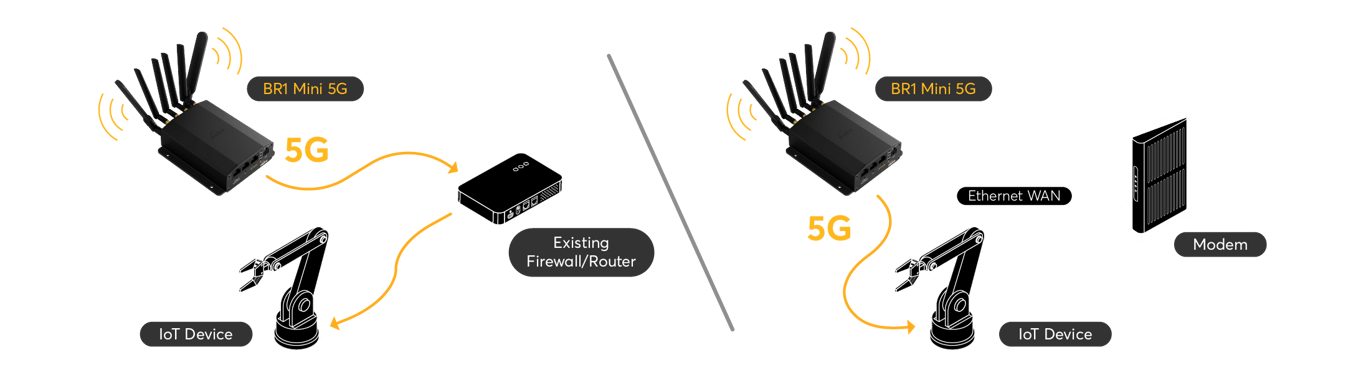

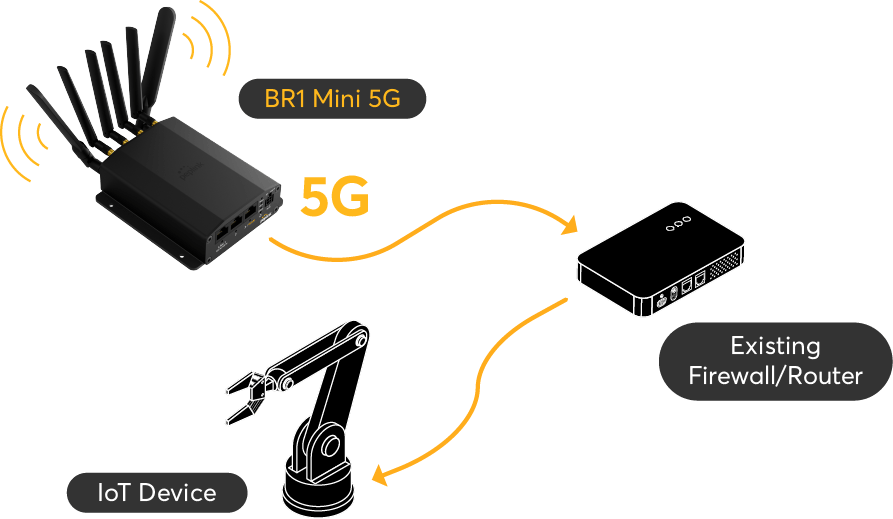

5G Adapter
Gateway/Router
Have an existing network? Add the BR1 Mini 5G as a 5G adapter with zero hassle. Need something more? The device can also act as a gateway/router for multiple WANs.
Stay in touch with InTouch
Access connected devices, like sensors and cameras, with out of band management at 5G speed.

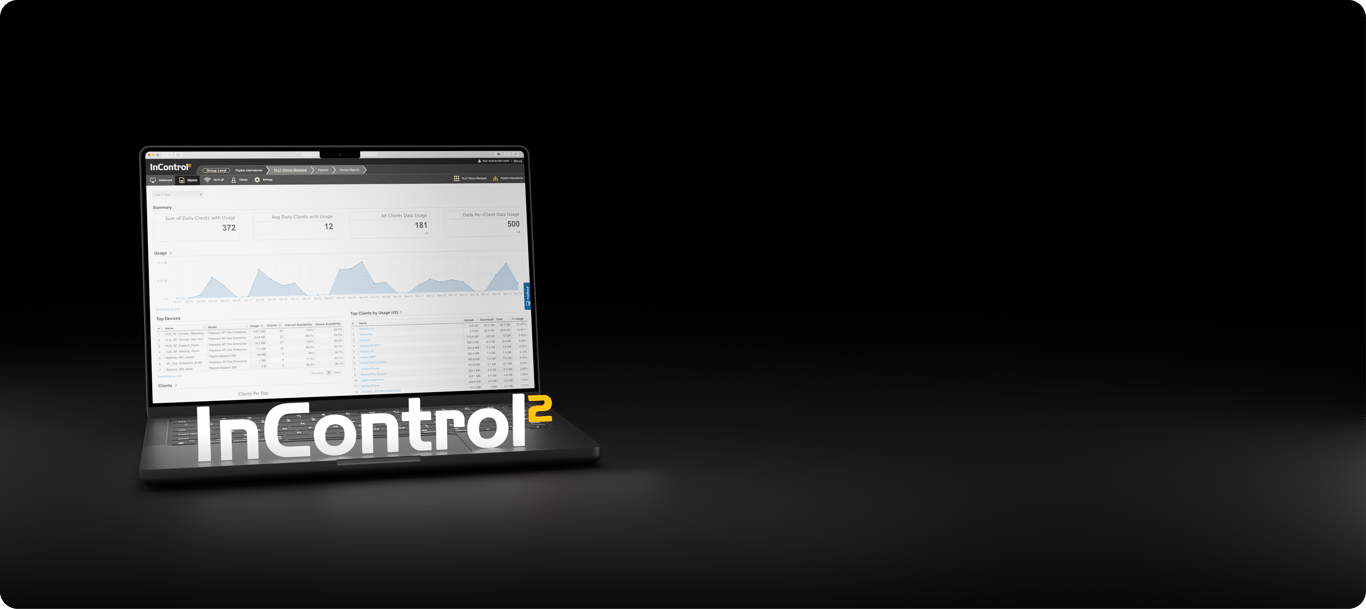

Monitor your entire network from a single screen

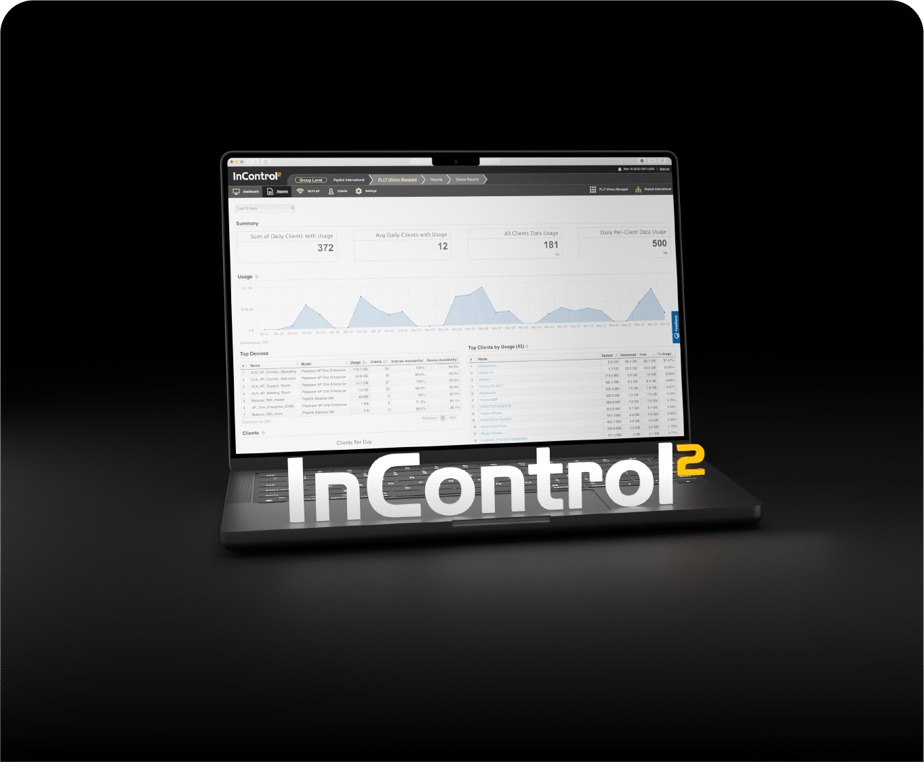

Remotely access your Peplink devices’ web admin with InControl 2, our cloud-based endpoint management system. Generate reports and push configurations for more effective management.
Key BR1 Mini 5G Benefit
An exceptionally reliable, rugged 5G Cellular Router that connects your data and Internet applications – wherever they are.
Future-proof Connectivity
With the latest cellular LTE and 5G via SIM or eSIM and a second optional Ethernet WAN , the BR1 Mini 5G connects your Ethernet devices with up to 300Mbps throughput.
Ruggedized and Reliable
Built in a rugged & reliable metal case with fanless, ventless design certified for shock and vibration resistance for deployment virtually anywhere.
Designed for Remote Operation
With central management via Peplink InControl 2 and local device management via Peplink InTouch , the BR1 Mini saves time and reduces field visits.
Use Cases
POS
IoT, Kiosk, Remote Surveillance
Mobility
Remote Work

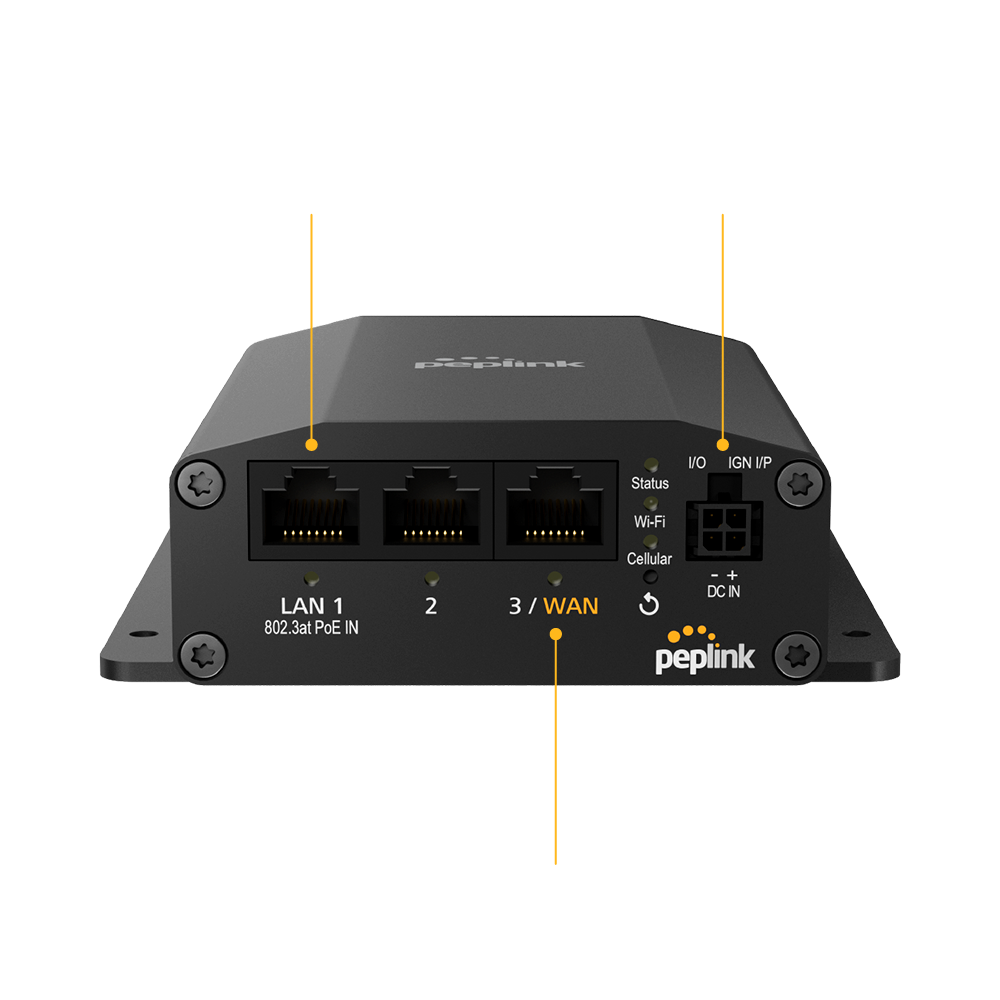

Port and Connections
1. Available with a feature pack add-on license or a PrimeCare subscription.
Product Overview & Comparison Table
Deep Dive
| Software | Peplink MAX Firmware |
|---|---|
| WAN | Support for PPPoE, Static IP, DHCP WAN Link Health Check Bandwidth Allowance Monitor Support for Dynamic DNS services WAN Port Convertible into LAN Port |
| LAN | DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support |
| Security | Stateful Firewall DoS Prevention Web Blocking |
| Complete VPN Solution | SpeedFusion VPN -Site-to-Site VPN -Hot Failover -256-bit AES Encryption -Pre-shared Key Authentication IPsec VPN (Network-to-Network)^ |
| Advanced QoS | Individual Bandwidth Limit Application Prioritization -SIP, HTTPS, VPN QoS -Custom Application QoS |
| Networking | NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP |
| Captive Portal Support | Support for Wired LAN and Wireless LAN clients Support RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page |
| Device Management | Web Administrative Interface Command Line Interface InControl Cloud Management Email Notification Active Client & Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3 |
Ordering Information
| Product Code | Embedded Modem | Region | 5G Bands | LTE Bands |
|---|---|---|---|---|
| MAX-BR1-MINI-5GN-T-M-PRM | 1x 5G | Global* *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet | 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| MAX-BR1-MINI-5GN-T-PRM (With Wi-Fi) | 1x 5G | Global* *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet | 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
Feature Add – On
| Product Code | Descriptions |
|---|---|
| PRM-A-1Y | PrimeCare A (1-Year) |
| PRM-A-2Y | PrimeCare A (2-Year) |
| PRM-A-4Y | PrimeCare A (4-Year) |
| PCP-A-1Y | PrimeCare+ A (1-Year) |
| PCP-A-2Y | PrimeCare+ A (2-Year) |
| PCP-A-4Y | PrimeCare+ A (4-Year) |
| MAX-BR1-MINI-LC-FP | Feature pack for BR1 Mini enables Ethernet WAN, Wi-Fi WAN, Hot Failover, Smoothing, Bandwidth Bonding |
| MAX-BR1-MINI-BD-FP-2Y | MAX BR1 Mini Bundle Offer - 2 year PrimeCare extension & complimentary feature pack |
| MAX-BR1-MINI-BD-FP-4Y | MAX BR1 Mini Bundle Offer - 4 year PrimeCare extension & complimentary feature pack |
| MAX-BR1-MINI-BD-FP-PLUS-2Y | MAX BR1 Mini Bundle Offer - 2 year PrimeCare+ extension & complimentary feature pack |
| MAX-BR1-MINI-BD-FP-PLUS-4Y | MAX BR1 Mini Bundle Offer - 4 year PrimeCare+ extension & complimentary feature pack |
| ACW-634 | 10ft DC Power Cable |
| ACW-643 | Vehicle Cigarette to Molex Power Cable |
| ACW-791 | 4-Pin Micro-Fit to USB-C Power Cable |
| ACW-DIN-BR1-MINI | DIN Rail mount kit |
| ANT-SLM-40G-S-B-6 | Slim 40G - 4x4 MIMO 5G Ready Cellular Antenna System with GPS (Black) |
| ANT-MB-40G-S-W-6 | Mobility 40G - 4x4 MIMO 5G Ready Cellular Antenna System with GPS (White) |
| ANT-MB-40G-S-B-6 | Mobility 40G - 4x4 MIMO 5G Ready Cellular Antenna System with GPS (Black) |
| ANT-MB-42G-S-W-6 | Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (White) |
| ANT-MB-42G-S-B-6 | Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (Black) |
| ANT-MAX | Antenna MAX - Enclosed with 4x LTE/5G, 2x Wi-Fi, 1x GPS 600-6000MHz, IP67, SMA male (Cellular, GPS), RP-SMA male (Wi-Fi), White |
Package Content
- 1x BR1 Mini 5G
- 4x LTE/5G Antennas (ACW-235)
- 1x 12V 2A 4pin Power Supply (ACW-632)
- 1x BR1 Mini 5G (HW2)
- 4x LTE/5G Antennas (ACW-235)
- 2x Dual Band Wi-Fi Antennas (ACW-342)
- 1x 12V 2A 4pin Power Supply (ACW-632)
