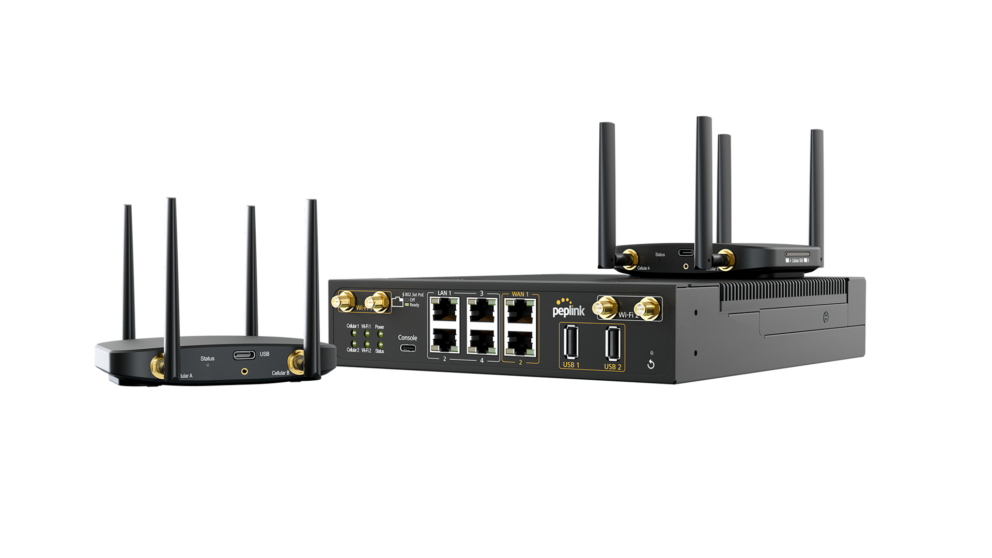

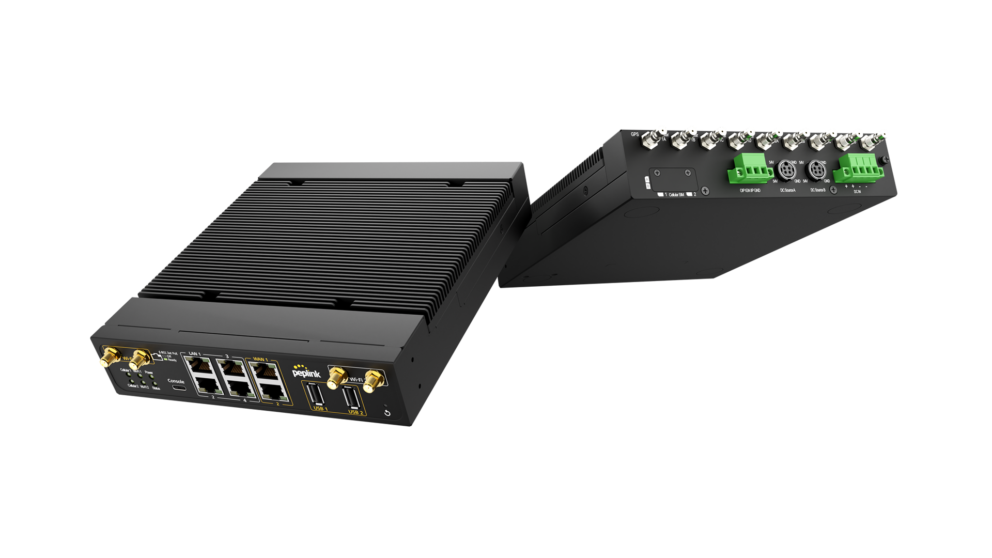

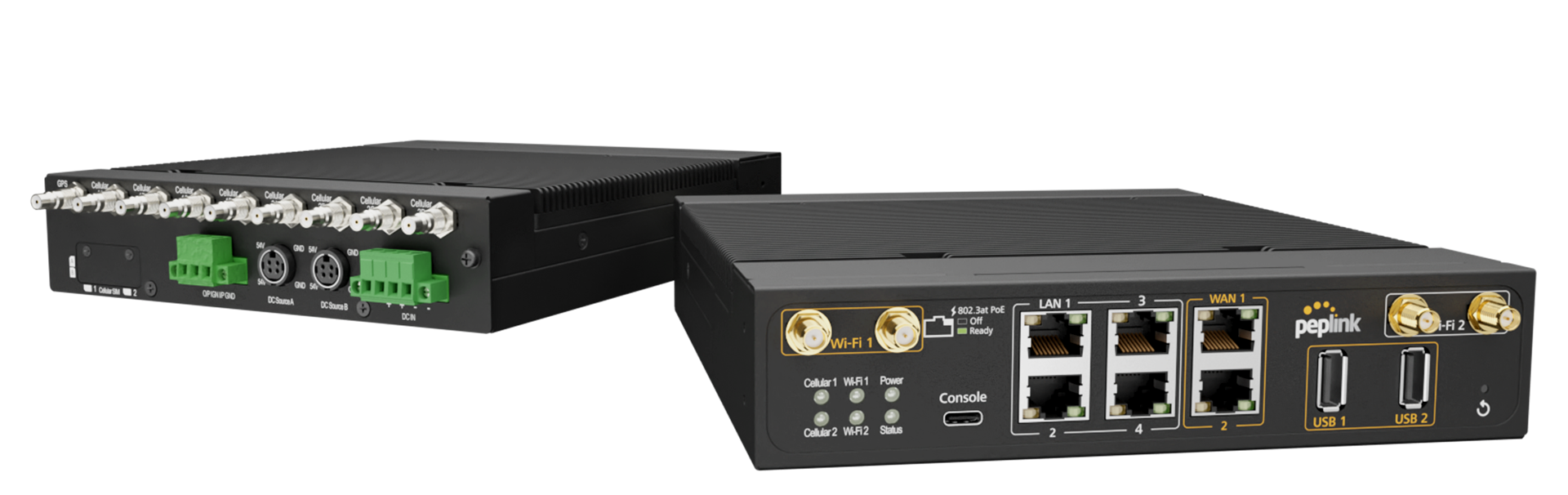

MBX Mini
良いものは小さなパッケージで届きます。
小さいけど力強い。

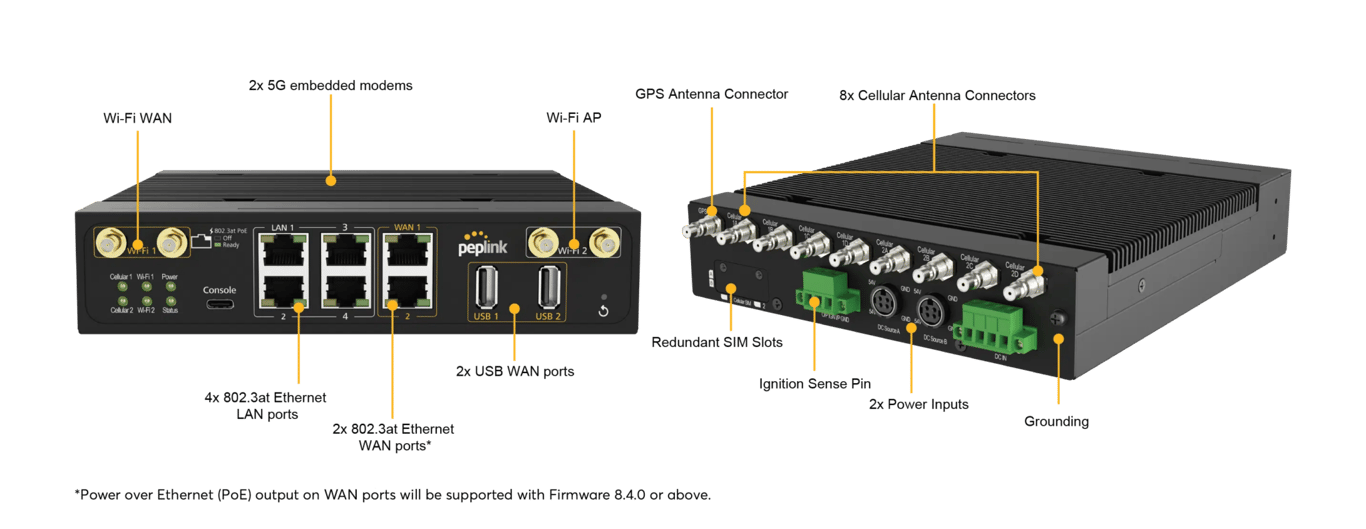

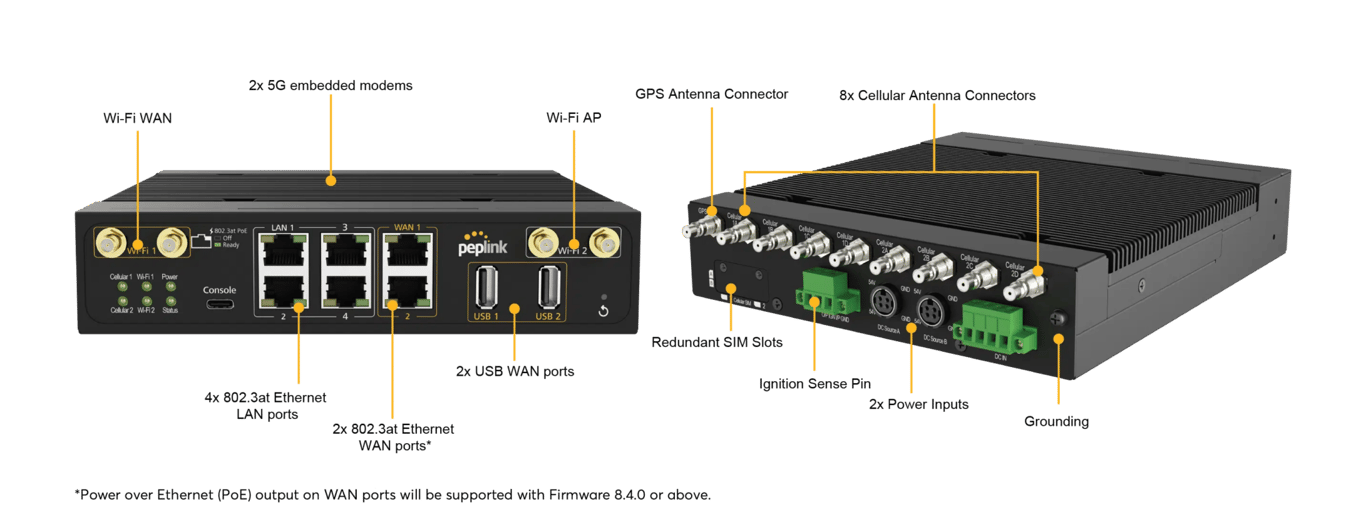

MBX Miniの多用途性で、導入現場に新たな価値をもたらしましょう。他のMBXデバイスと同様に優れた性能を備えています。PoE対応のLANポートにデバイスを接続すれば、ネットワークの簡素化とIEEE 802.1Xポート認証を実現可能です。このMBX Miniは、あらゆるニーズに応えるパワーを備えています。
どのような導入現場でも安定した接続を維持し、3つの電源入力オプション（AC、DC、USB-C）でさらなるパワーと冗長性を提供します。
One. Two. Three. Four.

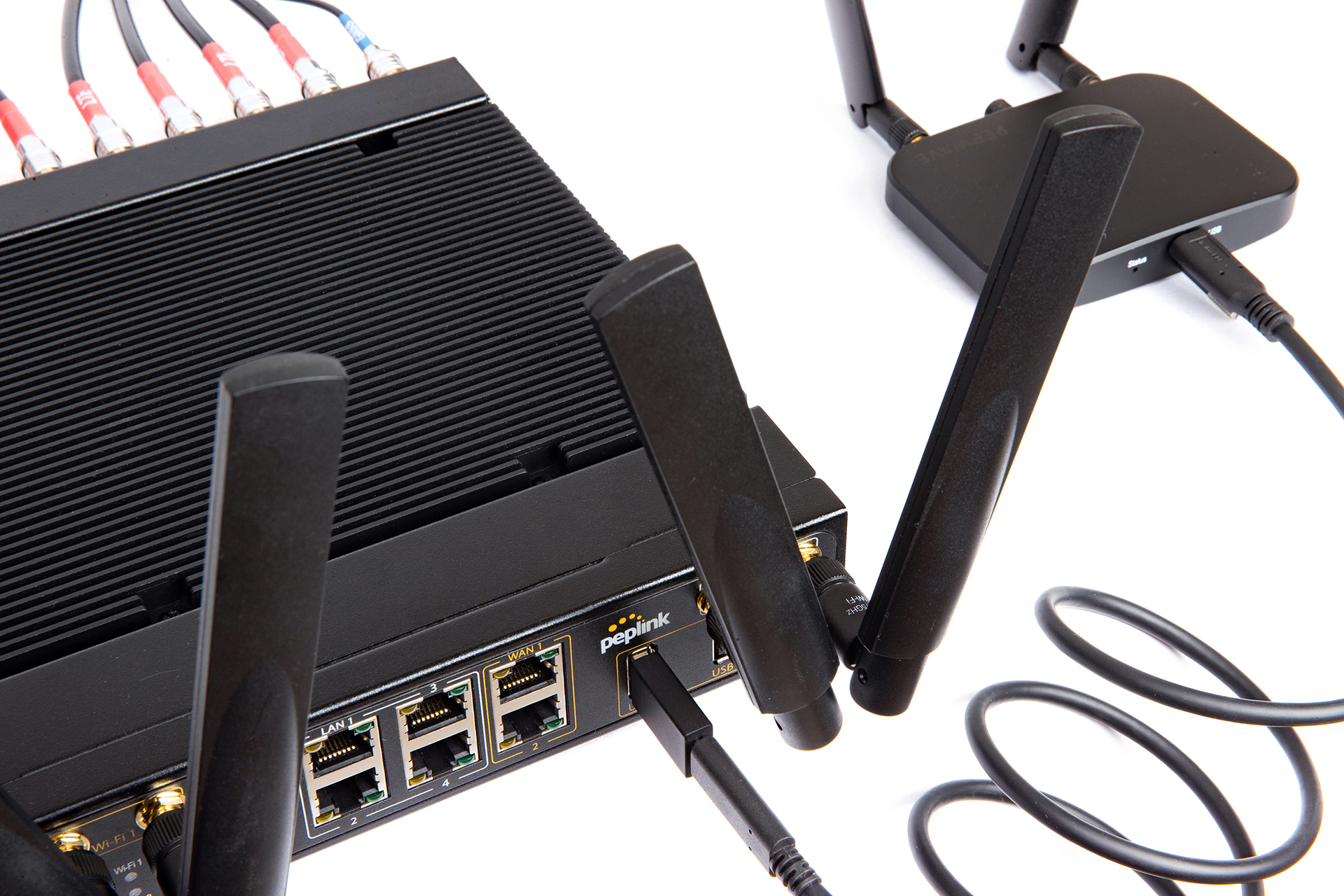

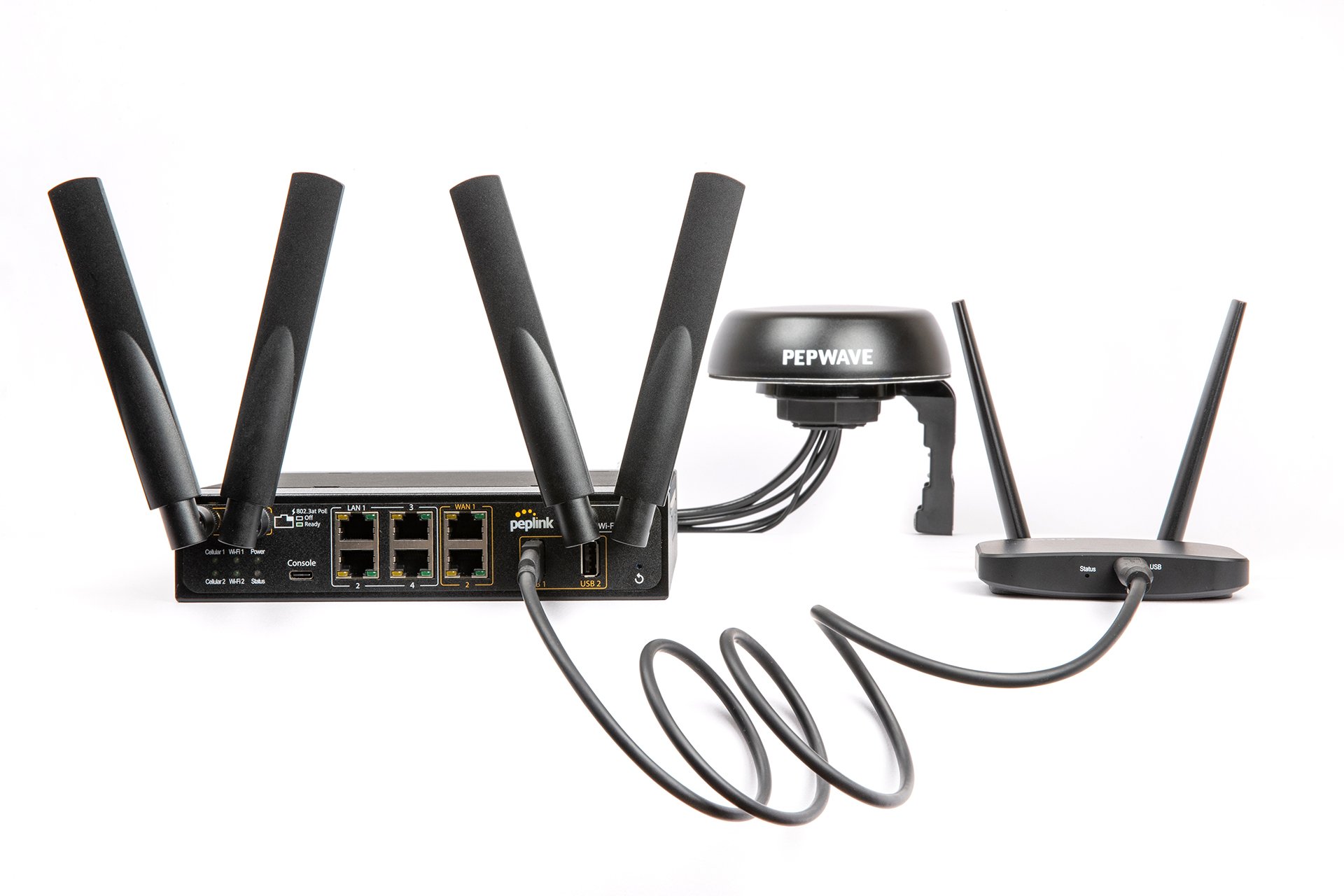

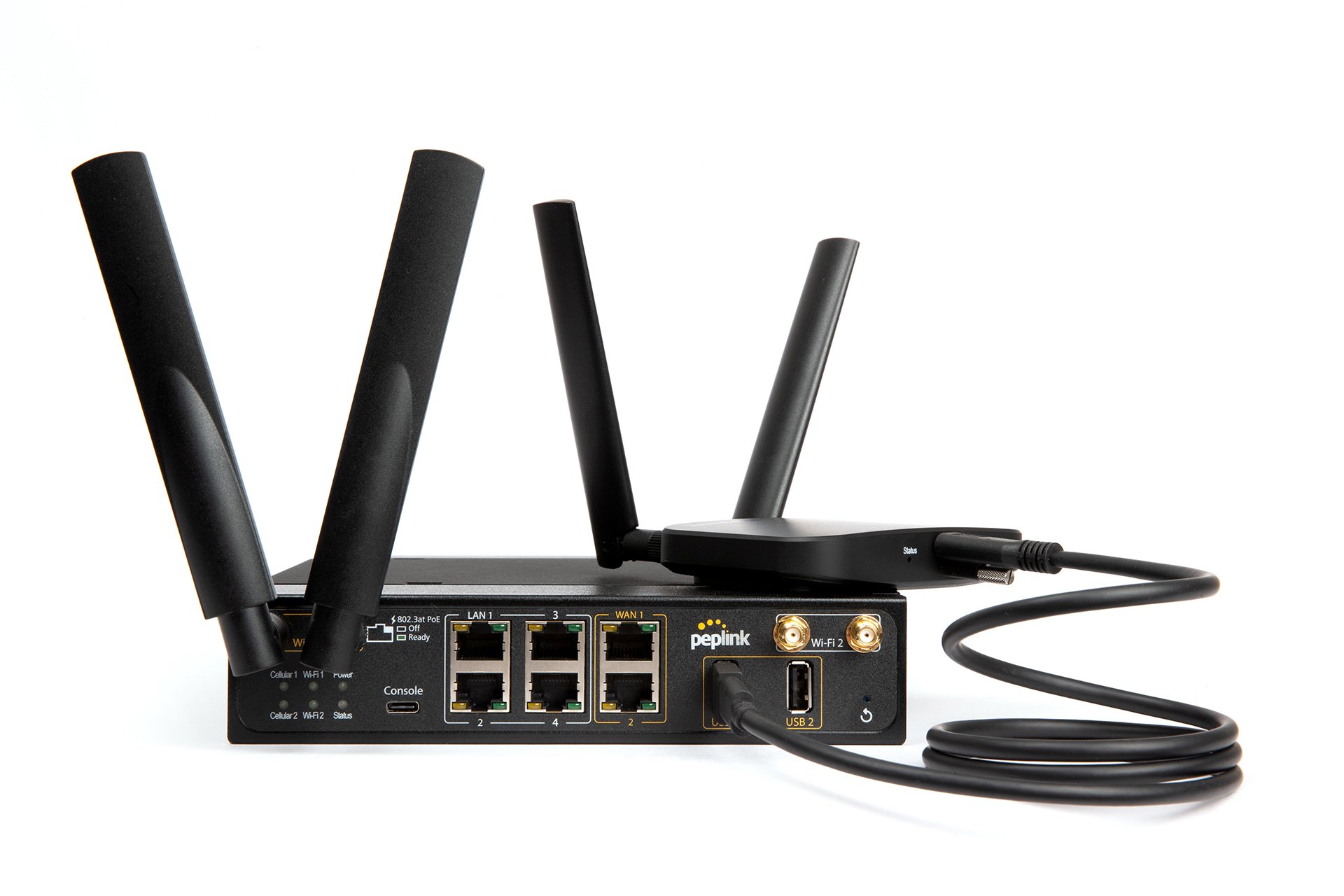

高速な接続が大きな成果を生む鍵であることを、私たちは理解しています。デュアルバンドWi-Fiと5G対応により、利用可能な最速のネットワークを体験できます。デュアル組込みセルラーWANだけでは物足りない場合でも、MBX MiniはデュアルUSBポートを通じてMAXアダプターを接続することで、セルラーWANを最大4つに拡張可能です。

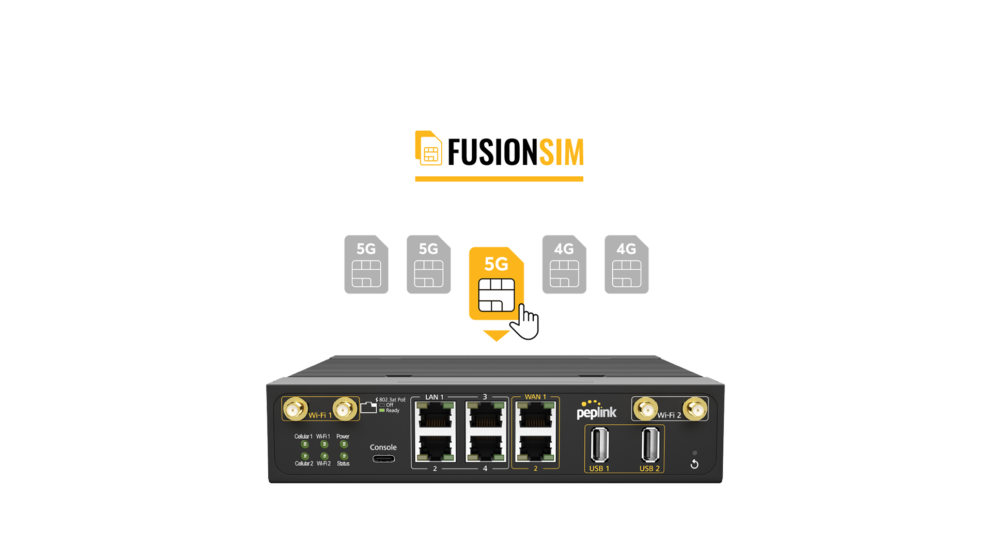

SpeedFusion Connectで、必要なときに必要なだけの接続を体験。
SpeedFusion Connectで、SpeedFusionの利点をより簡単に活用可能に。複数のLTE接続とSpeedFusion技術を1つのサブスクリプションで利用できます。バックアップ接続の確保がこれまでになくシンプルに！
LEARN MORE*米国および欧州の一部地域で使用可能
製品概要と比較表
詳細情報
| Software | Peplink MAX Firmware |
|---|---|
| WAN | Support for PPPoE, Static IP, DHCP WAN Link Health Check (PING, IPv6, DNS Lookup, HTTP) Bandwidth Allowance Monitor USB 4G/3G Modem Support Intelligent Failover Dynamic DNS services (changeip.com, dyndns.org, no-ip.org, tzo.com, DNS-O-Matic) |
| LAN | DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support Per-Port VLAN Support |
| Load Balancing | Intelligent Failover Session Persistence Per-Service Load Distribution Weighted Enforced Persistence Priority Overflow Least Used, Lowest Latency, Fastest Response Time |
| VPN | SpeedFusion VPN with Bandwidth Bonding, Hot Failover Site-to-Site VPN 256-bit AES Encryption Pre-shared Key Authentication Dynamic Routing PPTP VPN Server RADIUS, LDAP Authentication IPsec VPN (Network-to-Network) X.509 Certificate Support |
| Advanced QoS | User Groups Bandwidth Reservation Individual Bandwidth Limit Application Prioritization (By User Groups, SIP, HTTPS, VPN QoS) Custom Application QoS |
| Networking | NAT and IP Forwarding Static Routes Port Forwarding (Many-to-One, One-to-One NAT) NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP WINS Server VRRP HA Support BGP, OSPFv2 and RIPv2 Support |
| AP Controller | Auto AP Discovery Auto AP Firmware Management AP Profile Configuration Wi-Fi Usage Statistics |
| Security | DoS Prevention Stateful Firewall Web Blocking Web Filtering Blacklist |
| Captive Portal | Support for Wired and Wireless LAN Clients RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page |
| Device Management | Web Administrative Interface Command Line Interface InControl Cloud Management Email Notification Active Client & Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3 |
注文情報
| Product Code | Region | 5G Bands | LTE Bands |
|---|---|---|---|
| MAX-MBX-MINI-5GH-T
Embedded Modem(s):
2 x 5G | Global
US Carrier Certifications: AT&T, FirstNet, US Cellular, Verizon (C-Band) | 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71 |
| MAX-MBX-MINI-5GD-T
Embedded Modem(s):
2 x 5G | Global | 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71 |
| MAX-MBX-MINI-5GN-T
Embedded Modem(s):
2 x 5G | Global | 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
*US Carrier Certification: AT&T, FirstNet, US Cellular, Verizon (C-Band)
注目の追加機能
| Product Code | Description |
|---|---|
| ACW-630 | 54V/3.34A 180W Power Supply |
| ACW-674 | 54V/5.56A 300W Power Supply |
| ACW-675 | 54V/7.41A 400W Power Supply |
| PVN-LC-05 | Up to 5 SpeedFusion VPN Peers License |
| PVN-LC-10 | Up to 10 SpeedFusion VPN Peers License |
| PVN-LC-20 | Up to 20 SpeedFusion VPN Peers License |
| ECP-MAX-MBX-MINI-5G-1Y | EssentialCare+ (1-Year) |
| ECP-MAX-MBX-MINI-5G-2Y | EssentialCare+ (2-Year) |
| ECP-MAX-MBX-MINI-5G-4Y | EssentialCare+ (4-Year) |
| SVL-MAX-MBX-MINI-5G-1Y | 1-Year EssentialCare |
| SVL-MAX-MBX-MINI-5G-2Y | 2-Year EssentialCare |
| LIC-VWAN | Activate 1x Virtual WAN |
| LIC-2VWAN | Activate 2x Virtual WAN |
| LIC-3VWAN | Activate 3x Virtual WAN |
| ANT-MR-40G-S-W-6 | 4X4 MIMO 5G-Ready Maritime Antenna with GPS |
| ANT-MB-42G-Q-W-1 | 7-in-1 Cellular and Wi-Fi Antenna System (White, 1 ft) |
| ANT-MB-42G-Q-B-1 | 7-in-1 Cellular and Wi-Fi Antenna System (Black, 1 ft) |
| ANT-MB-42G-Q-W-6 | 7-in-1 Cellular and Wi-Fi Antenna System (White, 6.5 ft) |
| ANT-MB-42G-Q-B-6 | 7-in-1 Cellular and Wi-Fi Antenna System (Black, 6.5 ft) |
| ANT-MB-82G-S-W-6 | 11-in-1 Cellular and Wi-Fi Antenna System (SMA) |
| ANT-MB-82G-Q-W-6 | 11-in-1 Cellular and Wi-Fi Antenna System (QMA) |

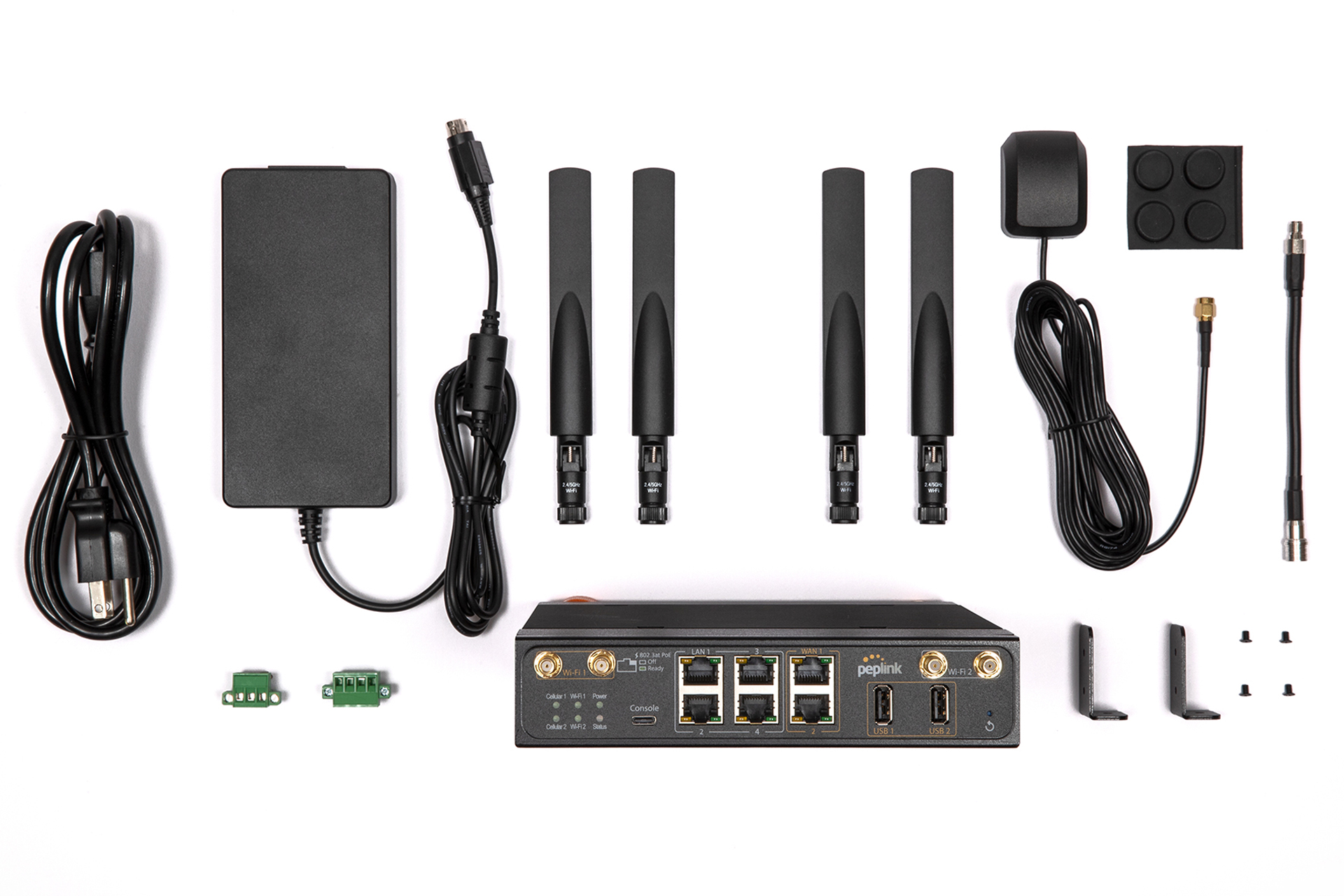

パッケージ内容
- MBX Mini, PSU 180W (ACW-630)
- 4x Dual-Band Wi-Fi Antennas (ACW-341)
- 1x QMA to SMA Adapter (for GPS)
- 1x GPS Antenna (ACW-232)
- Power Cord
- 1 Pair of Ear L-Mounts Kit (ACW-756)
- Screw set of Ear L-Mounts Kit
- 3pin Terminal Block Connector (Ignition Sense)
- 4pin Terminal Block Connector (Power Supply)
- Rubber Foot Pad set

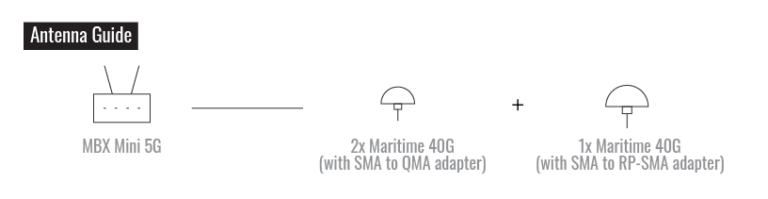

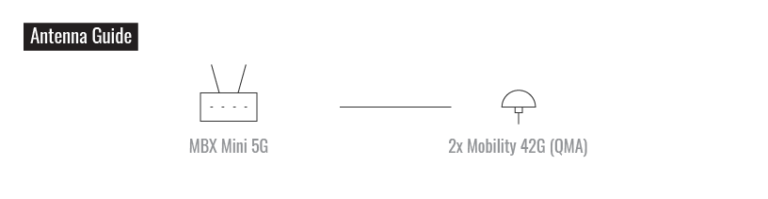

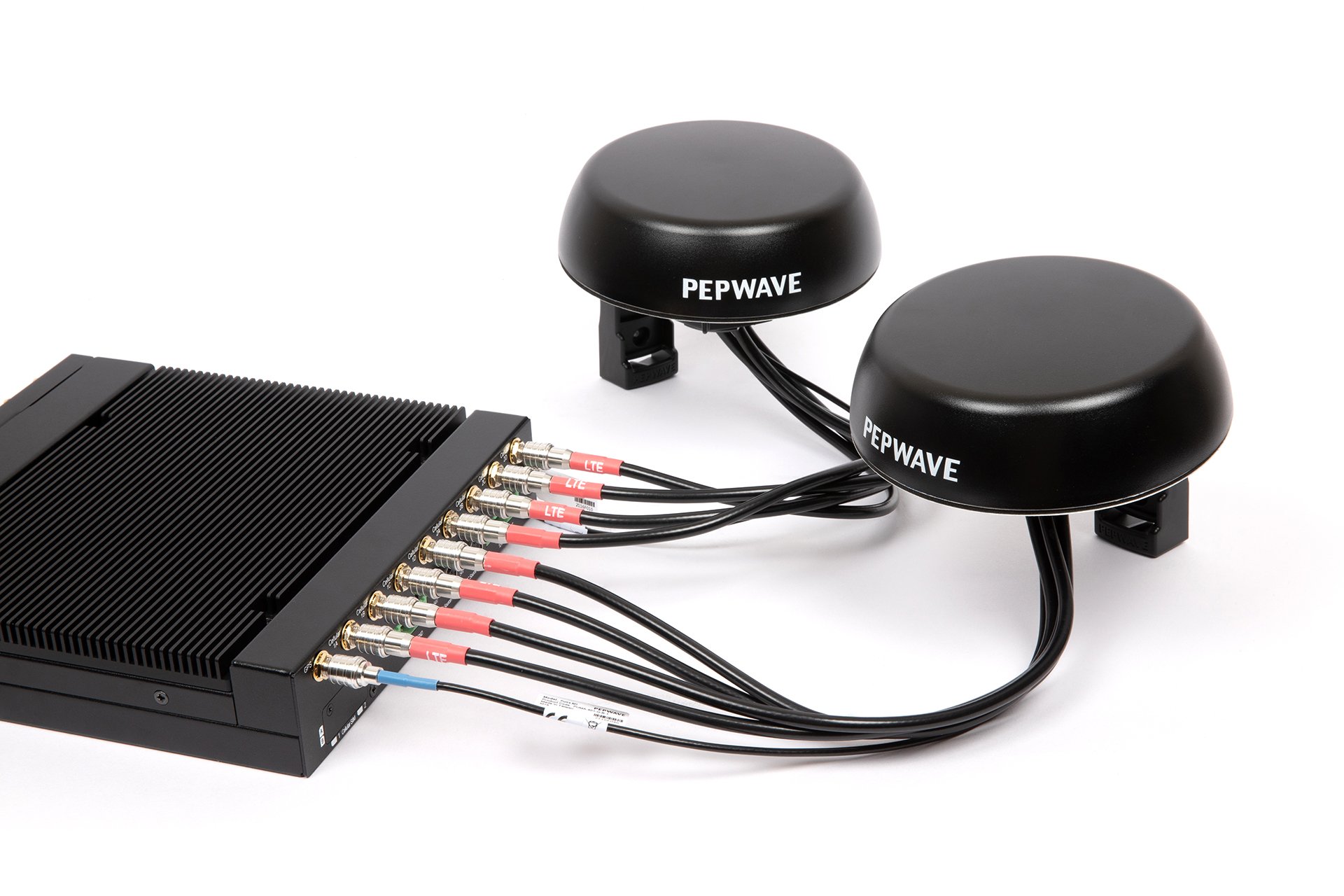

*Cellular antennas not included. To enhance the MBX Mini, Mobility and Maritime antennas are recommended.
