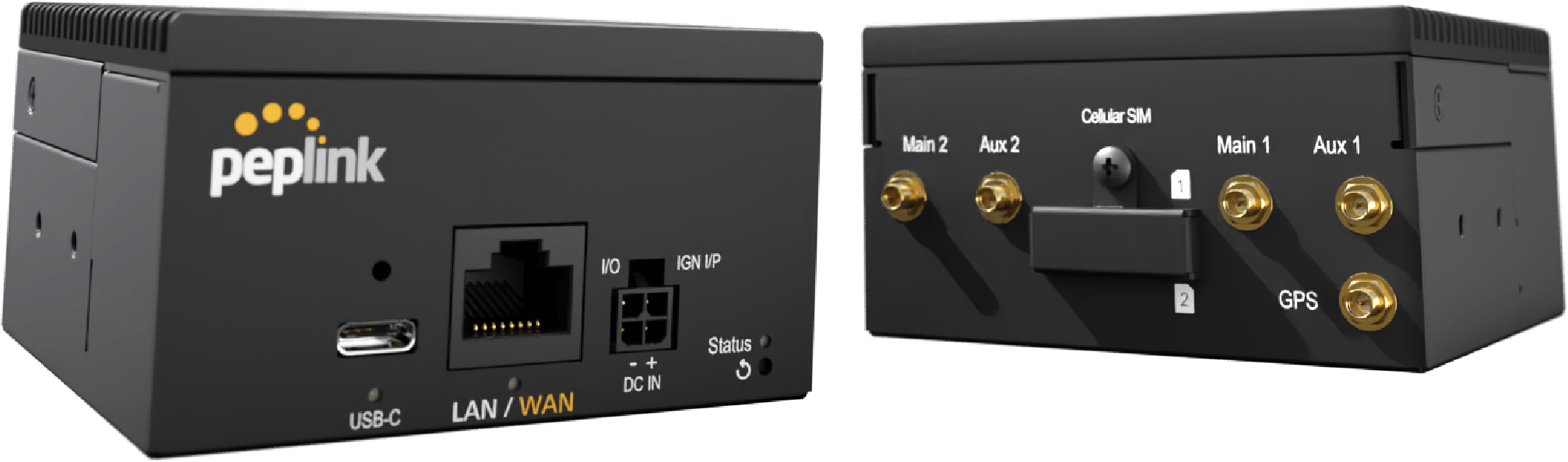

可能な限り小さなフットプリントで壊れないセルラー接続
デュアルセルラーモデム
内蔵ルーティング
高信頼性接続のためのSpeedFusion技術
ほぼどこにでも適合する信頼性の高いルーティング
3組のカードの束よりも小さいBR2 Microは、他のどこにも収まらない場所にぴったり収まります。
即時構成可能
内蔵eSIMにより、ゼロタッチのプロビジョニング、構成、管理が可能です。
リモートデバイス管理
Peplink InControlおよびInTouchは、事前に構成を設定する手間を省きます。

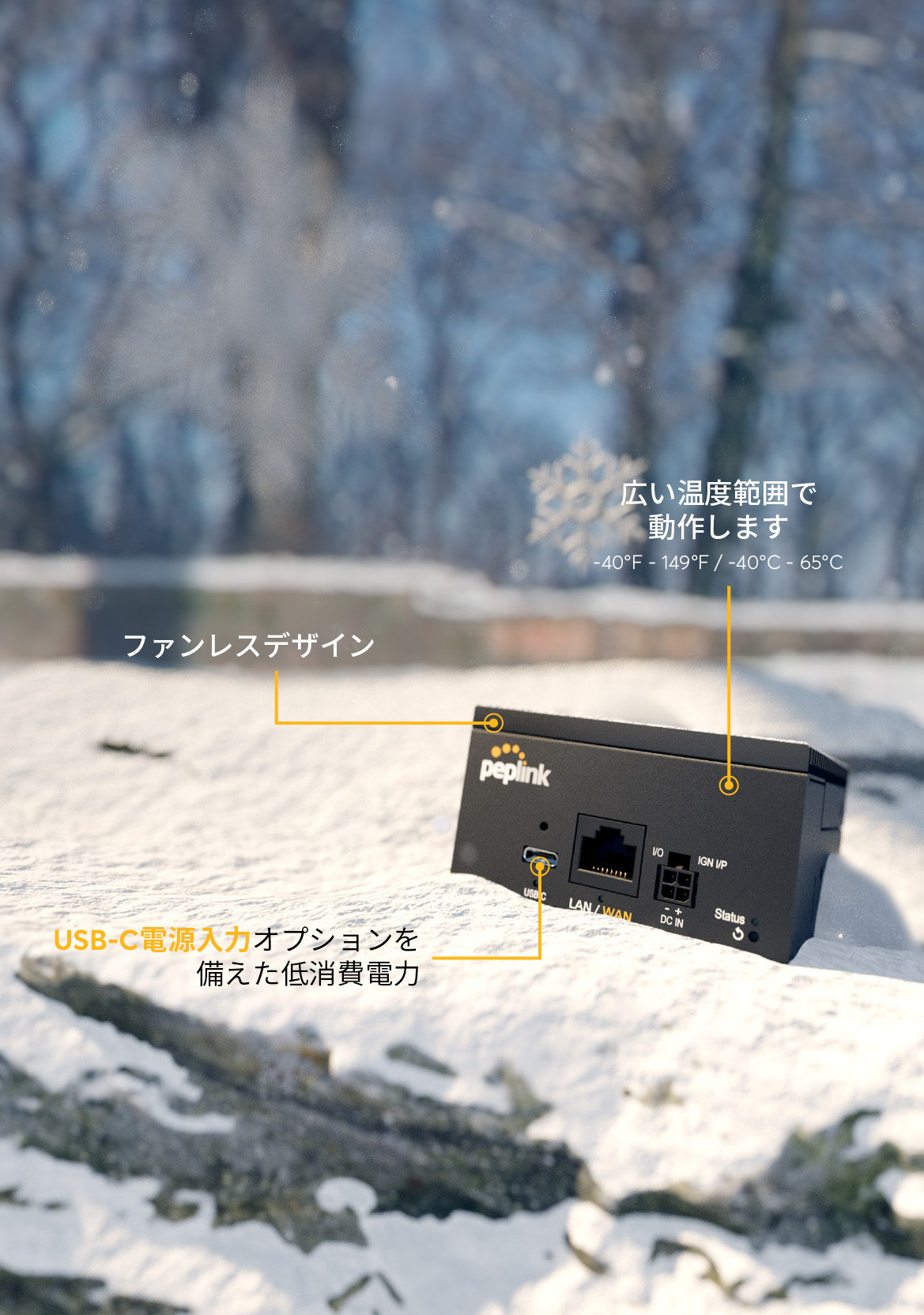

耐久性のある金属製エンクロージャ
柔軟で低消費電力のオプション付き
コスト効果が高く、大規模展開に対応可能

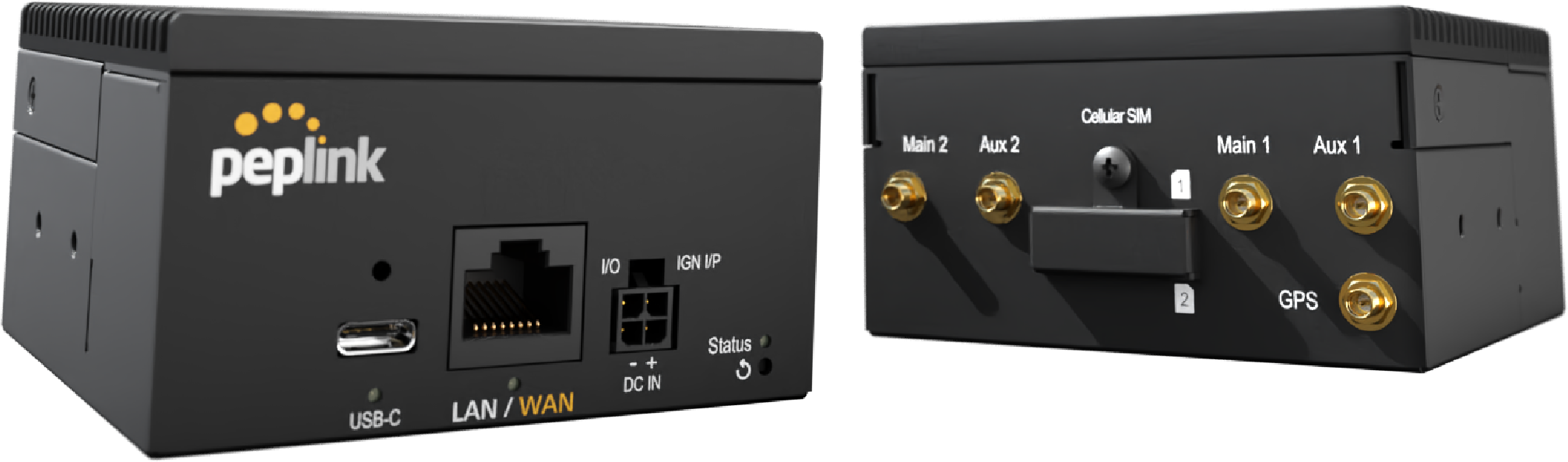

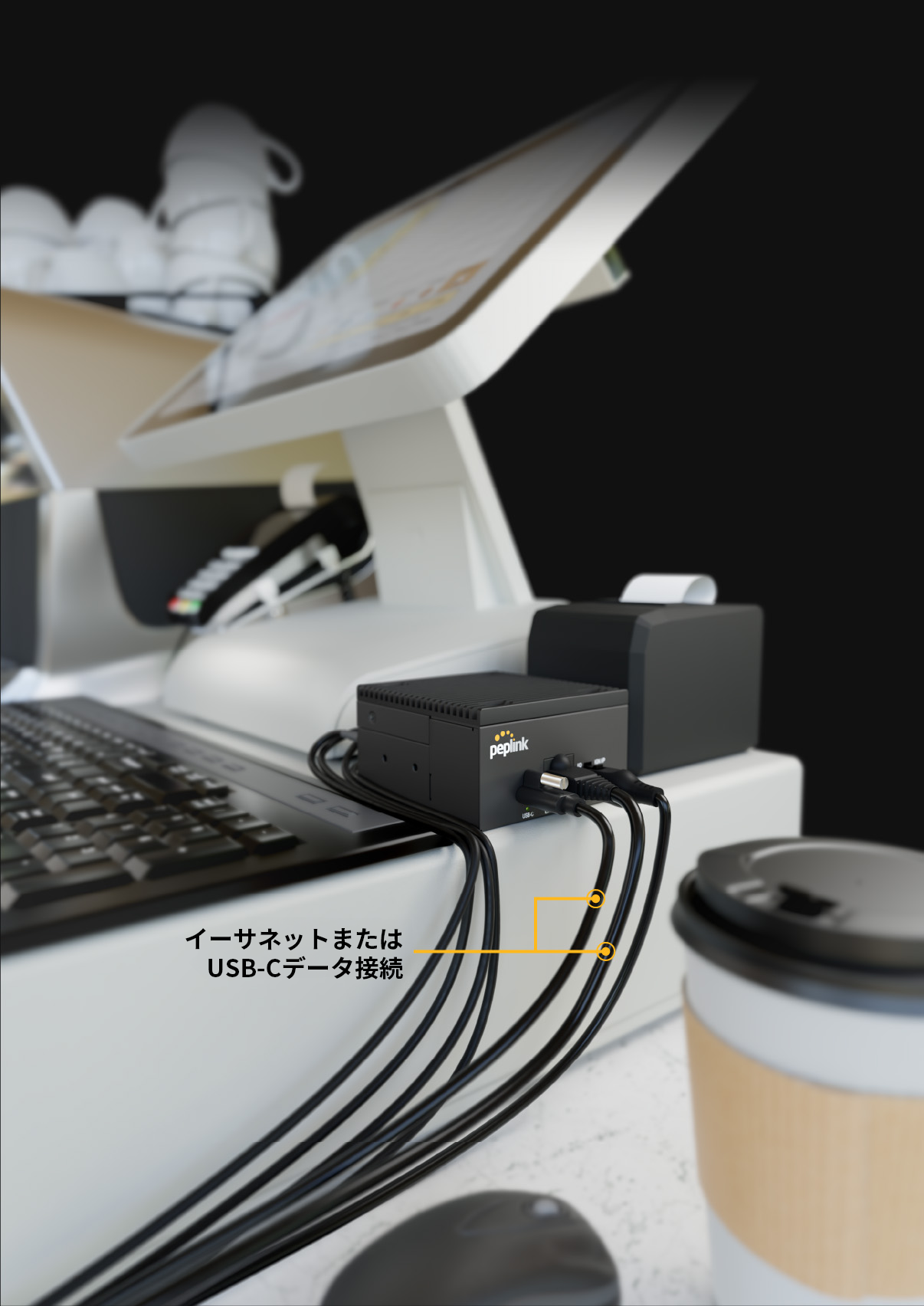

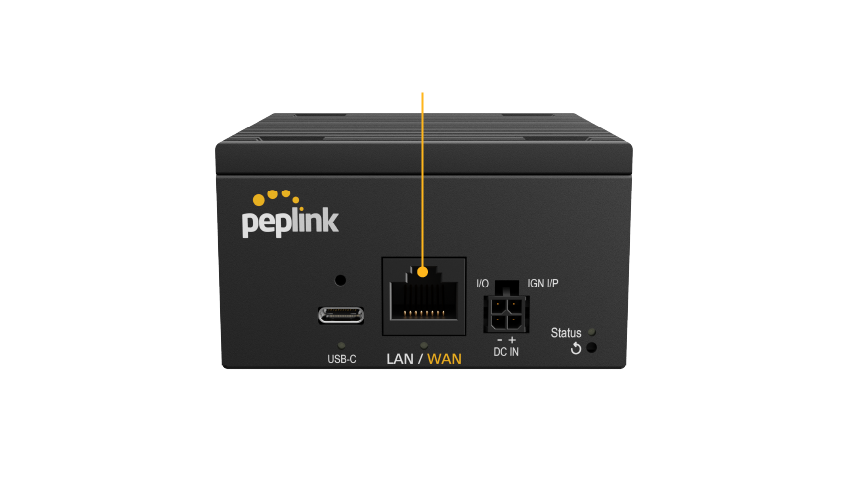

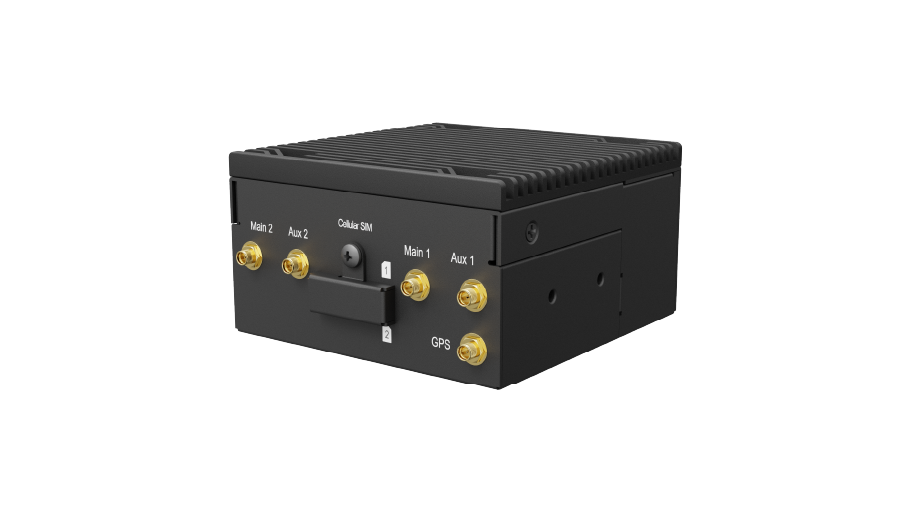

ポートと接続
製品概要と比較表
詳細情報
| Software | Peplink MAX Firmware |
|---|---|
| WAN | Support for PPPoE, Static IP, DHCP WAN Link Health Check Bandwidth Allowance Monitor Support for Dynamic DNS services |
| LAN | DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support |
| Load Balancing | Multiple Outbound Policy Algorithms • Weighted Balance • Priority • Overflow • Persistence • Least Used • Lowest Latency • Enforced • Fastest Response Time |
| Security | Stateful Firewall DoS Prevention Web Blocking |
| Complete VPN Solution | SpeedFusion VPN/SpeedFusion • Hot Failover • Site-to-Site VPN • 256-bit AES Encryption • Pre-shared Key Authentication • Dynamic Routing X.509 Certificate Support IPsec VPN (Network-to-Network) ^ |
| Advanced QoS | Individual Bandwidth Limit Application Prioritization • SIP, HTTPS, VPN QoS • Custom Application QoS |
| Global Positioning System | Integrated GPS Device Location Map Location Tracking Data with InControl 2 Fleet Management with InControl 2 |
| Networking | NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP |
| Captive Portal Support | Support for Wired LAN clients Support RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page |
| Device Management | Web Administrative Interface Command Line Interface InControl 2 Cloud Management Email Notification Active Client & Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3 |
注文情報
| Product Code | Embedded Modem | Region | LTE Bands | 3G Bands |
|---|---|---|---|---|
| MAX-BR2-MICRO-LTEA-Q-PRM | 2x CAT-12 | Global | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71 | B1, B2, B4, B5, B6, B8, B9, B19 |
| MAX-BR2-MICRO-LTEA-E-PRM | 2x CAT-7 | APAC, EMEA | B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43 | B1, B5, B8 |
| MAX-BR2-MICRO-LTE-US-PRM | 2x CAT-4 | North America* *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet | B2, B4, B5, B12, B13, B14, B66, B71 | B2, B4, B5 |
| MAX-BR2-MICRO-LTE-E-PRM | 2x CAT-4 | APAC, EMEA | B1, B3, B5, B7, B8, B20, B38, B40, B41 | B1, B5, B8 |
機能追加
| Product Code | Descriptions |
|---|---|
| PRM-B-1Y / PCP-B-1Y | PrimeCare B / PrimeCare+ B (1-Year) |
| PRM-B-2Y / PCP-B-2Y | PrimeCare B / PrimeCare+ B (2-Year) |
| PRM-B-4Y / PCP-B-4Y | PrimeCare B / PrimeCare+ B (4-Year) |
| ACW-634 | 10ft / 3m DC Power Cable |
| ACW-643 | Vehicle Cigarette to Molex Power Cable |
| ACW-791 | Peplink 4-Pin Molex to USB-C Power Cable |
| BR2-MICRO-ACW-KIT | BR2 Micro Accessory Kit • 4x 3m MMCX to SMA-F Magnetic Cellular Antenna Base (ACW-414) • 1x 5m MMCX Magnetic GPS Antenna (ACW-415) • 4x Cellular Antenna (ACW-237) |
パッケージ内容
- 1x BR2 Micro
- 1x 12V 2A 4 Pin Power Supply (ACW-632)
- 1x USB-C to USB-C Cable with Screw Locking (ACW-820)
- 1x USB-C to USB-A Adapter (ACW-822)
- 4x M2.5 x 3mm Screws
- 1 pair of Mounting Brackets
