5G Wireless SD-WAN

DC Rugged anchor DC IP55 anchor 5G wireless sd-wan 5G wireless sd-wan

Get Started on 5G with Peplink

Peplink, since its founding in 2006, has long focused on wireless SD-WAN technologies. Now, we are ready to propel customers into the 5G-era with a range of brand new flagships featuring an innovative modular platform architecture for different use cases.



EPX

Extreme Performance SD-WAN Platform

epx

SDX

Modular Enterprise Grade Router

sdx

HD4 MBX

Quad Cellular Gigabit LTE Mobile Powerhouse

mbx

PDX

Portable, Rapid Deployable SD-WAN

pdx

Applying SD-WAN Technology to 5G


Businesses and government agencies are adopting SD-WAN at a rapid pace to replace legacy WAN running on MPLS. In the mainstream enterprise market, SD-WAN is typically used to add broadband, DSL or mobile links to their existing connection. This enables organizations to increase the bandwidth of existing MPLS connections while providing a failover backup, all at substantial cost savings compared to directly upgrading the MPLS line to the same standard of bandwidth and reliability. Other typical features include WAN optimization, application-specific network rulesets and centralized control of branch network via cloud.

Peplink goes a step further than the above feature sets with our patented SpeedFusion technology. SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:


Untethered from fixed line

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines, such as rolling workplace with full access to multi-cloud and security services, HD video streaming and mobile clinic.

❶ Support multiple connectivity technologies
(e.g. cellular, Wi-Fi, satellite)

❷ Combined to form one logical WAN connection

❸ Establish unbreakable high-bandwidth SD-WAN connections

Unbreakable connectivity

SpeedFusion Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

❶ When a WAN link fails, SpeedFusion Hot Failover technology seamlessly routes traffic to a working tunnel

❷ Enables an uninterrupted connection while keeping your session intact

Unrivaled coverage

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

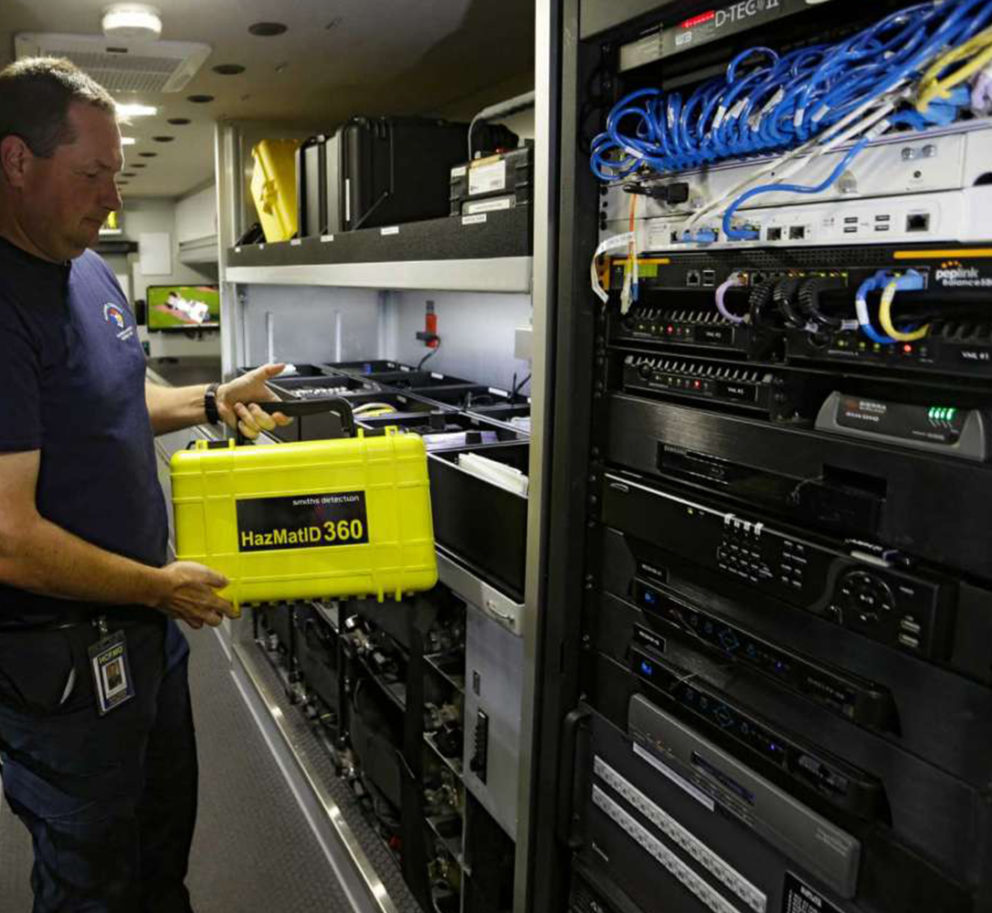

Public Safety applications

❶ Use Commercial LTE as backup to Public Safety LTE

❷ Combined networks for the best possible coverage

❸ Establish packet-level VPN security

In the coming years, 5G will bring connectivity to billions of devices outside the reach of any fixed line infrastructure. Furthermore, enterprises will increasingly move to a fixed + mobile network architecture to take advantage of the extreme bandwidth of 5G. Wireless SD-WAN with the capability to intelligently manage thousands of connected devices will become the key technology to power branch networks.


Connection Reliability vs Consistency

Reliable connections are not necessarily consistent connections. Although a connection may stay up, it can still suffer from significant packet loss. This results in jitter during VoIP and video streaming, disrupting important communications with lost sentences and distorted video. Peplink has developed technologies to combat the effects of packet loss: WAN Smoothing and Forward Error Correction.

WAN Smoothing

This Peplink technology duplicates packets. When packet loss occurs, the duplicated packets replace the lost packets. This technology is best suited to two-way communications such as VoIP or video conferencing.

Forward Error Correction (FEC)

This Peplink technology generates reserve packets. When packet loss occurs, FEC uses the information within the reserve packets to extrapolate the lost data. This technology is best suited to one-way video streaming.
