Quick Start Guide
Multi Starlink Setup with Peplink

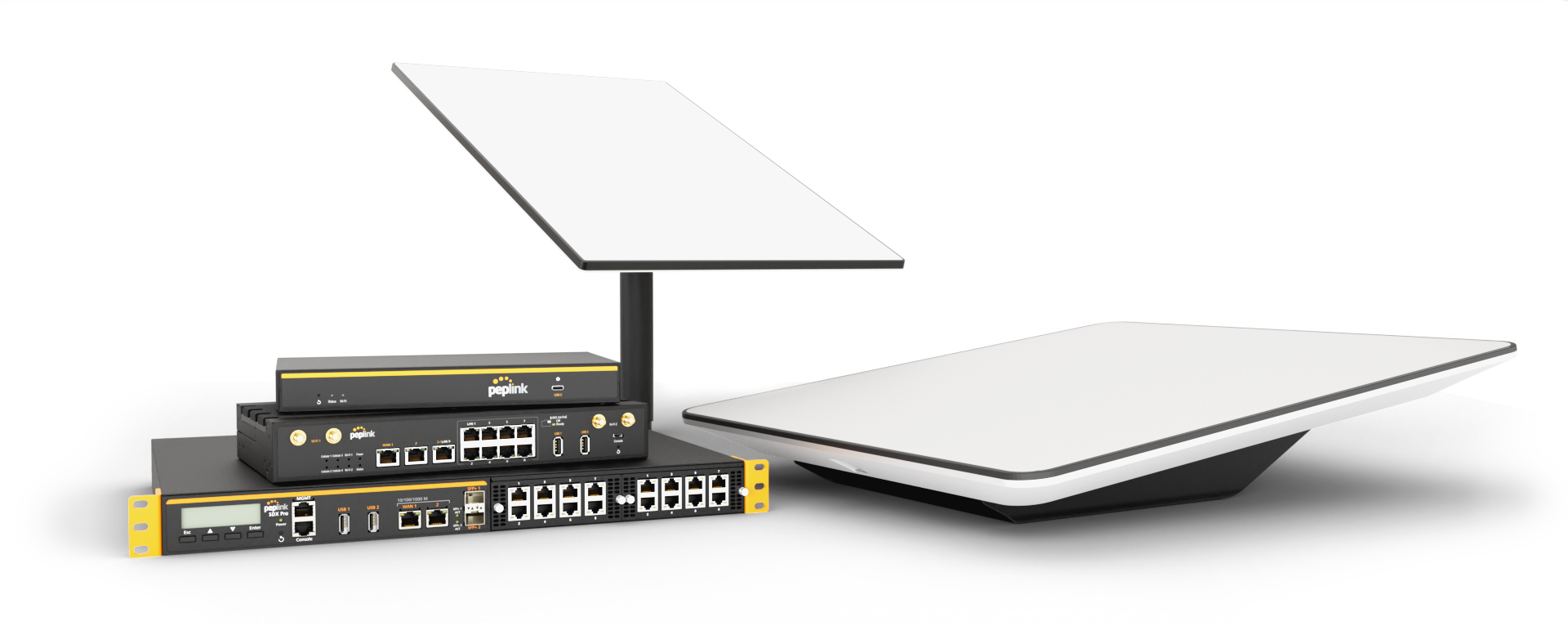

Example Hardware Options
1 Other Kit types that include a Starlink Router or integrated Wi-Fi may be used but routers must be placed in bypass mode per: What is bypass mode?.
1 – 3 Starlinks
3 – 6 Starlinks
6 – 18 Starlinks
2 Other models may be used, consult an Authorized Starlink & Peplink Solution Provider for customization.
Installation Guide
-
Perform Starlink installation per the respective guide:
-
Follow best practices per Considerations for installing Multiple Starlinks in close proximity
-
Connect each Starlink to a WAN port3 on the Peplink Router using the Starlink included Ethernet Cable
3 LAN ports can be configured as WAN ports – covered in “Router Initial Setup and Configuration”.
Router Initial Setup and Configuration
4 Require Firmware 8.3.0 or above.
-

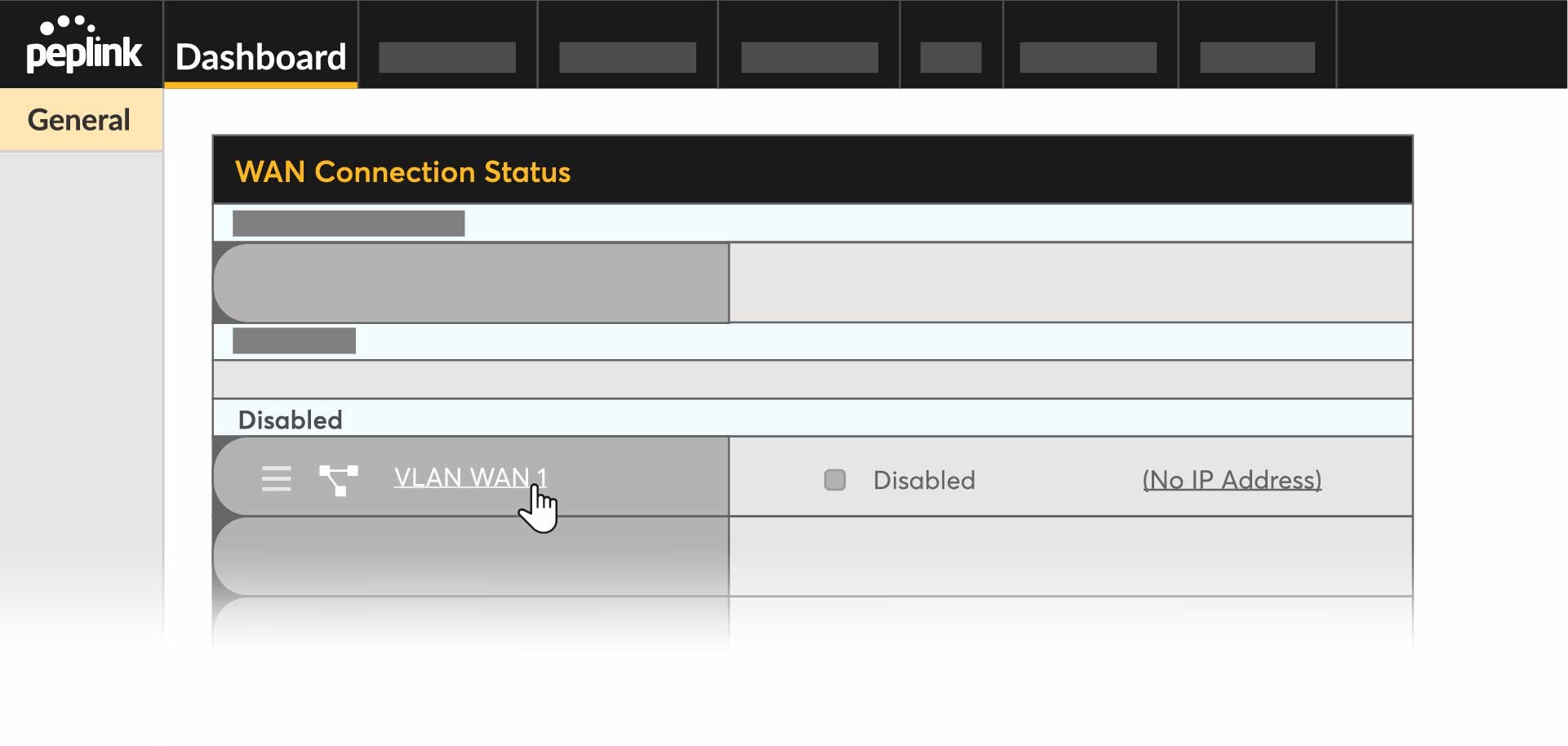

Access the Web Admin of your device. Select VWAN WAN1 or equivalent.
-

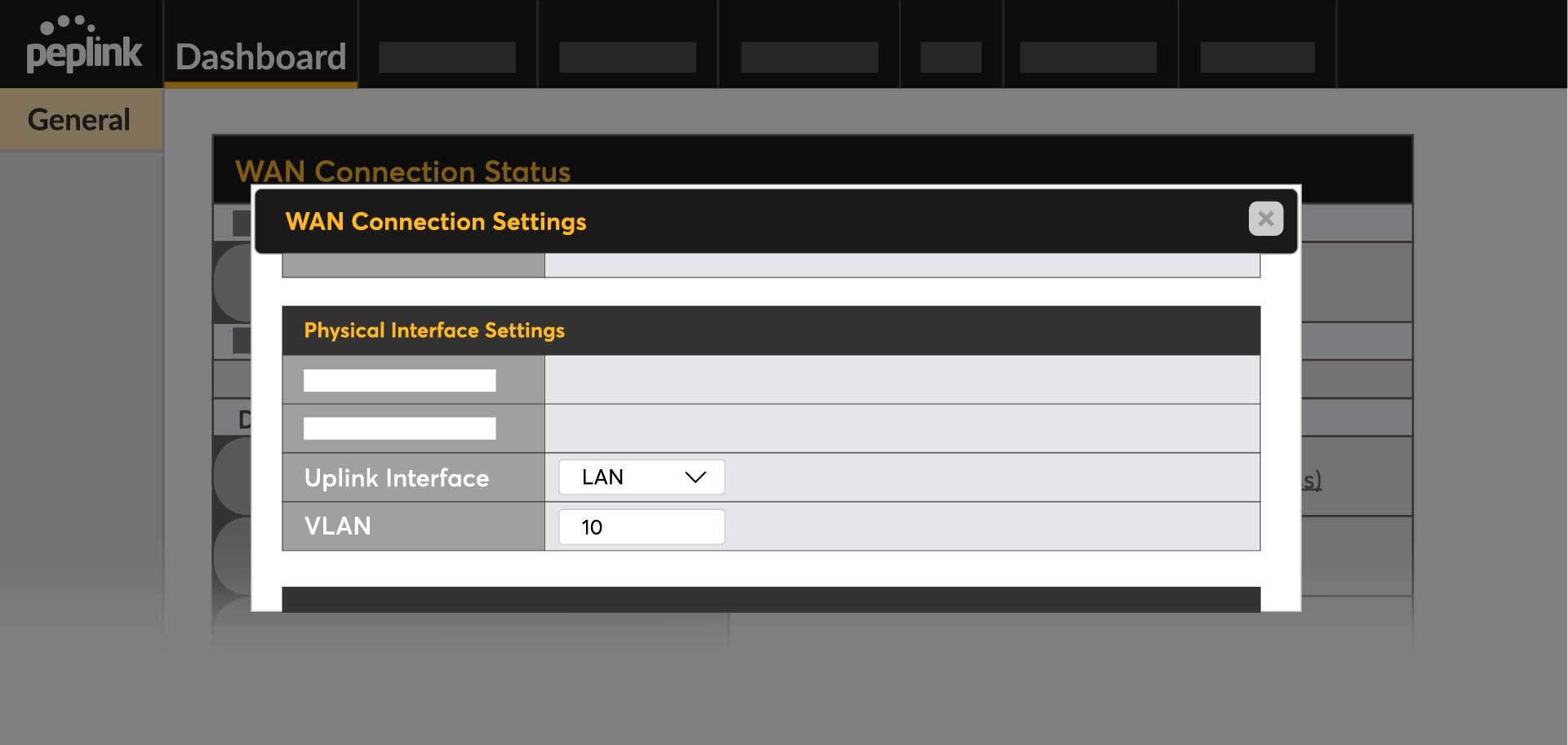

Under Physical Interface Settings, change Uplink Interface to LAN. Enter a unique VLAN for the Virtual WAN connection (eg: VLAN 10).
-

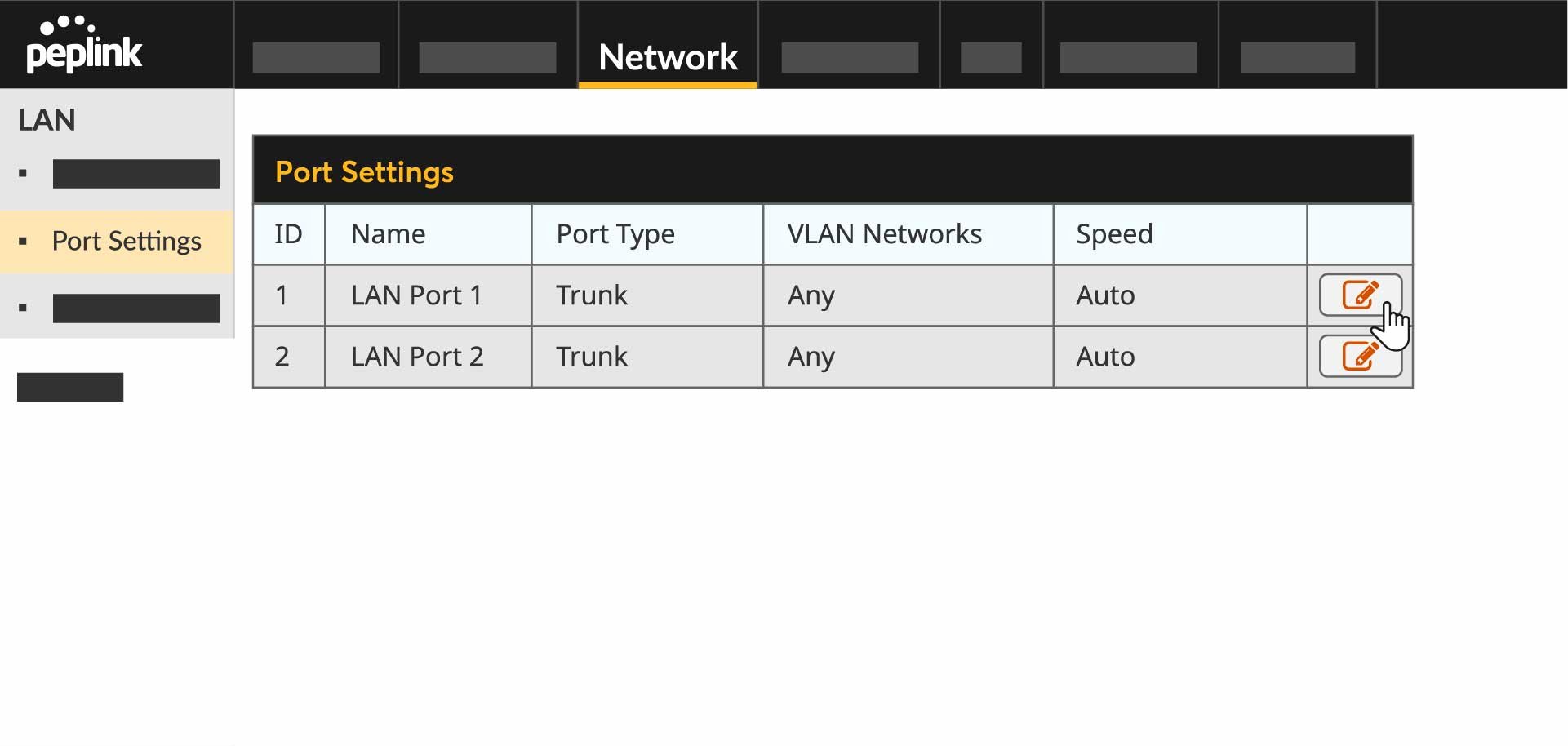

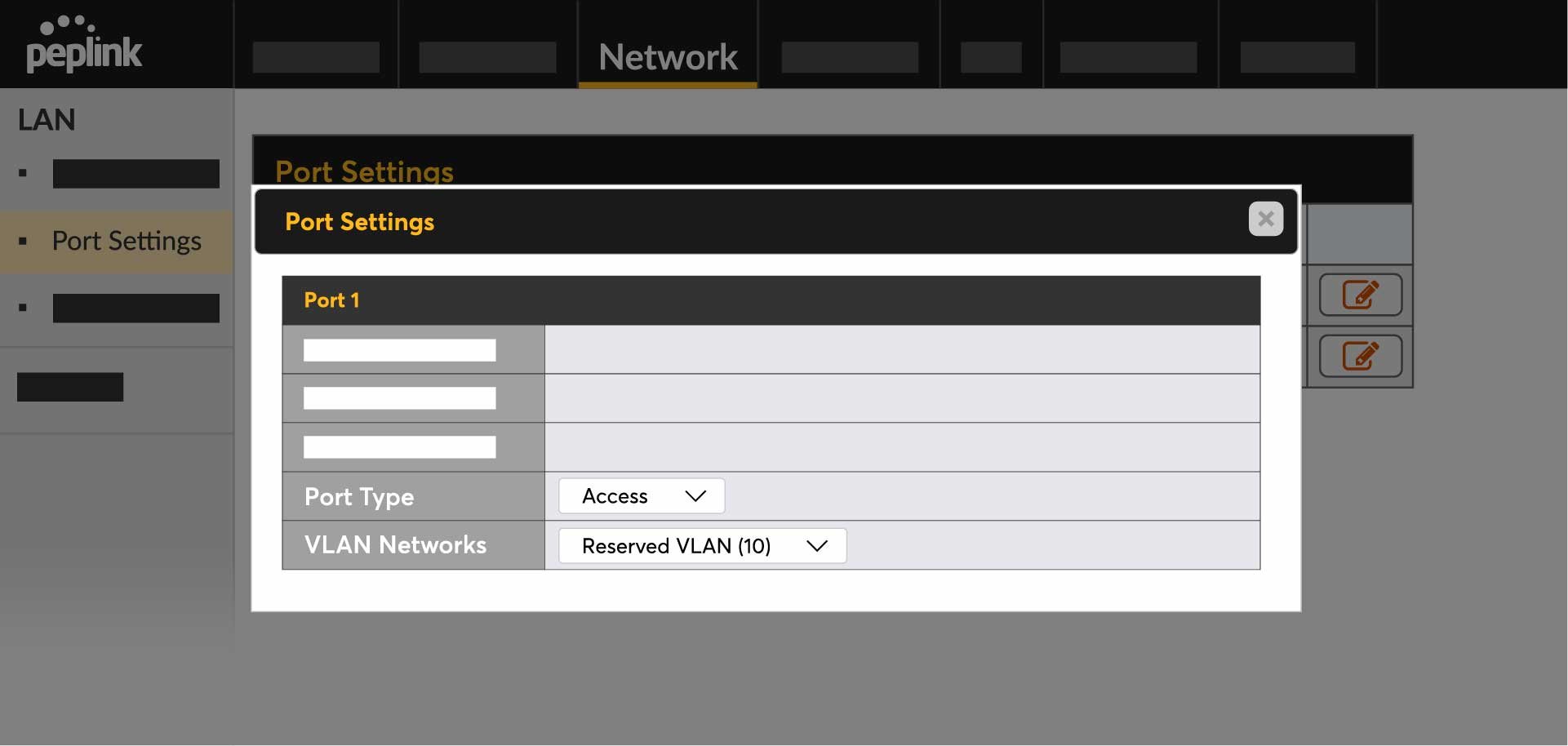

Go to Network > Port Settings > Selected the targeted port for Virtual WAN connection >
.
-
Configure the Port type as the “Access Port”. Choose the previously entered VLAN in the last step (eg: VLAN 10) and save changes.
-

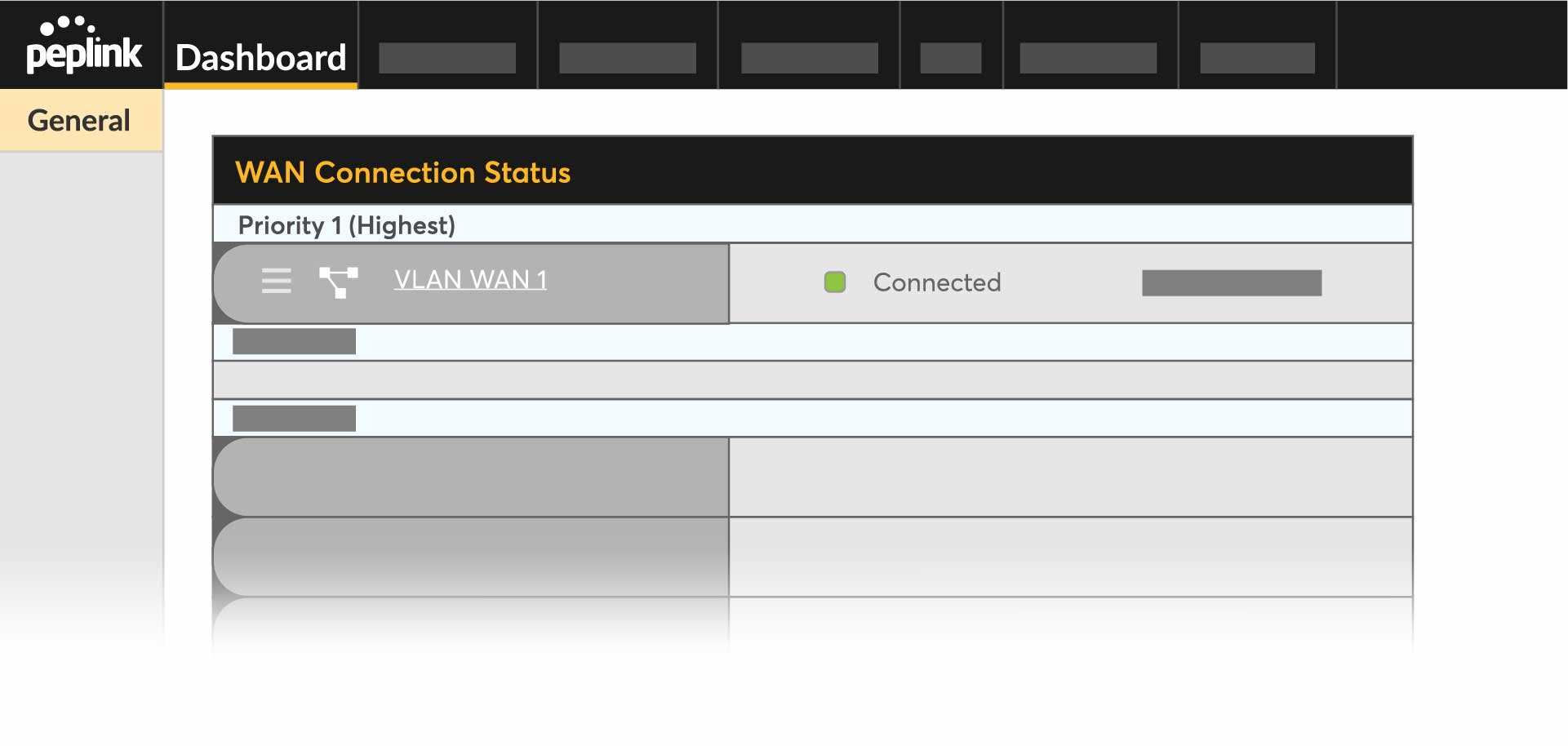

Check the WAN connection of Virtual WAN on the Dashboard page.
-

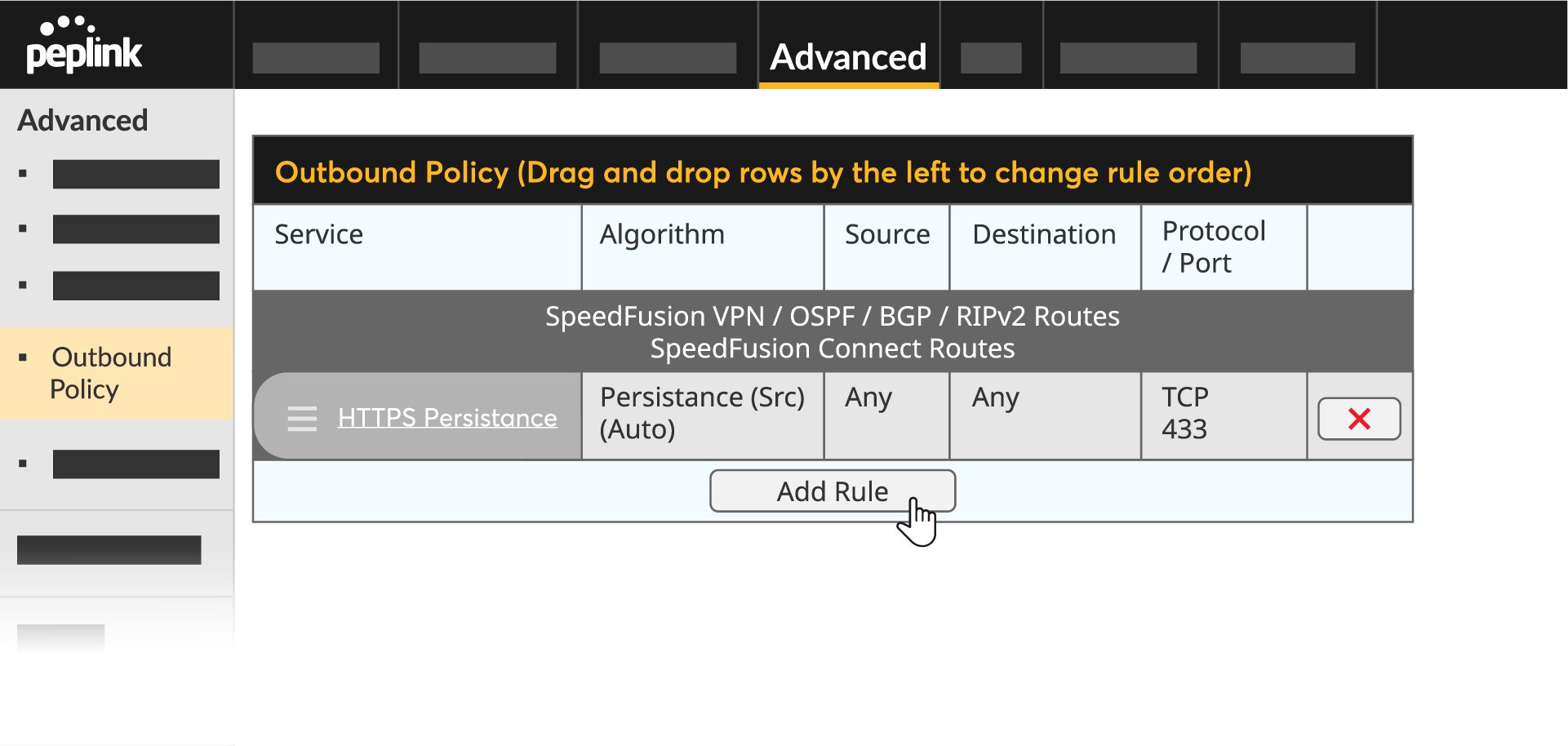

Go to Advanced > Outbound Policy > Add Rule.
-

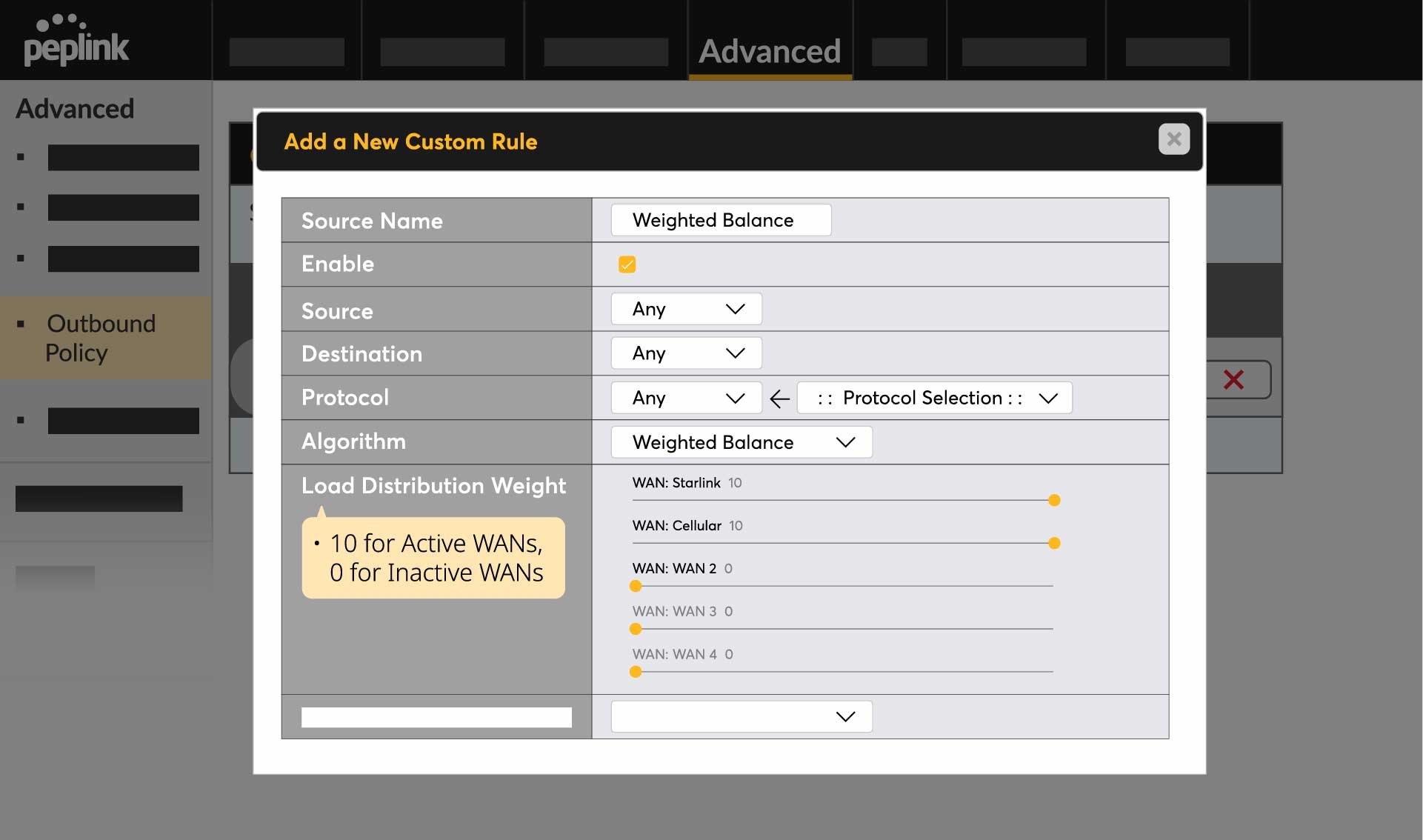

The Weighted Balance outbound policy should be set as follows:
Verification Testing
-

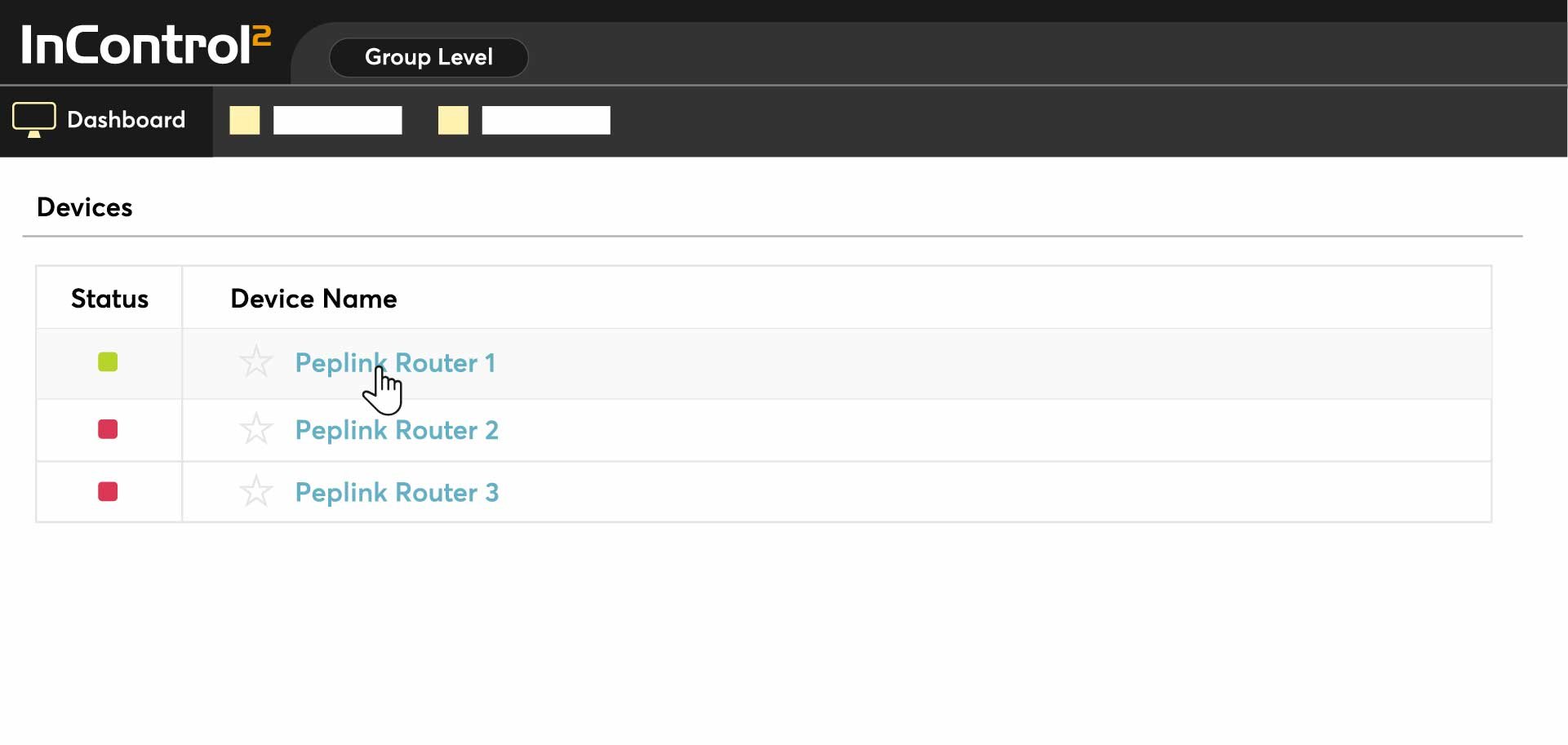

Select the router that is connected to Starlink.
-

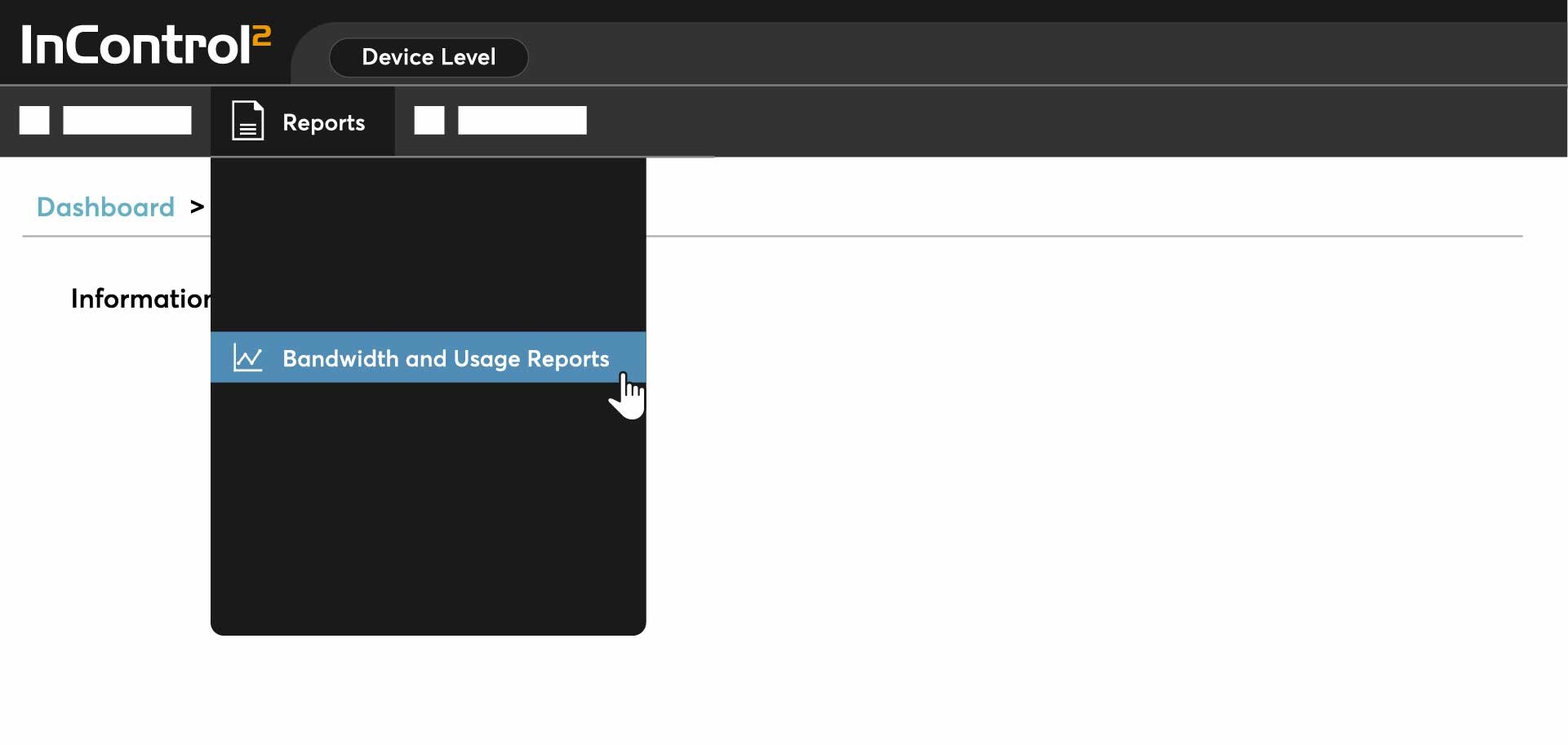

Go to Reports > Bandwidth and Usage Reports.
-

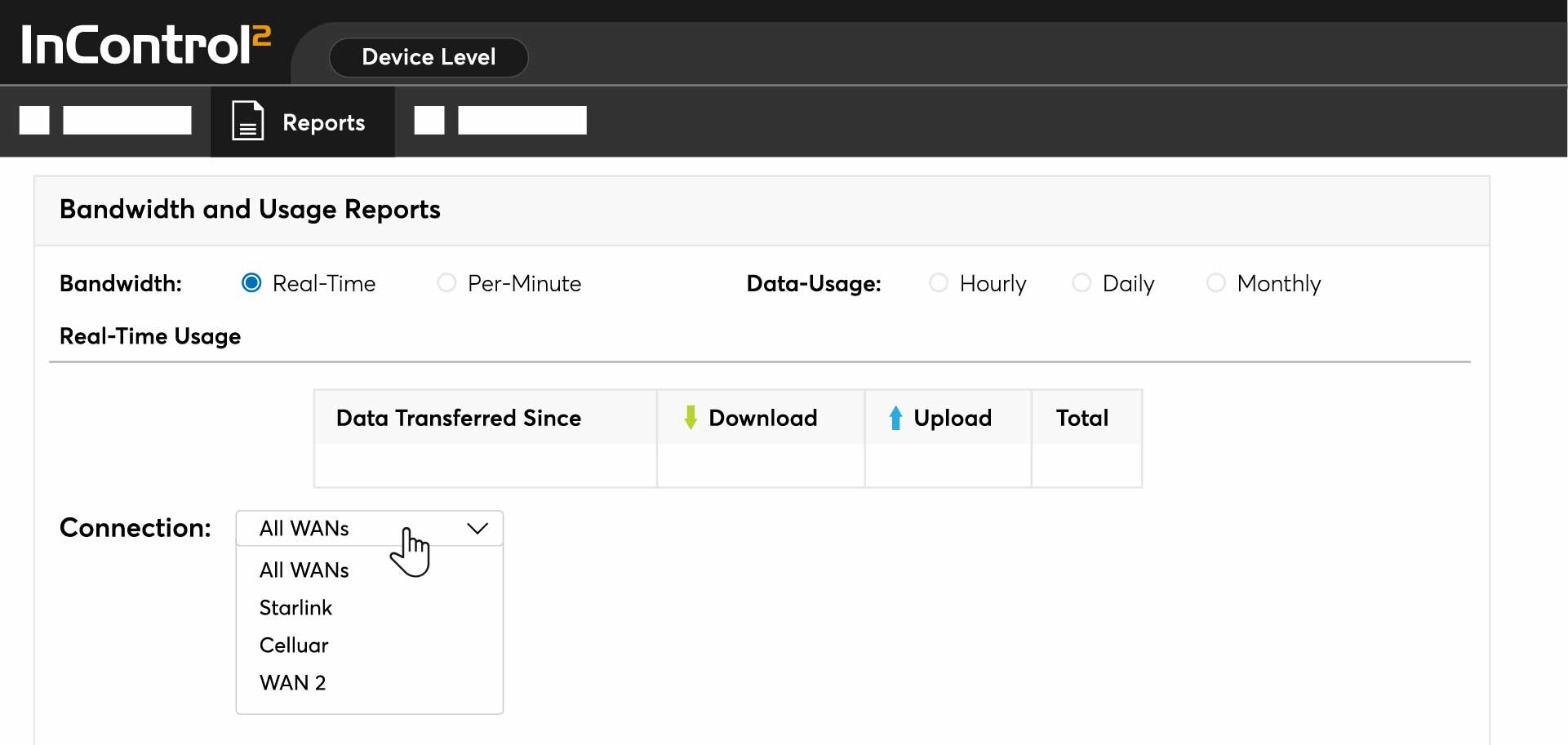

Check the bandwidth and usage for each active WAN.
-

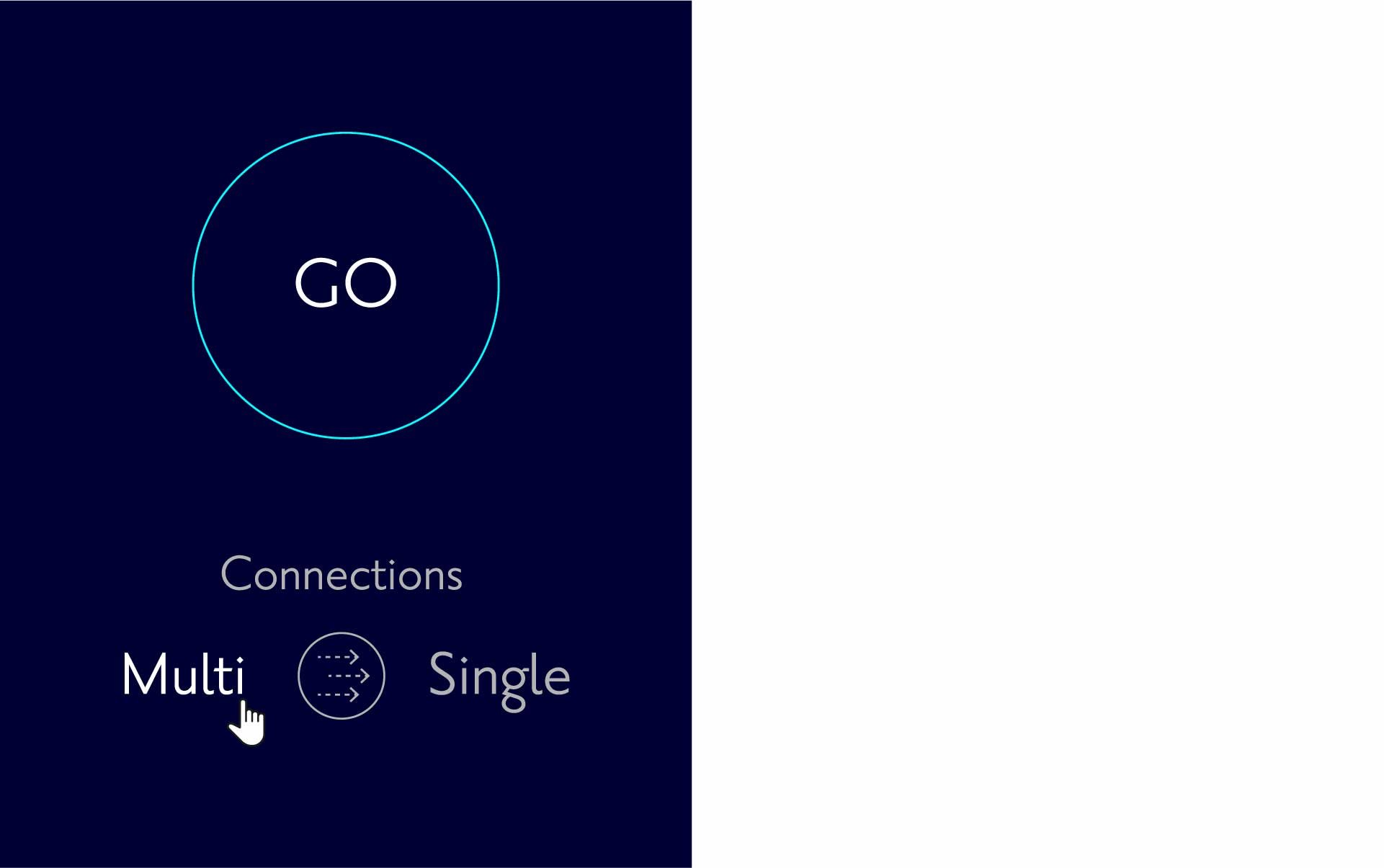

Select “Multi”5 Connections.
5 The “Single” connection speed test will restrict throughput to a signle and random WAN connection, while the“Multi” connection test will show the performance across all active WAN connections.
