MAX BR1 Slim

Compact, Rugged & Portable Single Cellular Router

The MAX BR1 Slim is compact (1.1 x 3.8 x 4.8 inches), and tough enough for any deployment. It offers advanced features such as GPS fleet tracking, terminal block power capability, and remote management. With USB power inputs, you can plug in a power bank and take it anywhere.

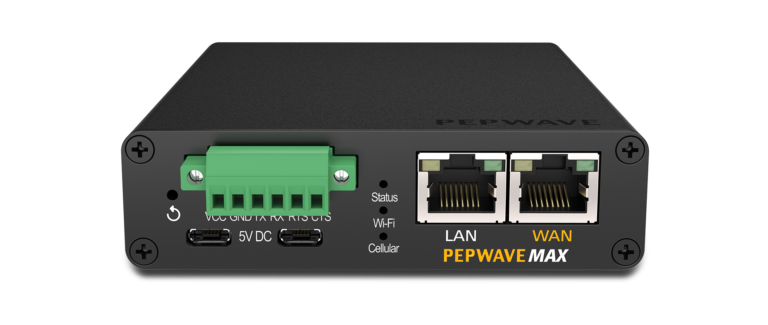

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #9

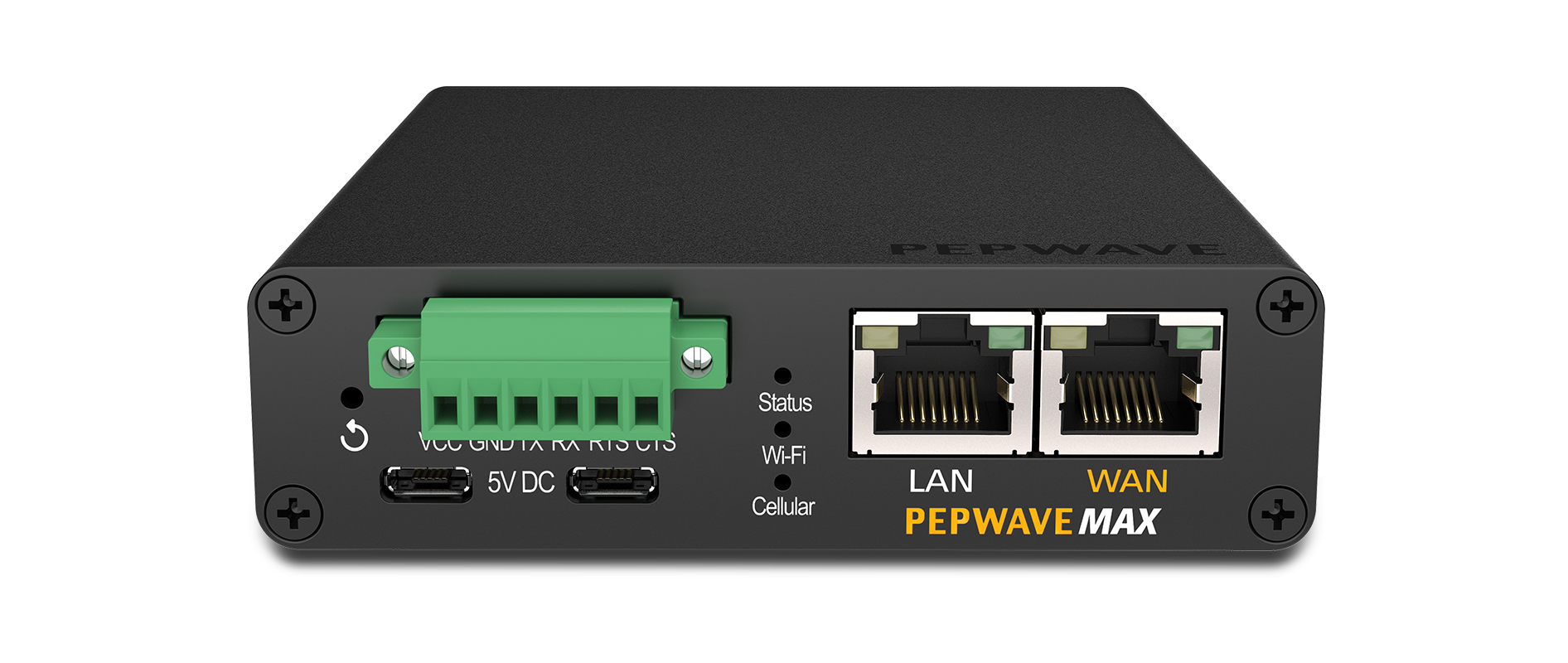

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #9
Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #2

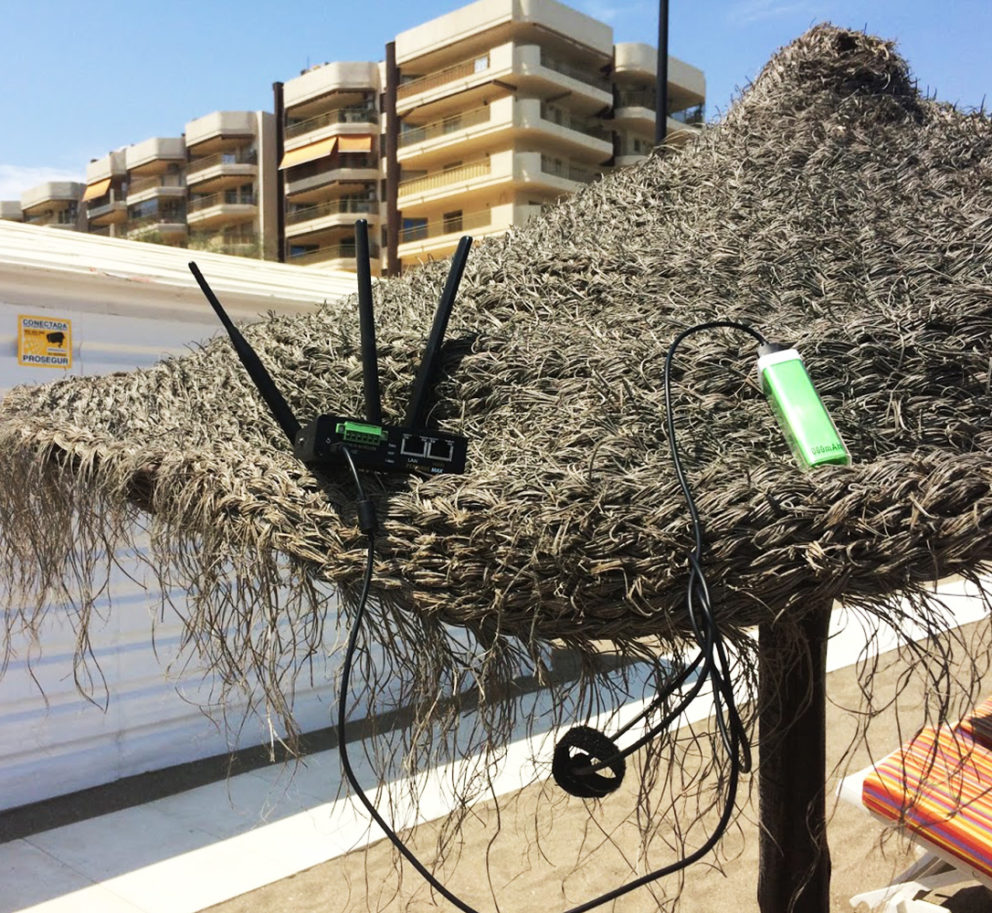

Portable 4G LTE Connectivity

The MAX BR1 Slim gives you full-featured mobile connectivity in a package that measures just 1.1 x 3.8 x 4.8 inches. Its rugged metal enclosure stands up to moisture, dust, and vibration. It gives you and your devices, such as surveillance camera, LTE connectivity anywhere.

Use Cases

In-Vehicle Deployments

Real Time Video Streaming

Public Safety

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

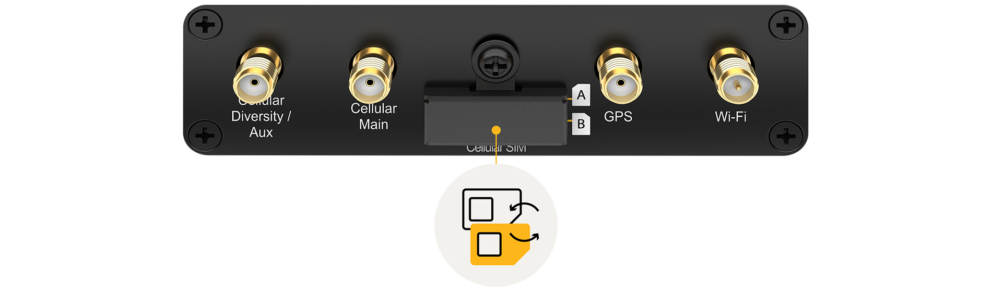

Redundant SIM Slots for Multiple Carriers

Redundant SIM slots with automatic switching for reliable network. You can also set the MAX BR1 Slim to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you to travel across the borders without changing SIM cards manually.

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #5

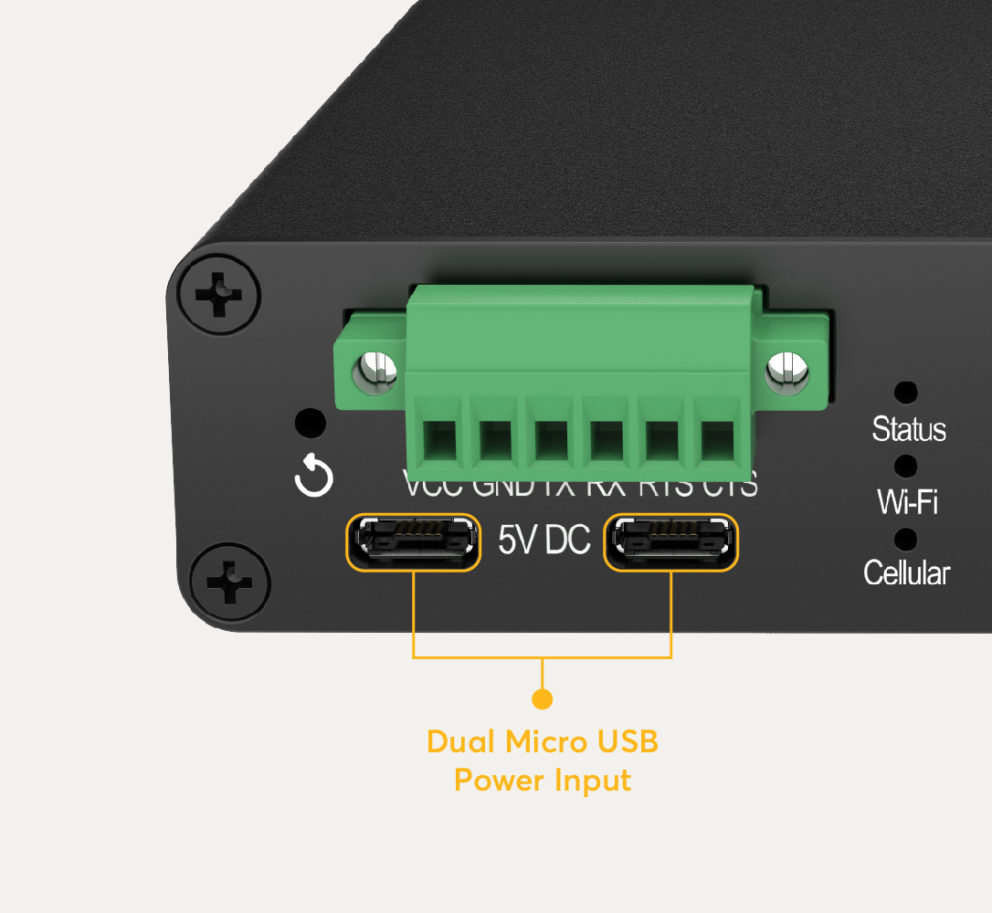

Dual Micro USB Power Input

Connect one of the two built-in 5V micro USB ports to a 10000mAh power bank for up to 7 hours of operation. Running low on power? Connect a second power bank before disconnecting the first for uninterrupted networking.

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #6

Terminal Block for Secure Power Supply

The MAX BR1 Slim is equipped with a terminal block for secure power installation in vehicles and other locations.

There is More

We specialize in making complicated technologies simple.  Achieve what others cannot with the following.

Fleet Tracking
Captive Portal
Hot Failover

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #7





Fleet Tracking and Management





Track and manage your fleet from anywhere. With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #8





Customizable Captive Portal





Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.

Setup a Social Wi-Fi Hotspot to receive valuable demographic data from your users.

Compact, Rugged 4G LTE Mobile Router MAX BR1 Slim #9





SpeedFusion Hot Failover





In case of a WAN failure, SpeedFusion technology powers the MAX BR1 Slim for instant failover, giving you reliable internet connectivity and resources access to datacenter.

  • WAN Interface1x Embedded LTE-A Modem with Redundant SIM Slot
    LAN Interface1x FE
    Wi-Fi Interface802.11b/g/n 150Mbps Wi-Fi WAN or AP
    PepVPNYes
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingYes
    Number of PepVPN SpeedFusion Peers2/5 *
    PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES)40 Mbps / 20 Mbps
    Router Throughput100 Mbps
    Recommended Users60
    LTE ModemDownlink/Uplink Datarate: 100Mbps/50Mbps
    LTE-A ModemDownlink/Uplink Datarate: 300Mbps/50Mbps
    Cellular and GPS Antenna Connector2x SMA Cellular Antenna Connector
    1x SMA GPS Antenna Connector
    1x RP-SMA Wi-Fi Antenna Connector
    802.1q VLANs Supported16
    Drop-in ModeYes
    IP PassthroughYes
    WAN as LANYes
    Web BlockingYes
    Web Filtering BlacklistLite
    Power InputMicro USB 5V 2A/Terminal Block: 10V – 24V DC
    Power Consumption10W (max.)
    Dimensions1.1 x 3.8 x 4.8 inches |
    27 x 97 x 120 mm

    Weight0.8 pound | 350 grams
    Operating Temperature-40° – 149°F |
    -40° – 65°C
    Certifications -FCC, CE, RoHS, E-Mark, IC
    -EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance
    -EN 50155: Railway Applications
    -EN 61000: Electromagnetic Compatibility

    Warranty1-Year Limited Warranty



    * 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.

    ^ Sold Separately.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port

    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionPepVPN/SpeedFusion
    -Hot Failover
    -Site-to-Site VPN
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    -X.509 Certificate Support *
    IPsec VPN (Network-to-Network) ^
    -X.509 Certificate Support *
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS

    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    Captive Portal SupportSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    *Feature is available as an upgrade.

    ^ IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

  •

    Product Code

    Product Name Description
    MAX-BR1-ADV   Advanced Feature Pack

        Package includes a software license key for Advanced Car-Fi Roaming; and SpeedFusion and IPsec X.509 Certificate Support

    PVN-LC-05

        PepVPN License Key for Velocity and BR1 family

    Enables up to 5 PepVPN peers



    • MAX BR1 Slim
    • 1x 5dBi Wi-Fi Antenna
    • 1x GPS Antenna
    • 2x 2dBi 4G LTE Antennas (4G LTE)
  • Product CodeRegion | CarrierEmbedded Modem 4G Bands3G Bands
    MAX-BR1-Slim-LTE-E-TEurope/International
    14G LTE: B1, B3, B5, B7, B8, B20,
    B38 (TDD), B40(TDD), B41 (TDD)
    WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B8
